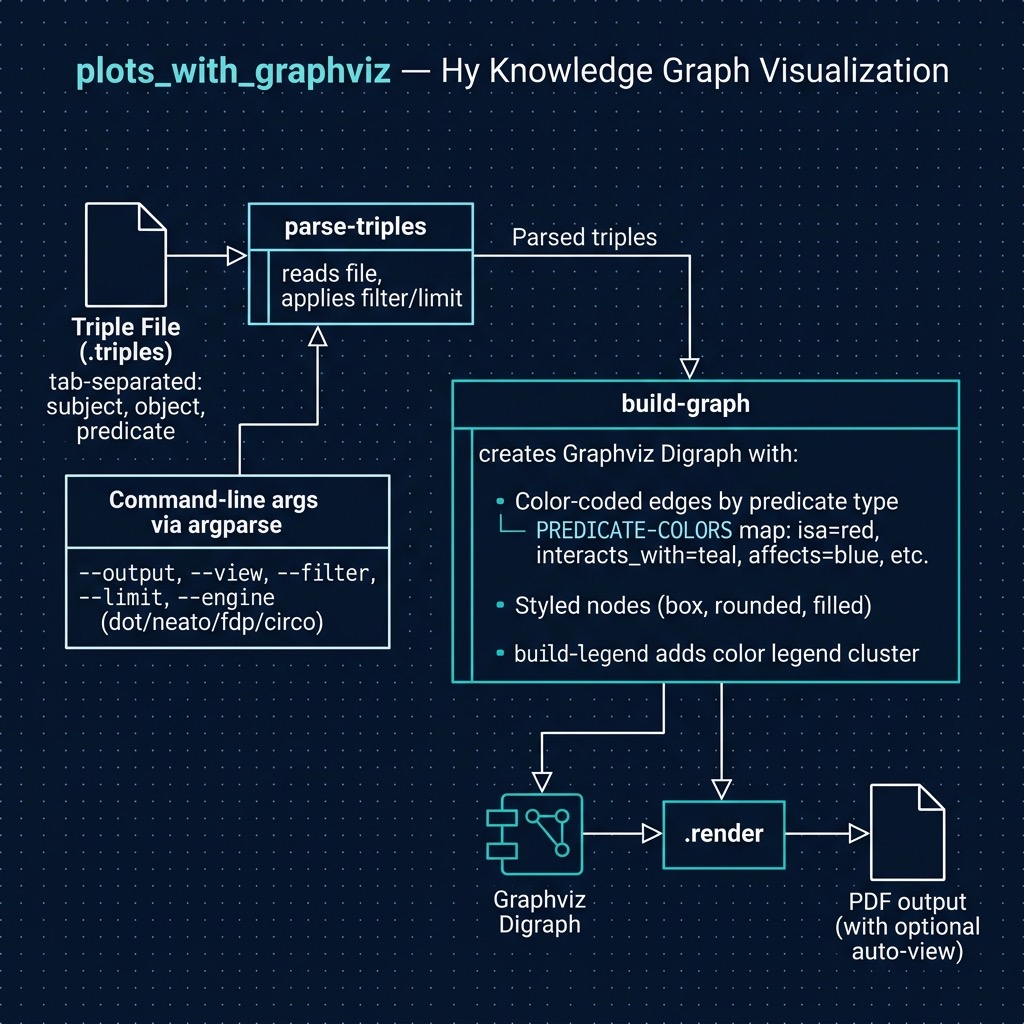

Knowledge Graph Visualization with Hy and GraphViz

This chapter demonstrates a practical Hy application that parses UMLS (Unified Medical Language System) RDF triples and generates visual knowledge graphs. You’ll learn how to process structured data, build command-line interfaces, and create visualizations—all using Hy’s elegant Lisp syntax.

What This Program Does

The UMLS_graph.hy script:

  1. Parses triple files - Tab-separated files with subject, object, and predicate columns
  2. Builds directed graphs - Creates visual representations of relationships
  3. Color-codes edges - Different predicates get different colors for easy identification
  4. Generates PDF output - Uses Graphviz for professional-quality renderings

The Input Data Format

The program reads .triples files with this format:

1 subject	object	predicate

Example from test.triples:

1 steroid             eicosanoid          interacts_with
2 clinical_attribute  conceptual_entity   isa
3 neoplastic_process  disease_or_syndrome isa

Each line represents a relationship: “steroid interacts_with eicosanoid”, “clinical_attribute isa conceptual_entity”, etc.

Complete Annotated Source Code

 1 #!/usr/bin/env hy
 2 ;; UMLS RDF Triple Graph Visualizer
 3 ;;
 4 ;; Renders a directed graph from tab-separated triple files (subject, object, predic\
 5 ate).
 6 ;;
 7 ;; Usage:
 8 ;;   hy UMLS_graph.hy [OPTIONS] [input_file]
 9 ;;
10 ;; Options:
11 ;;   -o, --output NAME    Output file name (default: umls_graph)
12 ;;   -v, --view           Auto-open the generated PDF
13 ;;   -f, --filter PRED    Filter by predicate type (e.g., interacts_with)
14 ;;   -l, --limit N        Limit to first N triples
15 ;;   -e, --engine ENGINE  Layout engine: dot, neato, fdp, circo (default: dot)
16 ;;
17 ;; Examples:
18 ;;   hy UMLS_graph.hy test.triples
19 ;;   hy UMLS_graph.hy -v -l 50 test.triples
20 ;;   hy UMLS_graph.hy --filter isa --engine neato test.triples -o isa_graph
21
22 (import sys
23         argparse
24         graphviz [Digraph])

Imports and Module Structure

The import statement in Hy follows Python’s import semantics but with Lisp syntax:

1 (import sys
2         argparse
3         graphviz [Digraph])

This is equivalent to Python’s:

1 import sys
2 import argparse
3 from graphviz import Digraph

The square brackets [Digraph] extract a specific name from the graphviz module.

Defining Constants with setv

 1 ;; Color palette for predicates (maps predicate types to colors)
 2 (setv PREDICATE-COLORS
 3   {"isa" "#FF6B6B"              ; red for hierarchy
 4    "interacts_with" "#4ECDC4"   ; teal for interactions
 5    "affects" "#45B7D1"          ; blue
 6    "causes" "#96CEB4"           ; green
 7    "part_of" "#FFEAA7"          ; yellow
 8    "location_of" "#DDA0DD"      ; purple
 9    "treats" "#98D8C8"           ; mint
10    "result_of" "#F7DC6F"        ; gold
11    "process_of" "#BB8FCE"       ; lavender
12    "produces" "#85C1E9"         ; light blue
13    "disrupts" "#E74C3C"         ; dark red
14    "complicates" "#F39C12"      ; orange
15    "manifestation_of" "#1ABC9C" ; turquoise
16    "degree_of" "#95A5A6"        ; gray
17    "adjacent_to" "#E67E22"})    ; dark orange

Key Hy concepts:

  • setv - Binds a value to a variable (equivalent to Python’s assignment)
  • {} - Dict literals use curly braces
  • ; - Comments start with semicolons
  • Hyphenated names like PREDICATE-COLORS become PREDICATE_COLORS in Python

Defining Functions with defn

1 (defn get-predicate-color [predicate]
2   "Return color for predicate, or default gray if not mapped"
3   (.get PREDICATE-COLORS predicate "#CCCCCC"))

Anatomy of a function definition:

  1. defn - The function definition macro
  2. get-predicate-color - Function name (becomes get_predicate_color in Python)
  3. [predicate] - Parameter list in square brackets
  4. "Return color..." - Optional docstring (recommended!)
  5. (.get PREDICATE-COLORS predicate "#CCCCCC") - The function body

Method call syntax: The . macro in Hy has two forms:

  • (.obj method args) - Call obj.method(args)
  • (. obj method args) - Alternative form (less common)

Here (.get PREDICATE-COLORS predicate "#CCCCCC") calls the dict’s get method.

List Comprehensions with lfor

The parse-triples function showcases Hy’s powerful lfor macro:

 1 (defn parse-triples [filepath limit filter-pred]
 2   "Parse triple file, return filtered list of (subject object predicate) tuples"
 3   (with [f (open filepath "r")]
 4     (setv triples (lfor line (.readlines f)
 5                         :setv tokens (.split (.strip line))
 6                         :if (= (len tokens) 3)
 7                         :setv [subj obj pred] tokens
 8                         :if (or (not filter-pred) (= pred filter-pred))
 9                         (tuple [subj obj pred])))
10     ;; Apply limit if specified
11     (if limit
12       (cut triples 0 limit)
13       triples)))

Breaking down the lfor:

1 (lfor line (.readlines f)           ; iterate over lines
2       :setv tokens (.split (.strip line))  ; bind intermediate value
3       :if (= (len tokens) 3)         ; filter: only 3-token lines
4       :setv [subj obj pred] tokens   ; destructure the tokens
5       :if (or (not filter-pred) (= pred filter-pred))  ; filter by predicate
6       (tuple [subj obj pred]))       ; result expression

Python equivalent:

1 triples = []
2 for line in f.readlines():
3     tokens = line.strip().split()
4     if len(tokens) == 3:
5         subj, obj, pred = tokens
6         if not filter_pred or pred == filter_pred:
7             triples.append((subj, obj, pred))

Key lfor clauses:

Clause Purpose Example
:setv Bind intermediate values :setv x (calculate y)
:if Filter elements :if (> x 10)
:for Nested iteration :for x items
:when Conditional processing :when (valid? x)

Context Managers with with

1 (with [f (open filepath "r")]
2   ;; f is available here
3   ;; file is automatically closed when exiting scope
4   (setv triples (lfor ...)))

The with statement in Hy uses square brackets for the binding:

1 (with [resource (create-resource)]
2   ;; use resource
3   )

Building the Graph

 1 (defn build-graph [triples engine]
 2   "Build graphviz Digraph from list of triples with color-coded edges"
 3   (setv g (Digraph :comment "UMLS Knowledge Graph"
 4                    :format "pdf"
 5                    :engine engine))
 6
 7   ;; Graph-level attributes for better layout (using keyword args)
 8   (.attr g :rankdir "LR" :splines "true" :overlap "false"
 9            :fontsize "10" :fontname "Helvetica")
10   (.attr g "node" :shape "box" :style "rounded,filled" :fillcolor "#E8F4FD"
11            :fontsize "10" :fontname "Helvetica")
12   (.attr g "edge" :fontsize "8" :fontcolor "gray40" :fontname "Helvetica"
13            :arrowsize "0.7")
14   ...)

Keyword arguments in Hy:

  • Use :keyword value syntax for keyword arguments
  • :comment "UMLS Knowledge Graph" passes comment="UMLS Knowledge Graph" to Python

F-String Syntax

1 (print f"Reading triples from {args.input_file}...")
2 (print f"Parsed {(len triples)} triples with {(len unique-nodes)} unique nodes")

Hy f-strings require parentheses around expressions:

1 f"value: {(len items)}"        ; Note parentheses around (len items)

Exception Handling

1 (try
2   (setv triples (parse-triples args.input_file args.limit args.filter))
3   (except [e FileNotFoundError]
4     (print f"Error: File '{args.input_file}' not found")
5     (sys.exit 1))
6   (except [e Exception]
7     (print f"Error parsing file: {e}")
8     (sys.exit 1)))

Hy try/except syntax:

1 (try
2   body-expressions...
3   (except [ExceptionTypeName as variable-name]
4     handler-expressions...))

Conditional Execution with when

1 (when (= (len triples) 0)
2   (if args.filter
3     (print f"Error: No triples found matching predicate '{args.filter}'")
4     (print "Error: No triples found"))
5   (sys.exit 1))

when is a convenient single-branch conditional—execute body only if condition is true.

The Main Entry Point

1 (when (= __name__ "__main__")
2   (main))

This is equivalent to Python’s:

1 if __name__ == "__main__":
2     main()

Running the Program

Basic Usage

 1 # Using default settings
 2 uv run hy UMLS_graph.hy test.triples
 3
 4 # Specify output file
 5 uv run hy UMLS_graph.hy -o my_graph test.triples
 6
 7 # Limit to 50 triples
 8 uv run hy UMLS_graph.hy -l 50 test.triples
 9
10 # Filter by predicate type
11 uv run hy UMLS_graph.hy --filter isa test.triples
12
13 # Use different layout engine
14 uv run hy UMLS_graph.hy --engine neato test.triples
15
16 # Auto-open the PDF
17 uv run hy UMLS_graph.hy -v test.triples

Layout Engine Options

Engine Best For
dot Hierarchical layouts (default)
neato Force-directed, unconstrained graphs
fdp Force-directed placement
circo Circular layouts

Project Setup

The pyproject.toml defines dependencies:

 1 [project]
 2 name = "UMLS-Graph"
 3 version = "0.1.0"
 4 requires-python = ">=3.10"
 5 dependencies = [
 6     "hy",
 7     "graphviz",
 8 ]
 9
10 [build-system]
11 requires = ["hatchling"]
12 build-backend = "hatchling.build"

Install with:

1 uv sync

Key Hy Concepts Demonstrated

Concept Hy Syntax Python Equivalent
Variable binding (setv x 10) x = 10
Function definition (defn name [args] body) def name(args): body
Method calls (.obj method args) obj.method(args)
List comprehension (lfor x items expr) [expr for x in items]
F-strings f"value: {(len x)}" f"value: {len(x)}"
Dictionary {"key" value} {"key": value}
Try/except (try body (except [E as e] handle)) try: body except E as e: handle
With statement (with [r (create)] body) with create() as r: body
Conditionals (when condition body) if condition: body

Practice Exercises

  1. Add a new predicate color - Extend PREDICATE-COLORS with a new mapping
  2. Export to SVG - Modify the format to support SVG output
  3. Count statistics - Add a summary showing predicate frequencies
  4. Node filtering - Add an option to filter by subject or object name

Summary

This chapter demonstrated a real-world Hy application that:

  • Parses structured data files with list comprehensions
  • Builds command-line interfaces with argparse
  • Creates visualizations with the graphviz library
  • Handles errors gracefully with try/except
  • Uses idiomatic Hy patterns throughout

The combination of Lisp’s elegance and Python’s ecosystem makes Hy ideal for data processing and visualization tasks. This example scales from dozens to thousands of triples while maintaining readable, maintainable code.
