Implementing Health And Damage

I know you have been waiting for this. We will be implementing health system and most importantly, damage. Soo we will be ready to blow shit up.

To implement this, we need to:

  1. Add TankHealth component. Start with 100 health.
  2. Render tank health next to tank itself.
  3. Inflict damage to tank when it is in explosion zone
  4. Render different sprite for dead tank.
  5. Cut off player input when tank is dead.

Adding Health Component

If we didn’t have Component system in place, it would be way more difficult. Now we just kick in a new class:

07-damage/entities/components/tank_health.rb

 1 class TankHealth < Component
 2   attr_accessor :health
 3
 4   def initialize(object, object_pool)
 5     super(object)
 6     @object_pool = object_pool
 7     @health = 100
 8     @health_updated = true
 9     @last_damage = Gosu.milliseconds
10   end
11
12   def update
13     update_image
14   end
15
16   def update_image
17     if @health_updated
18       if dead?
19         text = '✝'
20         font_size = 25
21       else
22         text = @health.to_s
23         font_size = 18
24       end
25       @image = Gosu::Image.from_text(
26           $window, text,
27           Gosu.default_font_name, font_size)
28       @health_updated = false
29     end
30   end
31
32   def dead?
33     @health < 1
34   end
35
36   def inflict_damage(amount)
37     if @health > 0
38       @health_updated = true
39       @health = [@health - amount.to_i, 0].max
40       if @health < 1
41         Explosion.new(@object_pool, x, y)
42       end
43     end
44   end
45
46   def draw(viewport)
47     @image.draw(
48       x - @image.width / 2,
49       y - object.graphics.height / 2 -
50       @image.height, 100)
51   end
52 end

It hooks itself into the game right away, after we initialize it in Tank class:

class Tank < GameObject
  attr_accessor :health
  # ...
  def initialize(object_pool, input)
    # ...
    @health = TankHealth.new(self, object_pool)
    # ..
  end
  # ..
end

Inflicting Damage With Bullets

There are two ways to inflict damage - directly and indirectly. When bullet hits enemy tank (collides with tank bounding box), we should inflict direct damage. It can be done in BulletPhysics#check_hit method that we already had:

class BulletPhysics < Component
  # ...
  def check_hit
    @object_pool.nearby(object, 50).each do |obj|
      next if obj == object.source # Don't hit source tank
      if Utils.point_in_poly(x, y, *obj.box)
        # Direct hit - extra damage
        obj.health.inflict_damage(20)
        object.target_x = x
        object.target_y = y
        return
      end
    end
  end
  # ...
end

Finally, Explosion itself should inflict additional damage to anything that are nearby. The effect will be diminishing and it will be determined by object distance.

class Explosion < GameObject
  # ...
  def initialize(object_pool, x, y)
    # ...
    inflict_damage
  end

  private

  def inflict_damage
    object_pool.nearby(self, 100).each do |obj|
      if obj.class == Tank
        obj.health.inflict_damage(
          Math.sqrt(3 * 100 - Utils.distance_between(
              obj.x, obj.y, x, y)))
      end
    end
  end
end

This is it, we are ready to deal damage. But we want to see if we actually killed somebody, so TankGraphics should be aware of health and should draw different set of sprites when tank is dead. Here is what we need to change in our current TankGraphics to achieve the result:

class TankGraphics < Component
  # ...
  def initialize(game_object)
    super(game_object)
    @body_normal = units.frame('tank1_body.png')
    @shadow_normal = units.frame('tank1_body_shadow.png')
    @gun_normal = units.frame('tank1_dualgun.png')
    @body_dead = units.frame('tank1_body_destroyed.png')
    @shadow_dead = units.frame('tank1_body_destroyed_shadow.png')
    @gun_dead = nil
  end

  def update
    if object.health.dead?
      @body = @body_dead
      @gun = @gun_dead
      @shadow = @shadow_dead
    else
      @body = @body_normal
      @gun = @gun_normal
      @shadow = @shadow_normal
    end
  end

  def draw(viewport)
    @shadow.draw_rot(x - 1, y - 1, 0, object.direction)
    @body.draw_rot(x, y, 1, object.direction)
    @gun.draw_rot(x, y, 2, object.gun_angle) if @gun
  end
  # ...
end

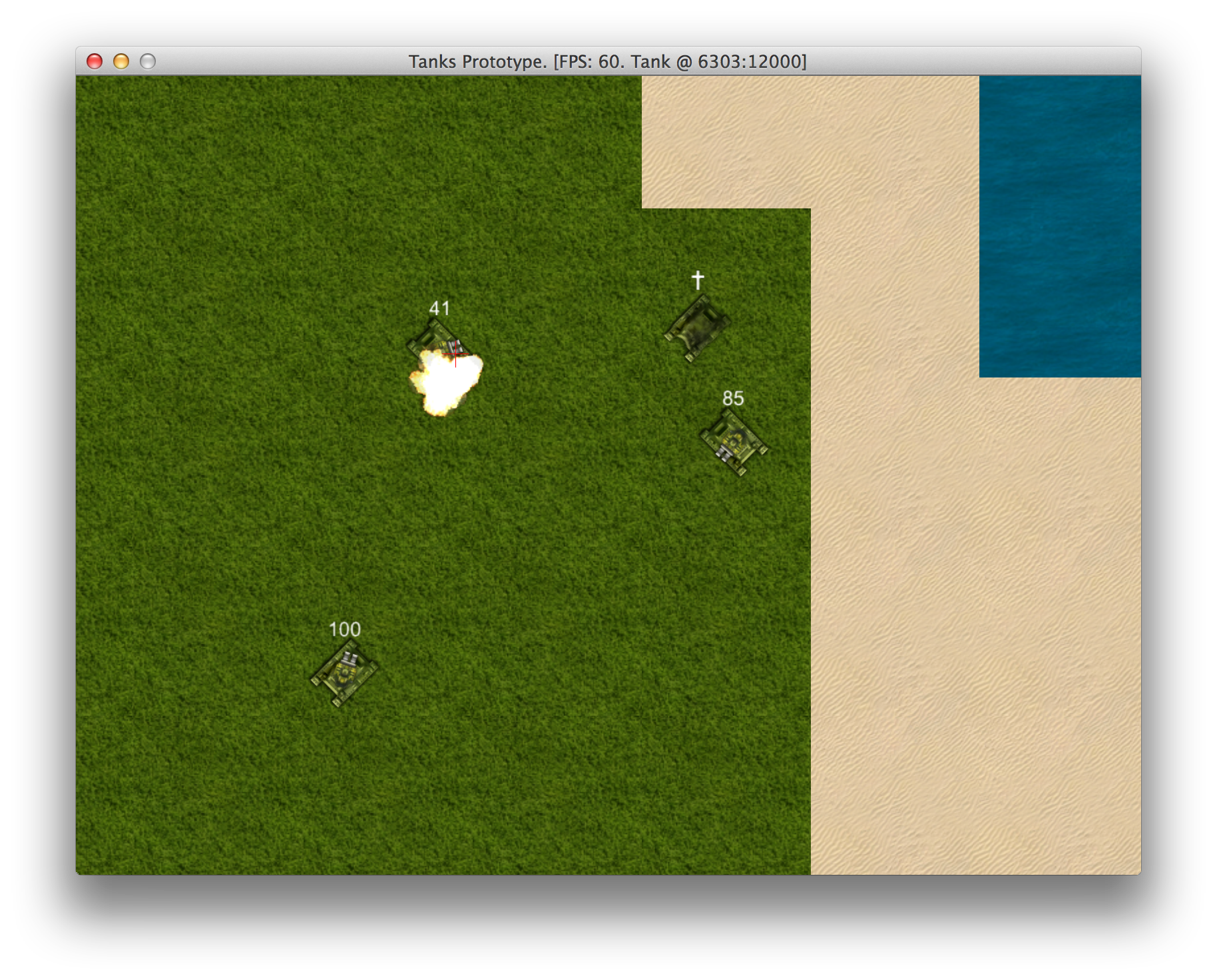

Now we can blow them up and enjoy the view:

Target practice

Target practice

But what if we blow ourselves up by shooting nearby? We would still be able to move around. To fix this, we will simply cut out player input when we are dead:

class PlayerInput < Component
  # ...
  def update
    return if object.health.dead?
    # ...
  end
  # ...
end

And to prevent tank from throttling forever if the pedal was down before it got killed:

class TankPhysics < Component
  # ...
  def update
    if object.throttle_down && !object.health.dead?
      accelerate
    else
      decelerate
    end
    # ...
  end
  # ...
end

That’s it. All we need right now is some resistance from those brain dead enemies. We will spark some life into them in next chapter.
