Implementing Heads Up Display
In order to know what’s happening, we need some sort of HUD. We already have crosshair and radar, but they are scattered around in code. Now we want to display active powerup modifiers, so you would know what is your fire rate and speed, and if it’s worth getting one more powerup before going into the next fight.
Design Considerations
While creating our HUD class, we will have to start building game stats, because we want to display
number of kills our tank made. Stats topic will be covered in depth later, but for now let’s assume
that @tank.input.stats.kills gives us the kill count, which we want to draw in top-left corner of
the screen, along with player health and modifier values.
HUD will also be responsible for drawing crosshair and radar.
Rendering Text With Custom Font
Previously, all text were rendered with Gosu.default_font_name, and we want something more fancy
and more thematic, probably a dirty stencil based font like this
one:
Armalite Rifle font
And one more fancy font will make our game title look good. Too bad we don’t have a title yet, but “Tanks Prototype” writen in a thematic way still looks pretty good.
To have convenient access to these fonts, we will add a helper methods in Utils:
module Utils
# ...
def self.title_font
media_path('top_secret.ttf')
end
def self.main_font
media_path('armalite_rifle.ttf')
end
# ...
end
Use it instead of Gosu.default_font_name:
size = 20
Gosu::Image.from_text($window, "Your text", Utils.main_font, size)
Implementing HUD Class
After we have put everything together, we will get HUD class:
12-stats/entities/hud.rb
1 class HUD
2 attr_accessor :active
3 def initialize(object_pool, tank)
4 @object_pool = object_pool
5 @tank = tank
6 @radar = Radar.new(@object_pool, tank)
7 end
8
9 def player=(tank)
10 @tank = tank
11 @radar.target = tank
12 end
13
14 def update
15 @radar.update
16 end
17
18 def health_image
19 if @health.nil? || @tank.health.health != @health
20 @health = @tank.health.health
21 @health_image = Gosu::Image.from_text(
22 $window, "Health: #{@health}", Utils.main_font, 20)
23 end
24 @health_image
25 end
26
27 def stats_image
28 stats = @tank.input.stats
29 if @stats_image.nil? || stats.changed_at <= Gosu.milliseconds
30 @stats_image = Gosu::Image.from_text(
31 $window, "Kills: #{stats.kills}", Utils.main_font, 20)
32 end
33 @stats_image
34 end
35
36 def fire_rate_image
37 if @tank.fire_rate_modifier > 1
38 if @fire_rate != @tank.fire_rate_modifier
39 @fire_rate = @tank.fire_rate_modifier
40 @fire_rate_image = Gosu::Image.from_text(
41 $window, "Fire rate: #{@fire_rate.round(2)}X",
42 Utils.main_font, 20)
43 end
44 else
45 @fire_rate_image = nil
46 end
47 @fire_rate_image
48 end
49
50 def speed_image
51 if @tank.speed_modifier > 1
52 if @speed != @tank.speed_modifier
53 @speed = @tank.speed_modifier
54 @speed_image = Gosu::Image.from_text(
55 $window, "Speed: #{@speed.round(2)}X",
56 Utils.main_font, 20)
57 end
58 else
59 @speed_image = nil
60 end
61 @speed_image
62 end
63
64 def draw
65 if @active
66 @object_pool.camera.draw_crosshair
67 end
68 @radar.draw
69 offset = 20
70 health_image.draw(20, offset, 1000)
71 stats_image.draw(20, offset += 30, 1000)
72 if fire_rate_image
73 fire_rate_image.draw(20, offset += 30, 1000)
74 end
75 if speed_image
76 speed_image.draw(20, offset += 30, 1000)
77 end
78 end
79 end
To use it, we need to hook into PlayState:
class PlayState < GameState
# ...
def initialize
# ...
@hud = HUD.new(@object_pool, @tank)
end
def update
# ...
@hud.update
end
def draw
# ...
@hud.draw
end
# ...
end

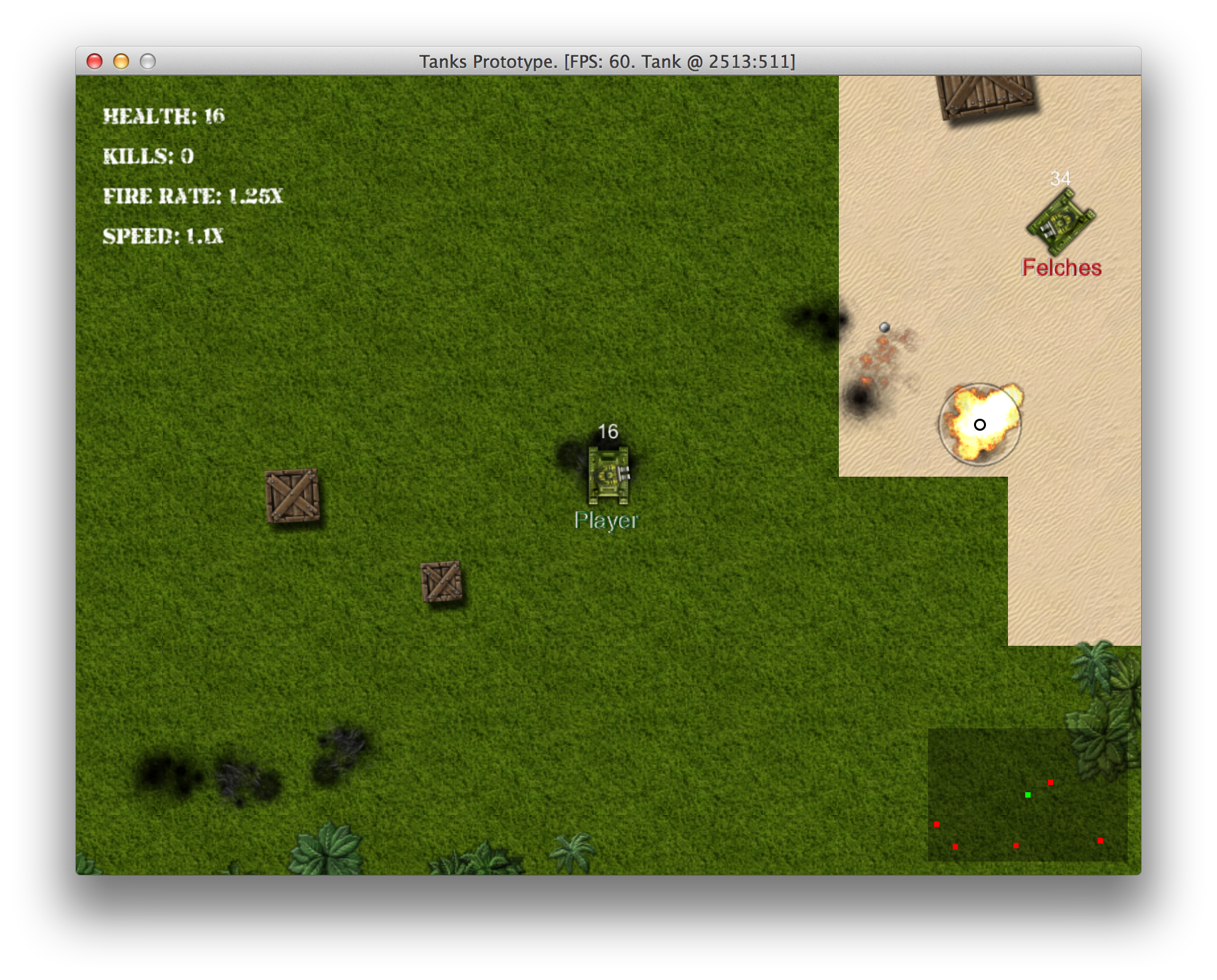

Assuming you have mocked @tank.input.stats.kills in HUD, you should get a neat view showing
interesting things in top-left corner of the screen:
Shiny new HUD
