Example Application: iOS and macOS Versions of my KnowledgeBookNavigator
I used many of the techniques discussed in this book, the Swift language, and the SwiftUI user interface framework to develop Swift version of my Knowledge Graph Navigator application for macOS. I originally wrote this as an example program in Common Lisp for another book project.
The GitHub repository for the KGN example is https://github.com/mark-watson/KGN. I copied the code from my stand-alone Swift libraries to this example to make it self contained. The easiest way to browse the source code is to open this project in Xcode.
I submitted the KGN app that we discuss in this chapter to Apple’s store and is available as a macOS app. If you load this project into Xcode, you can also build and run the iOS and iPadOS targets.
You will need to have read through the last chapter on semantic web and linked data technologies to understand this example because quite a lot of the code has embedded SPARQL queries to get information from DBPedia.org.
The other major part of this app is a slightly modified version of Apple’s question answering (QA) example using the BERT model in CoreML. Apple’s code is in the subdirectory AppleBERT. Please read the README file for this project and follow the directions for downloading and using Apple’s model and vocabulary file.
Screen Shots of macOS Application

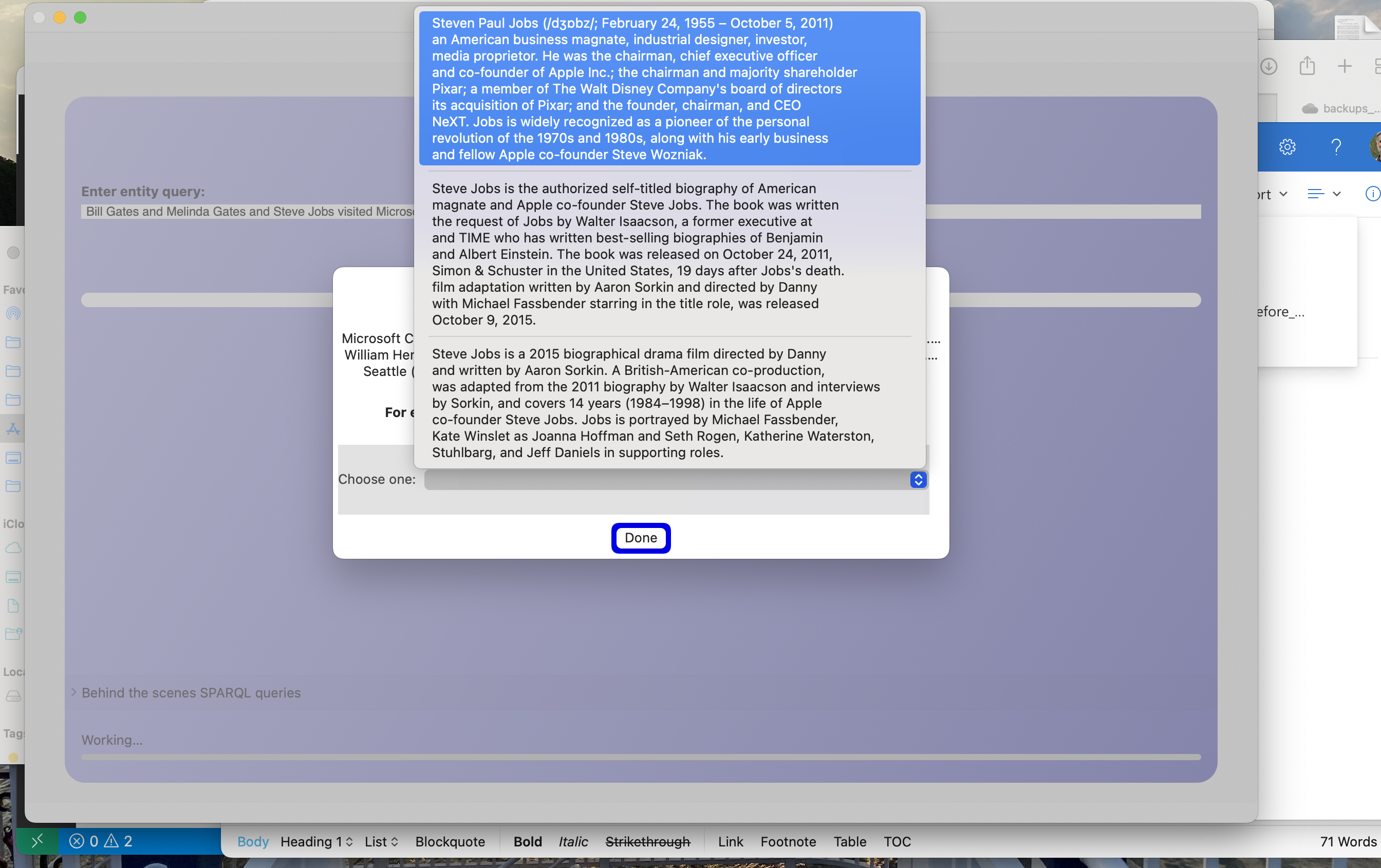

In the first screenshot seen below, I had entered query text that included “Steve Jobs” and the popup list selector is used to let the user select which “Steve Jobs” entity from DBPedia that they want to use.

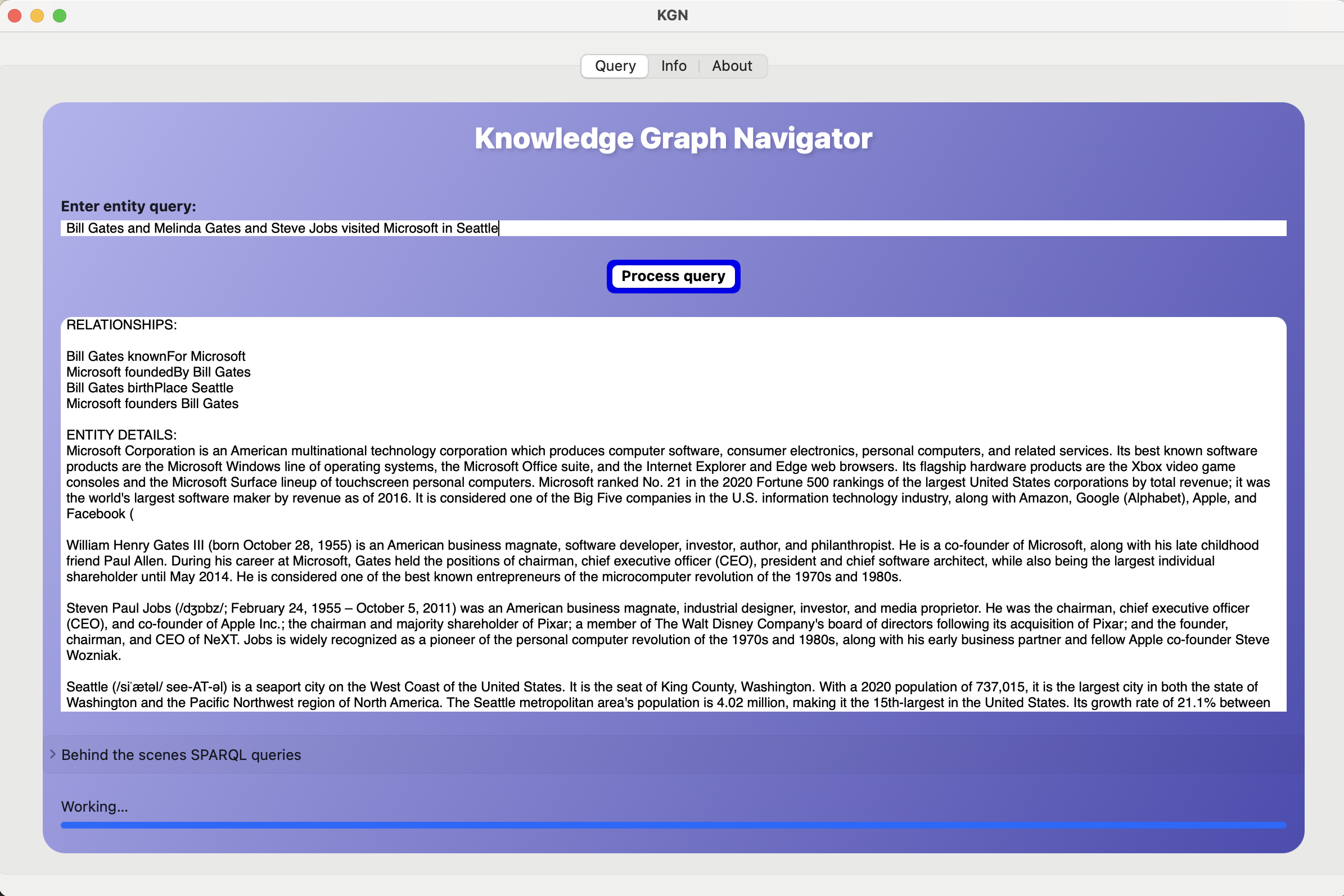

The previous screenshot shows the results to the query displayed as English text.

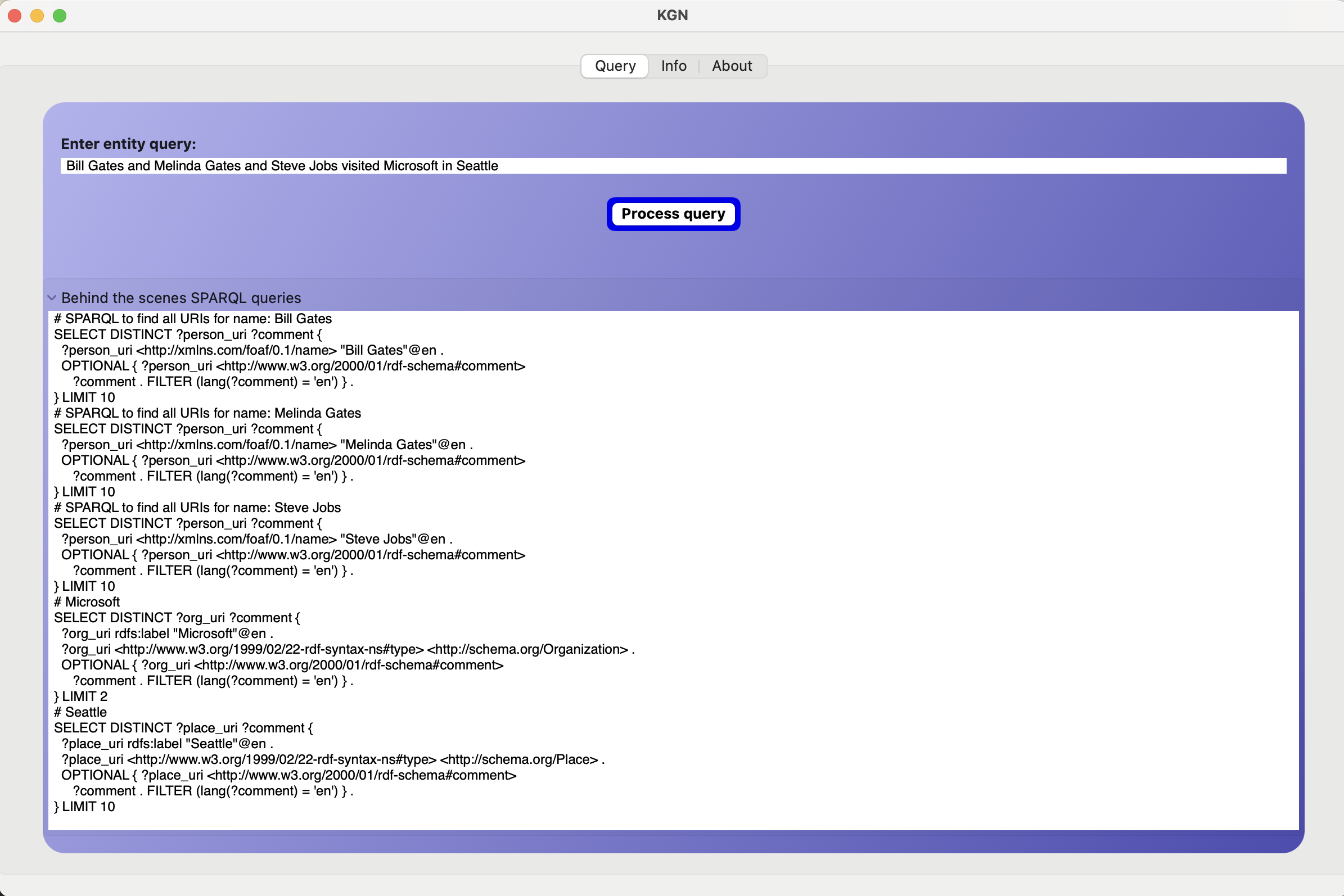

Notice the app prompt “Behind the scenes SPARQL queries” near the bottom of the app window. If you click on this field then the SPARQL queries used to answer the question are shown, as on the next screenshot:
Application Code Listings
I will list some of the code for this example application and I suggest that you, dear reader, also open this project in Xcode in order to navigate the sample code and more carefully read through it.
SPARQL
I introduced you to the use of SPARQL in the last chapter. This library can be used by adding a reference to the Project.swift file for this project. You can also clone the GitHub repository https://github.com/mark-watson/Nlp_swift to have the source code for local viewing and modification and I have copied the code into the KGN project.
The file SparqlQuery.swift is shown here:
1 import Foundation
2
3 public func sparqlDbPedia(query: String) -> Array<Dictionary<String,String>> {
4 return SparqlEndpointHelpter(query: query,
5 endPointUri: "https://dbpedia.org/sparql?query=") }
6
7 public func sparqlWikidata(query: String) -> Array<Dictionary<String,String>> {
8 return SparqlEndpointHelpter(query: query,
9 endPointUri:
10 "https://query.wikidata.org/bigdata/namespace/wdq/sparql?query=") }
11
12 public func SparqlEndpointHelpter(query: String,
13 endPointUri: String) ->
14 Array<Dictionary<String,String>> {
15 var ret = Set<Dictionary<String,String>>();
16 var content = "{}"
17
18 let maybeString = cacheLookupQuery7(key: query)
19 if maybeString?.count ?? 0 > 0 {
20 content = maybeString ?? ""
21 } else {
22 let requestUrl = URL(string: String(endPointUri + query.addingPercentEncodin\
23 g(withAllowedCharacters:
24 .urlHostAllowed)!) + "&format=json")!
25 do { content = try String(contentsOf: requestUrl) }
26 catch let error { print(error) }
27 }
28 let json = try? JSONSerialization.jsonObject(with: Data(content.utf8),
29 options: [])
30 if let json2 = json as! Optional<Dictionary<String, Any?>> {
31 if let head = json2["head"] as? Dictionary<String, Any> {
32 if let xvars = head["vars"] as! NSArray? {
33 if let results = json2["results"] as? Dictionary<String, Any> {
34 if let bindings = results["bindings"] as! NSArray? {
35 if bindings.count > 0 {
36 for i in 0...(bindings.count-1) {
37 if let first_binding =
38 bindings[i] as? Dictionary<String,
39 Dictionary<String,String>> {
40 var ret2 = Dictionary<String,String>();
41 for key in xvars {
42 let key2 : String = key as! String
43 if let vals = (first_binding[key2]) {
44 let vv : String = vals["value"] ?? "err2"
45 ret2[key2] = vv } }
46 if ret2.count > 0 {
47 ret.insert(ret2)
48 }}}}}}}}}
49 return Array(ret) }
The file QueryCache.swift contains code written by Khoa Pham (MIT License) that can be found in the GitHub repository https://github.com/onmyway133/EasyStash. This file is used to cache SPARQL queries and the results. In testing this application I noticed that there were many repeated queries to DBPedia so I decided to cache results. Here is the simple API I added on top of Khoa Pham’s code:
1 // Created by khoa on 27/05/2019.
2 // Copyright © 2019 Khoa Pham. All rights reserved. MIT License.
3 // https://github.com/onmyway133/EasyStash
4 //
5
6 import Foundation
7
8 // Mark's simple wrapper:
9
10 var storage: Storage? = nil
11
12 public func cacheStoreQuery(key: String, value: String) {
13 do { try storage?.save(object: value, forKey: key) } catch {}
14 }
15 public func cacheLookupQuery7(key: String) -> String? {
16 // optional DEBUG code: clear cache
17 //do { try storage?.removeAll() } catch { print("ERROR CLEARING CACHE") }
18 do {
19 return try storage?.load(forKey: key, as: String.self)
20 } catch { return "" }
21 }
22
23 // remaining code not shown for brevity.
The code in file GenerateSparql.swift is used to generate queries for DBPedia. The line-wrapping for embedded SPARQL queries in the next code section is difficult to read so you may want to open the source file in Xcode. Please note that the KGN application prints out the SPARQL queries used to fetch information from DBPedia. The embedded SPARQL query templates used here have variable slots that filled in at runtime to customize the queries.
1 //
2 // GenerateSparql.swift
3 // KGNbeta1
4 //
5 // Created by Mark Watson on 2/28/20.
6 // Copyright © 2021 Mark Watson. All rights reserved.
7 //
8
9 import Foundation
10
11 public func uri_to_display_text(uri: String)
12 -> String {
13 return uri.replacingOccurrences(of: "http://dbpedia.org/resource/Category/",
14 with: "").
15 replacingOccurrences(of: "http://dbpedia.org/resource/",
16 with: "").
17 replacingOccurrences(of: "_", with: " ")
18 }
19
20 public func get_SPARQL_for_finding_URIs_for_PERSON_NAME(nameString: String)
21 -> String {
22 return
23 "# SPARQL to find all URIs for name: " +
24 nameString + "\nSELECT DISTINCT ?person_uri ?comment {\n" +
25 " ?person_uri <http://xmlns.com/foaf/0.1/name> \"" +
26 nameString + "\"@en .\n" +
27 " OPTIONAL { ?person_uri <http://www.w3.org/2000/01/rdf-schema#comment>\n" +
28 " ?comment . FILTER (lang(?comment) = 'en') } .\n" +
29 "} LIMIT 10\n"
30 }
31
32 public func get_SPARQL_for_PERSON_URI(aURI: String) -> String {
33 return
34 "# <" + aURI + ">\nSELECT DISTINCT ?comment (GROUP_CONCAT(DISTINCT ?birthpla\
35 ce; SEPARATOR=' | ') AS ?birthplace)\n (GROUP_CONCAT(DISTINCT ?almamater; SEPARATOR\
36 =' | ') AS ?almamater) (GROUP_CONCAT(DISTINCT ?spouse; SEPARATOR=' | ') AS ?spouse) \
37 {\n" +
38 " <" + aURI + "> <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .\
39 FILTER (lang(?comment) = 'en') .\n" +
40 " OPTIONAL { <" + aURI + "> <http://dbpedia.org/ontology/birthPlace> ?birth\
41 place } .\n" +
42 " OPTIONAL { <" + aURI + "> <http://dbpedia.org/ontology/almaMater> ?almama\
43 ter } .\n" +
44 " OPTIONAL { <" + aURI + "> <http://dbpedia.org/ontology/spouse> ?spouse } \
45 .\n" +
46 "} LIMIT 5\n"
47 }
48
49 public func get_display_text_for_PERSON_URI(personURI: String) -> [String] {
50 var ret: String = "\(uri_to_display_text(uri: personURI))\n\n"
51 let person_details_sparql = get_SPARQL_for_PERSON_URI(aURI: personURI)
52 let person_details = sparqlDbPedia(query: person_details_sparql)
53
54 for pd in person_details {
55 //let comment = pd["comment"]
56 ret.append("\(pd["comment"] ?? "")\n\n")
57 let subject_uris = pd["subject_uris"]
58 let uri_list: [String] = subject_uris?.components(separatedBy: " | ") ?? []
59 //ret.append("<ul>\n")
60 for u in uri_list {
61 let subject = uri_to_display_text(uri: u)
62 ret.append("\(subject)\n") }
63 //ret.append("</ul>\n")
64 if let spouse = pd["spouse"] {
65 if spouse.count > 0 {
66 ret.append("Spouse: \(uri_to_display_text(uri: spouse))\n") } }
67 if let almamater = pd["almamater"] {
68 if almamater.count > 0 {
69 ret.append("Almamater: \(uri_to_display_text(uri: almamater))\n") } }
70 if let birthplace = pd["birthplace"] {
71 if birthplace.count > 0 {
72 ret.append("Birthplace: \(uri_to_display_text(uri: birthplace))\n") \
73 } }
74 }
75 return ["# SPARQL for a specific person:\n" + person_details_sparql, ret]
76 }
77
78 // " ?place_uri <http://xmlns.com/foaf/0.1/name> \"" + placeString + "\"@en .\n\
79 " +
80
81 public func get_SPARQL_for_finding_URIs_for_PLACE_NAME(placeString: String)
82 -> String {
83 return
84 "# " + placeString + "\nSELECT DISTINCT ?place_uri ?comment {\n" +
85 " ?place_uri rdfs:label \"" + placeString + "\"@en .\n" +
86 " ?place_uri <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://sche\
87 ma.org/Place> .\n" +
88 " OPTIONAL { ?place_uri <http://www.w3.org/2000/01/rdf-schema#comment>\n" +
89 " ?comment . FILTER (lang(?comment) = 'en') } .\n" +
90 "} LIMIT 10\n"
91 }
92
93 public func get_SPARQL_for_PLACE_URI(aURI: String) -> String {
94 return
95 "# <" + aURI + ">\nSELECT DISTINCT ?comment (GROUP_CONCAT(DISTINCT ?subject_\
96 uris; SEPARATOR=' | ') AS ?subject_uris) {\n" +
97 " <" + aURI + "> <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .\
98 FILTER (lang(?comment) = 'en') .\n" +
99 " OPTIONAL { <" + aURI + "> <http://purl.org/dc/terms/subject> ?subject_uri\
100 s } .\n" +
101 "} LIMIT 5\n"
102 }
103
104 public func get_HTML_for_place_URI(placeURI: String) -> String {
105 var ret: String = "<h2>" + placeURI + "</h2>\n"
106 let place_details_sparql = get_SPARQL_for_PLACE_URI(aURI: placeURI)
107 let place_details = sparqlDbPedia(query: place_details_sparql)
108
109 for pd in place_details {
110 //let comment = pd["comment"]
111 ret.append("<p><strong>\(pd["comment"] ?? "")</strong></p>\n")
112 let subject_uris = pd["subject_uris"]
113 let uri_list: [String] = subject_uris?.components(separatedBy: " | ") ?? []
114 ret.append("<ul>\n")
115 for u in uri_list {
116 let subject = u.replacingOccurrences(of: "http://dbpedia.org/resource/Ca\
117 tegory:", with: "").replacingOccurrences(of: "_", with: " ").replacingOccurrences(of\
118 : "-", with: " ")
119 ret.append(" <li>\(subject)</li>\n")
120 }
121 ret.append("</ul>\n")
122 }
123 return ret
124 }
125
126 public func get_SPARQL_for_finding_URIs_for_ORGANIZATION_NAME(orgString: String) -> \
127 String {
128 return
129 "# " + orgString + "\nSELECT DISTINCT ?org_uri ?comment {\n" +
130 " ?org_uri rdfs:label \"" + orgString + "\"@en .\n" +
131 " ?org_uri <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://schema\
132 .org/Organization> .\n" +
133 " OPTIONAL { ?org_uri <http://www.w3.org/2000/01/rdf-schema#comment>\n" +
134 " ?comment . FILTER (lang(?comment) = 'en') } .\n" +
135 "} LIMIT 2\n"
136 }
The file AppSparql contains more utility functions for getting entity and relationship data from DBPedia:
1 // AppSparql.swift
2 // Created by ML Watson on 7/18/21.
3
4 import Foundation
5
6 let detailSparql = """
7 PREFIX rdfs: <http://www.w3.org/2000/01/rdf-schema#>
8 select ?entity ?label ?description ?comment where {
9 ?entity rdfs:label "<name>"@en .
10 ?entity schema:description ?description . filter (lang(?description) = 'en') . f\
11 ilter(!regex(?description,"Wikimedia disambiguation page")) .
12 } limit 5000
13 """
14
15 let personSparql = """
16 select ?uri ?comment {
17 ?uri <http://xmlns.com/foaf/0.1/name> "<name>"@en .
18 ?uri <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .
19 FILTER (lang(?comment) = 'en') .
20 }
21 """
22
23
24 let personDetailSparql = """
25 SELECT DISTINCT ?label ?comment
26
27 (GROUP_CONCAT (DISTINCT ?birthplace; SEPARATOR=' | ') AS ?birthplace)
28 (GROUP_CONCAT (DISTINCT ?almamater; SEPARATOR=' | ') AS ?almamater)
29 (GROUP_CONCAT (DISTINCT ?spouse; SEPARATOR=' | ') AS ?spouse) {
30 <name> <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .
31 FILTER (lang(?comment) = 'en') .
32 OPTIONAL { <name> <http://dbpedia.org/ontology/birthPlace> ?birthplace } .
33 OPTIONAL { <name> <http://dbpedia.org/ontology/almaMater> ?almamater } .
34 OPTIONAL { <name> <http://dbpedia.org/ontology/spouse> ?spouse } .
35 OPTIONAL { <name> <http://www.w3.org/2000/01/rdf-schema#label> ?label .
36 FILTER (lang(?label) = 'en') }
37 } LIMIT 10
38 """
39
40 let placeSparql = """
41 SELECT DISTINCT ?uri ?comment WHERE {
42 ?uri rdfs:label "<name>"@en .
43 ?uri <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .
44 FILTER (lang(?comment) = 'en') .
45 ?place <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://schema.org/Place\
46 > .
47 } LIMIT 80
48 """
49
50 let organizationSparql = """
51 SELECT DISTINCT ?uri ?comment WHERE {
52 ?uri rdfs:label "<name>"@en .
53 ?uri <http://www.w3.org/2000/01/rdf-schema#comment> ?comment .
54 FILTER (lang(?comment) = 'en') .
55 ?uri <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://schema.org/Organiz\
56 ation> .
57 } LIMIT 80
58 """
59
60 func entityDetail(name: String) -> [Dictionary<String,String>] {
61 var ret: [Dictionary<String,String>] = []
62 let sparql = detailSparql.replacingOccurrences(of: "<name>", with: name)
63 print(sparql)
64 let r = sparqlDbPedia(query: sparql)
65 r.forEach { result in
66 print(result)
67 ret.append(result)
68 }
69 return ret
70 }
71
72 func personDetail(name: String) -> [Dictionary<String,String>] {
73 var ret: [Dictionary<String,String>] = []
74 let sparql = personSparql.replacingOccurrences(of: "<name>", with: name)
75 print(sparql)
76 let r = sparqlDbPedia(query: sparql)
77 r.forEach { result in
78 print(result)
79 ret.append(result)
80 }
81 return ret
82 }
83
84 func placeDetail(name: String) -> [Dictionary<String,String>] {
85 var ret: [Dictionary<String,String>] = []
86 let sparql = placeSparql.replacingOccurrences(of: "<name>", with: name)
87 print(sparql)
88 let r = sparqlDbPedia(query: sparql)
89 r.forEach { result in
90 print(result)
91 ret.append(result)
92 }
93 return ret
94 }
95
96 func organizationDetail(name: String) -> [Dictionary<String,String>] {
97 var ret: [Dictionary<String,String>] = []
98 let sparql = organizationSparql.replacingOccurrences(of: "<name>", with: name)
99 print(sparql)
100 let r = sparqlDbPedia(query: sparql)
101 r.forEach { result in
102 print(result)
103 ret.append(result)
104 }
105 return ret
106 }
107
108 public func processEntities(inputString: String) -> [(name: String, type: String, ur\
109 i: String, comment: String)] {
110 let entities = getEntities(text: inputString)
111 var augmentedEntities: [(name: String, type: String, uri: String, comment: Strin\
112 g)] = []
113 for (entityName, entityType) in entities {
114 print("** entityName:", entityName, "entityType:", entityType)
115 if entityType == "PersonalName" {
116 let data = personDetail(name: entityName)
117 for d in data {
118 augmentedEntities.append((name: entityName, type: entityType,
119 uri: "<" + d["uri"]! + ">", comment: "<" + d["comment"]! + ">"))
120 }
121 }
122 if entityType == "OrganizationName" {
123 let data = organizationDetail(name: entityName)
124 for d in data {
125 augmentedEntities.append((name: entityName, type: entityType,
126 uri: "<" + d["uri"]! + ">", comment: "<" + d["comment"]! + ">"))
127 }
128 }
129 if entityType == "PlaceName" {
130 let data = placeDetail(name: entityName)
131 for d in data {
132 augmentedEntities.append((name: entityName, type: entityType,
133 uri: "<" + d["uri"]! + ">", comment: "<" + d["comment"]! + ">"))
134 }
135 }
136 }
137 return augmentedEntities
138 }
139
140
141 extension Array where Element: Hashable {
142 func uniqueValuesHelper() -> [Element] {
143 var addedDict = [Element: Bool]()
144 return filter { addedDict.updateValue(true, forKey: $0) == nil }
145 }
146 mutating func uniqueValues() {
147 self = self.uniqueValuesHelper()
148 }
149 }
150
151
152 func getAllRelationships(inputString: String) -> [String] {
153 let augmentedEntities = processEntities(inputString: inputString)
154 var relationshipTriples: [String] = []
155 for ae1 in augmentedEntities {
156 for ae2 in augmentedEntities {
157 if ae1 != ae2 {
158 let er1 = dbpediaGetRelationships(entity1Uri: ae1.uri,
159 entity2Uri: ae2.uri)
160 relationshipTriples.append(contentsOf: er1)
161 let er2 = dbpediaGetRelationships(entity1Uri: ae2.uri,
162 entity2Uri: ae1.uri)
163 relationshipTriples.append(contentsOf: er2)
164 }
165 }
166 }
167 relationshipTriples.uniqueValues()
168 relationshipTriples.sort()
169 return relationshipTriples
170 }
AppleBERT
The files in the directory AppleBERT were copied from Apple’s example https://developer.apple.com/documentation/coreml/model_integration_samples/finding_answers_to_questions_in_a_text_document with a few changes to get returned results in a convenient format for this application. Apple’s BERT documentation is excellent and you should review it.
Relationships
The file Relationships.swift fetches relationship data for pairs of DBPedia entities. Note that the first SPARQL template has variable slots <e1> and <e2> that are replaced at runtime with URIs representing the entities that we are searching for relationships between these two entities:
1 // relationships between DBPedia entities
2
3 let relSparql = """
4 SELECT DISTINCT ?p {<e1> ?p <e2> .FILTER (!regex(str(?p), 'wikiPage', 'i'))} LIMIT 5
5 """
6
7 public func dbpediaGetRelationships(entity1Uri: String, entity2Uri: String)
8 -> [String] {
9 var ret: [String] = []
10 let sparql1 = relSparql.replacingOccurrences(of: "<e1>",
11 with: entity1Uri).replacingOccurrences(of: "<e2>",
12 with: entity2Uri)
13 let r1 = sparqlDbPedia(query: sparql1)
14 r1.forEach { result in
15 if let relName = result["p"] {
16 let rdfStatement = entity1Uri + " <" + relName + "> " + entity2Uri + " ."
17 print(rdfStatement)
18 ret.append(rdfStatement)
19 }
20 }
21 let sparql2 = relSparql.replacingOccurrences(of: "<e1>",
22 with: entity2Uri).replacingOccurrences(of: "<e2>",
23 with: entity1Uri)
24 let r2 = sparqlDbPedia(query: sparql2)
25 r2.forEach { result in
26 if let relName = result["p"] {
27 let rdfStatement = entity2Uri + " <" + relName + "> " + entity1Uri + " ."
28 print(rdfStatement)
29 ret.append(rdfStatement)
30 }
31 }
32 return Array(Set(ret))
33 }
34
35 public func uriToPrintName(_ uri: String) -> String {
36 let slashIndex = uri.lastIndex(of: "/")
37 if slashIndex == nil { return uri }
38 var s = uri[slashIndex!...]
39 s = s.dropFirst()
40 if s.count > 0 { s.removeLast() }
41 return String(s).replacingOccurrences(of: "_", with: " ")
42 }
43
44 public func relationshipsoEnglish(rs: [String]) -> String {
45 var lines: [String] = []
46 for r in rs {
47 let triples = r.split(separator: " ", maxSplits: 3,
48 omittingEmptySubsequences: true)
49 if triples.count > 2 {
50 lines.append(uriToPrintName(String(triples[0])) + " " +
51 uriToPrintName(String(triples[1])) + " " +
52 uriToPrintName(String(triples[2])))
53 } else {
54 lines.append(r)
55 }
56 }
57 let linesNoDuplicates = Set(lines)
58 return linesNoDuplicates.joined(separator: "\n")
59 }
NLP
The file NlpWhiteboard provides high level NLP utility functions for the application:
1 //
2 // NlpWhiteboard.swift
3 // KGN
4 //
5 // Copyright © 2021 Mark Watson. All rights reserved.
6 //
7
8 public struct NlpWhiteboard {
9
10 var originalText: String = ""
11 var people: [String] = []
12 var places: [String] = []
13 var organizations: [String] = []
14 var sparql: String = ""
15
16 init() { }
17
18 mutating func set_text(originalText: String) {
19 self.originalText = originalText
20 let (people, places, organizations) = getAllEntities(text: originalText)
21 self.people = people; self.places = places; self.organizations = organizatio\
22 ns
23 }
24
25 mutating func query_to_choices(behindTheScenesSparqlText: inout String)
26 -> [[[String]]] { // return inner: [comment, uri]
27 var ret: Set<[[String]]> = []
28 if people.count > 0 {
29 for i in 0...(people.count - 1) {
30 self.sparql =
31 get_SPARQL_for_finding_URIs_for_PERSON_NAME(nameString: people[i])
32 behindTheScenesSparqlText += self.sparql
33 let results = sparqlDbPedia(query: self.sparql)
34 if results.count > 0 {
35 ret.insert( results.map { [($0["comment"]
36 ?? ""),
37 ($0["person_uri"] ?? "")] })
38 }
39 }
40 }
41 if organizations.count > 0 {
42 for i in 0...(organizations.count - 1) {
43 self.sparql = get_SPARQL_for_finding_URIs_for_ORGANIZATION_NAME(
44 orgString: organizations[i])
45 behindTheScenesSparqlText += self.sparql
46 let results = sparqlDbPedia(query: self.sparql)
47 if results.count > 0 {
48 ret.insert(results.map { [($0["comment"] ??
49 ""), ($0["org_uri"] ?? "")] })
50 }
51 }
52 }
53 if places.count > 0 {
54 for i in 0...(places.count - 1) {
55 self.sparql = get_SPARQL_for_finding_URIs_for_PLACE_NAME(
56 placeString: places[i])
57 behindTheScenesSparqlText += self.sparql
58 let results = sparqlDbPedia(query: self.sparql)
59 if results.count > 0 {
60 ret.insert( results.map { [($0["comment"] ??
61 ""), ($0["place_uri"] ?? "")] })
62 }
63 }
64 }
65 //print("\n\n+++++++ ret:\n", ret, "\n\n")
66 return Array(ret)
67 }
68 }
The file NLPutils.swift provides lower level NLP utilities:
1 // NLPutils.swift
2 // KGN
3 //
4 // Copyright © 2021 Mark Watson. All rights reserved.
5 //
6
7 import Foundation
8 import NaturalLanguage
9
10 public func getPersonDescription(personName: String) -> [String] {
11 let sparql = get_SPARQL_for_finding_URIs_for_PERSON_NAME(nameString: personName)
12 let results = sparqlDbPedia(query: sparql)
13 return [sparql, results.map {
14 ($0["comment"] ?? $0["abstract"] ?? "") }.joined(separator: " . ")]
15 }
16
17
18 public func getPlaceDescription(placeName: String) -> [String] {
19 let sparql = get_SPARQL_for_finding_URIs_for_PLACE_NAME(placeString: placeName)
20 let results = sparqlDbPedia(query: sparql)
21 return [sparql, results.map { ($0["comment"] ??
22 $0["abstract"] ?? "") }.joined(separator: " . ")]
23 }
24
25 public func getOrganizationDescription(organizationName: String) -> [String] {
26 let sparql = get_SPARQL_for_finding_URIs_for_ORGANIZATION_NAME(
27 orgString: organizationName)
28 let results = sparqlDbPedia(query: sparql)
29 print("=== getOrganizationDescription results =\n", results)
30 return [sparql, results.map { ($0["comment"] ?? $0["abstract"] ?? "") }
31 .joined(separator: " . ")]
32 }
33
34 let tokenizer = NLTokenizer(unit: .word)
35 let tagger = NSLinguisticTagger(tagSchemes:[.tokenType, .language, .lexicalClass,
36 .nameType, .lemma], options: 0)
37 let options: NSLinguisticTagger.Options =
38 [.omitPunctuation, .omitWhitespace, .joinNames]
39
40 let tokenizerOptions: NSLinguisticTagger.Options =
41 [.omitPunctuation, .omitWhitespace, .joinNames]
42
43 public func getEntities(text: String) -> [(String, String)] {
44 var words: [(String, String)] = []
45 tagger.string = text
46 let range = NSRange(location: 0, length: text.utf16.count)
47 tagger.enumerateTags(in: range, unit: .word,
48 scheme: .nameType, options: options) { tag, tokenRange, stop in
49 let word = (text as NSString).substring(with: tokenRange)
50 let tagType = tag?.rawValue ?? "unkown"
51 if tagType != "unkown" && tagType != "OtherWord" {
52 words.append((word, tagType))
53 }
54 }
55 return words
56 }
57
58 public func tokenizeText(text: String) -> [String] {
59 var tokens: [String] = []
60 tokenizer.string = text
61 tokenizer.enumerateTokens(in: text.startIndex..<text.endIndex) { tokenRange, _ in
62 tokens.append(String(text[tokenRange]))
63 return true
64 }
65 return tokens
66 }
67
68 let entityTagger = NLTagger(tagSchemes: [.nameType])
69 let entityOptions: NLTagger.Options = [.omitPunctuation, .omitWhitespace, .joinNames]
70 let entityTagTypess: [NLTag] = [.personalName, .placeName, .organizationName]
71
72 public func getAllEntities(text: String) -> ([String],[String],[String]) {
73 var words: [(String, String)] = []
74 var people: [String] = []
75 var places: [String] = []
76 var organizations: [String] = []
77 entityTagger.string = text
78 entityTagger.enumerateTags(in: text.startIndex..<text.endIndex, unit: .word,
79 scheme: .nameType, options: entityOptions) { tag, tokenRange in
80 if let tag = tag, entityTagTypess.contains(tag) {
81 let word = String(text[tokenRange])
82 if tag.rawValue == "PersonalName" {
83 people.append(word)
84 } else if tag.rawValue == "PlaceName" {
85 places.append(word)
86 } else if tag.rawValue == "OrganizationName" {
87 organizations.append(word)
88 } else {
89 print("\nERROR: unkown entity type: |\(tag.rawValue)|")
90 }
91 words.append((word, tag.rawValue))
92 }
93 return true
94 }
95 return (people, places, organizations)
96 }
97
98 func splitLongStrings(_ s: String, limit: Int) -> String {
99 var ret: [String] = []
100 let tokens = s.split(separator: " ")
101 var subLine = ""
102 for token in tokens {
103 if subLine.count > limit {
104 ret.append(subLine)
105 subLine = ""
106 } else {
107 subLine = subLine + " " + token
108 }
109 }
110 if subLine.count > 0 {
111 ret.append(subLine)
112 }
113 return ret.joined(separator: "\n")
114 }
Views
This is not a book about SwiftUI programming, and indeed I expect many of you dear readers know much more about UI development with SwiftUI than I do. I am not going to list the four view files:
- MainView.swift
- QueryView.swift
- AboutView.swift
- InfoView.swift
Main KGN
The top level app code in the file KGNApp.swift is fairly simple. I hardcoded the window size for macOS and the window sizes for running this example on iPadOS or iOS are commented out:
1 import SwiftUI
2
3 @main
4 struct KGNApp: App {
5 var body: some Scene {
6 WindowGroup {
7 MainView()
8 .frame(width: 1200, height: 770) // << here !!
9 //.frame(width: 660, height: 770) // << here !!
10 //..frame(width: 500, height: 800) // << here !!
11 }
12 }
13 }
I was impressed by the SwiftUI framework. Applications are fairly portable across macOS, iOS, and iPadOS. I am not a UI developer by profession (as this application shows) but I enjoyed learning just enough about SwiftUI to write this example application.
