Part I: TinyCalculator

1. TinyCalculator

TinyCalculator is the first and simplest application discussed in this book. It’s nothing more than a simple calculator for basic arithmetics. But, is is useful to show some fundamental concepts of web applications with Java and JSF.

As a kind of appetizer, and unlike the following applications, I first show you the whole application, with a little explanation only afterwards. Then, as a kind of re-start, I talk about the foundations of web applications and explaining TinyCalculator and different approaches.

In this chapter, we’ll discuss

• Create a web application from scratch
• A brief introduction into the used protocols and languages
• A brief introduction into the underlying Servlet technology
• Mapping between UI components and their server representation
• Component tree
• Bean scopes & JSF Lifecycles
• Simple UI test with selenium

1.1 Creating the application

[This section isn’t available in the book sample]

1.2 TinyCalculator briefly explained

This chapter briefly explains some aspects of the TinyCalculator application.

1.2.1 Managed Bean

I assume, for you as a Java developer, the code of the managed bean had been the most familiar part of the application. In JSF, developers often talk about Managed Beans, and that is how NetBeans called this in its New File dialog. However, this term is not really accurate.

JavaServer Faces is designed to run both in EJB (Enterprise Java Beans) containers as well as in servlet containers. Both are called Application Servers. Whilst the first one contains a full or partial¹ stack of Java EE technologies (including servlet), the later one “only” serves servlets. Thus, other Jave EE technologies like Context and Dependency Injection (CDI) are not available in servlet containers.

Some widely known examples of EJB containers are GlassFish or WildFly. Examples of servlet containers are Tomcat or Jetty.

If JSF runs on a pure servlet container, so called Backing Beans are managed by JSF. Such a bean will be annotated as @ManagedBean and that’s what the term Managed Bean originates. Starting with Java EE 6 / JSF 2.0, developers could use CDI Named Beans too, which is today’s recommended technology. In TinyCalculator, we use a CDI Named Bean.

A named or managed bean might be accessed by its name.

The second annotation @RequestScoped declares the bean’s lifetime: With every request (from your browser), an instance of this class is created. A longer lifetime might be declared by @SessionScoped (one instance per user session), @ApplicationScoped (one instance during the application’s lifetime), and more. This will be discussed further on.

In the example, we used a CDI named bean.

1 import javax.inject.Named;
2 import javax.enterprise.context.RequestScoped;
3
4 @Named
5 @RequestScoped
6 public class TinyCalculator {...}

A JSF managed bean, on the other hand, would be declared like this:

1 import javax.faces.bean.ManagedBean;
2 import javax.faces.bean.RequestScoped;
3
4 @ManagedBean
5 @RequestScoped
6 public class TinyCalculator {...}

Although you can’t mix theses annotations within a single bean, it is possible to use both types (named and managed) beans within one application. This might be useful to migrate elder applications, which used JSF managed beans: It is possible to add new features by implementing them as CDI named beans whilst keeping the existing beans. Then, time by time, the existing beans might be changed to named beans too.

But why should you prefer CDI named beans over JSF managed beans? As the name suggests, JSF managed beans are developed especially for and dedicated only to JSF.

CDI (Context and Dependency Injection) is relatively new to Java EE and has made into EE 6. It allows the container to “inject” appropriate objects into your object. These objects might not be known at compile time and the dependencies will be resolved at runtime. This allows loosely coupling of objects. One essential part of this solution is a general naming concept.

Since CDI named beans might be used in different Java EE technologies, JSF itself slowly migrates to CDI, which sometimes replaces the proprietary solution.

But, is CDI available in pure Servlet containers like Apache Tomcat? The bad news is simply no. But JSF isn’t available too, until deploy the JSF library to enable it. And, the same way, you can use CDI together with a servlet container. Just provide a CDI implementation, for example Weld. I case of Tomcat, ther is a simpler solution: Use TomEE, which is Tomcat bundled with Java EE technologies, implementing the Java EE Web Profile.

The calculation methods might look quite strange. These are not functions, returning the calculated value, but methods returning a String and perform the calculation by changing the status of the result variable. The simple reason, the calculation is called within the action of the appropriate button. Such an action performs a page navigation. Return an empty String or null keeps the browser “staying” on the current page. In fact, this page will be reloaded. We cover page navigation in detail later on.

1.2.2 The page

I don’t want to anticipate the detailed explanation during the next chapters. Just to point out, the page will be rendered as HTML and sent to the browser. If you’re familiar with HTML, you would have recognized only some HTML elements. JSF’s former intention was to provide the programmer a kind of known interface, hiding away that HTML stuff. Because of that, JSF offers a set of its own tags, which are included into the page and will be replaced before sending the page to the browser. This tags are regular XML tags, assigned to appropriate namespaces.

1 <h:outputLabel value="Param1: "/>
2 <h:inputText value="#{tinyCalculator.param1}"/>

This is a label with a value (text) of Param1: followed by a text element. The value of the text element is retrieved from and sent to our bean.

#{…} denotes the Expression Language (EL), which is used to glue parts of the user interface to the managed bean. tinyCalculator refers to our bean. By default, the EL uses the bean name with a lower-case first letter. And then, with dot-notation, referring methods. In case of properties, this establishes a two way communication with the getter/setter pair. name refers to getName and setName. Thus, the text element reads and writes the property.

1 <h:commandButton value="Add" action="#{tinyCalculator.add}"/>

In case of the buttons, each action defines one of the calculating methods.

1.2.3 Relationship

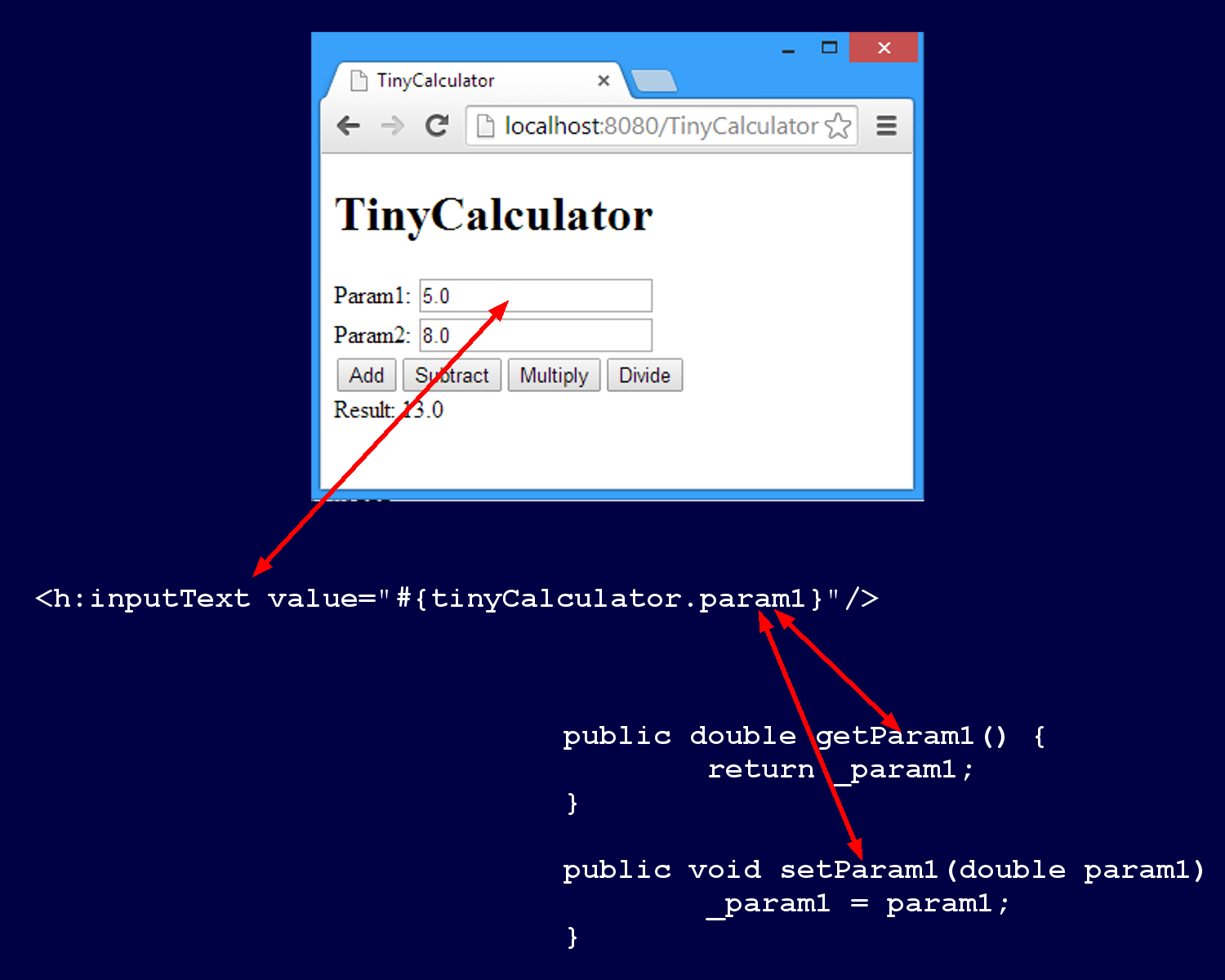

The rough relationship between browser view, page definition and managed bean should be understandable from the explanation. But, a picture is worth a thousand words.

The tag <inputText ...> represents a text field in the browser. Its values are bound to a getter/setter pair of the bean.

There is much more to explain, like the configuration NetBeans build for us under the hood and which we modified by simply changing the project’s properties. But this chapter is just an appetizer, a quick start. Beginning with the next chapter, we’ll discuss the foundation.

2. Foundations

For web development, a couple of different technologies are used. This chapter discusses the basics of some, and mentions other important technologies.

• Definition of web application
• Hypertext Transfer Protocol (HTTP)
• Hypertext Markup Language (HTML)
• Cascading Style Sheets (CSS)
• JavaScript
• Java
• Maven
• Selenium & Arquillian
• Servlet

2.1 Web Application

First of all, the term web application, as it is used throughout this book has to be defined.

A web application is a client-server application interacting dynamically with the user via web browser.

Thus, we are talking about distinct part, the client, presenting the user interface, and the server, executing the main part of the application. The application logic might be organized in layers and split between client and server. Especially to get a responsive user experience, some bits are executed on client side. Unlike an application using a specially programmed client, a common web browser is used to display the presentation layer. Thus, we cannot manage every detail. Instead, we have to rely on the browser functionality, which mainly is to retrieve and display content like HTML pages and related stuff and executing script code. A simple web server, only delivering static pages, is not an web application in the sense of this book.

By using a standard web browser, a web application might be used on every platform, such a browser is available for. A web browser is connected to a web server via HTTP. Because of that, a web application has to deal with some restrictions by this protocol.

The client is linked to the server via the internet.

2.2 HTTP

The Hypertext Transfer Protocol is a logical transport layer (application protocol), acting on a stack of other layers, down to the physical transport layer. Usually it is used atop TCP/IP. As the name suggests, it was primary designed, to distribute hypertext information. As such, it is the foundation of the world wide web.

HTTP is a stateless request-response protocol. A server is listening for a request and sends back a response. Then the communication terminates.

The simplified picture shows a typical request-response-cycle as triggered by the user when she wants to retrieve a page. In fact, the response is a HTTP response, composed of a message header and body, which might carry other information then HTML, e.g. JSON, XML or other.

Any following request acts independent from the former ones. This kind of protocol affects the way, a web application works with its clients. To proceed with a user session of the application, a session management has to be implemented on top of HTTP. The server might save the application’s state and provide some information to the client. The client sends back this information during the next request. According to this, the server is able to restore the current state. This piece of information might be anything useful.

One extreme is to send all attributes (state) of the application to the client. In this case, there is nothing to remember on server side. Any status might be restored by the information the client provides. Such an approach keeps memory consumption on the server lean. Sending lots of information over the web has some important drawbacks. Latency will slow down the application. Another aspect is security. If the network transport isn’t secured by a protocol like TLS, then this information might be read by unauthorized persons.

The other extreme is to keep any information on the server and send an identifier only to the client. Such an identifier is called session id. Common possible ways to convey a session id are the usage of a hidden field or sending a HTTP cookie.

Luckily session management is implemented by the Java environment. Within Servlet/JSF configuration, it is possible to choose between client or server state.

During a request, HTTP addresses an uniform resource identifier URI. Beside that, it tells the server, which method to use. This is often called a verb. Most interesting methods for use with JSF are GET and POST.

GET queries information from the server by use of an URI. Additional parameters might be appended to the URI.

Example: http://it-rezension.de/Books/books.xhtml?catId=2

This addresses the server found for it-rezension.de, and within that, the application and page Books/books.xhtml. A parameter catId=2 is appended.

With a POST request, information is send to the server within the body of the request.

Example: A web form (HTML) contains some input fields and a submit button. Hitting this button initiates a POST request.

By the means of Representational State Transfer (REST) the methods (verbs) PUT and DELETE are important too. The idea behind REST is to assign defined actions to the verbs.

2.3 HTML

The Hypertext Markup Language is used to describe the content of a web page. Like XML, HTML is derived from the Standard Generalized Markup Language SGML.

As a Java developer, I assume, you would be familiar with XML. Like XML, HTML uses tags to structure the content of a page. Unlike XML, these tags are predefined, HTML is not extensible in the sense of XML.

A HTML document starts with a document type, followed by on HTML tag. Within that, each one tag for header and body might be included. In case of XHTML, the doctype is preceded by the XML version.

 1 <?xml version='1.0' encoding='UTF-8' ?>
 2 <!DOCTYPE html>
 3 <html>
 4     <head>
 5         <title>TinyCalculator</title>
 6     </head>
 7     <body>
 8         <h1>TinyCalculator</h1>
 9         <form>
10             <div>
11                 <label>Param1: </label>
12                 <input type="text" value="0.0" />
13             </div>
14         </form>
15     </body>
16 </html>

Further information about HTML, including a commented list of important tags is provided in the appendix.

2.4 CSS

HTML provides some little tags for styling the page, like emphasized, italics and more. The Cascading Style Sheets have been developed as a much more powerful designing tool. As a rule of thumb, you should separate layout from content. Thus, don’t use the styling tags of HTML, completely rely on CSS for the layout of a page.

By using CSS, it is possible to address an element and to assign layout information within curly braces.

1 h1 {
2     font-size: 2em;
3 }
4
5 h2 {
6     font-size: 1.5em;
7     font-style: italic;
8 }

The small code above addresses header 1 (h1), which is set to a font size of 2em, and header 2, which is set to a smaller font and italics. Within the curly braces, a couple of layout statements might be placed.

To address an element, its tag name is used. To style different elements with the same tag name in a different style, a couple of tag names might be used, building a path. Or a class or an id is assigned to the element and might be used for addressing. These addressing elements might be combined to define complex paths. Certain rules exists to avoid ambiguity. The layout information might differ depending on the output device or screen size. Using these features, it is for example possible, to define a responsive webdesign: The layout is changed and adjusted by the size of the browser window.

In Part II, Books application, we’ll discuss CSS in a web application. You may open [Books]}(it-rezension.de/Books/) with different devices or simulate this by changing the size of your browser window.

As with HTML, I don’t want to bore those readers, who are familiar with CSS. The other find an introduction into CSS within the appendix.

2.5 JavaScript

JavaScript is the programming language of the client side. Almost every modern browser has implemented a JavaScript interpreter or just in time compiler. Even if Microsoft tried to introduce VB Script some years ago, JavaScript is the language of choice, and it is well understood by the Microsoft browser too.

It is used to enhance client behavior or to initiate partial requests (AJAX). JSF hides JavaScript behind its AJAX tag. Sometimes it is useful to develop a bit of JavaScript code. As a Java developer, it should be no problem for you to follow the simple examples described in this book.

1 alert("The information has been saved");

Unlike Java, JavaScript is not a typed language. Thus you may assign an integer to a variable and later on replace its value by a string.

2.6 Java

Java is the main technical foundation for programming the web applications. I assume my readers to be familiar with Java SE.

All web applications discussed in this book are build up using Java EE. The Java EE platform is build as a JSR (Java EE 7: JSR 342). It is an umbrella specification describing a complete architecture build up by a mass of technologies, each defined by its own JSR. Throughout this book, a couple of such technologies are introduced.

2.7 Maven

For professional Java development, a build tool is needed. There are lots of developers, who never care about their build tool, because it is configured by their favourite IDE. Other developers perfectly know their build tool and like to tune every detail.

Beside others, there are two popular tools in the Java world: Apache ANT which acts more imperative and Apache Maven which follows a more declarative approach. On their web site, they call Maven a “software project management and comprehension tool”. Popular IDEs, like NetBeans, have build in support for both tools. Nevertheless, whichever tool you prefer, ANT based projects often use an IDE specific configuration, whilst Maven projects follow a more strictly convention. Thus, they become mostly independent of the IDE.

To ensure most compatibility with your favourite IDE, all applications discussed in this book are build with Maven.

2.8 Selenium & Arquillian

Selenium automates browsers. Beside macro-recording and replay, such an automation may be fully controlled by a Java, for example by a test. Doing such, enables GUI-testing of web applications.

Testing beans or other components, which are managed by a container can be a hassle. Arquillian allows testing the interesting parts of a web application within a container. It fully integrates with test frameworks like JUnit.

Although this book does not focus on unit testing or test driven development, we’ll discuss some simple test scenarios with both tools.

2.9 Servlet

A Servlet is a Java class hosted in a servlet container that dynamically processes requests and constructs reponses. This class must conform to the Java Servlet API. Like other Java EE components, it is specified by the Java Communication Process. By the time of this writing, this current version is JSR 340: Java Servlet 3.1 Specification. JSR is short for Java Specification Request.

Although a servlet may respond to any request, we’re talking about responding to a HTTP request. Thus, we use servlet as synonym to HTTP servlet.

The servlet’s life-cycle is maintained by the container. The web client, e. g. browser, interacts with the servlet by request/response as described in the section HTTP.

A servlet is a class extending javax.servlet.http.HttpServlet. In most common scenarios, at least two methods doGet and doPost will be overwritten to implement specific behaviour and send back the response.

A servlet is invoked by a client’s request to a specific path (of the URI). By using the simple annotation @WebServlet("/path") this might be defined. Whilst discussing JSF configuration, we’ll talk about configuring servlets by a configuration file. JSF itself is implemented as servlet (FacesServlet).

If you enhance the TinyCalculator by NetBeans’ 8 Add Servlet wizard, and provide Hello as name, NetBeans generates the following code example.

 1 [imports omitted]
 2
 3 @WebServlet(name = "Hello", urlPatterns = {"/Hello"})
 4 public class Hello extends HttpServlet {
 5
 6     /**
 7      * Processes requests for both HTTP <code>GET</code>
 8      * and <code>POST</code> methods.
 9      *
10      * @param request servlet request
11      * @param response servlet response
12      * @throws ServletException if a servlet-specific error occurs
13      * @throws IOException if an I/O error occurs
14      */
15     protected void processRequest(HttpServletRequest request,
16             HttpServletResponse response)
17             throws ServletException, IOException {
18         response.setContentType("text/html;charset=UTF-8");
19         try (PrintWriter out = response.getWriter()) {
20             /* TODO output your page here.
21                You may use following sample code. */
22             out.println("<!DOCTYPE html>");
23             out.println("<html>");
24             out.println("<head>");
25             out.println("<title>Servlet Hello</title>");
26             out.println("</head>");
27             out.println("<body>");
28             out.println("<h1>Servlet Hello at "
29                 + request.getContextPath() + "</h1>");
30             out.println("</body>");
31             out.println("</html>");
32         }
33     }
34
35     /**
36      * Handles the HTTP <code>GET</code> method.
37      *
38      * @param request servlet request
39      * @param response servlet response
40      * @throws ServletException if a servlet-specific error occurs
41      * @throws IOException if an I/O error occurs
42      */
43     @Override
44     protected void doGet(HttpServletRequest request,
45             HttpServletResponse response)
46             throws ServletException, IOException {
47         processRequest(request, response);
48     }
49
50     /**
51      * Handles the HTTP <code>POST</code> method.
52      *
53      * @param request servlet request
54      * @param response servlet response
55      * @throws ServletException if a servlet-specific error occurs
56      * @throws IOException if an I/O error occurs
57      */
58     @Override
59     protected void doPost(HttpServletRequest request,
60             HttpServletResponse response)
61             throws ServletException, IOException {
62         processRequest(request, response);
63     }
64
65     [...code omitted ...]
66 }

If you start this application and complete the URI by /Hello, you can verify the servlet responding to your request.

Within the methods doGet and doPost, we implement our code, or as in this generated skeleton, we simply call a common method if Get and Post can be handled in the same fashion. The HTML code is generated within the processRequest method.

Writing HTML code directly inside Java code is not a good approach for anything beyond a trivial example. One approach is to separate the HTML page from the Java code using Java Server Pages (JSP). The page is stored on its own with embedded JSP tags and is compiled into a servlet at a later time.

2.10 Deployment

All servlets, and this includes JSF, run within a servlet container. When we launched TinyCalculator, NetBeans automatically started GlassFish (if not running) and deployed the application to the application server.

If we want to install an application into a production server, we may add this server to the NetBeans environment (or to your favourite IDE) and let the IDE perform the deployment to the production system. If, for some reasons, it is not possible to use the IDE for deployment, you might deploy the application by yourself. This process depends on the application server you use.

In case of GlassFish, you can either deploy at command line, using the asadmin command, or you use your browser to log into the administrator console. GlassFish offers an application menu. This is intended to deploy, un-deploy, start an application and more. And last but not least, you may use maven to deploy the application.

3. JavaServer Faces

[This chapter as well as all following isn’t available in the book sample]

Sadly, it is not possible yet, to integrate a full TOC automatically into the sample book. Leanpub is working on such a feature.

A TOC of existing as well as planned content is available at the landing page of this book
