II. arc42 by Example

Chapter IV contains practical tips for each part of arc42.

The system documented here is a small open source system hosted on Github.

Tip II-1: Improve your arc42 skills by reading additional examples

Luckily there are additional examples for arc42 architecture documentation available from several different authors.

• There’s a Leanpub book, arc42 by Example, that contains several examples.
• Managing bike tours, by Michael Simons: Java based app, productive since several years.
• Chess engine, by Stefan Zörner (in German).
• Customer relationship management (CRM).
• VENOM, a large scale (artificial) e-commerce system. Contains fragments from various real systems, combined into a single legacy tragedy.

If you like YOUR example to be listed here, just drop us an email.

II.1. Introduction and Goals

HtmlSC supports authors creating digital formats by checking hyperlinks, images and similar resources.

1.1 Requirements Overview

The overall goal of HtmlSC is to create neat and clear reports, showing errors within HTML files. Below you find a sample report.

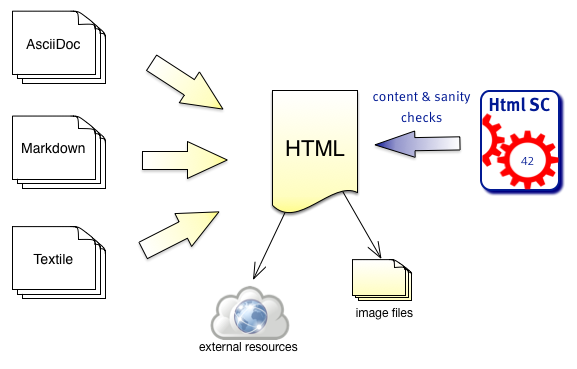

HtmlSanityCheck (HtmlSC) checks HTML for semantic errors, like broken links and missing images.

It has been created to support authors who create HTML as output format.

1. Authors write in formats like AsciiDoc, Markdown or other formats, which are transformed to HTML by the corresponding generators.
2. HtmlSC checks the generated HTML for broken links, missing images and other semantic issues.

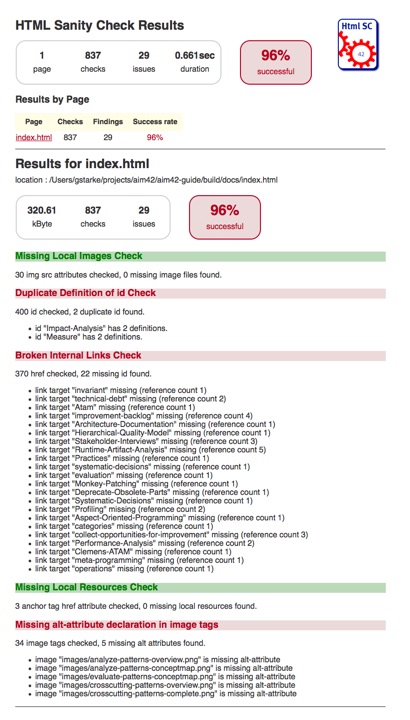

3. HtmlSC creates a test report, similar to the well-known unit test report.

Basic Usage

1. A user configures the location (directory and filename) of an HTML file, and the corresponding images directory.
2. HtmlSC performs various checks on the HTML and
3. reports its results either on the console or as HTML report.

HtmlSC can run from the command line or as Gradle plugin.

Basic Requirements

Required Functions

HtmlSC shall provide the following checks in HTML files:

Reporting and Output Requirements

1.2 Quality Goals

1.3 Stakeholders

Remark: For our simple HtmlSC example we have an extremely limited number of stakeholders, in real-life you will most likely have many more stakeholders!

Additional information

• Section IV-1 contains additional tips regarding requirements in general.
• In reality, the quality requirements or pretty often neglected and/or remain implicit.
• A more complete overview of quality goals can be given in section-iv-10 on quality scenarios

II.2 Constraints

HtmlSC shall be:

• platform-independent and should run on the major operating systems (Windows(TM), Linux, and Mac-OS(TM))
• implemented in Java or Groovy
• integrated with the Gradle build tool
• runnable from the command line
• developed under a liberal open-source license

Additional information

• Section IV-2 contains additional tips regarding constraints.

II.3 Context

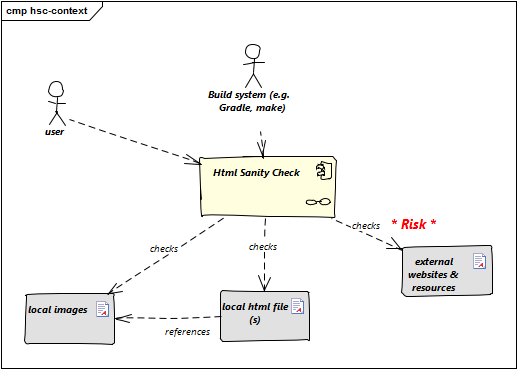

3.1 Business Context

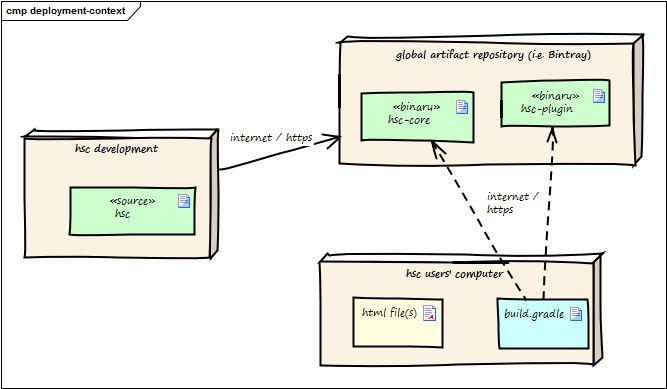

3.2 Deployment Context

The following diagram shows the participating computers (nodes) with their technical connections plus the major artifacts of HtmlSC, the hsc-plugin-binary.

For details see the deployment-view.

Additional information

• Section IV-3 contains additional tips regarding the business and/or technical context.
• Details of the external interfaces shown in the context might be elaborated in the building block view. See section IV-5

II.4 Solution Strategy

1. Implement HtmlSC mostly in the Groovy programming language and partially in Java with minimal external dependencies.
2. We wrap this implementation into a Gradle plugin, so it can be used within automated builds. Details are given in the Gradle userguide.
3. Apply the template-method-pattern to enable:
   • multiple checking algorithms. See the concept for checking algorithms,
   • both HTML (file) and text (console) output. See the reporting-concept.

Additional information

• Section IV-4 contains additional tips regarding the solution strategy.
• Keep this part of your documentation very short, move extensive explanations, examples etc. to arc42-section 8 (concepts).

II.5 Building Block View

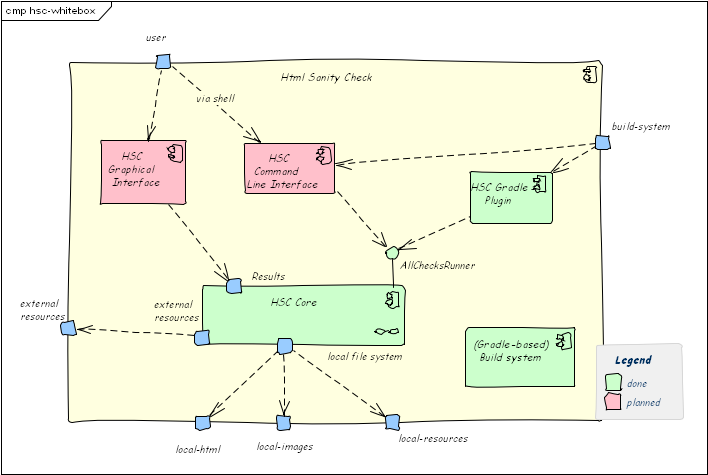

5.1 Whitebox HtmlSanityChecker

Rationale: We used functional decomposition to separate responsibilities:

• HSC Core shall encapsulate checking logic and HTML parsing/processing.
• HSC Gradle Plugin encapsulates all Gradle specific stuff
• Various kinds of UI (console, graphical) are handled by separate components.

Contained Blackboxes:

5.1.1 HSC Core (Blackbox)

Intent/Responsibility: HSC_Core contains the core functions to perform the various sanity checks. It parses the html file into a DOM-like in-memory representation, which is then used to perform the actual checks.

Interfaces:

Details are described in the HSC-Core Whitebox.

5.2 Building Blocks - Level 2

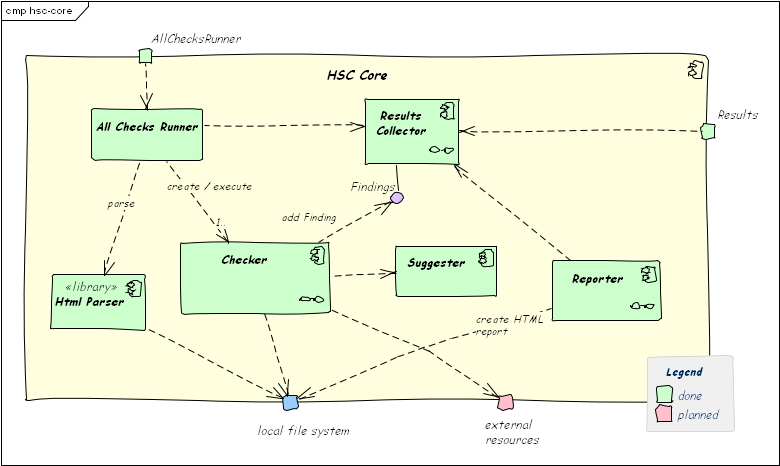

5.2.1 HSC-Core (Whitebox)

Rationale: This structures follows a strictly functional decomposition:

• parsing and handling HTML input,
• checking,
• creating suggestions and
• collecting checking results

Contained Blackboxes:

Source Files:

• org.aim42.htmlsanitycheck.AllChecksRunner
• org.aim42.htmlsanitycheck.HtmlSanityCheckGradlePlugin

5.2.1.1 Checker and <xyz>Checker Subclasses

The abstract Checker provides a uniform interface (public void check()) to different checking algorithms. It is based upon the concept of extensible checking algorithms.

5.3 Building Blocks - Level 3

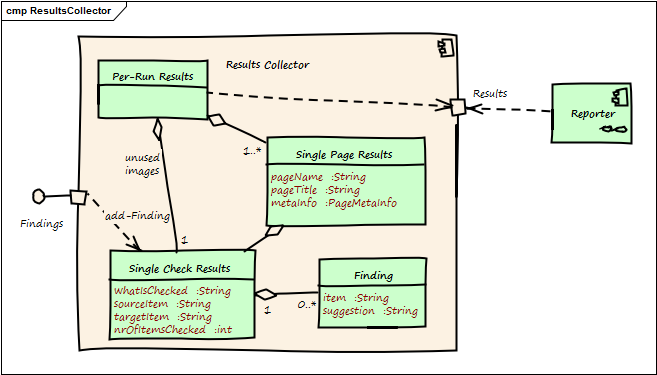

5.3.1 ResultsCollector (Whitebox)

Rationale: This structures follows the hierarchy of checks, managing results for:

1. a number of pages/documents
2. a single page, each containing many
3. single checks within a page

Contained Blackboxes:

5.3.2 Interface Results

The Result interface is used by all clients (especially Reporter subclasses, graphical and command-line clients) to access checking results. It consists of three distinct methods for:

1. overall RunResults,
2. single-page results (PageResults) and
3. single-check results (SingleCheckResults).

See the interface definitions below - taken from the Groovy source code:

package org.aim42.htmlsanitycheck.collect

public interface RunResults {
    // returns results for all pages which have been checked
    public ArrayList<SinglePageResults> getResultsForAllPages()

    // how many pages were checked in this run?
    public int nrOfPagesChecked()

    // how many checks were performed in all?
    public int nrOfChecksPerformedOnAllPages()

    // how many findings (errors and issues) were found in all?
    public int nrOfFindingsOnAllPages()

    // how long took checking (in milliseconds)?
    public Long checkingTookHowManyMillis()
}

package org.aim42.htmlsanitycheck.collect

interface CheckResults {
    // description of what is checked
    // (e.g. "Missing Images Checker" or "Broken Cross-References Checker"
    public String description()

    // all findings (aka problems) found during this check
    public  ArrayList<Finding> getFindings()
}

5.3.3 Suggester (Whitebox)

For a give input (target), Suggester searches within a set of possible values (options) to find the n most similar values. For example:

• Target = “McDown”
• Options = {“McUp”, “McDon”, “Mickey”}
• The resulting suggestion would be “McDon”, because it has the greatest similarity to the target “McDown”.

Suggester is used in the following cases:

• Broken image links: Compares the name of the missing image with all available image file names to find the closest match.
• Missing cross references (broken internal links): Compares the broken link with all available link targets (anchors).

Additional information

• Section IV-4 contains additional tips regarding the building block view.

II.6 Runtime View

II.6.1 Execute all checks

A typical scenario within HtmlSC is the execution of all available checking algorithms on a set of HTML pages.

Precondition: HtmlSC has been called from a Gradle build and is properly configured.

Scenario:

1. User or build-server calls gradle htmlSanityCheck
2. Gradle executes build-target htmlSanityCheck via the HtmlSC plugin
3. The plugin executes method AllChecksRunner.performAllChecks with parameter Collection<File> filesToCheck andFile resultsDir
4. performAllChecks:
   1. creates PerRunResults instance
   2. creates a list of Checkerinstances, one for every available checking algorithm
5. iterate over all these Checkerinstances. Every instance:
   1. executes its own checks
   2. adds one instance of SingleCheckResult containing its own results.
6. reportCheckingResultsAsHTML creates the final report.

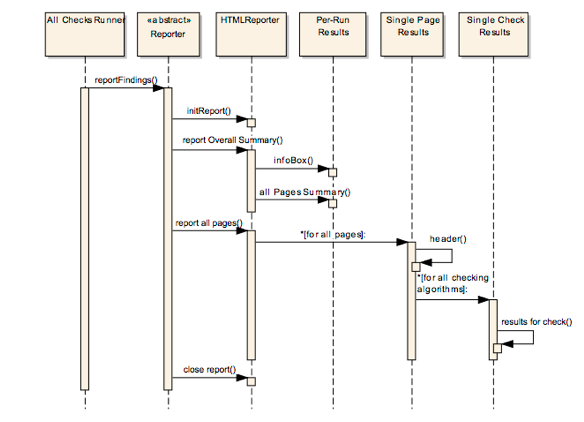

II.6.2 Report checking results

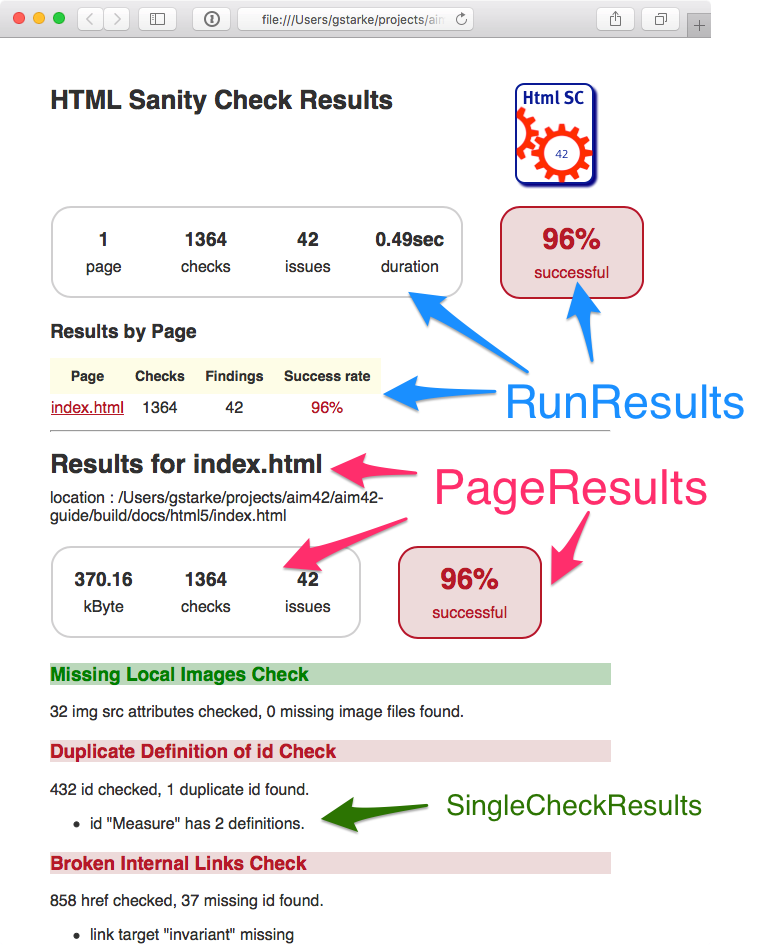

Reporting is done in the natural hierarchy of results (see the corresponding concept in section 8.2.1 for an example report).

1. per “run” (PerRunResults): date/time of this run, files checked, some configuration info, summary of results
2. per “page” (SinglePageResults):
3. create page result header with summary of page name and results
4. for each check performed on this page create a section with SingleCheckResults
5. per “single check on this page” report the results for this particular check

Additional information

• Section IV-6 contains additional tips regarding the runtime view.
• You often use runtime scenarios only to find or verify building blocks, not that much for documentation.

II.7 Deployment view

The three nodes (computers) shown in the diagram above are connected via Internet.

Prerequisites:

• HtmlSC developers need a Java development kit, Groovy, Gradle plus the JSoup HTML parser.
• HtmlSC users need a Java runtime (> 1.6) plus a build file named build.gradle. See below for a complete example.

buildscript {
    repositories {
        maven {
            url "https://plugins.gradle.org/m2/"
        }
        jcenter()
    }
    dependencies {
        classpath (group: 'gradle.plugin.org.aim42',
                name: 'htmlSanityCheck', version: '0.9.3')
        classpath (group: 'org.asciidoctor',
                    name: 'asciidoctor-gradle-plugin', version: '1.5.2')
    }
}

// location of AsciiDoc files
def asciidocSrcPath = "$projectDir/src/asciidoc"

// location of images used in AsciiDoc documentation
def srcImagesPath = "$asciidocSrcPath/images"

// path for asciidoc-gradle-convert
def htmlOutputPath = "$buildDir/asciidoc/html5"

// images used by generated html
def targetImagesPath =   htmlOutputPath + "/images"

// where HTMLSanityCheck checking results ares stored
def checkingResultsPath = "$buildDir/report/htmlchecks"

apply plugin: 'org.asciidoctor.convert'
asciidoctor {
    sourceDir = new File( asciidocSrcPath )
    options backends: ['html5'],
            doctype: 'book', icons: 'font',
            sectlink: true, sectanchors: true
    resources {
        from( srcImagesPath )
        into targetImagesPath
    }
}

apply plugin: 'org.aim42.htmlSanityCheck'
htmlSanityCheck {
    dependsOn asciidoctor // ensure asciidoctor->html runs first

    sourceDir = new File( htmlOutputPath )

    // files to check, in Set-notation
    sourceDocuments = [ "many-errors.html", "no-errors.html"]

    // where to put results of sanityChecks...
    checkingResultsDir = new File( checkingResultsPath )
}

Additional information

• Section IV-7 contains additional tips regarding the deployment view.
• Sometimes it’s useful to describe high-level deployment or infrastructure in the technical context in arc42 section 3.2, corresponding tips are given in this book

II.8 Technical and Crosscutting Concepts

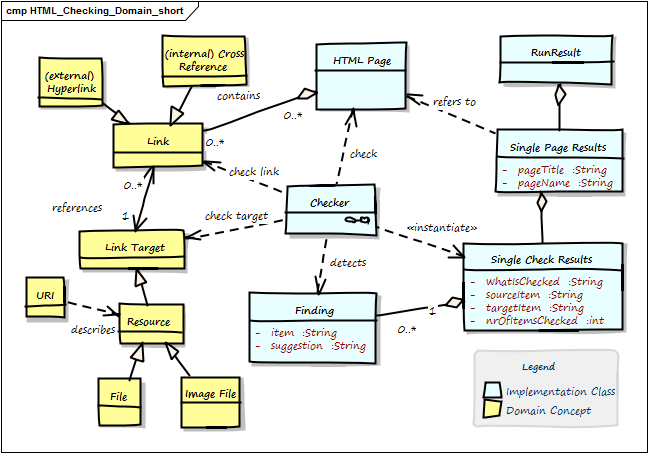

8.1 Domain Model

8.2 Structure of HTML Links

Remark: For many web developers or HTML experts the following information on URI syntax might be completely evident. As we wrote this book also for different kind of people, we included this information anyhow.

HtmlSC performs various checks on HTML links (hyperlinks), which usually follow the URI syntax specified by RFC-2396. URIs are generally used to link to arbitrary resources (documents, files or parts within documents).

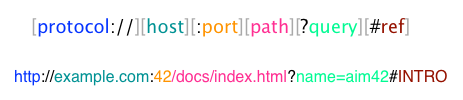

Their general structure is depicted in the following figure - you also find a unit test below.

@Test
public void testGenericURISyntax() {
    // based upon an example from the Oracle(tm) Java tutorial:
    // http://docs.oracle.com/javase/tutorial/networking/urls/urlInfo.html
    def aURL = new URL(
        "http://example.com:42/docs/tutorial/index.html?name=aim42#INTRO");
    aURL.with {
        assert getProtocol() == "http"
        assert getAuthority() == "example.com:42"
        assert getHost() == "example.com"
        assert getPort() == 42
        assert getPath() == "/docs/tutorial/index.html"
        assert getQuery() == "name=aim42"
        assert getRef() == "INTRO"
    }
}

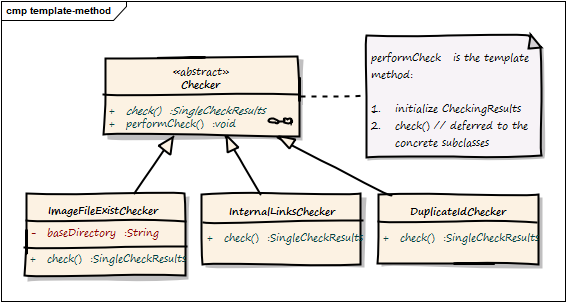

8.3 Multiple Checking algorithms

HtmlSC uses the template-method-pattern to enable flexible checking algorithms:

“The Template Method defines a skeleton of an algorithm in an operation, and defers some steps to subclasses”.

We achieve that by defining the skeleton of the checking algorithm in one operation (performCheck), deferring the specific checking algorithm steps to subclasses. The invariant steps are implemented in the abstract base class, while the variant checking algorithms have to be provided by the subclasses.

/**
  * Prerequisite: pageToCheck has been successfully parsed,
  * prior to constructing this Checker instance.
**/
public CheckingResultsCollector performCheck() {
    // assert prerequisite
    assert pageToCheck != null
    initResults()
    return check() // subclass executes the actual checking algorithm
}

8.4 Reporting

HtmlSC supports the following output (== reporting) formats and destinations:

• formats (HTML and text) and
• destinations (file and console)

The reporting subsystem uses the template method pattern to allow different output formats (e.g. Console and HTML). The overall structure of reports is always the same.

The (generic and abstract) reporting is implemented in the abstract Reporter class as follows:

/**
 * main entry point for reporting - to be called when a report is requested
 * Uses template-method to delegate concrete implementations to subclasses
*/
    public void reportFindings() {
        initReport()            // (1)
        reportOverallSummary()  // (2)
        reportAllPages()        // (3)
        closeReport()           // (4)
    }

    private void reportAllPages() {
        pageResults.each { pageResult ->
            reportPageSummary( pageResult )                    // (5)
            pageResult.singleCheckResults.each { resultForOneCheck ->
               reportSingleCheckSummary( resultForOneCheck )  // (6)
               reportSingleCheckDetails( resultForOneCheck )  // (7)
               reportPageFooter()
        }
    }

1. initialize the report, e.g. create and open the file, copy css-, javascript and image files.
2. create the overall summary, with the overall success percentage and a list of all checked pages with their success rate.
3. iterate over all pages
4. write report footer - in HTML report also create back-to-top-link
5. for a single page, report the number of checks and problems plus the success rate
6. for every singleCheck on that page, report a summary and
7. all detailed findings for a singleCheck.
8. for every checked page, create a footer, page break or similar to graphically distinguish pages between each other.

The sample report below illustrates this.

Additional information

• Section IV-8 contains additional tips regarding crosscutting concepts.

II.9 Design Decisions

9.1 Checking of external links postponed

In the current version of HtmlSC we won’t check external links. These checks have been postponed to later versions.

9.2 HTML Parsing with jsoup

To check HTML we parse it into an internal (DOM-like) representation. For this task we use Jsoup, an open-source parser without external dependencies.

To quote from the their website:

[quote] jsoup is a Java library for working with real-world HTML. It provides a very convenient API for extracting and manipulating data, using the best of DOM, CSS, and jQuery-like methods.

Goals of this decision: Check HTML programmatically by using an existing API that provides access and finder methods to the DOM-tree of the file(s) to be checked.

Decision Criteria:

• few dependencies, so the HtmlSC binary stays as small as possible.
• accessor and finder methods to find images, links and link-targets within the DOM tree.

Alternatives:

• HTTPUnit: a testing framework for web applications and -sites. Its main focus is web testing and it suffers from a large number of dependencies.
• jsoup: a plain HTML parser without any dependencies (!) and a rich API to access all HTML elements in DOM-like syntax.

Find details about usage of this parser in the HTML encapsulation.

9.3 String Similarity Checking using Jaro-Winkler-Distance

The small java string similarity library (by Ralph Allen Rice) contains implementations of several similarity-calculation algorithms. As it is not available as public binary, we use the sources instead, primarily: net.ricecode.similarity.JaroWinklerStrategy.

Additional information

• Section IV-9 contains additional tips regarding decisions.

II.10 Quality Scenarios

Remark: For our small example, such a quality tree is overly extensive… whereas in real-live systems we’ve seen quality trees with more than 100 scenarios.

10.1 Quality tree

10.2 Quality Scenarios

Additional information

• The most important quality goals (expressed as scenarios) have been summarized in the introductory section IV-1.2.
• Section IV-10 contains additional tips regarding quality scenarios.

II.11 Risks and technical debt

Remark: In our small example we don’t see any real risks for architecture and implementation. Therefore the risks shown below are a bit artificial…

11.1 Technical risks

11.2 Business or domain risks

Additional information

• Section IV-11 contains additional tips regarding risks.
• Help your management by informing them about technical risks - and options for their mitigation.

II.12 Glossary

In the case of our small example, the terms given here should be good friends to most developers. You find a more interesting version of the glossary in section II-8.1.

Additional information

• Section IV-12 contains additional tips regarding the glossary.
• Many terms in the glossary correspond to parts of the “Ubiquitous Language” from Eric Evans’ Domain Driven Design
