Chapter 1—Introducing Flexbox

In this chapter, we explore basic Flexbox usages.

  1. Flex direction
  2. Center alignment
  3. Container and items
  4. Flex grow and shrink
  5. Inputs

flex-direction

In Flexbox, we control how items are placed within the container. A container is a box with X and Y axis. The Flexbox’s property name doesn’t use X, Y, Left, Top wordings. It’s because we can set flex-direction to control the Main Axis. The other axis is called Cross Axis.

1 .container{
2   flex-direction: row; /* Align from left to right. */
3 }
4 .container{
5   flex-direction: column; /* Align from top to bottom. */
6 }

align and justify

We can now better understand the align and justify after we learn the direction concept. align-items aligns items on the cross axis and justify-content aligns items on the main axis.

Think about justifying a text in word processor. Normally we write the text for left to right. Let’s assume this is as same as having a row direction for our text content. When we click the left, center, right or justify alignment buttons on the toolbar, we can move the content in the row direction. This is what justify-content means—How the content itself aligns in the main axis.

Once we know justify-content is for the main axis, we know align-items is for the other one.

Center align

Center alignment is one of the most discussed topic in CSS. Flexbox provides a easy and elegant way to solve this layout issue.

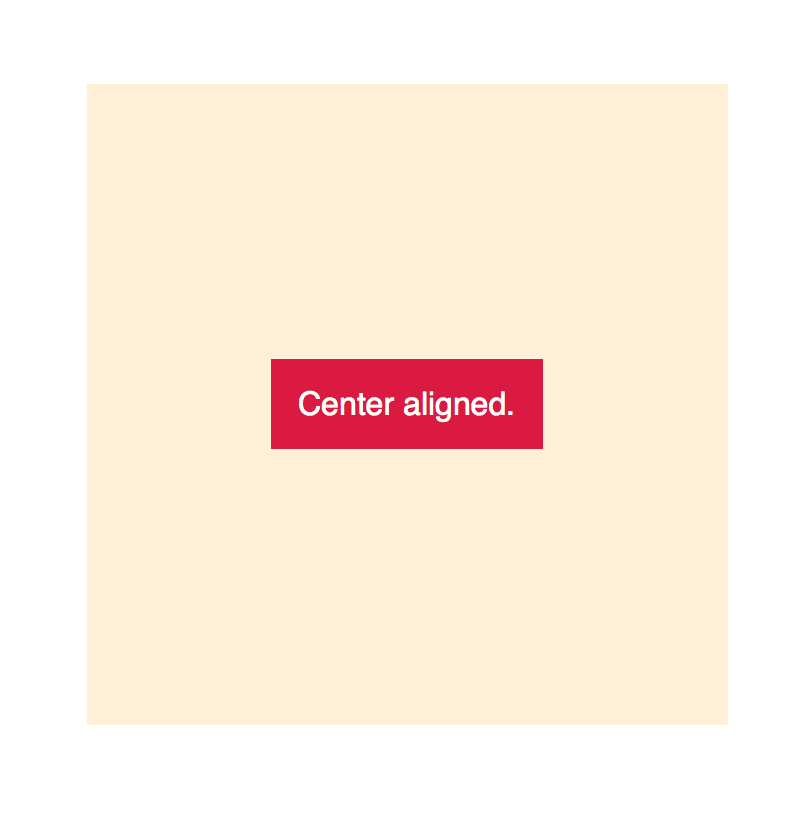

The result of center-aligned item inside the container.
The result of center-aligned item inside the container.

Example—Center aligning one item

HTML:

1 <div class="container">
2   <div class="item">Center aligned.</div>
3 </div>

CSS:

1 .container {
2   display: flex;
3 }
4 .item {
5   margin: auto;
6 }

The beautify of margin: auto on the child items is that it automatically spread the items across the space with equivalent margins.

Example—Distribute multiple items in container

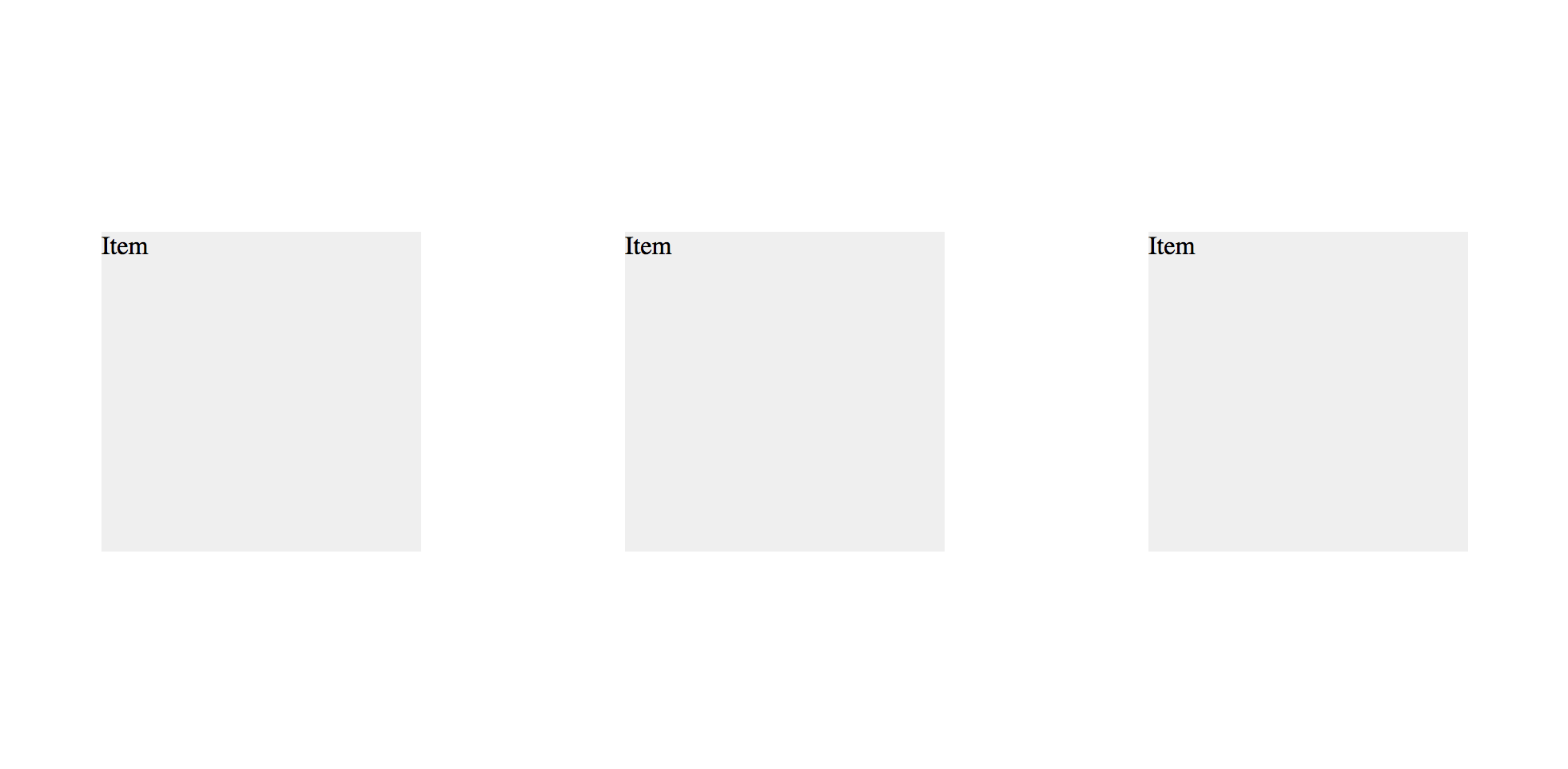

Multiple items are automatically distributed within container.
Multiple items are automatically distributed within container.

Thanks to the margin: auto, the browser automatically distribute all the items inside the flexbox container equally.

1 <div class="container">
2   <div class="item">Item.</div>
3   <div class="item">Item.</div>
4   <div class="item">Item.</div>
5 </div>

Using align-items and justify-content

Alternatively, we can configure the alignment in the container by using the align-items and justify-content properties.

1 .container {
2   display: flex;
3   align-items: center;
4   justify-content: center;
5 }
6 .item {
7   /* No need to specify the alignment in children */
8 }

Example—Center aligning multiple items

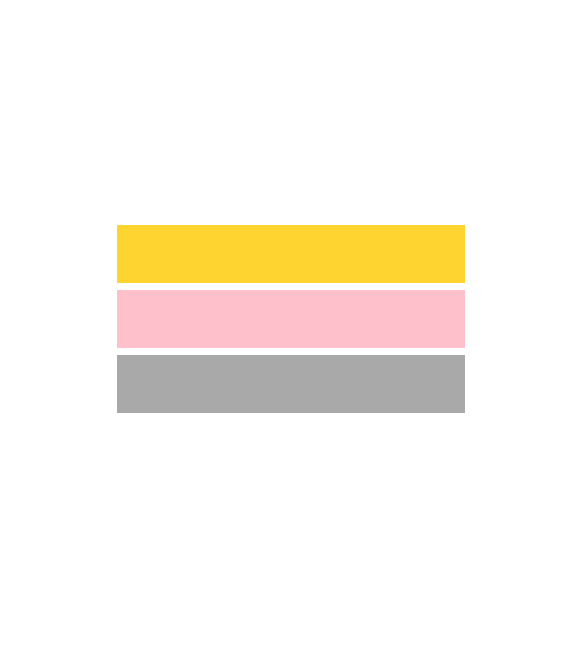

Multiple items being center aligned.
Multiple items being center aligned.

By using the container’s alignment options, we can center align multiple items together.

 1 html, body {
 2   height: 100%
 3 }
 4 .container {
 5   display: flex;
 6   height: 100%;
 7
 8   align-items: center;
 9   justify-content: center;
10
11   flex-direction: column;
12 }
13 .box {
14   height: 50px;
15   width: 300px;
16   margin: 0.2em;
17 }

You can find the live demo in the following link:

http://codepen.io/makzan/pen/dopZxX

Container and items

We only think of 1 container and it’s direct children at any given moment. We should only focus on one container and its direct child items. Flexbox is all about the container and how items inside it take the spaces. When dealing with the container-items pair, we don’t care if the item is a container of another set of elements. We just think of 1 container and it’s direct children.

Flex grow and shrink

When we’re building the grid layout, we need to master another concept of Flexbox—grow and shrink.

flex-grow

Grow defines how the items expand to takes the extra spaces. Grow affects the items when there are empty spaces in the container. Grow defines the ratio each item should expand. Given value 1 on all items mean each one of them should take equal width, or height, depends on the flex-direction.

1 flex: 1;

flex-shrink

Shrink is how each item should squeeze when the container is smaller. Having value 1 on all items means all items shrinks equally.

1 flex: 0 1 auto;
Applying grow and shrink

Given the following HTML structure:

app-layout.html
 1 <div class="container">
 2   <header>
 3     Header goes here.
 4   </header>
 5   <main>
 6     <p>Main content.</p>
 7     <p>Main content.</p>
 8     <p>Main content.</p>
 9     <p>Main content.</p>
10     ...
11   </main>
12   <footer>
13     Footer goes here.
14   </footer>
15 </div>

We can make the header and footer shrink to its content height. Then we make the main content auto expand to take up all the spaces.

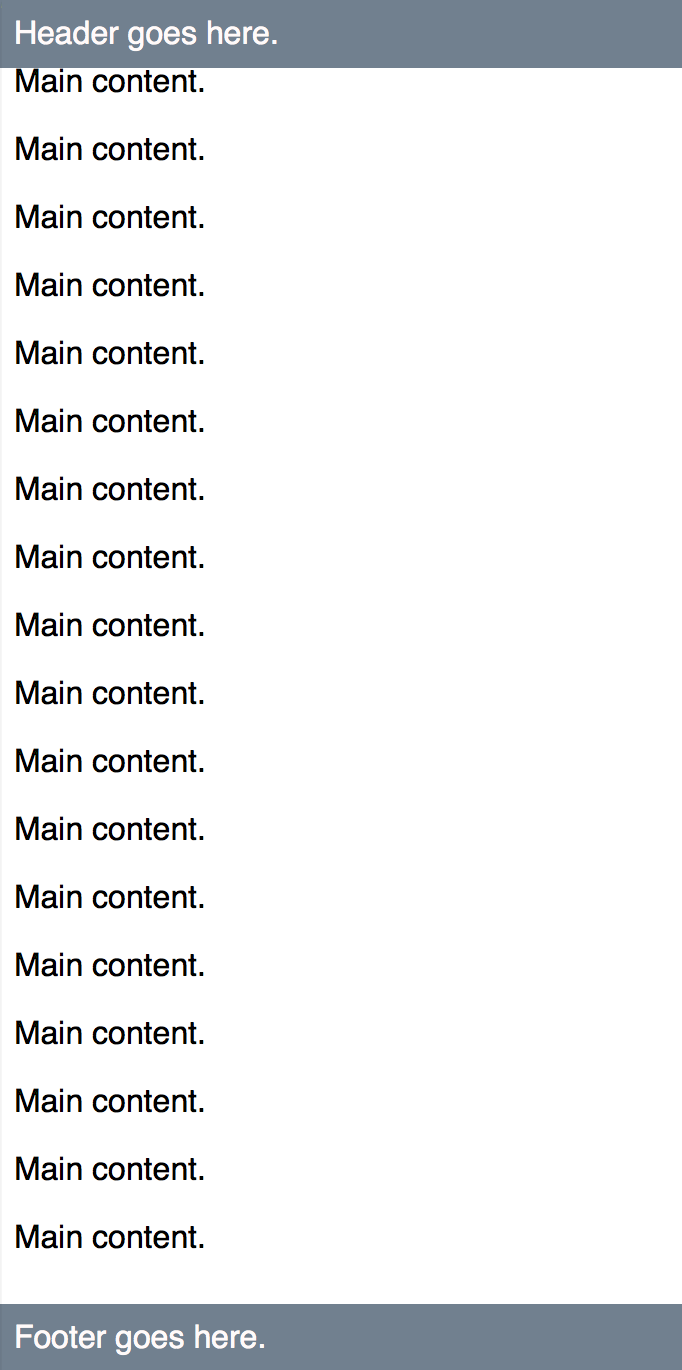

Our code running in small screen.
Our code running in small screen.
app-layout.css
 1 html, body {
 2   height: 100%;
 3 }
 4 .container {
 5   display: flex;
 6   flex-direction: column;
 7   height: 100%;
 8 }
 9 header, footer {
10   flex: 0 1 auto;
11 }
12 main {
13   flex: 1;
14   overflow: scroll;
15   -webkit-overflow-scrolling:touch;
16 }

You may also find the live code in the following codepen demo.

http://codepen.io/makzan/pen/mJrqzO

Inputs

With the grow and shrink feature, we can define items that shrinks to its content’s width, and the main input will take all the rest of the space.

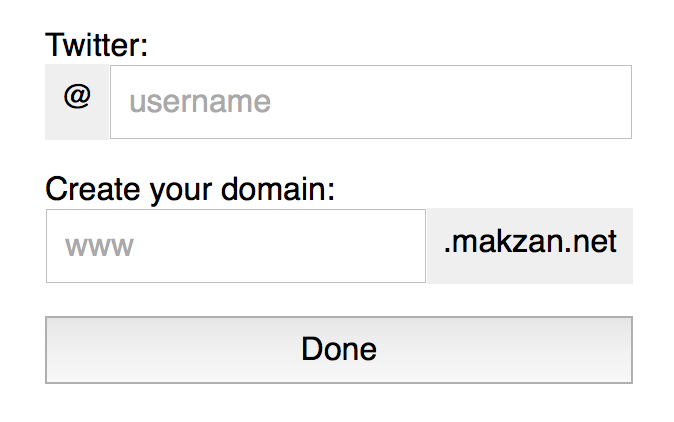

The result running in browser.
The result running in browser.

Time for Action—Creating an input form with prefix and postfix

Follow the steps to create an input form with flexbox.

  1. First, we create the following HTML markup.
    index.html
     1 <div class="container">
 2   <form>
 3     <fieldset>
 4       <label for="twitter-handle">Twitter:</label>
 5       <div class="input">
 6         <span>@</span>
 7         <input type="text" id="twitter-handle" placeholder="username" autofocus>
 8       </div>
 9     </fieldset>
10     <fieldset>
11       <label for="twitter-handle">Create your domain:</label>
12       <div class="input">
13         <input type="text" id="twitter-handle" placeholder="www">
14         <span>.makzan.net</span>
15       </div>
16     </fieldset>
17     <input type="submit" value="Done">
18   </form>
19 </div>
  2. Then we just need few lines of flex code to make it works. Display flex, grow, shrink, and Done.
    input.css
    1 .input {
2    display: flex;
3  }
4  .input > span {
5    flex: 0 1 auto;
6  }
7  .input > input {
8    flex: 1;
9  }
  3. Well, I actually applied more styles to make the input looks nice. I added the following code to archive the screenshot we show at the beginning. They are not our focus, but I include it so you see how we can make our inputs more easily to use by using padding.
    input.css
    10  /* Container flexbox */
11  .container {
12    display: flex;
13    align-items: center;
14    justify-content: center;
15    height: 100vh;
16  }
17
18  /* Not our focus */
19  fieldset{
20    border: none;
21    padding: 0;
22    margin: 1em 0;
23  }
24
25  .input > span {
26    display: block;
27    background: #efefef;
28    padding: 0.5em;
29  }
30  .input > input {
31    padding: 0.5em;
32  }
33
34  input[type="submit"] {
35    width: 100%;
36    padding: 0.5em;
37  }

Live Demo

You may find the live demo of the code in the following codepen entry.

http://codepen.io/makzan/pen/zGKPRb

Up next

Chapter 2—Row–Column grid layout
