II. HTML Sanity Checking

By Gernot Starke.

The system documented here is a small open source tool hosted on Github.

The full sourcecode is available - you might even configure your Gradle build to use this software. Just in case you’re writing documentation based on Asciidoctor, that would be a great idea!

But enough preamble. Let’s get started…

II.1. Introduction and Goals

HtmlSC supports authors creating digital formats by checking hyperlinks, images and similar resources.

1.1 Requirements Overview

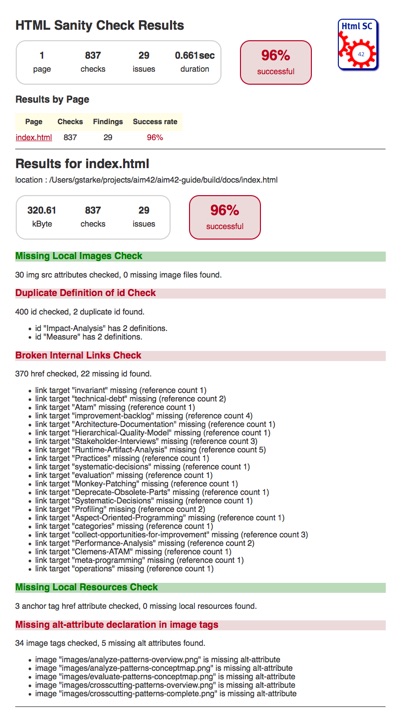

The overall goal of HtmlSC is to create neat and clear reports, showing errors within HTML files. Below you find a sample report.

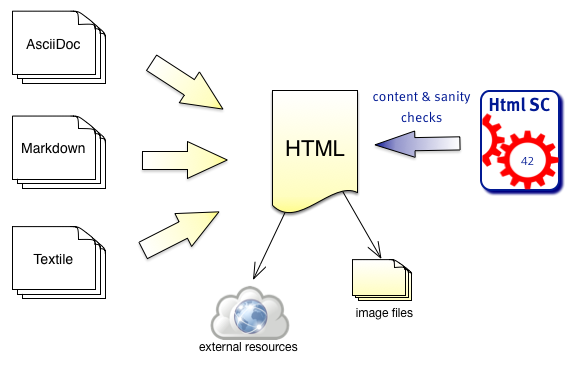

HtmlSanityCheck (HtmlSC) checks HTML for semantic errors, like broken links and missing images. It has been created to support authors who create HTML as output format.

1. Authors write in formats like AsciiDoc, Markdown or other formats, which are transformed to HTML by the corresponding generators.
2. HtmlSC checks the generated HTML for broken links, missing images and other semantic issues.
3. HtmlSC creates a test report, similar to the well-known unit test report.

Basic Usage

1. A user configures the location (directory and filename) of one or several HTML file(s), and the corresponding images directory.
2. HtmlSC performs various checks on the HTML and
3. reports its results either on the console or as HTML report.

HtmlSC can run from the command line or as Gradle plugin.

Basic Requirements

Required Checks

HtmlSC shall provide the following checks in HTML files:

1.2 Quality Goals

1.3 Stakeholders

Remark: For our simple HtmlSC example we have an extremely limited number of stakeholders, in real-life you will most likely have many more stakeholders!

II.2 Constraints

HtmlSC shall be:

• platform-independent and should run on the major operating systems (Windows(TM), Linux, and Mac-OS(TM))
• implemented in Java or Groovy
• integrated with the Gradle build tool
• runnable from the command line
• have minimal runtime and installation dependencies (a Java(TM) runtime may be required to run HtmlSC)
• developed under a liberal open-source license. In addition, all required dependencies/libraries shall be compatible with a CreativeCommons license. |

II.3 System Scope and Context

3.1 Business Context

3.2 Deployment Context

The following diagram shows the participating computers (nodes) with their technical connections plus the major artifacts of HtmlSC, the hsc-plugin-binary.

For details see the deployment-view.

II.4 Solution Strategy

1. Implement HtmlSC mostly in the Groovy programming language and partially in Java with minimal external dependencies.
2. We wrap this implementation into a Gradle plugin, so it can be used within automated builds. Details are given in the Gradle userguide. (The Maven plugin is still under development).
3. Apply the template-method-pattern to enable:
   • multiple checking algorithms. See the concept for checking algorithms,
   • both HTML (file) and text (console) output. See the reporting-concept.
4. Rely on standard Gradle and Groovy conventions for configuration, having a single configuration file.
   • For the Maven plugin, this might lead to problems.

II.5 Building Block View

5.1 Whitebox HtmlSanityChecker

Rationale: We used functional decomposition to separate responsibilities:

• HSC Core shall encapsulate checking logic and HTML parsing/processing.
• Plugins and GraphicalUI encapsulate all usage aspects

Contained Blackboxes:

II.6 Runtime View

II.6.1 Execute all checks

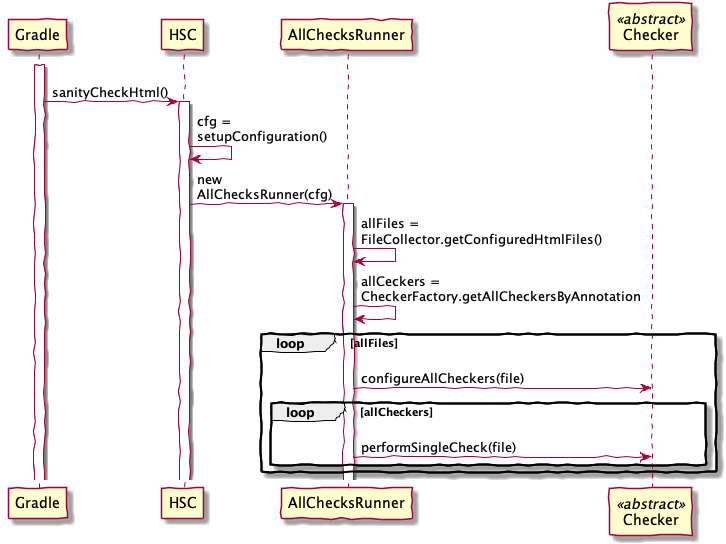

A typical scenario within HtmlSC is the execution of all available checking algorithms on a set of HTML pages.

Explanation:

1. User or build calls htmlSanityCheck build target.
2. Gradle (from within build) calls sanityCheckHtml
3. HSC configures input files and output directory
4. HSC creates an AllChecksRunner instance
5. gets all configured files into allFiles
6. (planned) get all available Checker classes based upon annotation
7. perform the checks, collecting the results

II.6.2 Report checking results

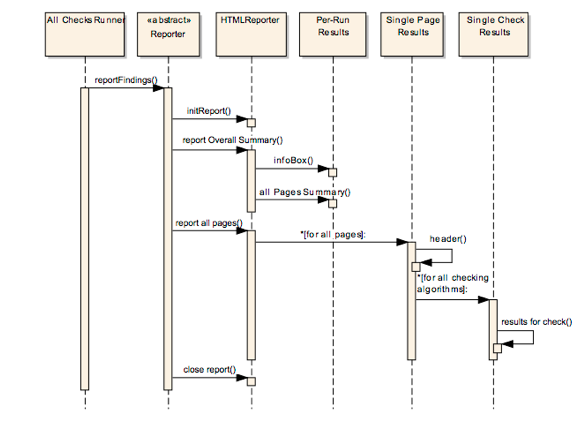

Reporting is done in the natural hierarchy of results (see the corresponding concept in section 8.2.1 for an example report).

1. per “run” (PerRunResults): date/time of this run, files checked, some configuration info, summary of results
2. per “page” (SinglePageResults):
3. create page result header with summary of page name and results
4. for each check performed on this page create a section with SingleCheckResults
5. per “single check on this page” report the results for this particular check

II.7 Deployment view

The three nodes (computers) shown in the diagram above are connected via Internet.

Prerequisites:

• HtmlSC developers need a Java development kit, Groovy, Gradle plus the JSoup HTML parser.
• HtmlSC users need a Java runtime (> 1.6) plus a build file named build.gradle. See below for a complete example.

 1 buildscript {
 2     repositories {
 3         mavenLocal()
 4         maven {
 5             url "https://plugins.gradle.org/m2/"
 6         }
 7     }
 8     dependencies {
 9         // in case of mavenLocal(), the following line is valid:
10         classpath(group: 'org.aim42',
11
12        // in case of using the official Gradle plugin repository:
13        //classpath (group: 'gradle.plugin.org.aim42',
14       name: 'htmlSanityCheck', version: '1.0.0-RC-3')
15     }
16 }
17
18 plugins {
19     id 'org.asciidoctor.convert' version '1.5.8'
20 }
21
22
23 // ==== path definitions =====
24 ext {
25     srcDir = "$projectDir/src/docs/asciidoc"
26
27 // location of images used in AsciiDoc documentation
28     srcImagesPath = "$srcDir/images"
29
30 // (input for htmlSanityCheck)
31     htmlOutputPath = "$buildDir"
32
33     targetImagesPath = "$buildDir/images"
34 }
35
36 // ==== asciidoctor ==========
37 apply plugin: 'org.asciidoctor.convert'
38
39 asciidoctor {
40     outputDir = file(buildDir)
41     sourceDir = file(srcDir)
42
43     sources {
44         include "many-errors.adoc", "no-errors.adoc"  }
45
46     attributes = [
47             doctype    : 'book',
48             icons      : 'font',
49             sectlink   : true,
50             sectanchors: true ]
51
52     resources {
53         from(srcImagesPath) { include '**' }
54         into "./images"  }
55 }
56
57 // ========================================================
58 apply plugin: 'org.aim42.htmlSanityCheck'
59
60 htmlSanityCheck {
61     // ensure asciidoctor->html runs first
62     // and images are copied to build directory
63
64     dependsOn asciidoctor
65
66     sourceDir = new File("${buildDir}/html5")
67
68     // files to check, in Set-notation
69     sourceDocuments = ["many-errors.html", "no-errors.html"]
70
71     // fail the build if any error is encountered
72     failOnErrors = false
73
74     // set the http connection timeout to 2 secs
75     httpConnectionTimeout = 2000
76
77     ignoreLocalHost = false
78     ignoreIPAddresses = false
79 }
80
81 defaultTasks 'htmlSanityCheck'
