About This Book

This book is for the typical Scala developer, probably with a Java background, who is both sceptical and curious about the Functional Programming (FP) paradigm. This book justifies every concept with practical examples, including writing a web application.

This book uses Typelevel Cats 2.1, the most popular Functional Programming framework for Scala. Typelevel has a wealth of accessible and idiomatic learning resources in a welcoming and safe environment.

This book is designed to be read from cover to cover, in the order presented, with a rest between chapters. Earlier chapters encourage coding styles that we will later discredit: similar to how we learn Newton’s theory of gravity as children, and progress to Riemann / Einstein / Maxwell if we become students of physics.

A computer is not necessary to follow along, but studying the Cats source code is encouraged. Some of the more complex code snippets are available with the book’s source code and those who want practical exercises are encouraged to (re-)implement Cats (and the example application) using the partial descriptions presented in this book.

This book is an updated and revised edition of “Functional Programming for Mortals” by Sam Halliday.

Like the original, this book uses the Creative Commons Attribution ShareAlike 4.0 International (CC BY-SA 4.0) license.

All original code snippets in this book and the example application drone-dynamic-agents are provided under the Hippocratic License 2.1: an Ethical Source license that specifically prohibits the use of software to violate universal standards of human rights.


To set up a project that uses the libraries presented in this book, use a recent version of Scala with FP-specific features enabled (e.g. in build.sbt):

  scalaVersion in ThisBuild := "2.12.11"
  scalacOptions in ThisBuild ++= Seq(
  libraryDependencies ++= Seq(
    "org.typelevel"        %% "simulacrum"      % "1.0.0",
    "org.typelevel"        %% "cats-core"       % "2.1.1",
  addCompilerPlugin("org.typelevel" %% "kind-projector" % "0.11.0" cross CrossVersion.full)
  addCompilerPlugin("org.scalamacros" % "paradise" % "2.1.1" cross CrossVersion.full)

In order to keep our snippets short, we will omit the import section. Unless told otherwise, assume that all snippets have the following imports:

  import cats._,, cats.implicits._
  import simulacrum._

1. Introduction

It is human instinct to be sceptical of a new paradigm. To put some perspective on how far we have come, and the shifts we have already accepted on the JVM, let’s start with a quick recap of the last 20 years.

Java 1.2 introduced the Collections API, allowing us to write methods that abstracted over mutable collections. It was useful for writing general purpose algorithms and was the bedrock of our codebases.

But there was a problem, we had to perform runtime casting:

  public String first(Collection collection) {
    return (String)(collection.get(0));

In response, developers defined domain objects in their business logic that were effectively CollectionOfThings, and the Collection API became implementation detail.

In 2005, Java 5 introduced generics, allowing us to define Collection<Thing>, abstracting over the container and its elements. Generics changed how we wrote Java.

The author of the Java generics compiler, Martin Odersky, then created Scala with a stronger type system, immutable data and multiple inheritance. This brought about a fusion of object oriented (OOP) and functional programming (FP).

For most developers, FP means using immutable data as much as possible, but mutable state is still a necessary evil that must be isolated and managed, e.g. with Akka actors or synchronized classes. This style of FP results in simpler programs that are easier to parallelise and distribute, an improvement over Java. But it is only scratching the surface of the benefits of FP, as we will discover in this book.

Scala also brings Future, making it easy to write asynchronous applications. But when a Future makes it into a return type, everything needs to be rewritten to accomodate it, including the tests, which are now subject to arbitrary timeouts.

We have a problem similar to Java 1.0: there is no way of abstracting over execution, much as we had no way of abstracting over collections.

1.1 Abstracting over Execution

Say we want to interact with the user over the command line interface. We can read what the user types and we can write a message to them.

  trait TerminalSync {
    def read(): String
    def write(t: String): Unit
  trait TerminalAsync {
    def read(): Future[String]
    def write(t: String): Future[Unit]

How do we write generic code that does something as simple as echo the user’s input synchronously or asynchronously depending on our runtime implementation?

We could write a synchronous version and wrap it with Future but now we have to worry about which thread pool we should be using for the work, or we could Await.result on the Future and introduce thread blocking. In either case, it is a lot of boilerplate and we are fundamentally dealing with different APIs that are not unified.

We can solve the problem, like Java 1.2, with a common parent using the higher kinded types (HKT) Scala language feature.

We want to define Terminal for a type constructor C[_]. By defining Now to construct to its type parameter (like Id), we can implement a common interface for synchronous and asynchronous terminals:

  trait Terminal[C[_]] {
    def read: C[String]
    def write(t: String): C[Unit]
  type Now[X] = X
  object TerminalSync extends Terminal[Now] {
    def read: String = ???
    def write(t: String): Unit = ???
  object TerminalAsync extends Terminal[Future] {
    def read: Future[String] = ???
    def write(t: String): Future[Unit] = ???

We can think of C as a Context because we say “in the context of executing Now” or “in the Future”.

But we know nothing about C and we cannot do anything with a C[String]. What we need is a kind of execution environment that lets us call a method returning C[T] and then be able to do something with the T, including calling another method on Terminal. We also need a way of wrapping a value as a C[_]. This signature works well:

  trait Execution[C[_]] {
    def chain[A, B](c: C[A])(f: A => C[B]): C[B]
    def create[B](b: B): C[B]

letting us write:

  def echo[C[_]](t: Terminal[C], e: Execution[C]): C[String] =
    e.chain( { in: String =>
      e.chain(t.write(in)) { _: Unit =>

We can now share the echo implementation between synchronous and asynchronous codepaths. We can write a mock implementation of Terminal[Now] and use it in our tests without any timeouts.

Implementations of Execution[Now] and Execution[Future] are reusable by generic methods like echo.

But the code for echo is unpleasant.

The implicit class Scala language feature gives C some methods. We will call these methods flatMap and map for reasons that will become clearer in a moment. Each method takes an implicit Execution[C], but this is nothing more than the flatMap and map that we’re used to on Seq, Option and Future

  object Execution {
    implicit class Ops[A, C[_]](c: C[A]) {
      def flatMap[B](f: A => C[B])(implicit e: Execution[C]): C[B] =
      def map[B](f: A => B)(implicit e: Execution[C]): C[B] =
            e.chain(c)(f andThen e.create)
  def echo[C[_]](implicit t: Terminal[C], e: Execution[C]): C[String] = { in: String =>
      t.write(in).map { _: Unit =>

We can now reveal why we used flatMap as the method name: it lets us use a for comprehension, which is just syntax sugar over nested flatMap and map.

  def echo[C[_]](implicit t: Terminal[C], e: Execution[C]): C[String] =
    for {
      in <-
       _ <- t.write(in)
    } yield in

Our Execution has the same signature as a trait in Cats called Monad, except chain is flatMap and create is pure. We say that C is monadic when there is an implicit Monad[C] available. In addition, Cats has the Id type alias.

The takeaway is: if we write methods that operate on monadic types, then we can write sequential code that abstracts over its execution context. Here, we have shown an abstraction over synchronous and asynchronous execution but it can also be for the purpose of more rigorous error handling (where C[_] is Either[Error, _]), managing access to volatile state, performing I/O, or auditing of the session.

1.2 Pure Functional Programming

Functional Programming is the act of writing programs with pure functions. Pure functions have three properties:

  • Total: return a value for every possible input
  • Deterministic: return the same value for the same input
  • Inculpable: no (direct) interaction with the world or program state.

Together, these properties give us an unprecedented ability to reason about our code. For example, input validation is easier to isolate with totality, caching is possible when functions are deterministic, and interacting with the world is easier to control, and test, when functions are inculpable.

The kinds of things that break these properties are side effects: directly accessing or changing mutable state (e.g. maintaining a var in a class or using a legacy API that is impure), communicating with external resources (e.g. files or network lookup), or throwing and catching exceptions.

We write pure functions by avoiding exceptions, and interacting with the world only through a safe F[_] execution context.

In the previous section, we abstracted over execution and defined echo[Id] and echo[Future]. We might reasonably expect that calling any echo will not perform any side effects, because it is pure. However, if we use Future or Id as the execution context, our application will start listening to stdin:

  val futureEcho: Future[String] = echo[Future]

We have broken purity and are no longer writing FP code: futureEcho is the result of running echo once. Future conflates the definition of a program with interpreting it (running it). As a result, applications built with Future are difficult to reason about.

We can define a simple safe F[_] execution context

  final class IO[A](val interpret: () => A) {
    def map[B](f: A => B): IO[B] = IO(f(interpret()))
    def flatMap[B](f: A => IO[B]): IO[B] = IO(f(interpret()).interpret())
  object IO {
    def apply[A](a: =>A): IO[A] = new IO(() => a)

which lazily evaluates a thunk. IO is just a data structure that references (potentially) impure code, it isn’t actually running anything. We can implement Terminal[IO]

  object TerminalIO extends Terminal[IO] {
    def read: IO[String]           = IO { io.StdIn.readLine }
    def write(t: String): IO[Unit] = IO { println(t) }

and call echo[IO] to get back a value

  val delayed: IO[String] = echo[IO]

This val delayed can be reused, it is just the definition of the work to be done. We can map the String and compose additional programs, much as we would map over a Future. IO keeps us honest that we are depending on some interaction with the world, but does not prevent us from accessing the output of that interaction.

The impure code inside the IO is only evaluated when we .interpret() the value, which is an impure action


An application composed of IO programs is only interpreted once, in the main method, which is also called the end of the world.

In this book, we expand on the concepts introduced in this chapter and show how to write maintainable, pure functions, that achieve our business’s objectives.

2. For Comprehensions

Scala’s for comprehension is the ideal FP abstraction for sequential programs that interact with the world. Since we will be using it a lot, we’re going to relearn the principles of for and how Cats can help us to write cleaner code.

This chapter doesn’t try to write pure programs and the techniques are applicable to non-FP codebases.

2.1 Syntax Sugar

Scala’s for is just a simple rewrite rule, also called syntax sugar, that doesn’t have any contextual information.

To see what a for comprehension is doing, we use the show and reify feature in the REPL to print out what code looks like after type inference.

  scala> import scala.reflect.runtime.universe._
  scala> val a, b, c = Option(1)
  scala> show { reify {
           for { i <- a ; j <- b ; k <- c } yield (i + j + k)
         } }
    ((i) => $read.b.flatMap(
      ((j) => $
        ((k) => i.$plus(j).$plus(k)))))))

There is a lot of noise due to additional sugarings (e.g. + is rewritten $plus, etc). We will skip the show and reify for brevity when the REPL line is reify>, and manually clean up the generated code so that it doesn’t become a distraction.

  reify> for { i <- a ; j <- b ; k <- c } yield (i + j + k)
  a.flatMap {
    i => b.flatMap {
      j => {
        k => i + j + k }}}

The rule of thumb is that every <- (called a generator) is a nested flatMap call, with the final generator a map containing the yield body.

2.1.1 Assignment

We can assign values inline like ij = i + j (a val keyword is not needed).

  reify> for {
           i <- a
           j <- b
           ij = i + j
           k <- c
         } yield (ij + k)
  a.flatMap {
    i => { j => (j, i + j) }.flatMap {
      case (j, ij) => {
        k => ij + k }}}

A map over the b introduces the ij which is flat-mapped along with the j, then the final map for the code in the yield.

Unfortunately we cannot assign before any generators.

  scala> for {
           initial = getDefault
           i <- a
         } yield initial + i
  <console>:1: error: '<-' expected but '=' found.

We can workaround the limitation by defining a val outside the for

  scala> val initial = getDefault
  scala> for { i <- a } yield initial + i

or create an Option out of the initial assignment

  scala> for {
           initial <- Option(getDefault)
           i <- a
         } yield initial + i

2.1.2 Filter

It is possible to put if statements after a generator to filter values by a predicate

  reify> for {
           i  <- a
           j  <- b
           if i > j
           k  <- c
         } yield (i + j + k)
  a.flatMap {
    i => b.withFilter {
      j => i > j }.flatMap {
        j => {
          k => i + j + k }}}

Older versions of Scala used filter, but Traversable.filter creates new collections for every predicate, so withFilter was introduced as the more performant alternative. We can accidentally trigger a withFilter by providing type information, interpreted as a pattern match.

  reify> for { i: Int <- a } yield i
  a.withFilter {
    case i: Int => true
    case _      => false
  }.map { case i: Int => i }

Like assignment, a generator can use a pattern match on the left hand side. But unlike assignment (which throws MatchError on failure), generators are filtered and will not fail at runtime. However, there is an inefficient double application of the pattern.

2.1.3 For Each

Finally, if there is no yield, the compiler will use foreach instead of flatMap, which is only useful for side-effects.

  reify> for { i <- a ; j <- b } println(s"$i $j")
  a.foreach { i => b.foreach { j => println(s"$i $j") } }

2.1.4 Summary

The full set of methods supported by for comprehensions do not share a common super type; each generated snippet is independently compiled. If there were a trait, it would roughly look like:

  trait ForComprehensible[C[_]] {
    def map[A, B](f: A => B): C[B]
    def flatMap[A, B](f: A => C[B]): C[B]
    def withFilter[A](p: A => Boolean): C[A]
    def foreach[A](f: A => Unit): Unit

If the context (C[_]) of a for comprehension doesn’t provide its own map and flatMap, all is not lost. If an implicit cats.FlatMap[T] is available for T, it will provide map and flatMap.

2.2 Unhappy path

So far we’ve only looked at the rewrite rules, not what is happening in map and flatMap. Consider what happens when the for context decides that it cannot proceed any further.

In the Option example, the yield is only called when i,j,k are all defined.

  for {
    i <- a
    j <- b
    k <- c
  } yield (i + j + k)

If any of a,b,c are None, the comprehension short-circuits with None but it doesn’t tell us what went wrong.

If we use Either, then a Left will cause the for comprehension to short circuit with extra information, much better than Option for error reporting:

  scala> val a = Right(1)
  scala> val b = Right(2)
  scala> val c: Either[String, Int] = Left("sorry, no c")
  scala> for { i <- a ; j <- b ; k <- c } yield (i + j + k)
  Left(sorry, no c)

And lastly, let’s see what happens with a Future that fails:

  scala> import scala.concurrent._
  scala> import
  scala> for {
           i <- Future.failed[Int](new Throwable)
           j <- Future { println("hello") ; 1 }
         } yield (i + j)
  scala> Await.result(f, duration.Duration.Inf)
  caught java.lang.Throwable

The Future that prints to the terminal is never called because, like Option and Either, the for comprehension short circuits.

Short circuiting for the unhappy path is a common and important theme. for comprehensions cannot express resource cleanup: there is no way to try / finally. This is good, in FP it puts a clear ownership of responsibility for unexpected error recovery and resource cleanup onto the context (which is usually a Monad as we will see later), not the business logic.

2.3 Gymnastics

Although it is easy to rewrite simple sequential code as a for comprehension, sometimes we will want to do something that appears to require mental summersaults. This section collects some practical examples and how to deal with them.

2.3.1 Fallback Logic

Say we are calling out to a method that returns an Option. If it is not successful we want to fallback to another method (and so on and so on), like when we’re using a cache:

  def getFromRedis(s: String): Option[String]
  def getFromSql(s: String): Option[String]
  getFromRedis(key) orElse getFromSql(key)

If we have to do this for an asynchronous version of the same API

  def getFromRedis(s: String): Future[Option[String]]
  def getFromSql(s: String): Future[Option[String]]

then we have to be careful not to do extra work because

  for {
    cache <- getFromRedis(key)
    sql   <- getFromSql(key)
  } yield cache orElse sql

will run both queries. We can pattern match on the first result but the type is wrong

  for {
    cache <- getFromRedis(key)
    res   <- cache match {
               case Some(_) => cache !!! wrong type !!!
               case None    => getFromSql(key)
  } yield res

We need to create a Future from the cache

  for {
    cache <- getFromRedis(key)
    res   <- cache match {
               case Some(_) => Future.successful(cache)
               case None    => getFromSql(key)
  } yield res

Future.successful creates a new Future, much like an Option or List constructor.

2.3.2 Early Exit

Say we have some condition that should exit early with a successful value.

If we want to exit early with an error, it is standard practice in OOP to throw an exception

  def getA: Int = ...
  val a = getA
  require(a > 0, s"$a must be positive")
  a * 10

which can be rewritten async

  def getA: Future[Int] = ...
  def error(msg: String): Future[Nothing] =
    Future.failed(new RuntimeException(msg))
  for {
    a <- getA
    b <- if (a <= 0) error(s"$a must be positive")
         else Future.successful(a)
  } yield b * 10

But if we want to exit early with a successful return value, the simple synchronous code:

  def getB: Int = ...
  val a = getA
  if (a <= 0) 0
  else a * getB

translates into a nested for comprehension when our dependencies are asynchronous:

  def getB: Future[Int] = ...
  for {
    a <- getA
    c <- if (a <= 0) Future.successful(0)
         else for { b <- getB } yield a * b
  } yield c

2.4 Incomprehensible

The context we’re comprehending over must stay the same: we cannot mix contexts.

  scala> def option: Option[Int] = ...
  scala> def future: Future[Int] = ...
  scala> for {
           a <- option
           b <- future
         } yield a * b
  <console>:23: error: type mismatch;
   found   : Future[Int]
   required: Option[?]
           b <- future

Nothing can help us mix arbitrary contexts in a for comprehension because the meaning is not well defined.

But when we have nested contexts the intention is usually obvious yet the compiler still doesn’t accept our code.

  scala> def getA: Future[Option[Int]] = ...
  scala> def getB: Future[Option[Int]] = ...
  scala> for {
           a <- getA
           b <- getB
         } yield a * b
  <console>:30: error: value * is not a member of Option[Int]

Here we want for to take care of the outer context and let us write our code on the inner Option. Hiding the outer context is exactly what a monad transformer does, and Cats provides implementations for Option and Either named OptionT and EitherT respectively.

The outer context can be anything that normally works in a for comprehension, but it needs to stay the same throughout.

We create an OptionT from each method call. This changes the context of the for from Future[Option[_]] to OptionT[Future, _].

  scala> val result = for {
           a <- OptionT(getA)
           b <- OptionT(getB)
         } yield a * b
  result: OptionT[Future, Int] = OptionT(Future(<not completed>))

.value returns us to the original context

  scala> result.value
  res: Future[Option[Int]] = Future(<not completed>)

The monad transformer also allows us to mix Future[Option[_]] calls with methods that just return plain Future via .liftM[OptionT] (provided by Cats):

  scala> def getC: Future[Int] = ...
  scala> val result = for {
           a <- OptionT(getA)
           b <- OptionT(getB)
           c <- OptionT.liftF(getC)
         } yield a * b / c
  result: OptionT[Future, Int] = OptionT(Future(<not completed>))

and we can mix with methods that return plain Option by wrapping them in Future.successful (.pure[Future]) followed by OptionT

  scala> def getD: Option[Int] = ...
  scala> val result = for {
           a <- OptionT(getA)
           b <- OptionT(getB)
           c <- OptionT.liftF(getC)
           d <- OptionT(getD.pure[Future])
         } yield (a * b) / (c * d)
  result: OptionT[Future, Int] = OptionT(Future(<not completed>))

It is messy again, but it is better than writing nested flatMap and map by hand. We can clean it up with a DSL that handles all the required conversions into OptionT[Future, _]

  def liftFutureOption[A](f: Future[Option[A]]) = OptionT(f)
  def liftFuture[A](f: Future[A]) = OptionT.liftF(f)
  def liftOption[A](o: Option[A]) = OptionT(o.pure[Future])
  def lift[A](a: A)               = liftOption(Option(a))

To use our DSL we can use the Typelevel Mouse extensions to Cats, add the following to your build.sbt

  libraryDepedencies += "org.typelevel" %% "mouse" % "0.24"

giving us the |> operator, which applies the function on the right to the value on the left, to visually separate the logic from the transformers

  scala> import mouse._
  scala> val result = for {
           a <- getA       |> liftFutureOption
           b <- getB       |> liftFutureOption
           c <- getC       |> liftFuture
           d <- getD       |> liftOption
           e <- 10         |> lift
         } yield e * (a * b) / (c * d)
  result: OptionT[Future, Int] = OptionT(Future(<not completed>))

This approach also works for Either (and others) as the inner context, but their lifting methods are more complex and require parameters.

3. Application Design

In this chapter we will write the business logic and tests for a purely functional server application. The source code for this application is included under the example directory along with the book’s source, however it is recommended not to read the source code until the final chapter as there will be significant refactors as we learn more about FP.

3.1 Specification

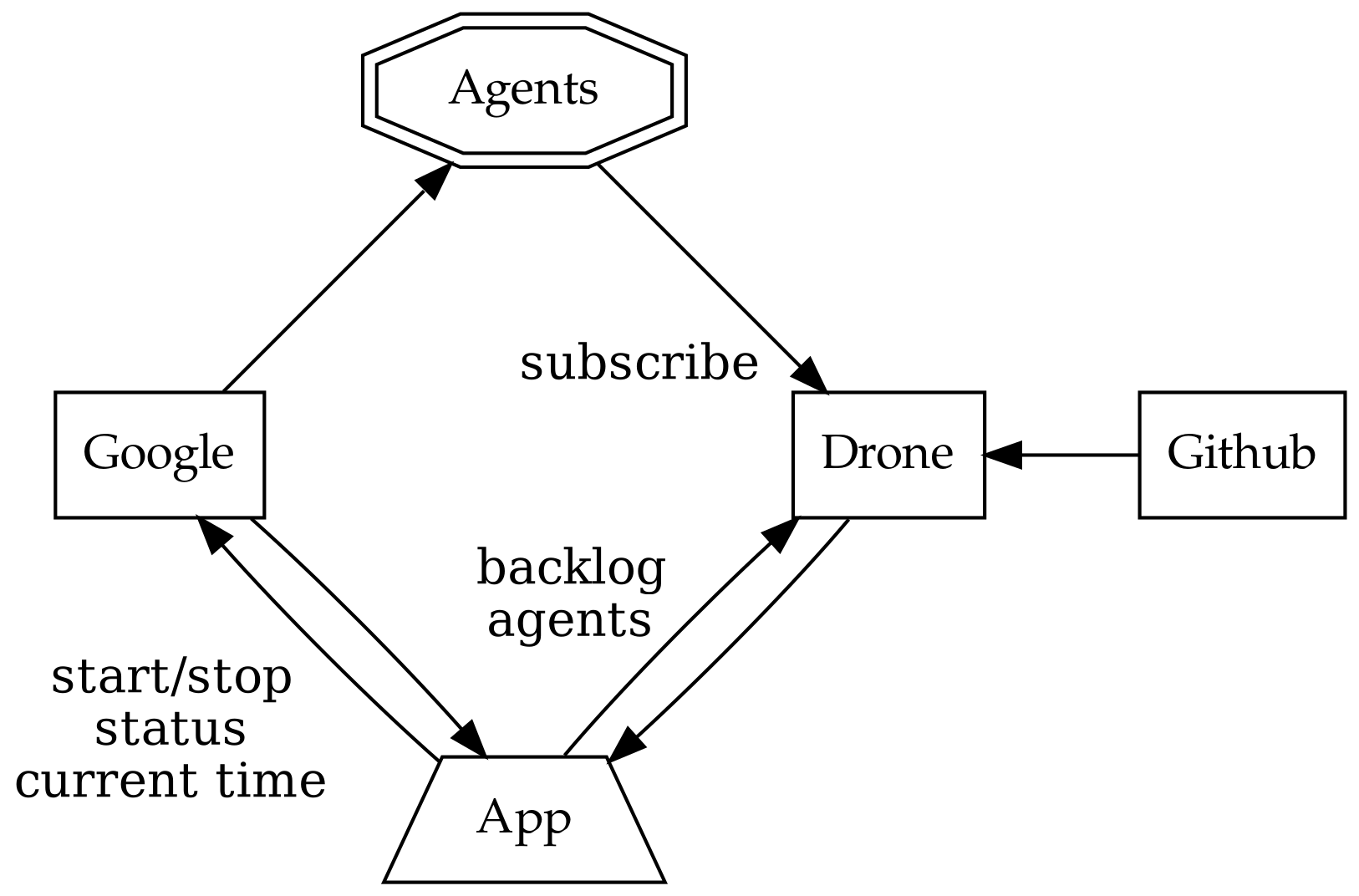

Our application will manage a just-in-time build farm on a shoestring budget. It will listen to a Drone Continuous Integration server, and spawn worker agents using Google Container Engine (GKE) to meet the demand of the work queue.

Drone receives work when a contributor submits a github pull request to a managed project. Drone assigns the work to its agents, each processing one job at a time.

The goal of our app is to ensure that there are enough agents to complete the work, with a cap on the number of agents, whilst minimising the total cost. Our app needs to know the number of items in the backlog and the number of available agents.

Google can spawn nodes, each can host multiple drone agents. When an agent starts up, it registers itself with drone and drone takes care of the lifecycle (including keep-alive calls to detect removed agents).

GKE charges a fee per minute of uptime, rounded up to the nearest hour for each node. One does not simply spawn a new node for each job in the work queue, we must re-use nodes and retain them until their 58th minute to get the most value for money.

Our app needs to be able to start and stop nodes, as well as check their status (e.g. uptimes, list of inactive nodes) and to know what time GKE believes it to be.

In addition, there is no API to talk directly to an agent so we do not know if any individual agent is performing any work for the drone server. If we accidentally stop an agent whilst it is performing work, it is inconvenient and requires a human to restart the job.

Contributors can manually add agents to the farm, so counting agents and nodes is not equivalent. We don’t need to supply any nodes if there are agents available.

The failure mode should always be to take the least costly option.

Both Drone and GKE have a JSON over REST API with OAuth 2.0 authentication.

3.2 Interfaces / Algebras

We will now codify the architecture diagram from the previous section. Firstly, we need to define a simple data type to capture a millisecond timestamp because such a simple thing does not exist in either the Java or Scala standard libraries:

  import scala.concurrent.duration._
  final case class Epoch(millis: Long) extends AnyVal {
    def +(d: FiniteDuration): Epoch = Epoch(millis + d.toMillis)
    def -(e: Epoch): FiniteDuration = (millis - e.millis).millis

In FP, an algebra takes the place of an interface in Java, or the set of valid messages for an Actor in Akka. This is the layer where we define all side-effecting interactions of our system.

There is tight iteration between writing the business logic and the algebra: it is a good level of abstraction to design a system.

  trait Drone[F[_]] {
    def getBacklog: F[Int]
    def getAgents: F[Int]
  final case class MachineNode(id: String)
  trait Machines[F[_]] {
    def getTime: F[Epoch]
    def getManaged: F[NonEmptyList[MachineNode]]
    def getAlive: F[Map[MachineNode, Epoch]]
    def start(node: MachineNode): F[MachineNode]
    def stop(node: MachineNode): F[MachineNode]

We’ve used NonEmptyList, easily created by calling .toNel on the stdlib’s List (returning an Option[NonEmptyList]), otherwise everything should be familiar.

3.3 Business Logic

Now we write the business logic that defines the application’s behaviour, considering only the happy path.

We need a WorldView class to hold a snapshot of our knowledge of the world. If we were designing this application in Akka, WorldView would probably be a var in a stateful Actor.

WorldView aggregates the return values of all the methods in the algebras, and adds a pending field to track unfulfilled requests.

  final case class WorldView(
    backlog: Int,
    agents: Int,
    managed: NonEmptyList[MachineNode],
    alive: Map[MachineNode, Epoch],
    pending: Map[MachineNode, Epoch],
    time: Epoch

Now we are ready to write our business logic, but we need to indicate that we depend on Drone and Machines.

We can write the interface for the business logic

  trait DynAgents[F[_]] {
    def initial: F[WorldView]
    def update(old: WorldView): F[WorldView]
    def act(world: WorldView): F[WorldView]

and implement it with a module. A module depends only on other modules, algebras and pure functions, and can be abstracted over F. If an implementation of an algebraic interface is tied to a specific type, e.g. IO, it is called an interpreter.

  final class DynAgentsModule[F[_]: Monad](D: Drone[F], M: Machines[F])
    extends DynAgents[F] {

The Monad context bound means that F is monadic, allowing us to use map, pure and, of course, flatMap via for comprehensions.

We have access to the algebra of Drone and Machines as D and M, respectively. Using a single capital letter name is a common naming convention for monad and algebra implementations.

Our business logic will run in an infinite loop (pseudocode)

  state = initial()
  while True:
    state = update(state)
    state = act(state)

3.3.1 initial

In initial we call all external services and aggregate their results into a WorldView. We default the pending field to an empty Map.

  def initial: F[WorldView] = for {
    db <- D.getBacklog
    da <- D.getAgents
    mm <- M.getManaged
    ma <- M.getAlive
    mt <- M.getTime
  } yield WorldView(db, da, mm, ma, Map.empty, mt)

Recall from Chapter 1 that flatMap (i.e. when we use the <- generator) allows us to operate on a value that is computed at runtime. When we return an F[_] we are returning another program to be interpreted at runtime, that we can then flatMap. This is how we safely chain together sequential side-effecting code, whilst being able to provide a pure implementation for tests. FP could be described as Extreme Mocking.

3.3.2 update

update should call initial to refresh our world view, preserving known pending actions.

If a node has changed state, we remove it from pending and if a pending action is taking longer than 10 minutes to do anything, we assume that it failed and forget that we asked to do it.

  def update(old: WorldView): F[WorldView] = for {
    snap <- initial
    changed = symdiff(old.alive.keySet, snap.alive.keySet)
    pending = (old.pending -- changed).filterNot {
      case (_, started) => (snap.time - started) >= 10.minutes
    update = snap.copy(pending = pending)
  } yield update
  private def symdiff[T](a: Set[T], b: Set[T]): Set[T] =
    (a union b) -- (a intersect b)

Concrete functions like .symdiff don’t need test interpreters, they have explicit inputs and outputs, so we could move all pure code into standalone methods on a stateless object, testable in isolation. We’re happy testing only the public methods, preferring that our business logic is easy to read.

3.3.3 act

The act method is slightly more complex, so we will split it into two parts for clarity: detection of when an action needs to be taken, followed by taking action. This simplification means that we can only perform one action per invocation, but that is reasonable because we can control the invocations and may choose to re-run act until no further action is taken.

We write the scenario detectors as extractors for WorldView, which is nothing more than an expressive way of writing if / else conditions.

We need to add agents to the farm if there is a backlog of work, we have no agents, we have no nodes alive, and there are no pending actions. We return a candidate node that we would like to start:

  private object NeedsAgent {
    def unapply(world: WorldView): Option[MachineNode] = world match {
      case WorldView(backlog, 0, managed, alive, pending, _)
           if backlog > 0 && alive.isEmpty && pending.isEmpty
             => Option(managed.head)
      case _ => None

If there is no backlog, we should stop all nodes that have become stale (they are not doing any work). However, since Google charge per hour we only shut down machines in their 58th minute to get the most out of our money. We return the non-empty list of nodes to stop.

As a financial safety net, all nodes should have a maximum lifetime of 5 hours.

  private object Stale {
    def unapply(world: WorldView): Option[NonEmptyList[MachineNode]] = world match {
      case WorldView(backlog, _, _, alive, pending, time) if alive.nonEmpty =>
        (alive -- pending.keys).collect {
          case (n, started) if backlog == 0 && (time - started).toMinutes % 60 >= 58 => n
          case (n, started) if (time - started) >= 5.hours => n
      case _ => None

Now that we have detected the scenarios that can occur, we can write the act method. When we schedule a node to be started or stopped, we add it to pending noting the time that we scheduled the action.

  def act(world: WorldView): F[WorldView] = world match {
    case NeedsAgent(node) =>
      for {
        _ <- M.start(node)
        update = world.copy(pending = Map(node -> world.time))
      } yield update
    case Stale(nodes) =>
      nodes.foldLeftM(world) { (world, n) =>
        for {
          _ <- M.stop(n)
          update = world.copy(pending = world.pending + (n -> world.time))
        } yield update
    case _ => world.pure[F]

Because NeedsAgent and Stale do not cover all possible situations, we need a catch-all case _ to do nothing. Recall from Chapter 2 that .pure creates the for’s (monadic) context from a value.

.foldLeftM is like .foldLeft, but each iteration of the fold may return a monadic value. In our case, each iteration of the fold returns F[WorldView]. The M is for Monadic. We will find more of these lifted methods that behave as one would expect, taking monadic values in place of values.

3.4 Unit Tests

The FP approach to writing applications is a designer’s dream: delegate writing the implementations of algebras to team members while focusing on making business logic meet the requirements.

Our application is highly dependent on timing and third party webservices. If this was a traditional OOP application, we’d create mocks for all the method calls, or test actors for the outgoing mailboxes. FP mocking is equivalent to providing an alternative implementation of dependency algebras. The algebras already isolate the parts of the system that need to be mocked, i.e. interpreted differently in the unit tests.

We will start with some test data

  object Data {
    val node1   = MachineNode("1243d1af-828f-4ba3-9fc0-a19d86852b5a")
    val node2   = MachineNode("550c4943-229e-47b0-b6be-3d686c5f013f")
    val managed = NonEmptyList.of(node1, node2)
    val time1: Epoch = epoch"2017-03-03T18:07:00Z"
    val time2: Epoch = epoch"2017-03-03T18:59:00Z" // +52 mins
    val time3: Epoch = epoch"2017-03-03T19:06:00Z" // +59 mins
    val time4: Epoch = epoch"2017-03-03T23:07:00Z" // +5 hours
    val needsAgents = WorldView(5, 0, managed, Map.empty, Map.empty, time1)
  import Data._

We implement algebras by extending Drone and Machines with a specific monadic context, Id being the simplest.

Our “mock” implementations simply play back a fixed WorldView. We’ve isolated the state of our system, so we can use var to store the state:

  class Mutable(state: WorldView) {
    var started, stopped: Int = 0
    private val D: Drone[Id] = new Drone[Id] {
      def getBacklog: Int = state.backlog
      def getAgents: Int = state.agents
    private val M: Machines[Id] = new Machines[Id] {
      def getAlive: Map[MachineNode, Epoch] = state.alive
      def getManaged: NonEmptyList[MachineNode] = state.managed
      def getTime: Epoch = state.time
      def start(node: MachineNode): MachineNode = { started += 1 ; node }
      def stop(node: MachineNode): MachineNode = { stopped += 1 ; node }
    val program = new DynAgentsModule[Id](D, M)

When we write a unit test (here using FlatSpec from Scalatest), we create an instance of Mutable and then import all of its members.

Our implicit drone and machines both use the Id execution context and therefore interpreting this program with them returns an Id[WorldView] that we can assert on.

In this trivial case we just check that the initial method returns the same value that we use in the static implementations:

  "Business Logic" should "generate an initial world view" in {
    val mutable = new Mutable(needsAgents)
    import mutable._
    program.initial shouldBe needsAgents

We can create more advanced tests of the update and act methods, helping us flush out bugs and refine the requirements:

  it should "remove changed nodes from pending" in {
    val world = WorldView(0, 0, managed, Map(node1 -> time3), Map.empty, time3)
    val mutable = new Mutable(world)
    import mutable._
    val old = world.copy(alive = Map.empty,
                         pending = Map(node1 -> time2),
                         time = time2)
    program.update(old) shouldBe world
  it should "request agents when needed" in {
    val mutable = new Mutable(needsAgents)
    import mutable._
    val expected = needsAgents.copy(
      pending = Map(node1 -> time1)
    program.act(needsAgents) shouldBe expected
    mutable.stopped shouldBe 0
    mutable.started shouldBe 1

It would be boring to go through the full test suite. The following tests are easy to implement using the same approach:

  • not request agents when pending
  • don’t shut down agents if nodes are too young
  • shut down agents when there is no backlog and nodes will shortly incur new costs
  • not shut down agents if there are pending actions
  • shut down agents when there is no backlog if they are too old
  • shut down agents, even if they are potentially doing work, if they are too old
  • ignore unresponsive pending actions during update

All of these tests are synchronous and isolated to the test runner’s thread (which could be running tests in parallel). If we’d designed our test suite in Akka, our tests would be subject to arbitrary timeouts and failures would be hidden in logfiles.

The productivity boost of simple tests for business logic cannot be overstated. Consider that 90% of an application developer’s time interacting with the customer is in refining, updating and fixing these business rules. Everything else is implementation detail.

3.5 Parallel

The application that we have designed runs each of its algebraic methods sequentially. But there are some obvious places where work can be performed in parallel.

3.5.1 initial

In our definition of initial we could ask for all the information we need at the same time instead of one query at a time.

As opposed to flatMap for sequential operations, Cats uses Semigroupal syntax for parallel operations:

  (D.getBacklog, D.getAgents, M.getManaged, M.getAlive, M.getTime).mapN(...)

If each of the parallel operations returns a value in the same monadic context, we can apply a function to the results when they all return. Rewriting initial to take advantage of this:

  def initial: F[WorldView] =
    (D.getBacklog, D.getAgents, M.getManaged, M.getAlive, M.getTime).mapN {
      case (db, da, mm, ma, mt) => WorldView(db, da, mm, ma, Map.empty, mt)

3.5.2 act

In the current logic for act, we are stopping each node sequentially, waiting for the result, and then proceeding. But we could stop all the nodes in parallel and then update our view of the world.

A disadvantage of doing it this way is that any failures will cause us to short-circuit before updating the pending field. But that is a reasonable tradeoff since our update will gracefully handle the case where a node is shut down unexpectedly.

We need a method that operates on NonEmptyList that allows us to .map each element into an F[MachineNode], returning an F[NonEmptyList[MachineNode]]. The method is called .traverse, and when we .flatMap over it we get a NonEmptyList[MachineNode] that we can deal with in a simple way:

  for {
    stopped <- nodes.traverse(M.stop)
    updates = -> world.time).toList.toMap
    update = world.copy(pending = world.pending ++ updates)
  } yield update

Arguably, this is easier to understand than the sequential version.

3.6 Summary

  1. algebras define the interface between systems.
  2. modules are implementations of an algebra in terms of other algebras.
  3. interpreters are concrete implementations of an algebra for a fixed F[_].
  4. Test interpreters can replace the side-effecting parts of the system, giving a high amount of test coverage.

4. Data and Functionality

From OOP we are used to thinking about data and functionality together: class hierarchies carry methods, and traits can demand that data fields exist. Runtime polymorphism of an object is in terms of “is a” relationships, requiring classes to inherit from common interfaces. This can get messy as a codebase grows. Simple data types become obscured by hundreds of lines of methods, trait mixins suffer from initialisation order errors, and testing / mocking of highly coupled components becomes a chore.

FP takes a different approach, defining data and functionality separately. In this chapter, we will cover the basics of data types and the advantages of constraining ourselves to a subset of the Scala language. We will also discover typeclasses as a way to achieve compiletime polymorphism: thinking about functionality of a data structure in terms of “has a” rather than “is a” relationships.

4.1 Data

The fundamental building blocks of data types are

  • final case class also known as products
  • sealed abstract class also known as coproducts
  • case object and Int, Double, String (etc) values

with no methods or fields other than the constructor parameters. We prefer abstract class to trait in order to get better binary compatibility and to discourage trait mixing.

The collective name for products, coproducts and values is Algebraic Data Type (ADT).

We compose data types from the AND and XOR (exclusive OR) Boolean algebra: a product contains every type that it is composed of, but a coproduct can be only one. For example

  • product: ABC = a AND b AND c
  • coproduct: XYZ = x XOR y XOR z

written in Scala

  // values
  case object A
  type B = String
  type C = Int
  // product
  final case class ABC(a: A.type, b: B, c: C)
  // coproduct
  sealed abstract class XYZ
  case object X extends XYZ
  case object Y extends XYZ
  final case class Z(b: B) extends XYZ

4.1.1 Recursive ADTs

When an ADT refers to itself, we call it a Recursive Algebraic Data Type.

The standard library List is recursive because :: (the cons cell) contains a reference to List. The following is a simplification of the actual implementation:

  sealed abstract class List[+A]
  case object Nil extends List[Nothing]
  final case class ::[+A](head: A, tail: List[A]) extends List[A]

4.1.2 Functions on ADTs

ADTs can contain pure functions

  final case class UserConfiguration(accepts: Int => Boolean)

But ADTs that contain functions come with some caveats as they don’t translate perfectly onto the JVM. For example, legacy Serializable, .hashCode, .equals and .toString do not behave as one might reasonably expect.

Unfortunately, Serializable is used by popular frameworks, despite far superior alternatives. A common pitfall is forgetting that Serializable may attempt to serialise the entire closure of a function, which can crash production servers. A similar caveat applies to legacy Java classes such as Throwable, which can carry references to arbitrary objects.

We will explore alternatives to the legacy methods when we discuss the Cats library in the next chapter, at the cost of losing interoperability with some legacy Java and Scala code.

4.1.3 Exhaustivity

It is important that we use sealed abstract class, not just abstract class, when defining a data type. Sealing a class means that all subtypes must be defined in the same file, allowing the compiler to know about them in pattern match exhaustivity checks and in macros that eliminate boilerplate. e.g.

  scala> sealed abstract class Foo
         final case class Bar(flag: Boolean) extends Foo
         final case object Baz extends Foo
  scala> def thing(foo: Foo) = foo match {
           case Bar(_) => true
  <console>:14: error: match may not be exhaustive.
  It would fail on the following input: Baz
         def thing(foo: Foo) = foo match {

This shows the developer what they have broken when they add a new product to the codebase. We’re using -Xfatal-warnings, otherwise this is just a warning.

However, the compiler will not perform exhaustivity checking if the class is not sealed or if there are guards, e.g.

  scala> def thing(foo: Foo) = foo match {
           case Bar(flag) if flag => true
  scala> thing(Baz)
  scala.MatchError: Baz (of class Baz$)
    at .thing(<console>:15)

To remain safe, don’t use guards on sealed types.

The -Xstrict-patmat-analysis flag has been proposed as a language improvement to perform additional pattern matcher checks.

4.1.4 Alternative Products and Coproducts

Another form of product is a tuple, which is like an unlabelled final case class.

(A.type, B, C) is equivalent to ABC in the above example but it is best to use final case class when part of an ADT because the lack of names is awkward to deal with, and case class has much better performance for primitive values.

Another form of coproduct is when we nest Either types. e.g.

  Either[X.type, Either[Y.type, Z]]

equivalent to the XYZ sealed abstract class. A cleaner syntax to define nested Either types is to create an alias type ending with a colon, allowing infix notation with association from the right:

  type |:[L,R] = Either[L, R]
  X.type |: Y.type |: Z

This is useful to create anonymous coproducts when we cannot put all the implementations into the same source file.

  type Accepted = String |: Long |: Boolean

Yet another alternative coproduct is to create a custom sealed abstract class with final case class definitions that simply wrap the desired type:

  sealed abstract class Accepted
  final case class AcceptedString(value: String) extends Accepted
  final case class AcceptedLong(value: Long) extends Accepted
  final case class AcceptedBoolean(value: Boolean) extends Accepted

Pattern matching on these forms of coproduct can be tedious, which is why Union Types are a Scala 3 language feature.

4.1.5 Convey Information

Besides being a container for necessary business information, data types can be used to encode constraints. For example,

  final case class NonEmptyList[A](head: A, tail: List[A])

can never be empty. This makes a useful data type despite containing the same information as List.

Product types often contain types that are far more general than is allowed. In traditional OOP this would be handled with input validation through assertions:

  final case class Person(name: String, age: Int) {
    require(name.nonEmpty && age > 0) // breaks Totality, don't do this!

Instead, we can use the Either data type to provide Right[Person] for valid instances and protect invalid instances from propagating. Note that the constructor is private:

  final case class Person private(name: String, age: Int)
  object Person {
    def apply(name: String, age: Int): Either[String, Person] = {
      if (name.nonEmpty && age > 0) Right(new Person(name, age))
      else Left(s"bad input: $name, $age")
  def welcome(person: Person): String =
    s"${} you look wonderful at ${person.age}!"
  for {
    person <- Person("", -1)
  } yield welcome(person) Refined Data Types

A clean way to restrict the values of a general type is with the refined library, providing a suite of restrictions to the contents of data. To install refined, add the following to build.sbt

  libraryDependencies += "eu.timepit" %% "refined-cats" % "0.9.13"

and the following imports

  import eu.timepit.refined
  import refined.api.Refined

Refined allows us to define Person using adhoc refined types to capture requirements exactly, written A Refined B.

  import refined.numeric.Positive
  import refined.collection.NonEmpty
  final case class Person(
    name: String Refined NonEmpty,
    age: Int Refined Positive

The underlying value can be obtained with .value. We can construct a value at runtime using .refineV, returning an Either

  scala> import refined.refineV
  scala> refineV[NonEmpty]("")
  Left(Predicate isEmpty() did not fail.)
  scala> refineV[NonEmpty]("Zara")

If we add the following import


we can construct valid values at compiletime and get an error if the provided value does not meet the requirements

  scala> val sam: String Refined NonEmpty = "Zara"
  scala> val empty: String Refined NonEmpty = ""
  <console>:21: error: Predicate isEmpty() did not fail.

More complex requirements can be captured, for example we can use the built-in rule MaxSize with the following imports

  import refined.W
  import refined.boolean.And
  import refined.collection.MaxSize

capturing the requirement that the String must be both non-empty and have a maximum size of 10 characters:

  type Name = NonEmpty And MaxSize[W.`10`.T]
  final case class Person(
    name: String Refined Name,
    age: Int Refined Positive

It is easy to define custom requirements that are not covered by the refined library. For example in drone-dynamaic-agents we will need a way of ensuring that a String contains application/x-www-form-urlencoded content. We can create a Refined rule using the Java regular expression library:

  sealed abstract class UrlEncoded
  object UrlEncoded {
    private[this] val valid: Pattern =
    implicit def urlValidate: Validate.Plain[String, UrlEncoded] =
        s => valid.matcher(s).find(),
        new UrlEncoded {}

4.1.6 Simple to Share

By not providing any functionality, ADTs can have a minimal set of dependencies. This makes them easy to publish and share with other developers. By using a simple data modelling language, it makes it possible to interact with cross-discipline teams, such as DBAs, UI developers and business analysts, using the actual code instead of a hand written document as the source of truth.

Furthermore, tooling can be more easily written to produce or consume schemas from other programming languages and wire protocols.

4.1.7 Counting Complexity

The complexity of a data type is the count of values that can exist. A good data type has the least amount of complexity it needs to hold the information it conveys, and no more.

Values have a built-in complexity:

  • Unit has one value (why it is called “unit”)
  • Boolean has two values
  • Int has 4,294,967,295 values
  • String has effectively infinite values

To find the complexity of a product, we multiply the complexity of each part.

  • (Boolean, Boolean) has 4 values (2*2)
  • (Boolean, Boolean, Boolean) has 8 values (2*2*2)

To find the complexity of a coproduct, we add the complexity of each part.

  • (Boolean |: Boolean) has 4 values (2+2)
  • (Boolean |: Boolean |: Boolean) has 6 values (2+2+2)

To find the complexity of a ADT with a type parameter, multiply each part by the complexity of the type parameter:

  • Option[Boolean] has 3 values, Some[Boolean] and None (2+1)

In FP, functions are total and must return an value for every input, no Exception. Minimising the complexity of inputs and outputs is the best way to achieve totality. As a rule of thumb, it is a sign of a badly designed function when the complexity of a function’s return value is larger than the product of its inputs: it is a source of entropy.

The complexity of a total function is the number of possible functions that can satisfy the type signature: the output to the power of the input.

  • Unit => Boolean has complexity 2
  • Boolean => Boolean has complexity 4
  • Option[Boolean] => Option[Boolean] has complexity 27
  • Boolean => Int is a mere quintillion going on a sextillion.
  • Int => Boolean is so big that if all implementations were assigned a unique number, each would require 4 gigabytes to represent.

In reality, Int => Boolean will be something simple like isOdd, isEven or a sparse BitSet. This function, when used in an ADT, could be better replaced with a coproduct labelling the limited set of functions that are relevant.

When our complexity is “infinity in, infinity out” we should introduce restrictive data types and validation closer to the point of input with Refined from the previous section.

The ability to count the complexity of a type signature has one other practical application: we can find simpler type signatures with High School algebra! To go from a type signature to its algebra of complexity, simply replace

  • Either[A, B] with a + b
  • (A, B) with a * b
  • A => B with b ^ a

do some rearranging, and convert back. For example, say we’ve designed a framework based on callbacks and we’ve managed to work ourselves into the situation where we have created this type signature:

  (A => C) => ((B => C) => C)

We can convert and rearrange

  (c ^ (c ^ b)) ^ (c ^ a)
  = c ^ ((c ^ b) * (c ^ a))
  = c ^ (c ^ (a + b))

then convert back to types and get

  (Either[A, B] => C) => C

which is much simpler: we only need to ask the users of our framework to provide a Either[A, B] => C.

The same line of reasoning can be used to prove that

  A => B => C

is equivalent to

  (A, B) => C

also known as Currying.

4.1.8 Prefer Coproduct over Product

An archetypal modelling problem that comes up a lot is when there are mutually exclusive configuration parameters a, b and c. The product (a: Boolean, b: Boolean, c: Boolean) has complexity 8 whereas the coproduct

  sealed abstract class Config
  object Config {
    case object A extends Config
    case object B extends Config
    case object C extends Config

has a complexity of 3. It is better to model these configuration parameters as a coproduct rather than allowing 5 invalid states to exist.

The complexity of a data type also has implications on testing. It is practically impossible to test every possible input to a function, but it is easy to test a sample of values with the Scalacheck property testing framework. If a random sample of a data type has a low probability of being valid, it is a sign that the data is modelled incorrectly.

4.1.9 Optimisations

A big advantage of using a simplified subset of the Scala language to represent data types is that tooling can optimise the JVM bytecode representation.

For example, we could pack Boolean and Option fields into an Array[Byte], cache values, memoise hashCode, optimise equals, use @switch statements when pattern matching, and much more.

These optimisations are not applicable to OOP class hierarchies that may be managing state, throwing exceptions, or providing adhoc method implementations.

4.1.10 Example: Evaluation

Java is a strict evaluation language: all the parameters to a method must be evaluated to a value before the method is called. Scala introduces the notion of by-name parameters on methods with a: =>A syntax. These parameters are wrapped up as a zero argument function which is called every time the a is referenced.

Scala also has by-need evaluation of values, with the lazy keyword: the computation is evaluated at most once to produce the value. Unfortunately, Scala does not support by-need evaluation of method parameters.

Cats formalises the three evaluation strategies with an ADT called Eval. The following is a simplified version of the implementation:

  sealed abstract class Eval[A] {
    def value: A
  object Eval {
    def always(a: =>A): Eval[A] = Always(() => a)
    def later(a: =>A): Eval[A] = Later(() => a)
    def now(a: A): Eval[A] = Now(a)
  final case class Always[A](f: () => A) extends Eval[A] {
    def value: A = f()
  final case class Later[A](f: () => A)  extends Eval[A] {
    lazy val value: A = f
  final case class Now[A](value: A)      extends Eval[A]

The weakest form of evaluation is Always, giving no computational guarantees. Next is Later, guaranteeing at most once evaluation, whereas Now is pre-computed and therefore exactly once evaluation.

When we write pure programs, we are free to replace any Always with Later or Now, and vice versa, with no change to the correctness of the program. This is the essence of referential transparency: the ability to replace a computation by its value, or a value by its computation.

In functional programming we almost always want Now or Later (also known as strict and lazy): there is little value in Always.

4.2 Functionality

Pure functions are typically defined as methods on an object.

  package object math {
    def sin(x: Double): Double = java.lang.Math.sin(x)

However, it can be clunky to use object methods since it reads inside-out, not left to right. In addition, a function on an object steals the namespace. If we were to define sin(t: T) somewhere else we get ambiguous reference errors. This is the same problem as Java’s static methods vs class methods.

With the implicit class language feature (also known as extension methodology or syntax), and a little boilerplate, we can get the familiar style:

  scala> implicit class DoubleOps(x: Double) {
           def sin: Double = math.sin(x)
  scala> (1.0).sin
  res: Double = 0.8414709848078965

Often it is best to just skip the object definition and go straight for an implicit class, keeping boilerplate to a minimum:

  implicit class DoubleOps(x: Double) {
    def sin: Double = java.lang.Math.sin(x)

4.2.1 Polymorphic Functions

The more common kind of function is a polymorphic function, which lives in a typeclass. A typeclass is a trait that:

  • holds no state
  • has a type parameter
  • has at least one abstract method (primitive combinators)
  • may contain generalised methods (derived combinators)
  • may extend other typeclasses

There can only be one implementation of a typeclass for any given type parameter, a property known as typeclass coherence. Typeclasses look superficially similar to algebraic interfaces from the previous chapter, but algebras do not have to be coherent.

Typeclasses are used in the Scala stdlib. We will explore a simplified version of scala.math.Numeric to demonstrate the principle:

  trait Ordering[T] {
    def compare(x: T, y: T): Int
    def lt(x: T, y: T): Boolean = compare(x, y) < 0
    def gt(x: T, y: T): Boolean = compare(x, y) > 0
  trait Numeric[T] extends Ordering[T] {
    def plus(x: T, y: T): T
    def times(x: T, y: T): T
    def negate(x: T): T
    def zero: T
    def abs(x: T): T = if (lt(x, zero)) negate(x) else x

We can see all the key features of a typeclass in action:

  • there is no state
  • Ordering and Numeric have type parameter T
  • Ordering has abstract compare and Numeric has abstract plus, times, negate and zero
  • Ordering defines generalised lt and gt based on compare, Numeric defines abs in terms of lt, negate and zero.
  • Numeric extends Ordering

We can now write functions for types that “have a” Numeric typeclass:

  def signOfTheTimes[T](t: T)(implicit N: Numeric[T]): T = {
    import N._
    times(negate(abs(t)), t)

We are no longer dependent on the OOP hierarchy of our input types, i.e. we don’t demand that our input “is a” Numeric, which is vitally important if we want to support a third party class that we cannot redefine.

Another advantage of typeclasses is that the association of functionality to data is at compiletime, as opposed to OOP runtime dynamic dispatch.

For example, whereas the List class can only have one implementation of a method, a typeclass method allows us to have a different implementation depending on the List contents and therefore offload work to compiletime instead of leaving it to runtime.

4.2.2 Syntax

The syntax for writing signOfTheTimes is clunky, there are some things we can do to clean it up.

Downstream users will prefer to see our method use context bounds, since the signature reads cleanly as “takes a T that has a Numeric

  def signOfTheTimes[T: Numeric](t: T): T = ...

but now we have to use implicitly[Numeric[T]] everywhere. By defining boilerplate on the companion of the typeclass

  object Numeric {
    def apply[T](implicit numeric: Numeric[T]): Numeric[T] = numeric

we can obtain the implicit with less noise

  def signOfTheTimes[T: Numeric](t: T): T = {
    val N = Numeric[T]
    import N._
    times(negate(abs(t)), t)

But it is still worse for us as the implementors. We have the syntactic problem of inside-out static methods vs class methods. We deal with this by introducing ops on the typeclass companion:

  object Numeric {
    def apply[T](implicit numeric: Numeric[T]): Numeric[T] = numeric
    object ops {
      implicit class NumericOps[T](t: T)(implicit N: Numeric[T]) {
        def +(o: T): T =, o)
        def *(o: T): T = N.times(t, o)
        def unary_-: T = N.negate(t)
        def abs: T = N.abs(t)
        // duplicated from Ordering.ops
        def <(o: T): T =, o)
        def >(o: T): T =, o)

Note that -x is expanded into x.unary_- by the compiler’s syntax sugar, which is why we define unary_- as an extension method. We can now write the much cleaner:

  import Numeric.ops._
  def signOfTheTimes[T: Numeric](t: T): T = -(t.abs) * t

The good news is that we never need to write this boilerplate because Typelevel Simulacrum provides a @typeclass macro annotation that automatically generates the .apply and .ops. It even allows us to define alternative (usually symbolic) names for common methods. In full:

  import simulacrum._
  @typeclass trait Ordering[T] {
    def compare(x: T, y: T): Int
    @op("<") def lt(x: T, y: T): Boolean = compare(x, y) < 0
    @op(">") def gt(x: T, y: T): Boolean = compare(x, y) > 0
  @typeclass trait Numeric[T] extends Ordering[T] {
    @op("+") def plus(x: T, y: T): T
    @op("*") def times(x: T, y: T): T
    @op("unary_-") def negate(x: T): T
    def zero: T
    def abs(x: T): T = if (lt(x, zero)) negate(x) else x
  import Numeric.ops._
  def signOfTheTimes[T: Numeric](t: T): T = -(t.abs) * t

When there is a custom symbolic @op, it can be pronounced like its method name. e.g. < is pronounced “less than”, not “left angle bracket”.

4.2.3 Instances

Instances of Numeric (which are also instances of Ordering) are defined as an implicit val that extends the typeclass, and can provide optimised implementations for the generalised methods:

  implicit val NumericDouble: Numeric[Double] = new Numeric[Double] {
    def plus(x: Double, y: Double): Double = x + y
    def times(x: Double, y: Double): Double = x * y
    def negate(x: Double): Double = -x
    def zero: Double = 0.0
    def compare(x: Double, y: Double): Int =, y)
    // optimised
    override def lt(x: Double, y: Double): Boolean = x < y
    override def gt(x: Double, y: Double): Boolean = x > y
    override def abs(x: Double): Double = java.lang.Math.abs(x)

Although we are using +, *, unary_-, < and > here, which are the ops (and could be an infinite loop!), these methods exist already on Double. Class methods are always used in preference to extension methods. Indeed, the Scala compiler performs special handling of primitives and converts these method calls into raw dadd, dmul, dcmpl and dcmpg bytecode instructions, respectively.

We can also implement Numeric for Java’s BigDecimal class.

  import java.math.{ BigDecimal => BD }
  implicit val NumericBD: Numeric[BD] = new Numeric[BD] {
    def plus(x: BD, y: BD): BD = x.add(y)
    def times(x: BD, y: BD): BD = x.multiply(y)
    def negate(x: BD): BD = x.negate
    def zero: BD = BD.ZERO
    def compare(x: BD, y: BD): Int = x.compareTo(y)

We could create our own data structure for complex numbers:

  final case class Complex[T](r: T, i: T)

And derive a Numeric[Complex[T]] if Numeric[T] exists. Since these instances depend on the type parameter, it is a def, not a val.

  implicit def numericComplex[T: Numeric]: Numeric[Complex[T]] =
    new Numeric[Complex[T]] {
      type CT = Complex[T]
      def plus(x: CT, y: CT): CT = Complex(x.r + y.r, x.i + y.i)
      def times(x: CT, y: CT): CT =
        Complex(x.r * y.r + (-x.i * y.i), x.r * y.i + x.i * y.r)
      def negate(x: CT): CT = Complex(-x.r, -x.i)
      def zero: CT = Complex(Numeric[T].zero, Numeric[T].zero)
      def compare(x: CT, y: CT): Int = {
        val real = (Numeric[T].compare(x.r, y.r))
        if (real != 0) real
        else Numeric[T].compare(x.i, y.i)

The observant reader may notice that abs is not at all what a mathematician would expect. The correct return value for abs should be T, not Complex[T].

scala.math.Numeric tries to do too much and does not generalise beyond real numbers. This is a good lesson that smaller, well defined, typeclasses are often better than a monolithic collection of overly specific features.

4.2.4 Implicit Resolution

We’ve discussed implicits a lot: this section is to clarify what implicits are and how they work.

Implicit parameters are when a method requests that a unique instance of a particular type is in the implicit scope of the caller, with special syntax for typeclass instances. Implicit parameters are a clean way to thread configuration through an application.

In this example, foo requires that typeclass instances of Numeric and Typeable are available for A, as well as an implicit Handler object that takes two type parameters

  def foo[A: Numeric: Typeable](implicit A: Handler[String, A]) = ...

Implicit conversion is when an implicit def exists. One such use of implicit conversions is to enable extension methodology. When the compiler is resolving a call to a method, it first checks if the method exists on the type, then its ancestors (Java-like rules). If it fails to find a match, it will search the implicit scope for conversions to other types, then search for methods on those types.

Another use for implicit conversions is typeclass derivation. In the previous section we wrote an implicit def that derived a Numeric[Complex[T]] if a Numeric[T] is in the implicit scope. It is possible to chain together many implicit def (including recursively) which is the basis of typeful programming, allowing for computations to be performed at compiletime rather than runtime.

The glue that combines implicit parameters (receivers) with implicit conversion (providers) is implicit resolution.

First, the normal variable scope is searched for implicits, in order:

  • local scope, including scoped imports (e.g. the block or method)
  • outer scope, including scoped imports (e.g. members in the class)
  • ancestors (e.g. members in the super class)
  • the current package object
  • ancestor package objects (when using nested packages)
  • the file’s imports

If that fails to find a match, the special scope is searched, which looks for implicit instances inside a type’s companion, its package object, outer objects (if nested), and then repeated for ancestors. This is performed, in order, for the:

  • given parameter type
  • expected parameter type
  • type parameter (if there is one)

If two matching implicits are found in the same phase of implicit resolution, an ambiguous implicit error is raised.

Implicits are often defined on a trait, which is then extended by an object. This is to try and control the priority of an implicit relative to another more specific one, to avoid ambiguous implicits.

The Scala Language Specification is rather vague for corner cases, and the compiler implementation is the de facto standard. There are some rules of thumb that we will use throughout this book, e.g. prefer implicit val over implicit object despite the temptation of less typing. It is a quirk of implicit resolution that implicit object on companion objects are not treated the same as implicit val.

Implicit resolution falls short when there is a hierarchy of typeclasses, like Ordering and Numeric. If we write a function that takes an implicit Ordering, and we call it for a primitive type which has an instance of Numeric defined on the Numeric companion, the compiler will fail to find it.

Implicit resolution is particularly hit-or-miss if type aliases are used where the shape of the implicit parameters are changed. For example an implicit parameter using an alias such as type Values[A] = List[Option[A]] will probably fail to find implicits defined as raw List[Option[A]] because the shape is changed from a thing of things of A to a thing of A.

4.3 Modelling OAuth2

We will finish this chapter with a practical example of data modelling and typeclass derivation, combined with algebra / module design from the previous chapter.

In our drone-dynamic-agents application, we must communicate with Drone and Google Cloud using JSON over REST. Both services use OAuth2 for authentication. There are many ways to interpret OAuth2, but we will focus on the version that works for Google Cloud (the Drone version is even simpler).

4.3.1 Description

Every Google Cloud application needs to have an OAuth 2.0 Client Key set up at{PROJECT_ID}

Obtaining a Client ID and a Client secret.

The application can then obtain a one time code by making the user perform an Authorization Request in their browser. We need to make this page open in the browser:\

The code is delivered to the {CALLBACK_URI} in a GET request. To capture it in our application, we need to have a web server listening on localhost.

Once we have the code, we can perform an Access Token Request:

  POST /oauth2/v4/token HTTP/1.1
  Content-length: {CONTENT_LENGTH}
  content-type: application/x-www-form-urlencoded
  user-agent: google-oauth-playground

which gives a JSON response payload

    "access_token": "BEARER_TOKEN",
    "token_type": "Bearer",
    "expires_in": 3600,
    "refresh_token": "REFRESH_TOKEN"

Bearer tokens typically expire after an hour, and can be refreshed by sending an HTTP request with any valid refresh token:

  POST /oauth2/v4/token HTTP/1.1
  Content-length: {CONTENT_LENGTH}
  content-type: application/x-www-form-urlencoded
  user-agent: google-oauth-playground

responding with

    "access_token": "BEARER_TOKEN",
    "token_type": "Bearer",
    "expires_in": 3600

All userland requests to the server should include the header

  Authorization: Bearer BEARER_TOKEN

after substituting the actual BEARER_TOKEN.

Google expires all but the most recent 50 bearer tokens, so the expiry times are just guidance. The refresh tokens persist between sessions and can be expired manually by the user. We can therefore have a one-time setup application to obtain the refresh token and then include the refresh token as configuration for the user’s install of the headless server.

Drone doesn’t implement the /auth endpoint, or the refresh, and simply provides a BEARER_TOKEN through their user interface.

4.3.2 Data

The first step is to model the data needed for OAuth2. We create an ADT with fields having exactly the same name as required by the OAuth2 server. We will use String and Long for brevity, but we could use refined types if they leak into our business models.

  import refined.api.Refined
  import refined.string.Url
  final case class AuthRequest(
    redirect_uri: String Refined Url,
    scope: String,
    client_id: String,
    prompt: String = "consent",
    response_type: String = "code",
    access_type: String = "offline"
  final case class AccessRequest(
    code: String,
    redirect_uri: String Refined Url,
    client_id: String,
    client_secret: String,
    scope: String = "",
    grant_type: String = "authorization_code"
  final case class AccessResponse(
    access_token: String,
    token_type: String,
    expires_in: Long,
    refresh_token: String
  final case class RefreshRequest(
    client_secret: String,
    refresh_token: String,
    client_id: String,
    grant_type: String = "refresh_token"
  final case class RefreshResponse(
    access_token: String,
    token_type: String,
    expires_in: Long

4.3.3 Functionality

We need to marshal the data classes we defined in the previous section into JSON, URLs and POST-encoded forms. Since this requires polymorphism, we will need typeclasses.

jsonformat is a simple JSON library that we will study in more detail in a later chapter for teaching purposes, we should use Typelevel Circe for production systems.

jsonformat consists of a JSON AST and encoder / decoder typeclasses:

  package jsonformat
  sealed abstract class JsValue
  final case object JsNull                                   extends JsValue
  final case class JsObject(fields: List[(String, JsValue)]) extends JsValue
  final case class JsArray(elements: List[JsValue])          extends JsValue
  final case class JsBoolean(value: Boolean)                 extends JsValue
  final case class JsString(value: String)                   extends JsValue
  final case class JsDouble(value: Double)                   extends JsValue
  final case class JsInteger(value: Long)                    extends JsValue
  @typeclass trait JsEncoder[A] {
    def toJson(obj: A): JsValue
  @typeclass trait JsDecoder[A] {
    def fromJson(json: JsValue): Either[String, A]

We need instances of JsDecoder[AccessResponse] and JsDecoder[RefreshResponse]. We can do this by making use of a helper function:

  implicit class JsValueOps(j: JsValue) {
    def getAs[A: JsDecoder](key: String): Either[String, A] = ...

We put the instances on the companions of our data types, so that they are always in the implicit scope:

  import jsonformat._, JsDecoder.ops._
  object AccessResponse {
    implicit val json: JsDecoder[AccessResponse] = j =>
      for {
        acc <- j.getAs[String]("access_token")
        tpe <- j.getAs[String]("token_type")
        exp <- j.getAs[Long]("expires_in")
        ref <- j.getAs[String]("refresh_token")
      } yield AccessResponse(acc, tpe, exp, ref)
  object RefreshResponse {
    implicit val json: JsDecoder[RefreshResponse] = j =>
      for {
        acc <- j.getAs[String]("access_token")
        tpe <- j.getAs[String]("token_type")
        exp <- j.getAs[Long]("expires_in")
      } yield RefreshResponse(acc, tpe, exp)

We can then parse a string into an AccessResponse or a RefreshResponse

  scala> import jsonformat._, JsDecoder.ops._
  scala> val json = JsParser("""
                         "access_token": "BEARER_TOKEN",
                         "token_type": "Bearer",
                         "expires_in": 3600,
                         "refresh_token": "REFRESH_TOKEN"

We need to write our own typeclasses for URL and POST encoding. The following is a reasonable design:

  // URL query key=value pairs, in un-encoded form.
  final case class UrlQuery(params: List[(String, String)])
  @typeclass trait UrlQueryWriter[A] {
    def toUrlQuery(a: A): UrlQuery
  @typeclass trait UrlEncodedWriter[A] {
    def toUrlEncoded(a: A): String Refined UrlEncoded

We need to provide typeclass instances for basic types:

  object UrlEncodedWriter {
    implicit val encoded: UrlEncodedWriter[String Refined UrlEncoded] = identity
    implicit val string: UrlEncodedWriter[String] =
      (s => Refined.unsafeApply(URLEncoder.encode(s, "UTF-8")))
    implicit val url: UrlEncodedWriter[String Refined Url] =
      (s => s.value.toUrlEncoded)
    implicit val long: UrlEncodedWriter[Long] =
      (s => Refined.unsafeApply(s.toString))
    implicit def list[K: UrlEncodedWriter, V: UrlEncodedWriter]
      : UrlEncodedWriter[List[(K, V)]] = { m =>
      val raw = {
        case (k, v) => k.toUrlEncoded.value + "=" + v.toUrlEncoded.value
      Refined.unsafeApply(raw) // by deduction

We use Refined.unsafeApply when we can logically deduce that the contents of the string are already url encoded, bypassing any further checks.

.list is an example of simple typeclass derivation, much as we derived Numeric[Complex] from the underlying numeric representation. The .intercalate method is like .mkString but more general.

In a dedicated chapter on Typeclass Derivation we will calculate instances of UrlQueryWriter automatically, as well as clean up what we have already written, but for now we will write the boilerplate for the types we wish to convert:

  import UrlEncodedWriter.ops._
  object AuthRequest {
    implicit val query: UrlQueryWriter[AuthRequest] = { a =>
        ("redirect_uri"  -> a.redirect_uri.value),
        ("scope"         -> a.scope),
        ("client_id"     -> a.client_id),
        ("prompt"        -> a.prompt),
        ("response_type" -> a.response_type),
        ("access_type"   -> a.access_type))
  object AccessRequest {
    implicit val encoded: UrlEncodedWriter[AccessRequest] = { a =>
        "code"          -> a.code.toUrlEncoded,
        "redirect_uri"  -> a.redirect_uri.toUrlEncoded,
        "client_id"     -> a.client_id.toUrlEncoded,
        "client_secret" -> a.client_secret.toUrlEncoded,
        "scope"         -> a.scope.toUrlEncoded,
        "grant_type"    -> a.grant_type.toUrlEncoded
  object RefreshRequest {
    implicit val encoded: UrlEncodedWriter[RefreshRequest] = { r =>
        "client_secret" -> r.client_secret.toUrlEncoded,
        "refresh_token" -> r.refresh_token.toUrlEncoded,
        "client_id"     -> r.client_id.toUrlEncoded,
        "grant_type"    -> r.grant_type.toUrlEncoded

4.3.4 Module

That concludes the data and functionality modelling required to implement OAuth2. Recall from the previous chapter that we define components that need to interact with the world as algebras, and we define business logic in a module, so it can be thoroughly tested.

We define our dependency algebras, and use context bounds to show that our responses must have a JsDecoder and our POST payload must have a UrlEncodedWriter:

  trait JsonClient[F[_]] {
    def get[A: JsDecoder](
      uri: String Refined Url,
      headers: List[(String, String)]
    ): F[A]
    def post[P: UrlEncodedWriter, A: JsDecoder](
      uri: String Refined Url,
      payload: P,
      headers: List[(String, String] = Nil
    ): F[A]

Note that we only define the happy path in the JsonClient API. We will get around to error handling in a later chapter.

Obtaining a CodeToken from the Google OAuth2 server involves

  1. starting an HTTP server on the local machine, and obtaining its port number.
  2. making the user open a web page in their browser, which allows them to log in with their Google credentials and authorise the application, with a redirect back to the local machine.
  3. capturing the code, informing the user of next steps, and closing the HTTP server.

We can model this with three methods on a UserInteraction algebra.

  final case class CodeToken(token: String, redirect_uri: String Refined Url)
  trait UserInteraction[F[_]] {
    def start: F[String Refined Url]
    def open(uri: String Refined Url): F[Unit]
    def stop: F[CodeToken]

It almost sounds easy when put like that.

We also need an algebra to abstract over the local system time

  trait LocalClock[F[_]] {
    def now: F[Epoch]

And introduce data types that we will use in the refresh logic

  final case class ServerConfig(
    auth: String Refined Url,
    access: String Refined Url,
    refresh: String Refined Url,
    scope: String,
    clientId: String,
    clientSecret: String
  final case class RefreshToken(token: String)
  final case class BearerToken(token: String, expires: Epoch)

Now we can write an OAuth2 client module:

  import http.encoding.UrlQueryWriter.ops._
  class OAuth2Client[F[_]: Monad](
    config: ServerConfig
    user: UserInteraction[F],
    client: JsonClient[F],
    clock: LocalClock[F]
  ) {
    def authenticate: F[CodeToken] =
      for {
        callback <- user.start
        params   = AuthRequest(callback, config.scope, config.clientId)
        _        <-
        code     <- user.stop
      } yield code
    def access(code: CodeToken): F[(RefreshToken, BearerToken)] =
      for {
        request <- AccessRequest(code.token,
        msg     <-[AccessRequest, AccessResponse](
                     config.access, request)
        time    <-
        expires = time + msg.expires_in.seconds
        refresh = RefreshToken(msg.refresh_token)
        bearer  = BearerToken(msg.access_token, expires)
      } yield (refresh, bearer)
    def bearer(refresh: RefreshToken): F[BearerToken] =
      for {
        request <- RefreshRequest(config.clientSecret,
        msg     <-[RefreshRequest, RefreshResponse](
                     config.refresh, request)
        time    <-
        expires = time + msg.expires_in.seconds
        bearer  = BearerToken(msg.access_token, expires)
      } yield bearer

4.4 Summary

  • algebraic data types (ADTs) are defined as products (final case class) and coproducts (sealed abstract class).
  • Refined types enforce constraints on values.
  • concrete functions can be defined in an implicit class to maintain left-to-right flow.
  • polymorphic functions are defined in typeclasses. Functionality is provided via “has a” context bounds, rather than “is a” class hierarchies.
  • typeclass instances are implementations of a typeclass.
  • @simulacrum.typeclass generates .ops on the companion, providing convenient syntax for typeclass functions.
  • typeclass derivation is compiletime composition of typeclass instances.

5. Cats Typeclasses

In this chapter we will tour most of the typeclasses in Cats. We don’t use everything in drone-dynamic-agents so we will give standalone examples when appropriate.

Before we introduce the typeclass hierarchy, we will peek at the four most important methods from a control flow perspective: the methods we will use the most in typical FP applications:

Typeclass Method From Given To
Functor map F[A] A => B F[B]
Applicative pure A   F[A]
Monad flatMap F[A] A => F[B] F[B]
Traverse sequence F[G[A]]   G[F[A]]

We know that operations which return a F[_] can be run sequentially in a for comprehension by .flatMap, defined on its Monad[F]. The context F[_] can be thought of as a container for an intentional effect with A as the output: .flatMap allows us to generate new effects F[B] at runtime based on the results of evaluating previous effects.

Of course, not all type constructors F[_] are effectful, even if they have a Monad[F]. Often they are data structures. By using the least specific abstraction, we can reuse code for List, Either, Future and more.

If we only need to transform the output from an F[_], that is just .map, introduced by Functor. In Chapter 3, we ran effects in parallel with .mapN. In Functional Programming, parallelisable computations are considered less powerful than sequential ones.

In between Monad and Functor is Applicative, defining .pure that lets us lift a value into an effect, or create a data structure from a single value.

.sequence is useful for rearranging type constructors. If we have an F[G[_]] but need a G[F[_]], e.g. List[Future[Int]] but need a Future[List[Int]], that is .sequence.

5.1 Agenda

This chapter is longer than usual and jam-packed with information: it is perfectly reasonable to read it over several sittings. Remembering everything would require super-human powers, so treat this chapter as a way of knowing where to look for more information.

Notably absent are many typeclasses that extend Monad. They get their own chapter later.

5.2 Appendable Things

  @typeclass trait Semigroup[A] {
    @op("|+|") def combine(x: A, y: A): A
    def combineN(value: A, n: Int): A = ...
  @typeclass trait Band[A] extends Semigroup[A]
  @typeclass trait Semilattice[A] extends Band[A]
  @typeclass trait Monoid[A] extends Semigroup[A] {
    def empty: A
  @typeclass trait Group[A] extends Monoid[A] {
    def inverse(a: A): A
    @op("|-|") def remove(a: A, b: A): A = combine(a, inverse(b))

A Semigroup can be defined for a type if two values can be combined. The operation must be associative, meaning that the order of nested operations should not matter, i.e.

  (a |+| b) |+| c == a |+| (b |+| c)
  (1 |+| 2) |+| 3 == 1 |+| (2 |+| 3)

A Monoid is a Semigroup with an empty element. Combining .empty with any other a should give a.

  a |+| empty == a
  a |+| 0 == a

This is probably bringing back memories of Numeric from Chapter 4. There are implementations of Monoid for all the primitive numbers, but the concept of appendable things is useful beyond numbers.

  scala> "hello" |+| " " |+| "world!"
  res: String = "hello world!"
  scala> List(1, 2) |+| List(3, 4)
  res: List[Int] = List(1, 2, 3, 4)

Band has the law that the .combine operation of the same two elements is idempotent, i.e. gives the same value. Examples are anything that can only be one value, such as Unit, least upper bounds, or a Set. Band provides no further methods yet users can make use of the guarantees for performance optimisation.

Semilattice goes one further and adds the additional guarantee that the order of the parameters in .combine does not matter.

A Group is a Monoid where every value has an inverse, that when combined gives the .empty element. For example, every Int has an inverse which is its negated value.

As a realistic example for Monoid, consider a trading system that has a large database of reusable trade templates. Populating the default values for a new trade involves selecting and combining multiple templates, with a “last rule wins” merge policy if two templates provide a value for the same field. The “selecting” work is already done for us by another system, it is our job to combine the templates in order.

We will create a simple template schema to demonstrate the principle, but keep in mind that a realistic system would have a more complicated ADT.

  sealed abstract class Currency
  case object EUR extends Currency
  case object USD extends Currency
  final case class TradeTemplate(
    payments: List[java.time.LocalDate],
    ccy: Option[Currency],
    otc: Option[Boolean]

If we write a method that takes templates: List[TradeTemplate], we only need to call

  val zero = Monoid[TradeTemplate].empty
  templates.foldLeft(zero)(_ |+| _)

and our job is done!

But to get zero or call |+| we must have an instance of Monoid[TradeTemplate]. We can create an instance on the companion:

  object TradeTemplate {
    implicit val monoid: Monoid[TradeTemplate] = Monoid.instance(
      TradeTemplate(Nil, None, None),
      (a, b) => TradeTemplate(a.payments |+| b.payments,
                              a.ccy |+| b.ccy,
                              a.otc |+| b.otc)

However, this doesn’t compile because there is no Monoid[Option[Currency]] or Monoid[Option[Boolean]], so we must provide them:

  def lastWins[A]: Monoid[Option[A]] = Monoid.instance(
      case (None, None) => None
      case (only, None) => only
      case (None, only) => only
      case (_, winner)  => winner
  implicit val monoidCcy: Monoid[Option[Currency]] = lastWins
  implicit val monoidOtc: Monoid[Option[Boolean]] = lastWins

Now everything compiles, let’s try it out…

  scala> import java.time.{LocalDate => LD}
  scala> val templates = List(
           TradeTemplate(Nil,                     None,      None),
           TradeTemplate(Nil,                     Some(EUR), None),
           TradeTemplate(List(LD.of(2017, 8, 5)), Some(USD), None),
           TradeTemplate(List(LD.of(2017, 9, 5)), None,      Some(true)),
           TradeTemplate(Nil,                     None,      Some(false))
  scala> templates.foldLeft(zero)(_ |+| _)
  res: TradeTemplate = TradeTemplate(

All we needed to do was implement one piece of business logic and Monoid took care of everything else for us!

Note that the list of payments are concatenated. This is because the default Monoid[List] uses concatenation of elements and happens to be the desired behaviour. If the business requirement was different, it would be a simple case of providing a custom Monoid[List[LocalDate]].

5.3 Objecty Things

In the chapter on Data and Functionality we said that the JVM’s notion of equality breaks down for many things that we can put into an ADT. The problem is that the JVM was designed for Java, and .equals is defined on java.lang.Object whether it makes sense or not. There is no way to remove .equals and no way to guarantee that it is implemented.

However, in FP we prefer typeclasses for polymorphic functionality and even the concept of equality is captured at compiletime.

  @typeclass trait Eq[F]  {
    @op("===") def eqv(x: A, y: A): Boolean
    @op("=!=") def neqv(x: A, y: A): Boolean = !eqv(x, y)

Indeed === (triple equals) is more typesafe than == (double equals) because it can only be compiled when the types are the same on both sides of the comparison. This catches a lot of bugs.

.eqv has the same implementation requirements as Object.equals

  • commutative f1 === f2 implies f2 === f1
  • reflexive f === f
  • transitive f1 === f2 && f2 === f3 implies f1 === f3

By throwing away the universal concept of Object.equals we don’t take equality for granted when we construct an ADT, stopping us at compiletime from expecting equality when there is none.

Continuing the trend of replacing old Java concepts, rather than data being a java.lang.Comparable, they now have an Order or PartialOrder according to:

  @typeclass PartialOrder[A] extends Eq[A] {
    def partialCompare(x: A, y: A): Double
    @op("<" ) def lt(x: A, y: A): Boolean = ...
    @op("<=") def lte(x: A, y: A): Boolean = ...
    @op(">" ) def gt(x: A, y: A): Boolean = ...
    @op(">=") def gte(x: A, y: A): Boolean = ...
  @typeclass trait Order[A] extends PartialOrder[A] {
    def compare(x: A, y: A): Int
    def max(x: A, y: A): A = ...
    def min(x: A, y: A): A = ...

A PartialOrder is for values where there are some corner cases that cannot be compared with other values. Order requires that every value can be compared to every other value.

Order implements .eqv in terms of the new primitive .compare. When a typeclass implements a parent’s primitive combinator with a derived combinator, an implied law of substitution for the typeclass is added. If an instance of Order were to override .eqv for performance reasons, it must behave identically the same as the original.

Things that have an order may also have an absolute minimum and an absolute maximum value:

  trait LowerBounded[A] {
    def minBound: A
  trait UpperBounded[A] {
    def maxBound: A

Similarly to Object.equals, the concept of .toString on every class does not make sense in Java. We would like to enforce stringyness at compiletime and this is exactly what Show achieves:

  @typeclass trait Show[T] {
    def show(f: T): String = ...

And Hash achieves the same thing for .hashCode

  @typeclass trait Hash[A] {
    def hash(x: A): Int = ...

5.4 Mappable Things

We’re focusing on things that can be mapped over, or traversed, in some sense:

5.4.1 Functor

  @typeclass trait Functor[F[_]] {
    def map[A, B](fa: F[A])(f: A => B): F[B]

The only abstract method is .map, and it must compose, i.e. mapping with f and then again with g is the same as mapping once with the composition of f and g: ==

The .map should also perform a no-op if the provided function is identity (i.e. x => x) == fa => x) == fa

Functor defines some convenience methods around .map that can be optimised by specific instances. The documentation has been intentionally omitted in the above definitions to encourage guessing what a method does before looking at the implementation. Please spend a moment studying only the type signature of the following before reading further:

  def void[A](fa: F[A]): F[Unit] = ...
  def fproduct[A, B](fa: F[A])(f: A => B): F[(A, B)] = ...
  def as[A, B](fa: F[A], b: B): F[B] = ...
  def tupleLeft[A, B](fa: F[A], b: B): F[(B, A)] = ...
  def tupleRight[A, B](fa: F[A], b: B): F[(A, B)] = ...
  def unzip[A, B](fab: F[(A, B)]): (F[A], F[B]) = ...
  // harder
  def lift[A, B](f: A => B): F[A] => F[B] = ...
  1. .void takes an instance of the F[A] and always returns an F[Unit], it forgets all the values whilst preserving the structure.
  2. .fproduct takes the same input as map but returns F[(A, B)], i.e. it tuples the contents with the result of applying the function. This is useful when we wish to retain the input.
  3. .as ignores the content of the F[A] and replaces it with the B.
  4. .tupleLeft pairs the contents of an F[A] with a constant B on the left.
  5. .tupleRight pairs the contents of an F[A] with a constant B on the right.
  6. .unzip splits a functor of tuples into a tuple of functors.
  7. .lift takes a function A => B and returns a F[A] => F[B]. In other words, it takes a function over the contents of an F[A] and returns a function that operates on the F[A] directly.

.as, .tupleLeft and .tupleRight are useful when we wish to retain some information that would otherwise be lost to scope.

In our example application, as a nasty hack (which we didn’t even admit to until now), we defined .start and .stop to return their input:

  def start(node: MachineNode): F[MachineNode]
  def stop (node: MachineNode): F[MachineNode]

This allowed us to write terse business logic such as

  for {
    _      <- m.start(node)
    update = world.copy(pending = Map(node -> world.time))
  } yield update


  for {
    stopped <- nodes.traverse(m.stop)
    updates = -> world.time).toList.toMap
    update  = world.copy(pending = world.pending ++ updates)
  } yield update

But this hack pushes unnecessary complexity into the implementations. It is better if we let our algebras return F[Unit] and use .as:

  m.start(node) as world.copy(pending = Map(node -> world.time))


  for {
    stopped <- nodes.traverse(a => m.stop(a) as a)
    updates = -> world.time).toList.toMap
    update  = world.copy(pending = world.pending ++ updates)
  } yield update

5.4.2 Foldable

Technically, Foldable is for data structures that can be walked to produce a summary value. However, this undersells the fact that it is a one-typeclass army that can provide most of what we would expect to see in a Collections API.

There are so many methods we are going to have to split them out, beginning with the abstract methods:

  @typeclass trait Foldable[F[_]] {
    def foldLeft[A, B](fa: F[A], b: B)(f: (B, A) => B): B
    def foldRight[A, B](fa: F[A], lb: Eval[B])(f: (A, Eval[B]) => Eval[B]): Eval[B]
    def foldMap[A, B: Monoid](fa: F[A])(f: A => B): B = ...

We encountered Eval in the previous chapter, as a mechanism to control evaluation.

An instance of Foldable need only implement .foldLeft and .foldRight to get all of the functionality in this typeclass, although methods are typically optimised for specific data structures.

.foldMap has a marketing buzzword name: MapReduce. Given an F[A], a function from A to B, and a way to combine B (provided by the Monoid, along with a zero B), we can produce a summary value of type B. There is no enforced operation order, allowing for parallel computation.

Noeither .foldLeft nor .foldRight require their parameters to have a Monoid, meaning that they need a starting value b and a way to combine each element of the data structure with the summary value. The order for traversing the elements is defined (.foldLeft goes from left to right, .foldRight goes from right to left) and therefore cannot be parallelised.

The only law for Foldable is that .foldLeft and .foldRight should each be consistent with .foldMap for monoidal operations. e.g. appending an element to a list for .foldLeft and prepending an element to a list for .foldRight. However, .foldLeft and .foldRight do not need to be consistent with each other: in fact they often produce the reverse of each other.

The simplest thing to do with .foldMap is to use the identity function, giving .combineAll (the natural sum of the monoidal elements)

  def combineAll[A: Monoid](t: F[A]): A = ...

Recall that when we learnt about Monoid, we wrote this:

  scala> templates.foldLeft(Monoid[TradeTemplate].empty)(_ |+| _)

We now know we could have written:

  scala> templates.combineAll
  res: TradeTemplate = TradeTemplate(

The strangely named .intercalate inserts a specific A between each element before performing the fold

  def intercalate[A: Monoid](fa: F[A], a: A): A = ...

which is a generalised version of the stdlib’s .mkString:

  scala> List("foo", "bar").intercalate(",")
  res: String = "foo,bar"

The .foldLeft provides the means to obtain any element by traversal index, including a bunch of other related methods:

  def get[A](fa: F[A])(idx: Long): Option[A] = ...
  def size[A](fa: F[A]): Long = ...
  def isEmpty[A](fa: F[A]): Boolean = ...
  def nonEmpty[A](fa: F[A]): Boolean = ...

Cats is a pure library of only total functions. Whereas List(0) can throw an exception, Foldable.get returns an Option[A] and would return None on an empty list. .size, .isEmpty and .nonEmpty do as we may expect.

These methods really sound like a collections API. And, of course, anything with a Foldable can be converted into a List

  def toList[A](fa: F[A]): List[A] = ...

There are useful predicate checks

  def count[A](fa: F[A])(p: A => Boolean): Long = ...
  def forall[A](fa: F[A])(p: A => Boolean): Boolean = ...
  def exists[A](fa: F[A])(p: A => Boolean): Boolean = ...
  def find[A](fa: F[A])(f: A => Boolean): Option[A] = ...

.count is a way of counting how many elements are true for a predicate, .forall and .exists return true if all (or any, respectively) element meets the predicate, and may exit early. .find returns the first element matching the predicate.

We can make use of Order by extracting the minimum or maximum element:

  def minimumOption[A: Order](fa: F[A]): Option[A] = ...
  def minimumByOption[A, B: Order](fa: F[A])(f: A => B): Option[A] =
  def maximumOption[A: Order](fa: F[A]): Option[A] = ...
  def maximumByOption[A, B: Order](fa: F[A])(f: A => B): Option[A] = ...

For example we can ask which String is maximum (by lexicographical ordering) or By length

  scala> List("foo", "fazz").maximumOption
  res: Option[String] = Some(foo)
  scala> List("foo", "fazz").maximumByOption(_.length)
  res: Option[String] = Some(fazz)

This concludes the key features of Foldable. The takeaway is that anything we’d expect to find in a collection library is probably on Foldable.

5.4.3 Reducible

Foldable has a method named .combineAllOption which is like .fold but takes a Semigroup instead of a Monoid, returning an Option if the collection is empty (recall that Semigroup does not have a empty):

  def combineAllOption[A: Semigroup](fa: F[A]): Option[A] = ...

Taking this concept further, the child typeclass Reducible has more Semigroup variants and makes sense for data structures that are never empty, without requiring a Monoid on the elements.

  @typeclass Reducible[F[_]] extends Foldable[F] {
    def reduceLeft[A](fa: F[A])(f: (A, A) => A): A = ...
    def reduceRight[A](fa: F[A])(f: (A, Eval[A]) => Eval[A]): Eval[A] = ...
    def reduce[A: Semigroup](fa: F[A]): A = ...
    def reduceMap[A, B: Semigroup](fa: F[A])(f: A => B): B =

Importantly, there are variants that take monadic calculations. We already used .foldLeftM when we first wrote the business logic of our application, now we know that it is from Foldable:

  def foldM[G[_]: Monad, A, B](fa: F[A], z: B)(f: (B, A) => G[B]): G[B] = ...
  def foldMapM[G[_]: Monad, A, B: Monoid](fa: F[A])(f: A => G[B]): G[B] = ...
  def findM[G[_]: Monad, A](fa: F[A])(p: A => G[Boolean]): G[Option[A]] = ...
  def existsM[G[_]: Monad, A](fa: F[A])(p: A => G[Boolean]): G[Boolean] = ...
  def forallM[G[_]: Monad, A](fa: F[A])(p: A => G[Boolean]): G[Boolean] = ...

Some of the methods we have seen in this section (.size, .isEmpty, .nonEmpty, .exists, .forall, .count) are defined on UnorderedFoldable, a parent of Foldable, and can be used for niche data structures that do not have an ordering.

5.4.4 Traverse

Traverse is what happens when we cross a Functor with a Foldable

  @typeclass trait Traverse[F[_]] extends Functor[F] with Foldable[F] {
    def traverse[G[_]: Applicative, A, B](fa: F[A])(f: A => G[B]): G[F[B]]
    def sequence[G[_]: Applicative, A](fga: F[G[A]]): G[F[A]] = ...
    def zipWithIndex[A](fa: F[A]): F[(A, Int)] = ...
    def mapWithIndex[A, B](fa: F[A])(f: (A, Int) => B): F[B] = ...
    def flatTraverse[G[_]: Applicative, A, B](fa: F[A])(f: A => G[F[B]])
          (implicit F: FlatMap[F]): G[F[B]] = ...
    def flatSequence[G[_]: Applicative, A](fgfa: F[G[F[A]]])
          (implicit F: FlatMap[F]): G[F[A]] = ...

At the beginning of the chapter we showed the importance of .traverse and .sequence for swapping around type constructors to fit a requirement (e.g. List[Future[_]] to Future[List[_]]).

We can .zipWithIndex to pair each element with its ordered location, or .mapWithIndex if we wish to do something with the index but do not need to keep it around.

.flatTraverse and .flatSequence are useful for cases where we want to flatten the results of the calculation. For example, say we have a List[Future[List[_]]] and we want a Future[List[_]] by concatenating all the lists.

Finally NonEmptyTraverse, like Reducible, provides variants of these methods for data structures that cannot be empty, accepting the weaker Semigroup instead of a Monoid, and an Apply instead of an Applicative.

5.4.5 Distributive

Very closely related to Traverse is Distributive, with .traverse and .sequence highlighted to show the subtle difference in the type signatures

  @typeclass trait Distributive[F[_]] extends Functor[F] {
    def distribute[G[_]: Functor, A, B](ga: G[A])(f: A => F[B]): F[G[B]]
  //def   traverse[G[_]: Applicative, A, B](fa: F[A])(f: A => G[B]): G[F[B]]
    def cosequence[G[_]: Functor, A](ga: G[F[A]]): F[G[A]] = ...
  //def   sequence[G[_]: Applicative, A](fga: F[G[A]]): G[F[A]] = ...

The important difference being that .distribute and .cosequence take functions that take another functor G[_] and rearrange them so the F[_] is the outermost context. Contrast to Traverse which does the opposite.

Distribute is a good fallback if we need to perform a .traverse but we don’t have the Traverse or Applicative that we need.

5.5 More Functors

Although not part of the typeclass hierarchy, these are some typeclasses closely related to Functor that are worth knowing

5.5.1 Align

Align is about merging and padding a Functor. Before looking at Align, meet the Ior data type:

  sealed abstract class Ior[+A, +B]
  final case class Left[A](a: A) extends Ior[A, Nothing]
  final case class Right[B](b: B) extends Ior[Nothing, B]
  final case class Both[A, B](a: A, b: B) extends Ior[A, B]

i.e. it is a data encoding of inclusive logical OR. A or B or both A and B.

Align does not extend Functor but instead must be able to provide one

  @typeclass trait Align[F[_]] {
    def functor: Functor[F]
    def align[A, B](fa: F[A], fb: F[B]): F[Ior[A, B]]
    def alignWith[A, B, C](fa: F[A], fb: F[B])(f: Ior[A, B] => C): F[C] = ...
    def alignCombine[A: Semigroup](fa1: F[A], fa2: F[A]): F[A] = ...
    def padZip[A, B](fa: F[A], fb: F[B]): F[(Option[A], Option[B])] = ...
    def padZipWith[A, B, C](fa: F[A], fb: F[B])(f: (Option[A], Option[B]) => C): F[C] = ...

.align constructs an Ior out of two F[_], in the same F[_] context.

.alignWith takes a function from either an A or a B (or both) to a C and returns a lifted function from a tuple of F[A] and F[B] to an F[C].

.alignCombine allows us to combine two F[A] when A has a Semigroup. For example, the implementation of Semigroup[Map[K, V]] defers to Semigroup[V], combining two entries results in combining their values, having the consequence that Map[K, List[A]] behaves like a multimap:

  scala> Map("foo" -> List(1)) alignCombine Map("foo" -> List(1), "bar" -> List(2))
  res = Map(foo -> List(1, 1), bar -> List(2))

and a Map[K, Int] simply tally their contents when merging:

  scala> Map("foo" -> 1) alignCombine Map("foo" -> 1, "bar" -> 2)
  res = Map(foo -> 2, bar -> 2)

.padZip and .padZipWith are for partially merging two data structures that might be missing values on one side. For example if we wanted to aggregate independent votes and retain the knowledge of where the votes came from

  scala> Map("foo" -> 1) padZip Map("foo" -> 1, "bar" -> 2)
  res = Map(foo -> (Some(1),Some(1)), bar -> (None,Some(2)))
  scala> Map("foo" -> 1, "bar" -> 2) padZip Map("foo" -> 1)
  res = Map(foo -> (Some(1),Some(1)), bar -> (Some(2),None))

5.5.2 Bifunctor, Bifoldable and Bitraverse

Cats provides variations of Functor, Foldable and Traverse for structures that require two functions, not just one.

  @typeclass trait Bifunctor[F[_, _]] {
    def bimap[A, B, C, D](fab: F[A, B])(f: A => C, g: B => D): F[C, D]
    def leftMap[A, B, C](fab: F[A, B])(f: A => C): F[C, B] = ...

The simplest example of a Bifunctor is Either. Sometimes we want to map over both possible values in a convenient way

  scala> val a: Either[String, Int] = Left("fail")
         val b: Either[String, Int] = Right(13)
  scala> b.bimap(_.toUpperCase, _ * 2)
  res: Either[String, Int] = Right(26)
  scala> a.bimap(_.toUpperCase, _ * 2)
  res: Either[String, Int] = Left(FAIL)

And whereas we can use the regular .map to map over the Right, sometimes we want to map over just the Left, which often contains the an error message

  scala> a.leftMap(_.toUpperCase)
  res: Either[String,Int] = Left(FAIL)
  scala> b.leftMap(_.toUpperCase)
  res: Either[String, Int] = Right(13)

leaving the contents of the Right untouched.

Similarly Bifoldable and Bitraverse are the same idea for Foldable and Traverse

  @typeclass trait Bifoldable[F[_, _]] {
    def bifoldLeft[A, B, C](fab: F[A, B], c: C)(f: (C, A) => C, g: (C, B) => C): C
    def bifoldRight[A, B, C](fab: F[A, B], c: Eval[C])
          (f: (A, Eval[C]) => Eval[C], g: (B, Eval[C]) => Eval[C]): Eval[C]
    def bifoldMap[A, B, C: Monoid](fab: F[A, B])(f: A => C, g: B => C): C = ...
    def bifold[A: Monoid, B: Monoid](fab: F[A, B]): (A, B) = ...
  @typeclass trait Bitraverse[F[_, _]] extends Bifunctor[F] with Bifoldable[F] {
    def bitraverse[G[_]: Applicative, A, B, C, D](fab: F[A, B])
          (f: A => G[C], g: B => G[D]): G[F[C, D]]
    def bisequence[G[_]: Applicative, A, B](fab: F[G[A], G[B]]): G[F[A, B]] = ...

.bifoldMap is especially useful for the case where both functions return the same value, allowing us to produce a single value and combine the two sides:

  scala> val a: Either[String, Int] = Left("fail")
         val b: Either[String, Int] = Right(13)
  scala> a.bifoldMap(_.length, identity)
  res: Int = 4
  scala> a.bitraverse(s => Option(s.length), i => Option(i))
  res: Option[Either[Int,Int]] = Some(Left(4))

5.5.3 Filters

FunctorFilter adds the ability to discard entries from the functor with its .mapFilter method and related convenience methods. Similarly to Align, FunctorFilter must be able to provide a Functor.

  @typeclass trait FunctorFilter[F[_]] extends Serializable {
    def functor: Functor[F]
    def mapFilter[A, B](fa: F[A])(f: A => Option[B]): F[B]
    def filter[A](fa: F[A])(f: A => Boolean): F[A] = ...
    def filterNot[A](fa: F[A])(f: A => Boolean): F[A] = ...
    def collect[A, B](fa: F[A])(f: PartialFunction[A, B]): F[B] = ...
    def flattenOption[A](fa: F[Option[A]]): F[A] = ...

And similarly, TraverseFilter can filter the values while traversing or sequencing

  @typeclass trait TraverseFilter[F[_]] extends FunctorFilter[F] {
    def traverse: Traverse[F]
    def traverseFilter[G[_]: Applicative, A, B](fa: F[A])(f: A => G[Option[B]]): G[F[B]]
    def sequenceFilter[G[_]: Applicative, A](fgoa: F[G[Option[A]]]): G[F[A]] = ...
    def filterA[G[_]: Applicative, A](fa: F[A])(f: A => G[Boolean]): G[F[A]] = ...

5.6 Variance

We must return to Functor for a moment and discuss an ancestor that we previously ignored:

Invariant has a method .imap which says that given a function from A to B, and a function from B to A, then we can convert F[A] to F[B].

Functor is a short name for what should be covariant functor. But since Functor is so popular it gets the nickname. Likewise Contravariant should really be contravariant functor, and Invariant an invariant functor.

Functor implements .imap with .map and ignores the function from B to A. Contravariant, on the other hand, implements .imap with .contramap and ignores the function from A to B:

  @typeclass trait Invariant[F[_]] {
    def imap[A, B](fa: F[A], f: A => B, g: B => A): F[B]
  @typeclass trait Functor[F[_]] extends Invariant[F] {
    def map[A, B](fa: F[A])(f: A => B): F[B]
    def imap[A, B](fa: F[A], f: A => B, g: B => A): F[B] = map(fa)(f)
  @typeclass trait Contravariant[F[_]] extends Invariant[F] {
    def contramap[A, B](fa: F[A])(f: B => A): F[B]
    def imap[A, B](fa: F[A], f: A => B, g: B => A): F[B] = contramap(fa)(g)

It is important to note that, although related at a theoretical level, the words covariant, contravariant and invariant do not directly refer to Scala type variance (i.e. + and - prefixes that may be written in type signatures). Invariance here means that it is possible to map the contents of a structure F[A] into F[B]. Using identity we can see that A can be safely downcast (or upcast) into B depending on the variance of the functor.

.map may be understood by its contract “if you give me an F of A and a way to turn an A into a B, then I can give you an F of B”.

Likewise, .contramap reads as “if you give me an F of A and a way to turn a B into an A, then I can give you an F of B”.

We will consider an example: in our application we introduce domain specific types Alpha, Beta, Gamma, etc, to ensure that we don’t mix up numbers in a financial calculation:

  final case class Alpha(value: Double)

but now we’re faced with the problem that we don’t have any typeclasses for these new types. If we use the values in JSON documents, we have to write instances of JsEncoder and JsDecoder.

However, JsEncoder has a Contravariant and JsDecoder has a Functor, so we can derive instances. Filling in the contract:

  • “if you give me a JsDecoder for a Double, and a way to go from a Double to an Alpha, then I can give you a JsDecoder for an Alpha”.
  • “if you give me a JsEncoder for a Double, and a way to go from an Alpha to a Double, then I can give you a JsEncoder for an Alpha”.
  object Alpha {
    implicit val decoder: JsDecoder[Alpha] = JsDecoder[Double].map(Alpha(_))
    implicit val encoder: JsEncoder[Alpha] = JsEncoder[Double].contramap(_.value)

Methods on a typeclass can have their type parameters in contravariant position (method parameters) or in covariant position (return type). If a typeclass has a combination of covariant and contravariant positions, it might have an invariant functor. For example, Semigroup and Monoid have an Invariant, but not a Functor or a Contravariant.

5.7 Semigroupal, Apply and FlatMap

Consider this the warm-up act to Applicative and Monad

5.7.1 Semigroupal

Semigroupal looks at first sight to be similar to Align because it zips together two values in the same context

  @typeclass trait Semigroupal[F[_]] {
    def product[A, B](fa: F[A], fb: F[B]): F[(A, B)]

however this is the Cartesian product, which means that every A is matched up with every B. Compare how Align.align and Semigroupal.product differ in this example

  scala> Align[List].align(List("a", "b", "c"), List(1,2,3,4))
  res: List[Ior[String,Int]] = List(Both(a,1), Both(b,2), Both(c,3), Right(4))
  scala> Semigroupal[List].product(List("a", "b", "c"), List(1,2,3,4))
  res: List[(String, Int)] = List((a,1), (a,2), (a,3), (a,4),
                                  (b,1), (b,2), (b,3), (b,4),
                                  (c,1), (c,2), (c,3), (c,4))

5.7.2 Apply

Apply extends Functor and Semigroupal by adding a method named .ap which is similar to .map in that it applies a function to values. However, with .ap, the function is in the same context as the values.

  @typeclass trait Apply[F[_]] extends Functor[F] with Semigroupal[F] {
    @op("<*>") def ap[A, B](ff: F[A => B])(fa: F[A]): F[B]

It is worth taking a moment to consider what that means for a simple data structure like Option[A], having the following implementation of .ap

  implicit def option[A]: Apply[Option[A]] = new Apply[Option[A]] {
    override def ap[A, B](ff: Option[A => B], fa: Option[A])() = f match {
      case Some(f) =>
      case None    => None

To implement .ap, we must first extract the function f: A => B from ff: Option[A => B], then we can map over fa. The extraction of the function from the context is the important power that Apply brings, allowing multiple function to be combined inside the context.

Returning to Apply, we find .mapX boilerplate that allows us to combine parallel functions and then map over their combined output:

  @typeclass trait Apply[F[_]] extends Functor[F] with Semigroupal[F] {
    def map2[A,B,Z](fa: F[A], fb: F[B])(f: (A, B) => Z): F[Z] = ...
    def map3[A,B,C,Z](fa: F[A], fb: F[B], fc: F[C])(f: (A,B,C) => Z): F[Z] = ...
    def map22[...]

Read .map2 as a contract promising: “if you give me an F of A and an F of B, with a way of combining A and B into a Z, then I can give you an F of Z”. There are many uses for this contract and the two most important are:

  • constructing some typeclasses for a product type Z from its constituents A and B
  • performing effects in parallel, like the drone and google algebras we created in Chapter 3, and then combining their results.

Indeed, Apply is so useful that it has special syntax that is worth revisiting from Chapter 3:

  (d.getBacklog, d.getAgents, m.getManaged, m.getAlive, m.getTime).mapN { ... }

where the .mapN method will apply .map5 here, because the compiler knows the size of the tuple. We could also write

or directly call applyX

  Apply[F].map5(d.getBacklog, d.getAgents, m.getManaged, m.getAlive, m.getTime)

.productL and .productR offer a way to ignore the output from one of two effects:

  @op("<*") def productL[A, B](fa: F[A])(fb: F[B]): F[A] = ...
  @op("*>") def productR[A, B](fa: F[A])(fb: F[B]): F[B] = ...

Despite being more commonly used with effects, Apply works just as well with data structures. Consider rewriting

  for {
    foo <- Option[String]
    bar <- Option[Int]
  } yield foo + bar.shows


  (, + _.shows)

If we only want the combined output as a tuple, methods exist to do just that:

  def tuple2[A,B](fa: F[A], fb: F[B]): F[(A,B)] = ...
  def tuple3[A,B,C](fa: F[A], fb: F[B], fc: F[C]): F[(A,B,C)] = ...
  def tuple22[...]
  Apply[Option].tuple2(, : Option[(String, Int)]

5.7.3 FlatMap

FlatMap introduces .flatMap which allows functions over the result of an effect to return a new effect, or for functions over the values of a data structure to return new data structures that are then joined.

  @typeclass trait FlatMap[F[_]] extends Apply[F] {
    @op(">>=") def flatMap[A, B](fa: F[A])(f: A => F[B]): F[B]
    def flatten[A](ffa: F[F[A]]): F[A] =
    override def map2[A, B, Z](fa: F[A], fb: F[B])(f: (A, B) => Z): F[Z] =
      flatMap(fa)(a => map(fb)(b => f(a, b)))
    def mproduct[A, B](fa: F[A])(f: A => F[B]): F[(A, B)] = ...
    def ifM[B](fa: F[Boolean])(ifTrue: => F[B], ifFalse: => F[B]): F[B] = ...

.flatten takes a nested context and squashes it into one.

Derived combinators are introduced for .map2 that require consistency with .flatMap ordering. We will see later that this law has consequences for parallelisation strategies.

.mproduct is like Functor.fproduct and pairs the function’s input with its output, inside the F.

.ifM is a way to construct a conditional data structure or effect:

  scala> List(true, false, true).ifM(List(0), List(1, 1))
  res: List[Int] = List(0, 1, 1, 0)

If we want to ignore the result of the .flatMap effect, we can use .flatTap, analagous to .productL

  def flatTap[A, B](fa: F[A])(f: A => F[B]): F[A] = ...

Finally .foreverM

  def foreverM[A, B](fa: F[A]): F[B] = ...

repeating an effect without stopping. Instances of FlatMap are guaranteed to be stack safe, in the sense that we will never get a StackOverflowError as a result of calling .foreverM, because the tail recursive step must be implemented

  def tailRecM[A, B](a: A)(f: A => F[Either[A, B]]): F[B]

If our love of FP is not forever, we can exit the loop

  def untilDefinedM[A](foa: F[Option[A]]): F[A]

Only kidding, our love of FP is forever, we simply return Some love and continue FPing!

5.7.4 InvariantSemigroupal, InvariantMonoidal

InvariantSemigroupal is a convenient typeclass that combines Semigroupal and Invariant without adding any new methods, simply because it is so common to do this.

  @typeclass trait InvariantSemigroupal[F[_]] extends Semigroupal[F] with Invariant[F]

That leads to InvariantMonoidal which introduces .point as a way to wrap a single value in a context. .unit is a convenience for .point(()) (the Unit type).

  @typeclass trait InvariantMonoidal[F[_]] extends InvariantSemigroupal[F] {
    def point[A](a: A): F[A]
    def unit: F[Unit]
  scala> InvariantMonoidal[Option].point(13)
  res: Option[Int] = Some(13)

5.8 Applicative and Monad

From an API point of view, Applicative is Apply with a .pure method, and Monad extends Applicative with FlatMap.

  @typeclass trait Applicative[F[_]] extends Apply[F] with InvariantMonoidal[F] {
    def pure[A](a: A): F[A]
  @typeclass trait Monad[F[_]] extends Applicative[F] with FlatMap[F]

In many ways, Applicative and Monad are the culmination of everything we’ve seen in this chapter. .pure (aliased to .point) allows us to create effects or data structures from values.

Instances of Applicative must meet some laws, effectively asserting that all the methods are consistent:

  • Identity: fa <*> pure(identity) === fa, (where fa is an F[A]) i.e. applying pure(identity) does nothing.
  • Homomorphism: pure(a) <*> pure(ab) === pure(ab(a)) (where ab is an A => B), i.e. applying a pure function to a pure value is the same as applying the function to the value and then using pure on the result.
  • Interchange: pure(a) <*> fab === fab <*> pure(f => f(a)), (where fab is an F[A => B]), i.e. pure is a left and right identity
  • Mappy: map(fa)(f) === fa <*> pure(f)

Monad adds additional laws:

  • Left Identity: pure(a).flatMap(f) === f(a)
  • Right Identity: a.flatMap(pure(_)) === a
  • Associativity: fa.flatMap(f).flatMap(g) === fa.flatMap(a => f(a).flatMap(g)) where fa is an F[A], f is an A => F[B] and g is a B => F[C].

Associativity says that chained flatMap calls must agree with nested flatMap. However, it does not mean that we can rearrange the order, which would be commutativity. For example we cannot rearrange

  for {
    _ <- machine.start(node1)
    _ <- machine.stop(node1)
  } yield true


  for {
    _ <- machine.stop(node1)
    _ <- machine.start(node1)
  } yield true

.start and .stop are non-commutative, because the intended effect of starting then stopping a node is different to stopping then starting it!

But .start is commutative with itself, and .stop is commutative with itself, so we can rewrite

  for {
    _ <- machine.start(node1)
    _ <- machine.start(node2)
  } yield true


  for {
    _ <- machine.start(node2)
    _ <- machine.start(node1)
  } yield true

which are equivalent for our algebra, but not in general. We’re making a lot of assumptions about the Google Container API here, but this is a reasonable choice to make.

A practical consequence is that a Monad must be commutative if its applyX methods can be allowed to run in parallel. We cheated in Chapter 3 when we ran these effects in parallel

  (d.getBacklog, d.getAgents, m.getManaged, m.getAlive, m.getTime)

because we know that they are commutative among themselves. When it comes to interpreting our application, later in the book, we will have to provide evidence that these effects are in fact commutative, or an asynchronous implementation may choose to sequence the operations to be on the safe side.

The subtleties of how we deal with (re)-ordering of effects, and what those effects are, deserves a dedicated chapter on Cats Monads.

5.8.1 Commutativity

Now that we have discussed commutativity in the context of Monad we can understand the entire suite of Commutative* typeclasses in Cats: they add no additional methods but add the constraint that the order of effects does not matter.

5.9 ContravariantMonoidal

ContravariantMonoidal is the Contravariant analogue of Apply

  @typeclass trait ContravariantMonoidal[F[_]] extends ContravariantSemigroupal[F]
      with InvariantMonoidal[F] {
    def trivial[A]: F[A] = contramap(unit)(_ => ())
    def contramap2[A, B, Z](f0: F[A], f1: F[B])(f: Z => (A, B)): F[Z]
    def contramap3[A, B, C, Z](f0: F[A], f1: F[B], f2: F[C])(f: Z => (A, B, C)): F[Z]
    def contramap22[...] = ...

.contramap2 says that if we can break a C into an A and a B, and we’re given an F[A] and an F[B], then we can get an F[C].

This is a great way to generate contravariant typeclass instances for product types by breaking the products into their parts. Cats has an instance of ContravariantMonoidal[Eq], let’s construct an Eq for a new product type Foo

  scala> case class Foo(s: String, i: Int)
  scala> implicit val fooEq: Eq[Foo] =
           ContravariantMonoidal.contramap2(Eq[String], Eq[Int]) {
             (foo: Foo) => (foo.s, foo.i)
  scala> Foo("foo", 1) === Foo("bar", 1)
  res: Boolean = false

Analagously to .mapN, there is a .contramapN that makes it even easier to use

  scala> case class Foo(s: String, i: Int)
  scala> implicit val fooEq: Eq[Foo] = (Eq[String], Eq[Int]).contramapN {
           foo : Foo => (foo.s, foo.i)
  scala> Foo("foo", 1) === Foo("bar", 1)
  res: Boolean = false

Mirroring Apply, ContravariantMonoidal also has terse syntax for tuples.

    def tuple2[A1, A2](a1: F[A1], a2: F[A2]): F[(A1, A2)] = ...
    def tuple22[...] = ...

Generally, if a typeclass author provides an instance of ContravariantMonoidal or Apply it makes it a lot easier for users to derive instances for their data.

.trivial allows creating implementations where the type parameter is ignored. Such values are called universally quantified. For example, the ContravariantMonoidal[Eq].trivial[Nil] returns an implementation of Eq for an empty list, which is always true.

Be careful, because we can create broken instances if we use .trivial for situations that require non-trivial logic. For example we can accidentally create a broken Eq

  scala> case class Foo(s: String, i: Int)
  scala> implicit val fooEq: Eq[Foo] = ContravariantMonoidal[Eq].trivial
  scala> Foo("foo", 1) === Foo("bar", 1)
  res: Boolean = true // BROKEN!!

5.10 SemigroupK, MonoidK, Alternative

SemigroupK is Semigroup but for type constructors, and MonoidK is the equivalent of Monoid. The K suffix is for Kind, as in the Higher Kinded Types (HKT) language feature described in Chapter 1.

  @typeclass trait SemigroupK[F[_]] {
    @op("<+>") def combineK[A](x: F[A], y: F[A]): F[A]
    def algebra[A]: Semigroup[F[A]]
  @typeclass trait MonoidK[F[_]] extends SemigroupK[F] {
    def empty[A]: F[A]
    override def algebra[A]: Monoid[F[A]]

The .algebra method gives us a regular Semigroup or Monoid for a concrete type parameter A.

Although it may look on the surface as if <+> behaves like |+|

  scala> List(2,3) |+| List(7)
  res = List(2, 3, 7)
  scala> List(2,3) <+> List(7)
  res = List(2, 3, 7)

it is best to think of it as operating only at the F[_] level, never looking into the contents. SemigroupK has the convention that it should ignore failures and “pick the first winner”. <+> can therefore be used as a mechanism for early exit (losing information) and failure-handling via fallbacks:

  scala> Option(1) |+| Option(2)
  res = Some(3)
  scala> Option(1) <+> Option(2)
  res = Some(1)
  scala> Option.empty[Int] <+> Option(1)
  res = Some(1)

For example, if we have a NonEmptyList[Option[Int]] and we want to ignore None values (failures) and pick the first winner (Some), we can call .reduceK

  scala> NonEmptyList.of(None, None, Some(1), Some(2), None).reduceK
  res: Option[Int] = Some(1)

where .reduceK is defined on Reducible along with other higher-kinded variants of fold and reduce:

  @typeclass trait Foldable[F[_]] extends UnorderedFoldable[F] {
    def foldMapK[G[_]: MonoidK, A, B](fa: F[A])(f: A => G[B]): G[B]
    def foldK[G[_]: MonoidK, A](fga: F[G[A]]): G[A]
  @typeclass trait Reducible[F[_]] extends Foldable[F] {
    def reduceK[G[_]: SemigroupK, A](fga: F[G[A]]): G[A]
    def reduceMapK[G[_]: SemigroupK, A, B](fa: F[A])(f: A => G[B]): G[B]

Now that we know about SemigroupK, we realise that we could have more easily created an instance of Monoid[TradeTemplate] the section on Appendable Things. Our objective was to “pick the last winner”, which is the same as “pick the winner” if the arguments are swapped.

Note the use of <+> ccy and otc with arguments swapped, and that we no longer need to define Monoid[Option[Currency]], Monoid[Option[Boolean]] (which was breaking typeclass coherence) or def lastWins[A]: Monoid[Option[A]].

  implicit val monoid: Monoid[TradeTemplate] = Monoid.instance(
    TradeTemplate(Nil, None, None),
    (a, b) => TradeTemplate(a.payments |+| b.payments,
                            b.ccy <+> a.ccy,
                            b.otc <+> a.otc)

Applicative has a specialised versions of MonoidK called Alternative

  @typeclass trait Alternative[F[_]] extends Applicative[F] with MonoidK[F] {
    def unite[G[_]: Foldable, A](fga: F[G[A]])
          (implicit F: Monad[F]): F[A]
    def separate[G[_, _]: Bifoldable, A, B](fgab: F[G[A, B]])
          (implicit F: Monad[F]): (F[A], F[B])
    def separateFoldable[G[_, _]: Bifoldable, A, B](fgab: F[G[A, B]])
          (implicit F: Foldable[F]): (F[A], F[B])

.unite lets us fold a data structure using the outer container’s MonoidK.algebra rather than the inner content’s Monoid (if it even has one). For List[Either[String, Int]] this means Left[String] values are converted into .empty, then everything is concatenated. A convenient way to discard errors:

  scala> List(Right(1), Left("boo"), Right(2)).unite
  res: List[Int] = List(1, 2)

.separate is very useful if we have a collection of Either and we want to reorganise them into a collection of A and a collection of B

  scala> val list: List[Either[Int, String]] =
           List(Right("hello"), Left(1), Left(2), Right("world"))
  scala> list.separate
  res: (List[Int], List[String]) = (List(1, 2), List(hello, world))

and .separateFoldable can be used when we have a Foldable rather than a Monad. In the cases where we can use both, it is common to use .separate.

5.11 Co-things

A co-thing typically has some opposite type signature to whatever thing does, but is not necessarily its inverse. To highlight the relationship between thing and co-thing, we will include the type signature of thing wherever we can.

5.11.1 CoflatMap

  @typeclass trait CoflatMap[F[_]] extends Functor[F] {
    def coflatMap[A, B](fa: F[A])(f: F[A] => B): F[B]
  //def   flatMap[A, B](fa: F[A])(f: A => F[B]): F[B]
    def coflatten[A](fa: F[A]): F[F[A]]
  //def   flatten[A](ffa: F[F[A]]): F[A]

.coflatMap takes an F[A] => B that acts on an F[A] rather than its elements. But this is not necessarily the full fa, it can be a substructure that has been created by .coflatten.

Compelling use-cases for CoflatMap are rare, although when shown in the Functor permutation table (for F[_], A and B) it is difficult to argue why any method should be less important than the others:

method parameter
map A => B
contramap B => A
imap (A => B, B => A)
ap F[A => B]
flatMap A => F[B]
coflatMap F[A] => B

5.11.2 Comonad

  @typeclass trait Comonad[F[_]] extends CoflatMap[F] {
    def extract[A](x: F[A]): A
  //def    pure[A](a: A): F[A]

.extract unwraps an element from its context. The Id type alias that we encountered in Chapter 1 has an instance of Comonad, so we can reach into an Id and .extract the value it contains. Similarly, Eval has a Comonad with .extract effectively being the Now strategy.

Another example of a Comonad is the NonEmptyList, where .extract returns the .head element and .coflatMap operates on all the tails of the list.

Effects do not typically have an instance of Comonad since it would break referential transparency to interpret an IO[A] into an A.

Comonad allows navigation over elements of a data structure and eventually returning to one view of that data. Consider a neighbourhood (Hood for short) of a list, containing all the elements to the left of an element (.lefts), and all the elements to its right (.rights).

  final case class Hood[A](lefts: List[A], focus: A, rights: List[A])

The .lefts and .rights should each be ordered with the nearest element to the .focus at the head, such that we can recover the original List via .toList

  object Hood {
    implicit class Ops[A](hood: Hood[A]) {
      def toList: List[A] = hood.lefts.reverse ::: hood.focus :: hood.rights

We can write methods that let us move the focus one to the left (.previous) and one to the right (.next)

      def previous: Option[Hood[A]] = hood.lefts match {
        case Nil => None
        case head :: tail =>
          Some(Hood(tail, head, hood.focus :: hood.rights))
      def next: Option[Hood[A]] = hood.rights match {
        case Nil => None
        case head :: tail =>
          Some(Hood(hood.focus :: hood.lefts, head, tail))

.more repeatedly applies an optional function to Hood such that we calculate all the views that Hood can take on the list

      def more(f: Hood[A] => Option[Hood[A]]): List[Hood[A]] =
        f(hood) match {
          case None => Nil
          case Some(r) => r :: r.more(f)
      def positions: Hood[Hood[A]] = {
        val left  = hood.more(_.previous)
        val right = hood.more(
        Hood(left, hood, right)

We can now implement Comonad[Hood]

    implicit val comonad: Comonad[Hood] = new Comonad[Hood] {
      def map[A, B](fa: Hood[A])(f: A => B): Hood[B] =
        Hood(, f(fa.focus),
      def coflatMap[A, B](fa: Hood[A])(f: Hood[A] => B): Hood[B] =
      def extract[A](fa: Hood[A]): A = fa.focus

.coflatten gives us a Hood[Hood[List]] containing all the possible neighbourhoods in our initial List

  scala> Hood(List(4, 3, 2, 1), 5, List(6, 7, 8, 9)).coflatten
  res = Hood(

Indeed, .coflatten is just .positions! We can override it with a more direct (and performant) implementation

  override def coflatten[A](fa: Hood[A]): Hood[Hood[A]] = fa.positions

Comonad generalises the concept of Hood to arbitrary data structures. Hood is an example of a zipper (unrelated to Zip). An application of a zipper is for cellular automata, which compute the value of each cell in the next generation by performing a computation based on the neighbourhood of that cell.

Finally, Bimonad exists for structures that have both a Monad and a Comonad

  @typeclass trait Bimonad[F[_]] extends Monad[F] with Comonad[F]

Examples of Bimonads are Id, Eval, pure functions that have no parameters (thunks), and many non-empty collections.

5.12 Summary

That was a lot of material! We have just explored a standard library of polymorphic functionality. But to put it into perspective: there are more traits in the Scala stdlib Collections API than typeclasses in Cats.

It is normal for an FP application to only touch a small percentage of the typeclass hierarchy, with most functionality coming from domain-specific algebras and typeclasses. Even if the domain-specific typeclasses are just specialised clones of something in Cats, it is OK to refactor it later.

To help, we have included a cheat-sheet of the typeclasses and their primary methods in the Appendix.

To help further, Valentin Kasas explains how to combine N things:

6. Cats Data Types

In this chapter we will explore some Cats data types that augment the Scala language with useful semantics and additional type safety.

6.1 Natural Transformations

A function from one type to another is written as A => B in Scala, which is syntax sugar for a Function1[A, B]. Cats provides similar syntax sugar F ~> G for functions over type constructors F[_] to G[_].

These F ~> G are called natural transformations and are universally quantified because they don’t care about the contents of F[_].

  type ~>[F[_], G[_]] = FunctionK[F, G]
  trait FunctionK[F[_], G[_]] {
    def apply[A](fa: F[A]): G[A]
    def compose[E[_]](f: E ~> F): E ~> G = ...
    def andThen[H[_]](f: G ~> H): F ~> H = ...

An example of a natural transformation is a function that converts a Vector into a List

  scala> val convert = new (Vector ~> List) {
           def apply[A](fa: Vector[A]): List[A] = fa.toList
  scala> convert(Vector(1, 2, 3))
  res: List[Int] = List(1, 2, 3)

Or, more concisely, making use of kind-projector’s syntax sugar with either of the following:

  scala> val convert = λ[Vector ~> List](_.toList)
  scala> val convert = Lambda[Vector ~> List](_.toList)

However, in day-to-day development, it is far more likely that we will use a natural transformation to map between algebras. For example, in drone-dynamic-agents we may want to implement our Google Container Engine Machines algebra with an off-the-shelf algebra, BigMachines. Instead of changing all our business logic and tests to use this new BigMachines interface, we may be able to write a transformation from Machines ~> BigMachines. We will return to this idea in the chapter on Cats Monads.

6.2 Containers

6.2.1 Validated

At first sight, Validated appears to be a clone of Either:

  sealed abstract class Validated[+E, +A] { ... }
  final case class Valid[+A](a: A) extends Validated[Nothing, A]
  final case class Invalid[+E](e: E) extends Validated[E, Nothing]
  type ValidatedNel[+E, +A] = Validated[NonEmptyList[E], A]
  object Validated {
    def valid[E, A](a: A): Validated[E, A] = Valid(a)
    def invalid[E, A](e: E): Validated[E, A] = Invalid(e)
    def validNel[E, A](a: A): ValidatedNel[E, A] = Valid(a)
    def invalidNel[E, A](e: E): ValidatedNel[E, A] = Validated.Invalid(NonEmptyList(e, Nil))
    def fromEither[E, A](e: Either[E, A]): Validated[E, A] = ...
    def fromOption[A, B](o: Option[B], ifNone: => A): Validated[A, B] = ...
    def fromIor[A, B](ior: Ior[A, B]): Validated[A, B] = ...

With convenient syntax

  implicit class ValidatedOps[A](self: A) {
    def valid[B]: Validated[B, A] = ...
    def validNel[B]: ValidatedNel[B, A] = ...
    def invalid[B]: Validated[A, B] = ...
    def invalidNel[B]: ValidatedNel[A, B] = ...

However, the data structure itself is not the complete story. Validated intentionally does not have an instance of any Monad, restricting itself to success-biased versions of Applicative.

The big advantage of restricting to Applicative is that Validated is explicitly for situations where we wish to report all failures, whereas Either is used to stop at the first failure. To accommodate failure accumulation, a popular form of Validated is ValidatedNel, having a NonEmptyList[E] in the failure position.

Consider performing input validation of data provided by a user using Either and .flatMap:

  scala> :paste
         final case class Credentials(user: Username, name: Fullname)
         final case class Username(value: String) extends AnyVal
         final case class Fullname(value: String) extends AnyVal
         def username(in: String): Either[String, Username] =
           if (in.isEmpty) Left("empty username")
           else if (in.contains(" ")) Left("username contains spaces")
           else Right(Username(in))
         def realname(in: String): Either[String, Fullname] =
           if (in.isEmpty) Left("empty real name")
           else Right(Fullname(in))
  scala> for {
           u <- username("zara turtle")
           r <- realname("")
         } yield Credentials(u, r)
  res = Left(username contains spaces)

If we use .mapN syntax

  scala> (username("zara turtle"), realname("")).mapN (Credentials.apply)
  res = Left(username contains spaces)

we still get back the first failure. This is because Either is a Monad, its .mapX methods must be consistent with .flatMap and not assume that any operations can be performed out of order. Compare to:

  scala> :paste
         def username(in: String): ValidatedNel[String, Username] =
           if (in.isEmpty) "empty username".invalidNel
           else if (in.contains(" ")) "username contains spaces".invalidNel
           else Username(in).valid
         def realname(in: String): ValidatedNel[String, Fullname] =
           if (in.isEmpty) "empty real name".invalidNel
           else Fullname(in).valid
  scala> (username("zara turtle") |@| realname("")) (Credentials.apply)
  res = Invalid(NonEmpty[username contains spaces,empty real name])

This time, we get back all the failures!

Either and Validated are the more performant FP equivalent of a checked exception for input validation, avoiding both a stacktrace and requiring the caller to deal with the failure resulting in more robust systems.

6.2.2 Ior

We encountered Ior, a data encoding of inclusive logical OR, when we learnt about Align.

  sealed abstract class Ior[+A, +B]
  final case class Left[A](a: A) extends Ior[A, Nothing]
  final case class Right[B](b: B) extends Ior[Nothing, B]
  final case class Both[A, B](a: A, b: B) extends Ior[A, B]
  type IorNel[+B, +A] = Ior[NonEmptyList[B], A]
  object Ior {
    def left[A, B](a: A): A Ior B = ...
    def right[A, B](b: B): A Ior B = ...
    def both[A, B](a: A, b: B): A Ior B = ...
    def leftNel[A, B](a: A): IorNel[A, B] = ...
    def bothNel[A, B](a: A, b: B): IorNel[A, B] = ...

.flatMap is right-biased (Both and Right), taking a Semigroup of the Left content to combine rather than break early.

Although it is tempting to use Ior in return types, overuse is an anti-pattern, because it is more difficult for the caller to consider three scenarios (roughly failure, partial failure, and success) than regular failure and success.

6.2.3 Higher Kinded Either

The EitherK data type wraps Either for type constructors:

  final case class EitherK[F[_], G[_], A](run: Either[F[A], G[A]])
  object EitherK {
    def leftc[F[_], G[_], A](x: F[A]): EitherK[F, G, A] = ...
    def rightc[F[_], G[_], A](x: G[A]): EitherK[F, G, A] = ...

Typeclass instances simply delegate to those of the F[_] and G[_].

The most popular use case for Coproduct is when we want to create an anonymous coproduct of multiple ADTs.

6.2.4 Const

Const, for constant, is a wrapper for a value of type A, along with a spare type parameter B.

  final case class Const[A, B](getConst: A) {
    def retag[C]: Const[A, C] = ...

Const provides an instance of Applicative[Const[A, ?]] if there is a Monoid[A] available:

  implicit def applicative[A: Monoid]: Applicative[Const[A, ?]] =
    new Applicative[Const[A, ?]] {
      def pure[B](b: B): Const[A, B] = Const(Monoid[A].empty)
      def ap[A, B](f: Const[C, A => B])(fa: Const[C, A]): Const[C, B] =

The most important thing about this Applicative is that it ignores the B parameters, continuing on without failing and only combining the constant values that it encounters.

Going back to our example application drone-dynamic-agents, we should first refactor our logic.scala file to use Applicative instead of Monad. We wrote logic.scala before we learnt about Applicative and now we know better:

  final class DynAgentsModule[F[_]: Applicative](D: Drone[F], M: Machines[F])
    extends DynAgents[F] {
    def act(world: WorldView): F[WorldView] = world match {
      case NeedsAgent(node) =>
        M.start(node) as world.copy(pending = Map(node -> world.time))
      case Stale(nodes) =>
        nodes.traverse { node =>
          M.stop(node) as node
        }.map { stopped =>
          val updates = stopped.strengthR(world.time).toList.toMap
          world.copy(pending = world.pending ++ updates)
      case _ => world.pure[F]

Since our business logic only requires an Applicative, we can write mock implementations with F[a] as Const[String, a]. In each case, we return the name of the function that is called:

  object ConstImpl {
    type F[a] = Const[String, a]
    private val D = new Drone[F] {
      def getBacklog: F[Int] = Const("backlog")
      def getAgents: F[Int]  = Const("agents")
    private val M = new Machines[F] {
      def getAlive: F[Map[MachineNode, Epoch]]     = Const("alive")
      def getManaged: F[NonEmptyList[MachineNode]] = Const("managed")
      def getTime: F[Epoch]                        = Const("time")
      def start(node: MachineNode): F[Unit]        = Const("start")
      def stop(node: MachineNode): F[Unit]         = Const("stop")
    val program = new DynAgentsModule[F](D, M)

With this interpretation of our program, we can assert on the methods that are called:

  it should "call the expected methods" in {
    import ConstImpl._
    val alive    = Map(node1 -> time1, node2 -> time1)
    val world    = WorldView(1, 1, managed, alive, Map.empty, time4)
    program.act(world).getConst shouldBe "stopstop"

Alternatively, we could have counted total method calls by using Const[Int, ?] or an Map[String, Int].

With this test, we’ve gone beyond traditional Mock testing with a Const test that asserts on what is called without having to provide implementations. This is useful if our specification demands that we make certain calls for certain input, e.g. for accounting purposes. Furthermore, we’ve achieved this with compiletime safety.

Taking this line of thinking a little further, say we want to monitor (in production) the nodes that we are stopping in .act. We can create implementations of Drone and Machines with Const, calling it from our wrapped version of .act

  final class Monitored[U[_]: Functor](program: DynAgents[U]) {
    type F[a] = Const[Set[MachineNode], a]
    private val D = new Drone[F] {
      def getBacklog: F[Int] = Const(Set())
      def getAgents: F[Int]  = Const(Set())
    private val M = new Machines[F] {
      def getAlive: F[Map[MachineNode, Epoch]]     = Const(Set())
      def getManaged: F[NonEmptyList[MachineNode]] = Const(Set())
      def getTime: F[Epoch]                        = Const(Set())
      def start(node: MachineNode): F[Unit]        = Const(Set())
      def stop(node: MachineNode): F[Unit]         = Const(Set(node))
    val monitor = new DynAgentsModule[F](D, M)
    def act(world: WorldView): U[(WorldView, Set[MachineNode])] = {
      val stopped = monitor.act(world).getConst

We can do this because monitor is pure and running it produces no side effects.

This runs the program with ConstImpl, extracting all the calls to Machines.stop, then returning it alongside the WorldView. We can unit test this:

  it should "monitor stopped nodes" in {
    val underlying = new Mutable(needsAgents).program
    val alive = Map(node1 -> time1, node2 -> time1)
    val world = WorldView(1, 1, managed, alive, Map.empty, time4)
    val expected = world.copy(pending = Map(node1 -> time4, node2 -> time4))
    val monitored = new Monitored(underlying)
    monitored.act(world) shouldBe (expected -> Set(node1, node2))

We have used Const to do something that looks like Aspect Oriented Programming, once popular in Java. We built on top of our business logic to support a monitoring concern, without having to complicate the business logic.

It gets even better. We can run ConstImpl in production to gather what we want to .stop, and then provide an optimised implementation of act that can make use of implementation-specific batched calls.

The silent hero of this story is Applicative. Const lets us show off what is possible. If we need to change our program to require a Monad, we can no longer use Const and must write full mocks to be able to assert on what is called under certain inputs. The Rule of Least Power demands that we use Applicative instead of Monad wherever we can.

6.2.5 Chain

Chain is a catenable sequence that supports O(1) appending, prepending and concatenation. It is especially useful if we need to construct a collection by concatening existing collections (that may be any Seq), adding individual elements (by pre-pending or appending) or concatenating existing Chain values.

  sealed abstract class Chain[+A] {
    def prepend[A2 >: A](a: A2): Chain[A2] = ...
    def append[A2 >: A](a: A2): Chain[A2] = ...
    def concat[A2 >: A](c: Chain[A2]): Chain[A2] = ...
    def toList: List[A] = ...
    def toVector: Vector[A] = ...
    def groupBy[B: Order](f: A => B): SortedMap[B, NonEmptyChain[A]] = ...
  object Chain {
    case object Empty extends Chain[Nothing]
    final case class Singleton[A](a: A) extends Chain[A]
    final case class Append[A](left: Chain[A], right: Chain[A]) extends Chain[A]
    final case class Wrap[A](seq: Seq[A]) extends Chain[A]
    def empty[A]: Chain[A] = ...
    def one[A](a: A): Chain[A] = ...
    def fromSeq[A](s: Seq[A]): Chain[A] = ...

Chain has a Monad and also has a NonEmptyChain variant.

The user of Chain is expected to manually balance it because two Chain may contain the same values but be represented different ways, and therefore have different performance characteristics. For example, if we construct a Chain entirely out of Singleton by using .prepend and .append then our Chain will have more links in it but if we use .concat and Chain.fromSeq where possible then we will have less links per datum.

The ability to control the shape of the Chain makes it suitable for cases where it is useful to encode domain knowledge of a hierarchy into the data structure. For example, in artificial intelligence, a Chain can be used in clustering algorithms to organise data into a hierarchy of increasingly similar things. It is possible to represent XML documents with a Chain.

When working with hierarchical data, consider using a Chain instead of rolling a custom data structure.

Chain is also useful if we wish to build a regular data structure such as Vector but the performance cost of appending Vector at every level is too high. Constructing the Vector by first creating a Chain will cost O(N) and thereafter the lookup cost is O(1).

6.2.6 OneAnd

Recall that Foldable is the Cats equivalent of a collections API and Reducible is for non-empty collections. We have already seen NonEmptyList and NonEmptyChain which provide Reducible, there is also NonEmptySet, NonEmptyMap and NonEmptyVector which wrap the standard library collections. The simple data structure OneAnd wraps any other collection to turn it into a Reducible:

  final case class OneAnd[F[_], A](head: A, tail: F[A])

NonEmptyList[A] could be an alias to OneAnd[List, A]. Similarly, we can create non-empty Stream. However it may break ordering and uniqueness characteristics of the underlying structure: a OneAnd[Set, A] is not a non-empty Set, it is a Set with a guaranteed first element that may also be in the Set.

6.3 Summary

In this chapter we have skimmed over the data types that Cats has to offer.

It is not necessary to remember everything from this chapter: think of each section as having planted the kernel of an idea.

The world of functional data structures is an active area of research. Academic publications appear regularly with new approaches to old problems. Implementing a functional data structure from the literature is a good contribution to the Cats ecosystem.

7. Cats Monads

In this chapter we will study some of the most important implementations of Monad and in particular those that are provided by the cats-mtl and cats-effect libraries which can be installed with

  libraryDependencies += "org.typelevel" %% "cats-mtl-core" % "0.7.1"
  libraryDependencies += "org.typelevel" %% "cats-free" % "2.1.1"
  libraryDependencies += "org.typelevel" %% "cats-effect" % "2.1.2"

and the source snippets in this section assume that the following imports are being used

  import cats._, data._, implicits._
  import cats.mtl._
  import cats.effect._
  import cats.effect.concurrent._
  import simulacrum._

7.1 Always in motion is the Future

The biggest problem with Future is that it eagerly schedules work during construction. As we discovered in the introduction, Future conflates the definition of a program with interpreting it (i.e. running it).

Future is also suboptimal from a performance perspective: every time .flatMap is called, a closure is submitted to an Executor, resulting in unnecessary thread scheduling and context switching. It is not unusual to see 50% of our CPU power dealing with thread scheduling, instead of doing the work. So much so that parallelising work with Future can often make it slower.

Combined, eager evaluation and executor submission means that it is impossible to know when a job started, when it finished, or the sub-tasks that were spawned to calculate the final result.

Furthermore, Future.flatMap requires an ExecutionContext to be in implicit scope: users are forced to think about business logic and execution semantics at the same time.

7.2 Effects and Side Effects

If we cannot call side-effecting methods in our business logic, or in Future (or Id, or Either, or Const, etc), when can we write them? The answer is: in a Monad that delays execution until it is interpreted at the application’s entrypoint. We can now refer to I/O and mutation as an effect on the world, captured by the type system, as opposed to having a hidden side-effect.

The simplest implementation of such a Monad is IO, formalising the version we wrote in the introduction:

  final class IO[A](val interpret: () => A)
  object IO {
    def apply[A](a: =>A): IO[A] = new IO(() => a)
    implicit val monad: Monad[IO] = new Monad[IO] {
      def pure[A](a: A): IO[A] = IO(a)
      def flatMap[A, B](fa: IO[A])(f: A => IO[B]): IO[B] =

The .interpret method is only called once, in the entrypoint of an application:

  def main(args: Array[String]): Unit = program.interpret()

However, there are two big problems with this simple IO:

  1. it can stack overflow
  2. it doesn’t support parallel computations

Both of these problems will be overcome in this chapter. However, no matter how complicated the internal implementation of a Monad, the principles described here remain true: we’re modularising the definition of a program and its execution, such that we can capture effects in type signatures, allowing us to reason about them, and reuse more code.

7.3 Stack Safety

On the JVM, every method call adds an entry to the call stack of the Thread, like adding to the front of a List. When the method completes, the method at the .head is thrown away. The maximum length of the call stack is determined by the -Xss flag when starting up java. Tail recursive methods are detected by the Scala compiler and do not add an entry. If we hit the limit, by calling too many chained methods, we get a StackOverflowError.

Unfortunately, every nested call to our IO’s .flatMap adds another method call to the stack. The easiest way to see this is to repeat an action forever, and see if it survives for longer than a few seconds. We can create a (broken) recursive .forever with

  def forever[F[_]: FlatMap, A](fa: F[A]): F[Unit] =
    fa.flatMap(_ => forever(fa)).void

and then call it on an action that just prints to the screen

  scala> val hello = IO { println("hello") }
  scala> forever(hello).interpret()
      at ...
      at monadio.IO$$anon$1.$anonfun$bind$1(monadio.scala:18)
      at monadio.IO$$anon$1.$anonfun$bind$1(monadio.scala:18)
      at ...

A way to achieve stack safety is to convert method calls into references to an ADT, the Free monad:

  sealed abstract class Free[S[_], A]
  object Free {
    final case class Pure[S[_], A](a: A) extends Free[S, A]
    final case class Suspend[S[_], A](a: S[A]) extends Free[S, A]
    final case class FlatMapped[S[_], B, C](c: Free[S, C], f: C => Free[S, B]) extends Free[S,\

The Free ADT is a natural data type representation of the Monad interface:

  1. Pure represents .pure
  2. FlatMapped represents .flatMap

When an ADT mirrors the arguments of related functions, it is called a Church encoding.

Free is named because it can be generated for free for any S[_]. For example, we could set S to be the Drone or Machines algebras from Chapter 3 and generate a data structure representation of our program. We will return to why this is useful at the end of this chapter.

7.3.1 Trampoline

Free is more general than we need for now. Setting the algebra S[_] to Function0, a deferred calculation or thunk, we get Trampoline and can implement a stack safe Monad

  type Trampoline[A] = Free[Function0, A]
  implicit val trampoline: Monad[Trampoline] =
    new Monad[Trampoline] with Monad[Trampoline] {
      def pure[A](a: A): Trampoline[A] = Pure(a)
      def flatMap[A, B](fa: Trampoline[A])(f: A => Trampoline[B]): Trampoline[B] =
        FlatMapped(fa, f)
      def tailRecM[A, B](a: A)(f: A => Trampoline[Either[A, B]]): Trampoline[B] = flatMap(f(a)\
) {
        case Left(a)  => tailRecM(a)(f)
        case Right(b) => pure(b)

Although this is not technically a @tailrec implementation of tailRecM, it uses constant stack space because each call returns a heap object (.flatMap will return a FlatMapped), which delays recursion.

Convenient functions are provided to create a Trampoline eagerly (.done) or by-name (.delay). We can also create a Trampoline from a by-name Trampoline (.defer):

  object Trampoline {
    def done[A](a: A): Trampoline[A]                = Pure(a)
    def delay[A](a: =>A): Trampoline[A]             = defer(done(a))
    def defer[A](a: =>Trampoline[A]): Trampoline[A] = done(()).flatMap(_ => a)

When we see Trampoline[A] in a codebase we can always mentally substitute it with A, because it is simply adding stack safety to the pure computation. We get the A by interpreting Free, provided by .run.

7.3.2 Stack Safe IO

Our IO can be made stack safe thanks to Trampoline:

  final class IO[A](val tramp: Trampoline[A]) {
    def unsafePerformIO(): A =
  object IO {
    def apply[A](a: =>A): IO[A] = new IO(Trampoline.delay(a))
    implicit val monad: Monad[IO] =
      new Monad[IO] with StackSafeMonad[IO] {
        def pure[A](a: A): IO[A] = IO(a)
        def flatMap[A, B](fa: IO[A])(f: A => IO[B]): IO[B] =
          new IO(fa.tramp.flatMap(a => f(a).tramp))

The interpreter, .unsafePerformIO(), has an intentionally scary name to discourage using it except in the entrypoint of the application.

This time, using FlatMap.foreverM instead of our naive .forever, we don’t get a stack overflow error

  scala> val hello = IO { println("hello") }
  scala> FlatMap[IO].foreverM(hello).unsafePerformIO()

Using a Trampoline typically introduces a performance regression vs a regular reference. It is Free in the sense of freely generated, not free as in gratis.

7.4 Monad Transformer Library

Monad transformers are data structures that wrap an underlying value and provide a monadic effect.

For example, in Chapter 2 we used OptionT to let us use F[Option[A]] in a for comprehension as if it was just a F[A]. This gave our program the effect of an optional value. Alternatively, we can get the effect of optionality if we have a MonadPlus.

This subset of data types and extensions to Monad are often referred to as the Monad Transformer Library (MTL), summarised below. In this section, we will explain each of the transformers, why they are useful, and how they work.

Effect Underlying Transformer Typeclass
optionality F[Option[A]] OptionT
errors F[Either[E, A]] EitherT MonadError
a runtime value A => F[B] ReaderT ApplicativeLocal
journal / multitask F[(W, A)] WriterT FunctorListen
evolving state S => F[(S, A)] StateT MonadState
keep calm & carry on F[Ior[E, A]] IorT MonadChronicle

7.4.1 .mapK, .liftF and .liftK

It is typical that a transformer will implement methods named .mapK and .liftF having the following general pattern:

  final case class OptionT[F[_], A](value: F[Option[A]]) {
    def mapK[G[_]](f: F ~> G): OptionT[G, A] = ...
  object OptionT {
    def liftF[F[_]: Functor, A](fa: F[A]): OptionT[F, A] = ...
    def liftK[F[_]: Functor]: F ~> OptionT[F, ?] = ...
  final case class EitherT[F[_], A, B](value: F[Either[A, B]]) {
    def mapK[G[_]](f: F ~> G): EitherT[G, A, B] = ...
  object EitherT {
    def liftF[F[_]: Functor, A, B](fb: F[B]): EitherT[F, A, B] = ...
    def liftK[F[_]: Functor, A]: F ~> EitherT[F, A, ?] = ...

.mapK lets us apply a natural transformation to the context.

.liftF lets us create a monad transformer if we have an F[A]. For example, we can create an OptionT[IO, String] by calling OptionT.liftF on an IO[String], which we seen in Chapter 2.

.liftK is the same as .liftF but returns a natural transformation.

Generally, there are three ways to create a monad transformer:

  • from the underlying, using the transformer’s constructor
  • from a single value A, using .pure from the Monad syntax
  • from an F[A], using .liftF on the companion

7.4.2 OptionT

  final case class OptionT[F[_], A](value: F[Option[A]])
  object OptionT {
    def some[F[_]: Applicative, A](a: A): OptionT[F, A] = ...
    def none[F[_]: Applicative, A]: OptionT[F, A] = ...

providing a MonadPlus

  implicit def monad[F[_]: Monad] = Monad[OptionT[F, ?]] {
    def pure[A](a: A): OptionT[F, A] = OptionT.some(a)
    def flatMap[A, B](fa: OptionT[F, A])(f: A => OptionT[F, B]): OptionT[F, B] =
    def tailRecM[A, B](a: A)(f: A => OptionT[F, Either[A, B]]): OptionT[F, B] =
      OptionT(a.tailRecM(a0 =>
        f(a0) => Some(b))))))

This monad looks fiddly, but it is just delegating everything to the Monad[F] and then re-wrapping with an OptionT, with .tailRecM returning a heap object to guarantee stack safety.

With this monad we can write logic that handles optionality in the F[_] context, rather than carrying around Option.

For example, say we are interfacing with a social media website to count the number of stars a user has, and we start with a String that may or may not correspond to a user. We have this algebra:

  trait Twitter[F[_]] {
    def getUser(name: String): F[Option[User]]
    def getStars(user: User): F[Int]
  def T[F[_]](implicit t: Twitter[F]): Twitter[F] = t

We need to call .getUser followed by .getStars. If we use Monad as our context, our function is difficult because we have to handle the Empty case:

  def stars[F[_]: Monad: Twitter](name: String): F[Option[Int]] = for {
    maybeUser  <- T.getUser(name)
    maybeStars <- maybeUser.traverse(T.getStars)
  } yield maybeStars

However, we can use OptionT in the return type:

  def stars[F[_]: Monad: Twitter](name: String): OptionT[F, Int] = for {
    user  <- OptionT(T.getUser(name))
    stars <- OptionT.liftF(T.getStars(user))
  } yield stars

An optional value is a special case of a value that may be an error, where we don’t know anything about the error. The next section generalises OptionT.

7.4.3 EitherT

EitherT allows us to use any type we want as the error value, providing contextual information about what went wrong.

EitherT is a wrapper around an F[Either[E, A]]

  final case class EitherT[F[_], E, A](value: F[Either[E, A]])
  object EitherT {
    def fromEither[F[_]: Applicative, E, A](d: Either[E, A]): EitherT[F, E, A] = ...
    def right[F[_]: Applicative, E, A](fb: F[E]): EitherT[F, E, A] = ...
    def left[F[_]: Functor, E, A](fa: F[A]): EitherT[F, E, A] = ...
    def rightT[F[_]: Applicative, E, A](e: E): EitherT[F, E, A] = ...
    def leftT[F[_]: Applicative, E, A](a: A): EitherT[F, E, A] = ...
    def fromOptionF[F[_]: Functor, E, A](fa: F[Option[A]], e: =>E): EitherT[F, E, A] = ...

The Monad is a MonadError

  @typeclass trait ApplicativeError[F[_], E] extends Applicative[F] {
    def raiseError[A](e: E): F[A]
    def handleErrorWith[A](fa: F[A])(f: E => F[A]): F[A]
    def attempt[A](fa: F[A]): F[Either[E, A]] = ...
    def handleError[A](fa: F[A])(f: E => A): F[A] = ...
    def fromEither[A](x: Either[E, A]): F[A] = ...
    def fromOption[A](oa: Option[A], ifEmpty: =>E): F[A] = ...
  @typeclass trait MonadError[F[_], E] extends Monad[F] with ApplicativeError[F]

.raiseError and .handleErrorWith are self-descriptive: the equivalent of throw and catch an exception, respectively.

Although EitherT has a MonadError, it is worth noting that most of the functionality sits on ApplicativeError, which does not require a Monad and is therefore more generally applicable.

.attempt brings errors into the value, which is useful for exposing errors in subsystems as first class values.

.handleError is for turning an error into a value for all cases, as opposed to .handleErrorWith which takes an F[A] and therefore allows partial recovery.

We can rewrite our Twitter example to make use of MonadError

  def stars[F[_]: Twitter](name: String)
                          (implicit F: MonadError[F, String]): F[Int] = for {
    user <- T.getUser(name).flatMap(F.fromOption(_, s"user '$name' not found"))
    stars <- T.getStars(user)
  } yield stars

We can also return the transformer directly, which looks like

  def stars[F[_]: Monad: Twitter](name: String): EitherT[F, String, Int] = for {
    user  <- EitherT.fromOptionF(T.getUser(name), s"user '$name' not found")
    stars <- EitherT.right(T.getStars(user))
  } yield stars

The decision to require a more powerful Monad vs directly returning a transformer is something that each team can decide for themselves based on the interpreters that they plan on using for their program.

Forgetting EitherT for a moment, the simplest instance of MonadError is for Either, perfect for testing business logic that requires a MonadError but does not need an effect. For example,

  final class MockTwitter extends Twitter[Either[String, ?]] {
    def getUser(name: String): Either[String, Option[User]] =
      if (name.contains(" ")) Right(None)
      else if (name === "wobble") Left("connection error")
      else Right(Some(User(name)))
    def getStars(user: User): Either[String, Int] =
      if ("w")) Right(10)
      else Left("stars have been replaced by hearts")

Our unit tests for .stars might cover these cases:

  scala> stars("wibble")
  scala> stars("wobble")
  Left(connection error)
  scala> stars("i'm a fish")
  Left(user 'i'm a fish' not found)
  scala> stars("typelevel")
  Left(stars have been replaced by hearts)

As we’ve now seen several times, we can focus on testing the pure business logic without distraction.

Finally, if we return to our JsonClient algebra from Chapter 4.3

  trait JsonClient[F[_]] {
    def get[A: JsDecoder](
      uri: String Refined Url,
      headers: List[(String, String)]
    ): F[A]

recall that we only coded the happy path into the API. If our interpreter for this algebra only works for an F having a MonadError we get to define the kinds of errors as a tangential concern. Indeed, we can have two layers of error if we define the interpreter for a EitherT[IO, JsonClient.Error, ?]

  object JsonClient {
    sealed abstract class Error extends Throwable
    final case class ServerError(status: Int)       extends Error
    final case class DecodingError(message: String) extends Error

which cover I/O (network) problems, server status problems, and issues with our modelling of the server’s JSON payloads. Choosing an error type

The community is undecided on the best strategy for the error type E in MonadError.

One school of thought says that we should pick something general, like a String. The other school says that an application should have an ADT of errors, allowing different errors to be reported or handled differently.

There are two problems with an ADT of errors on the application level:

  • it is very awkward to create a new error. One file becomes a monolithic repository of errors, aggregating the ADTs of individual subsystems.
  • no matter how granular the errors are, the resolution is often the same: log it and try it again, or give up. We don’t need an ADT for this.

An error ADT is of value if every entry allows a different kind of recovery to be performed.

A compromise between an error ADT and a String is an intermediary format. JSON is a good choice as it can be understood by most logging and monitoring frameworks.

A problem with not having a stacktrace is that it can be hard to localise which piece of code was the source of an error. With sourcecode by Li Haoyi, we can include contextual information as metadata in our errors:

  final case class Meta(fqn: String, file: String, line: Int)
  object Meta {
    implicit def gen(implicit fqn: sourcecode.FullName,
                              file: sourcecode.File,
                              line: sourcecode.Line): Meta =
      new Meta(fqn.value, file.value, line.value)
  final case class Err(msg: String)(implicit val meta: Meta)
    extends Throwable with NoStackTrace

We extend Throwable for maximum compatibility.

Although Err is referentially transparent, the implicit construction of a Meta does not appear to be referentially transparent from a natural reading: two calls to Meta.gen (invoked implicitly when creating an Err) will produce different values because the location in the source code impacts the returned value:

  scala> println(Err("hello world").meta)
  scala> println(Err("hello world").meta)

To understand this, we have to appreciate that sourcecode.* methods are macros that are generating source code for us. If we were to write the above explicitly it is clear what is happening:

  scala> println(Err("hello world")(Meta("com.acme", "<console>", 10)).meta)
  scala> println(Err("hello world")(Meta("com.acme", "<console>", 11)).meta)

Yes, we’ve made a deal with the macro devil, but we could also write the Meta manually and have it go out of date quicker than our documentation.

7.4.4 ReaderT

The reader monad wraps A => F[B] allowing a program F[B] to depend on a runtime value A. For those familiar with dependency injection, the reader monad is the FP equivalent of Spring or Guice’s @Inject, without the XML and reflection.

ReaderT is just an alias to another more generally useful data type named after the mathematician Heinrich Kleisli.

  type ReaderT[F[_], A, B] = Kleisli[F, A, B]
  final case class Kleisli[F[_], -A, B](run: A => F[B]) {
    def dimap[C, D](f: C => A)(g: B => D)(implicit F: Functor[F]): Kleisli[F, C, D] =
      Kleisli(c =>
    def flatMapF[C](f: B => F[C])(implicit F: FlatMap[F]): Kleisli[F, A, C] = ...

The most common use for ReaderT is to provide environment information to a program. In drone-dynamic-agents we need access to the user’s OAuth 2.0 Refresh Token to be able to contact Google. The obvious thing is to load the RefreshTokens from disk on startup, and make every method take a RefreshToken parameter. In fact, this is such a common requirement that Martin Odersky has proposed implicit functions for Scala 3.

Our application could have an algebra that provides the configuration when needed, e.g.

  trait ConfigReader[F[_]] {
    def token: F[RefreshToken]

We have reinvented ApplicativeAsk, the typeclass associated to ReaderT, where .ask is the same as our .token, and E is RefreshToken:

  @typeclass trait ApplicativeAsk[F[_], E] {
    def ask: F[E]

A law of ApplicativeAsk is that the E cannot change between invocations, i.e. ask >> ask === ask. For our usecase, this is to say that the configuration is read once. If we decide later that we want to reload configuration every time we need it, e.g. allowing us to change the token without restarting the application, we can reintroduce ConfigReader which has no such law.

In our OAuth 2.0 implementation we could first move the Monad evidence onto the methods:

  def bearer(refresh: RefreshToken)(implicit F: Monad[F]): F[BearerToken] =
    for { ...

and then refactor the refresh parameter to be part of the Monad

  def bearer(implicit F: Monad[F], A: ApplicativeAsk[F, RefreshToken]): F[BearerToken] =
    for {
      refresh <- A.ask

Any parameter can be moved into the ApplicativeAsk. This is of most value to immediate callers when they simply want to thread through this information from above. With ReaderT, we can reserve implicit parameter blocks entirely for the use of typeclasses, reducing the mental burden of using Scala.

ApplicativeLocal extends ApplicativeAsk with an additional method .local

  @typeclass trait ApplicativeLocal[F[_], E] extends ApplicativeAsk[F, E] {
    def local[A](f: E => E)(fa: F[A]): F[A]

We can change E and run a program fa within that local context, returning to the original E. A use case for .local is to generate a “stack trace” that makes sense to our domain, giving us nested logging! Leaning on the Meta data structure from the previous section, we define a function to checkpoint:

  def traced[A](fa: F[A])(implicit F: ApplicativeLocal[F, List[Meta]]): F[A] =
    F.local(Meta.gen :: _)(fa)

and we can use it to wrap functions that operate in this context.

  def foo: F[Foo] = traced(getBar).flatMap(barToFoo)

automatically passing through anything that is not explicitly traced.

If we access .ask we can see the breadcrumb trail of exactly how we were called, without the distraction of bytecode implementation details. A referentially transparent stacktrace!

A defensive programmer may wish to truncate the List[Meta] at a certain length to avoid the equivalent of a stack overflow.

.local can also be used to keep track of contextual information that is directly relevant to the task at hand, like the number of spaces that must indent a line when pretty printing a human readable file format, bumping it by two spaces when we enter a nested structure.

Finally, if we cannot request a ApplicativeLocal because our application does not provide one, we can always return a ReaderT

  def bearer(implicit F: Monad[F]): ReaderT[F, RefreshToken, BearerToken] =
    ReaderT( token => for {

If a caller receives a ReaderT, and they have the token parameter to hand, they can call and get back an F[BearerToken].

Admittedly, since we don’t have many callers, we should just revert to a regular function parameter. ApplicativeAsk is of most use when:

  1. we may wish to refactor the code later to reload config
  2. the value is not needed by intermediate callers
  3. or, we want to locally scope some variable

7.4.5 WriterT

The opposite to reading is writing. The WriterT monad transformer is typically for writing to a journal L

  final case class WriterT[F[_], L, V](run: F[(L, V)])

There is not just one associated typeclass, but two!

  @typeclass trait FunctorTell[F[_], L] extends Functor[F] {
    def tell(l: L): F[Unit]
    def writer[A](a: A, l: L): F[A]
  @typeclass trait FunctorListen[F[_], L] extends FunctorTell[F, W] {
    def listen[A](fa: F[A]): F[(A, L)]

FunctorTell is for writing to the journal and FunctorListen is to recover it.

The most obvious example is to use MonadTell for logging, or audit reporting. Reusing Meta from our error reporting we could imagine creating a log structure like

  sealed trait Log
  final case class Debug(msg: String)(implicit m: Meta)   extends Log
  final case class Info(msg: String)(implicit m: Meta)    extends Log
  final case class Warning(msg: String)(implicit m: Meta) extends Log

and use List[Log] as our journal type. We could change our OAuth2 authenticate method to

  def debug(msg: String)(implicit m: Meta): List[Log] = List(Debug(msg))
  def authenticate: F[CodeToken] =
    for {
      callback <- user.start <* debug("started the webserver").tell
      params   = AuthRequest(callback, config.scope, config.clientId)
      url      = config.auth.withQuery(params.toUrlQuery)
      _        <- <* debug(s"user visiting $url").tell
      code     <- user.stop <* debug("stopped the webserver").tell
    } yield code

We could even combine this with the ReaderT traces and get structured logs.

However, there is a strong argument that logging deserves its own algebra. The log level is often needed at the point of creation for performance reasons and writing out the logs is typically managed at the application level rather than something each component needs to be concerned about.

The L in WriterT has a Monoid, allowing us to journal any kind of monoidic calculation as a secondary value along with our primary program. For example, counting the number of times we do something, building up an explanation of a calculation, or building up a TradeTemplate for a new trade while we price it.

A popular specialisation of WriterT is when the monad is Id, meaning the underlying run value is just a simple tuple (L, A).

  type Writer[L, A] = WriterT[Id, L, A]

which allows us to let any value carry around a secondary monoidal calculation, without needing a context F[_].

In a nutshell, WriterT / FunctorListen is how to multi-task in FP.

7.4.6 StateT

StateT lets us .set, .get and .modify a value that is handled by the monadic context. It is the FP replacement of var.

If we were to write an impure method that has access to some mutable state, held in a var, it might have the signature () => F[A] and return a different value on every call, breaking referential transparency. With pure FP the function takes the state as input and returns the updated state as output, which is why the underlying type of StateT is S => F[(S, A)].

The associated monad is MonadState

  @typeclass trait MonadState[F[_], S] extends Monad[F] {
    def get: F[S]
    def set(s: S): F[Unit]
    def modify(f: S => S): F[Unit]

A common variant of StateT is when F = Eval, giving the underlying type signature S => (S, A). Cats provides a type alias and convenience functions for interacting with the State monad transformer directly, and mirroring MonadState:

  type State[a] = StateT[Eval, a]
  object State {
    def apply[S, A](f: S => (S, A)): State[S, A] = StateT[Id, S, A](f)
    def pure[S, A](a: A): State[S, A] = State((_, a))
    def get[S]: State[S, S] = State(s => (s, s))
    def set[S](s: S): State[S, Unit] = State(_ => (s, ()))
    def modify[S](f: S => S): State[S, Unit] = ...

For an example we can return to the business logic tests of drone-dynamic-agents. Recall from Chapter 3 that we created Mutable as test interpreters for our application and we stored the number of started and stoped nodes in var.

  class Mutable(state: WorldView) {
    var started, stopped: Int = 0
    implicit val drone: Drone[Id] = new Drone[Id] { ... }
    implicit val machines: Machines[Id] = new Machines[Id] { ... }
    val program = new DynAgentsModule[Id]

We now know that we can write a much better test simulator with State. We will take the opportunity to upgrade the accuracy of the simulation at the same time. Recall that a core domain object is our application’s view of the world:

  final case class WorldView(
    backlog: Int,
    agents: Int,
    managed: NonEmptyList[MachineNode],
    alive: Map[MachineNode, Epoch],
    pending: Map[MachineNode, Epoch],
    time: Epoch

Since we’re writing a simulation of the world for our tests, we can create a data type that captures the ground truth of everything

  final case class World(
    backlog: Int,
    agents: Int,
    managed: NonEmptyList[MachineNode],
    alive: Map[MachineNode, Epoch],
    started: Set[MachineNode],
    stopped: Set[MachineNode],
    time: Epoch

The key difference being that the started and stopped nodes can be separated out. Our interpreter can be implemented in terms of State[World, a] and we can write our tests to assert on what both the World and WorldView looks like after the business logic has run.

The interpreters, which are mocking out contacting external Drone and Google services, may be implemented like this:

  import State.{ get, modify }
  object StateImpl {
    type F[a] = State[World, a]
    private val D = new Drone[F] {
      def getBacklog: F[Int] =
      def getAgents: F[Int]  =
    private val M = new Machines[F] {
      def getAlive: F[Map[MachineNode, Epoch]]     =
      def getManaged: F[NonEmptyList[MachineNode]] =
      def getTime: F[Epoch]                        =
      def start(node: MachineNode): F[Unit] =
        modify(w => w.copy(started = w.started + node))
      def stop(node: MachineNode): F[Unit] =
        modify(w => w.copy(stopped = w.stopped + node))
    val program: DynAgents[F] = new DynAgentsModule[F](D, M)

and we can rewrite our tests to follow a convention where:

  • world1 is the state of the world before running the program
  • view1 is the application’s belief about the world
  • world2 is the state of the world after running the program
  • view2 is the application’s belief after running the program

For example,

  it.should("request agents when needed").in {
    val world1          = hungry
    val view1           = needsAgents
    val (world2, view2) = act(view1).run(world1).value
    view2.shouldBe(view1.copy(pending = Map(node1 -> time1)))

We would be forgiven for looking back to our business logic loop

  state = initial()
  while True:
    state = update(state)
    state = act(state)

and use StateT to manage the state. However, our DynAgents business logic requires only Applicative and we would be violating the Rule of Least Power to require the more powerful MonadState. It is therefore entirely reasonable to handle the state manually by passing it in to .update and .act, and let whoever calls us use a StateT if they wish.

7.4.7 IndexedStateT

The code that we have studied thus far is not how Cats implements StateT. Instead, a type alias points to IndexedStateT

  type StateT[F[_], S, A] = IndexedStateT[F, S, S, A]

IndexedStateT does not have a MonadState when S1 != S2, although it has a Monad.

Consider the scenario where we must design an algebraic interface for an Int to String lookup. This may have a networked implementation and the order of calls is essential. Our first attempt at the API may look something like:

  trait Cache[F[_]] {
    def read(k: Int): F[Maybe[String]]
    def lock: F[Unit]
    def update(k: Int, v: String): F[Unit]
    def commit: F[Unit]

with runtime errors if .update or .commit is called without a .lock. A more complex design may involve multiple traits and a custom DSL that nobody remembers how to use.

Instead, we can use IndexedStateT to require that the caller is in the correct state. First we define our possible states as an ADT

  sealed abstract class Status
  final case class Ready()                           extends Status
  final case class Locked(on: Set[Int])              extends Status
  final case class Updated(values: Map[Int, String]) extends Status

and then revisit our algebra

  trait Cache[M[_]] {
    type F[in, out, a] = IndexedStateT[M, in, out, a]
    def read(k: Int): F[Ready, Ready, Option[String]]
    def readLocked(k: Int): F[Locked, Locked, Option[String]]
    def readUncommitted(k: Int): F[Updated, Updated, Option[String]]
    def lock: F[Ready, Locked, Unit]
    def update(k: Int, v: String): F[Locked, Updated, Unit]
    def commit: F[Updated, Ready, Unit]

which will give a compiletime error if we try to .update without a .lock

  for {
        a1 <-
        _  <- C.update(13, "wibble")
        _  <- C.commit
      } yield a1
  [error]  found   : IndexedStateT[M,Locked,Ready,Option[String]]
  [error]  required: IndexedStateT[M,Ready,?,?]
  [error]       _  <- C.update(13, "wibble")
  [error]          ^

but allowing us to construct functions that can be composed by explicitly including their state:

  def wibbleise[M[_]: Monad](C: Cache[M]): F[Ready, Ready, String] =
    for {
      _  <- C.lock
      a1 <- C.readLocked(13)
      a2 = a1 match {
        case None    => "wibble"
        case Some(a) => a + "'"
      _  <- C.update(13, a2)
      _  <- C.commit
    } yield a2

7.4.8 IndexedReaderWriterStateT

Those wanting to have a combination of ReaderT, WriterT and IndexedStateT will not be disappointed. The transformer IndexedReaderWriterStateT wraps (R, S1) => F[(W, A, S2)] with R having Reader semantics, W for monoidic writes, and the S parameters for indexed state updates.

Abbreviations are provided for convenience:

  type IRWST[F[_], E, L, SA, SB, A] = IndexedReaderWriterStateT[F, E, L, SA, SB, A]
  val IRWST = IndexedReaderWriterStateT
  type RWST[F[_], E, L, S, A] = ReaderWriterStateT[F, E, L, S, A]
  val RWST = ReaderWriterStateT

IRWST is a more efficient implementation than a manually created transformer stack of ReaderT[WriterT[IndexedStateT[F, ...], ...], ...].

7.4.9 IorT

IorT allows errors to either abort the calculation or to be accumulated if there is some partial success. Hence keep calm and carry on.

The underlying data type is F[Ior[A, B]] with A being the error type, requiring a Semigroup to enable the accumulation of errors.

  final case class IorT[F[_], A, B](run: F[Ior[A, B]])
  object IorT {
    def left[F[_]: Functor, A, B](a: F[A]): IorT[F, A, B] = ...
    def right[F[_]: Functor, A, B](b: F[B]): IorT[F, A, B] = ...
    def both[F[_]: Functor, A, B](ab: F[(A, B)]): IorT[F, A, B] = ...
    def leftT[F[_]: Applicative, A, B](a: A): IorT[F, A, B] = ...
    def rightT[F[_]: Applicative, A, B](b: B): IorT[F, A, B] = ...
    def bothT[F[_]: Applicative, A, B](ab: (A, B)): IorT[F, A, B] = ...

If we wish to abort a calculation we can return a Left value, but we accumulate errors when we return a Both which also contains a successful part of the calculation.

The accompanying monad is

  trait MonadChronicle[F[_], E] {
    def chronicle[A](ior: E Ior A): F[A]
    def confess[A](c: E): F[A]
    def materialize[A](fa: F[A]): F[E Ior A]
    def memento[A](fa: F[A]): F[Either[E, A]]
    def absolve[A](fa: F[A])(a: => A): F[A]
    def condemn[A](fa: F[A]): F[A]
    def retcon[A](fa: F[A])(cc: E => E): F[A]

.chronicle and .confess are ways to construct a fresh MonadChronicle, complementing .pure.

.materialize is similar to MonadError.attempt in that it surfaces any underlying errors. .memento has even greater similarity to .attempt in that it returns an Either which will be Left only if the underlying Ior is Left.

.absolve erases any error data, using the provided value in the case that the underlying is a Left. .condemn coerces the Both into a Left by erasing the partial success, and .retcon applies a map to the errors.

IorT can also be thought of from a different angle: A does not need to be an error. Similarly to WriterT, the A may be a secondary calculation that we are computing along with the primary calculation B. IorT allows early exit when something special about A demands it, like when Charlie Bucket found the last golden ticket (A) he threw away his chocolate bar (B).

7.4.10 Transformer Stacks and Ambiguous Implicits

This concludes our tour of the monad transformers in Cats.

When multiple transformers are combined, we call this a transformer stack and although it is verbose, it is possible to read off the features by reading the transformers. For example if we construct an F[_] context which is a set of composed transformers, such as

  type Ctx[A] = StateT[EitherT[IO, E, ?], S, A]

we know that we are adding error handling with error type E (there is a MonadError[Ctx, E]) and we are managing state S (there is a MonadState[Ctx, S]).

But there are unfortunately practical drawbacks to using monad transformers and their companion typeclasses:

  1. Monads do not compose in the general case, which means that the order of nesting of the transformers is important.
  2. All the interpreters must be lifted into the common context. For example, we might have an implementation of some algebra that uses for IO and now we need to wrap it with StateT and EitherT even though they are unused inside the interpreter.
  3. There is a performance cost associated to each layer. And some monad transformers are worse than others. StateT is particularly bad but even EitherT can cause memory allocation problems for high throughput applications. Composing Transformers

An EitherT[StateT[...], ...] has a MonadError but does not have a MonadState, whereas StateT[EitherT[...], ...] can provide both.

The workaround is to study the implicit derivations on the companion of the transformers and to make sure that the outer most transformer provides everything we need.

A rule of thumb is that more complex transformers go on the outside, with this chapter presenting transformers in increasing order of complex. Lifting Interpreters

Say we have a Lookup algebra and an IO interpreter

  trait Lookup[F[_]] {
    def look: F[Int]
  object LookupRandom extends Lookup[IO] {
    def look: IO[Int] = IO { util.Random.nextInt }

and some data types

  final case class Problem(bad: Int)
  final case class Table(last: Int)

However, rather than IO, we want our context to be

  type Ctx[A] = StateT[EitherT[IO, Problem, ?], Table, A]

to give us a MonadError and a MonadState. This means we need to wrap LookupRandom to operate over Ctx.

There are two parts to this. Firstly, we need to implement a .mapK for our algebra, much like we seen for OptionT and EitherT

  trait Lookup[F[_]] { self =>
    def look: F[Int]
    def mapK[G[_]](f: F ~> G): Lookup[G] = new Lookup[G] {
      def look: G[Int] = f(self.look)

which is a general pattern that we can follow for any algebra.

Then we need to implement a natural transformation IO ~> Ctx

  def liftK: IO ~> Ctx = ...

Ideally we would be able to compose the .liftK provided by the two transformers

  def liftK: IO ~> Ctx = StateT.liftK compose EitherT.liftK

but unfortunately the compiler is unable to infer the types.

A workaround is to introduce an intermediate type to give a hint

  def liftK: IO ~> Ctx = {
    type Ctx1[A] = EitherT[IO, Problem, A]
    val first : IO ~> Ctx1 = EitherT.liftK
    val second : Ctx1 ~> Ctx = StateT.liftK

Now we can create a Lookup[Ctx] by mapping over the lifter

  val L: Lookup[Ctx] = LookupRandom.mapK(liftK)

Another way to achieve this, in a single step, is to use LiftIO which enables lifting an IO into a transformer stack:

  @typeclass trait LiftIO[F[_]] {
    def liftIO[A](ioa: IO[A]): F[A]

LiftIO instances are provided for all the common combinations of transformers.

The following helper

  def liftIoK[F[_]](implicit L: LiftIO[F]): IO ~> F = FunctionK.lift(L.liftIO)

may be used as the natural transformation instead of the one that we composed manually from composed .liftK calls

  val L: Lookup[Ctx] = LookupRandom.mapK(liftIoK) Performance

The biggest problem with Monad Transformers is their performance overhead. EitherT has a reasonably low overhead, with every .flatMap call generating a handful of objects, but this can impact high throughput applications where every object allocation matters.

7.5 A Free Lunch

Our industry craves safe high-level languages, trading developer efficiency and reliability for reduced runtime performance.

The Just In Time (JIT) compiler on the JVM performs so well that simple functions can have comparable performance to their C or C++ equivalents, ignoring the cost of garbage collection. However, the JIT only performs low level optimisations: branch prediction, inlining methods, unrolling loops, and so on.

The JIT does not perform optimisations of our business logic, for example batching network calls or parallelising independent tasks. The developer is responsible for writing the business logic and optimisations at the same time, reducing readability and making it harder to maintain. It would be good if optimisation was a tangential concern.

If instead, we have a data structure that describes our business logic in terms of high level concepts, not machine instructions, we can perform high level optimisation. Data structures of this nature are typically called Free structures and can be generated for free for the members of the algebraic interfaces of our program. For example, a Free Applicative can be generated that allows us to batch or de-duplicate expensive network I/O.

In this section we will learn how to create free structures, and how they can be used.

7.5.1 Free (Monad)

Fundamentally, a monad describes a sequential program where every step depends on the previous one. We are therefore limited to modifications that only know about things that we’ve already run and the next thing we are going to run.

As a refresher, Free is the data structure representation of a Monad and is defined by three members

  sealed abstract class Free[S[_], A] {
    def mapK[T[_]](f: S ~> T): Free[T, A] = ...
    def foldMap[M[_]: Monad](f: S ~> M): M[A] = ...
  object Free {
    implicit def monad[F[_], A]: Monad[Free[F, A]] = ...
    final case class Pure[S[_], A](a: A) extends Free[S, A]
    final case class Suspend[S[_], A](a: S[A]) extends Free[S, A]
    final case class FlatMapped[S[_], B, C](c: Free[S, C], f: C => Free[S, B]) extends Free[S,\
    def liftF[S[_], A](value: S[A]): Free[S, A] = Suspend(value)
  • Suspend represents a program that has not yet been interpreted
  • Pure is .pure
  • FlatMapped is .flatMap

A Free[S, A] can be freely generated for any algebra S. To make this explicit, consider our application’s Machines algebra

  trait Machines[F[_]] {
    def getTime: F[Epoch]
    def getManaged: F[NonEmptyList[MachineNode]]
    def getAlive: F[Map[MachineNode, Epoch]]
    def start(node: MachineNode): F[Unit]
    def stop(node: MachineNode): F[Unit]

We define a freely generated Free for Machines by creating an ADT with a data type for each element of the algebra. Each data type has the same input parameters as its corresponding element, is parameterised over the return type, and has the same name:

  object Machines {
    sealed abstract class Ast[A]
    final case class GetTime()                extends Ast[Epoch]
    final case class GetManaged()             extends Ast[NonEmptyList[MachineNode]]
    final case class GetAlive()               extends Ast[Map[MachineNode, Epoch]]
    final case class Start(node: MachineNode) extends Ast[Unit]
    final case class Stop(node: MachineNode)  extends Ast[Unit]

The ADT defines an Abstract Syntax Tree (AST) because each member is representing a computation in a program.

We then define .liftF, an implementation of Machines, with Free[Ast, ?] as the context. Every method simply delegates to Free.liftT to create a Suspend

    def liftF = new Machines[Free[Ast, ?]] {
      def getTime = Free.liftF(GetTime())
      def getManaged = Free.liftF(GetManaged())
      def getAlive = Free.liftF(GetAlive())
      def start(node: MachineNode) = Free.liftF(Start(node))
      def stop(node: MachineNode) = Free.liftF(Stop(node))

When we construct our program, parameterised over a Free, we run it by providing an interpreter (a natural transformation Ast ~> M) to the .foldMap method. For example, if we could provide an interpreter that maps to IO we can construct an IO[Unit] program via the free AST

  def program[F[_]: Monad](M: Machines[F]): F[Unit] = ...
  val interpreter: Machines.Ast ~> IO = ...
  val app: IO[Unit] = program[Free[Machines.Ast, ?]](Machines.liftF)

For completeness, an interpreter that delegates to a direct implementation is easy to write. This might be useful if the rest of the application is using Free as the context and we already have an IO implementation that we want to use:

  def interpreter[F[_]](f: Machines[F]): Ast ~> F = λ[Ast ~> F] {
    case GetTime()    => f.getTime
    case GetManaged() => f.getManaged
    case GetAlive()   => f.getAlive
    case Start(node)  => f.start(node)
    case Stop(node)   => f.stop(node)

But our business logic needs more than just Machines, we also need access to the Drone algebra, recall defined as

  trait Drone[F[_]] {
    def getBacklog: F[Int]
    def getAgents: F[Int]
  object Drone {
    sealed abstract class Ast[A]
    def liftF = ...
    def interpreter = ...

What we want is for our AST to be a combination of the Machines and Drone ASTs. We studied EitherK in Chapter 6, a higher kinded Either:

  final case class EitherK[F[_], G[_], A](run: Either[F[A], G[A]])

We can use the context Free[EitherK[Machines.Ast, Drone.Ast, ?], ?].

The InjectK typeclass helps us to create larger combinations of algebras:

  type :<:[F[_], G[_]] = InjectK[F, G]
  sealed abstract class InjectK[F[_], G[_]] {
    def inj: F ~> G
    def prj: G ~> λ[α => Option[F[α]]]

implicit rules on the InjectK companion will create the combination of nested EitherK that we need, letting us rewrite our .liftF to work for any combination of ASTs:

  def liftF[F[_]](implicit I: Ast :<: F) = new Machines[Free[F, ?]] {
    def getTime                  = Free.liftF(I.inj(GetTime()))
    def getManaged               = Free.liftF(I.inj(GetManaged()))
    def getAlive                 = Free.liftF(I.inj(GetAlive()))
    def start(node: MachineNode) = Free.liftF(I.inj(Start(node)))
    def stop(node: MachineNode)  = Free.liftF(I.inj(Stop(node)))

It is nice that F :<: G reads as if our Ast is a member of the complete F instruction set: this syntax is intentional.

Putting it all together, lets say we have a program that we wrote abstracting over Monad

  def program[F[_]: Monad](M: Machines[F], D: Drone[F]): F[Unit] = ...

and we have some existing implementations of Machines and Drone, we can create interpreters from them:

  val MachinesIO: Machines[IO] = ...
  val DroneIO: Drone[IO]       = ...
  val M: Machines.Ast ~> IO = Machines.interpreter(MachinesIO)
  val D: Drone.Ast ~> IO    = Drone.interpreter(DroneIO)

and combine them into the larger instruction set using a convenience method from FunctionK

  trait FunctionK[F[_], G[_]] {
    def or[H[_]](h: H ~> G): EitherK[F, H, ?] ~> G = ...
  type Ast[a] = EitherK[Machines.Ast, Drone.Ast, a]
  val interpreter: Ast ~> IO = M or D

Then use it to produce an IO

  val app: IO[Unit] = program[Free[Ast, ?]](Machines.liftF, Drone.liftF)

But we’ve gone in circles! We could have used IO as the context for our program in the first place and avoided Free. So why did we do this? Here are some examples of where Free might be useful. Testing: Mocks and Stubs

It might sound hypocritical to propose that Free can be used to reduce boilerplate, given how much code we have written. However, there is a tipping point where the Ast pays for itself when we have many tests that require stub implementations.

If the .Ast and .liftF is defined for an algebra, we can create partial interpreters

  val M: Machines.Ast ~> Id = stub[Map[MachineNode, Epoch]] {
    case Machines.GetAlive() => Map.empty
  val D: Drone.Ast ~> Id = stub[Int] {
    case Drone.GetBacklog() => 1

which can be used to test our program

  program[Free[Ast, ?]](Machines.liftF, Drone.liftF)
    .foldMap(M or D)

By using partial functions, and not total functions, we are exposing ourselves to runtime errors. Many teams are happy to accept this risk in their unit tests since the test would fail if there is a programmer error.

Arguably we could also achieve the same thing with implementations of our algebras that implement every method with ???, overriding what we need on a case by case basis. Monitoring

It is typical for server applications to be monitored by runtime agents that manipulate bytecode to insert profilers and extract various kinds of usage or performance information.

If our application’s context is Free, we do not need to resort to bytecode manipulation, we can instead implement a side-effecting monitor as an interpreter that we have complete control over.

For example, consider using this Ast ~> Ast “agent”

  val Monitor = λ[Demo.Ast ~> Demo.Ast]( match {
      case Right(m @ Drone.GetBacklog()) =>
      case other =>

which records method invocations: we would use a vendor-specific routine in real code. We could also watch for specific messages of interest and log them as a debugging aid.

We can attach Monitor to our production Free application with


or combine the natural transformations and run with a single

  .foldMap(Monitor.andThen(interpreter)) Monkey Patching

As engineers, we are used to requests for bizarre workarounds to be added to the core logic of the application. We might want to codify such corner cases as exceptions to the rule and handle them tangentially to our core logic.

For example, suppose we get a memo from accounting telling us

URGENT: Bob is using node #c0ffee to run the year end. DO NOT STOP THIS MACHINE!1!

There is no possibility to discuss why Bob shouldn’t be using our machines for his super-important accounts, so we have to hack our business logic and put out a release to production as soon as possible.

Our monkey patch can map into a Free structure, allowing us to return a pre-canned result (Free.pure) instead of scheduling the instruction. We special case the instruction in a custom natural transformation with its return value:

  val monkey = λ[Machines.Ast ~> Free[Machines.Ast, ?]] {
    case Machines.Stop(MachineNode("#c0ffee")) => Free.pure(())
    case other                                 => Free.liftF(other)

eyeball that it works, push it to prod, and set an alarm for next week to remind us to remove it, and revoke Bob’s access to our servers.

Our unit test could use State as the target context, so we can keep track of all the nodes we stopped:

  type S = Set[MachineNode]
  val M: Machines.Ast ~> State[S, ?] = Mocker.stub[Unit] {
    case Machines.Stop(node) => State.modify[S](_ + node)

along with a test that “normal” nodes are not affected.

An advantage of using Free to avoid stopping the #c0ffee nodes is that we can be sure to catch all the usages instead of having to go through the business logic and look for all usages of .stop. If our application context is just an IO we could, of course, implement this logic in the Machines[IO] implementation but an advantage of using Free is that we don’t need to touch the existing code and can instead isolate and test this (temporary) behaviour, without being tied to the IO implementations.

7.5.2 FreeApplicative (Applicative)

Despite this chapter being called Cats Monads, the takeaway is: we shouldn’t use monads unless we really really have to. In this section, we will see why FreeApplicative is preferable to Free monads.

FreeApplicative is defined as the data structure representation of the ap and pure methods from the Applicative typeclass:

  sealed abstract class FreeApplicative[S[_], A] {
    def compile[G[_]](f: S ~> G): FreeApplicative[G,A] = ...
    def foldMap[G[_]: Applicative](f: S ~> G): G[A] = ...
    def monad: Free[S, A] = ...
    def analyze[M:Monoid](f: F ~> λ[α => M]): M = ...
  object FreeApplicative {
    implicit def applicative[F[_], A]: Applicative[FreeApplicative[F, A]] = ...
    def lift[F[_], A](fa: F[A]): FreeApplicative[F, A] = ...

The methods .compile and .foldMap are like their Free analogues .mapK and .foldMap.

As a convenience, we can generate a Free[S, A] from our FreeApplicative[S, A] with .monad. This is especially useful to optimise smaller Applicative subsystems yet use them as part of a larger Free program.

Like Free, we must create a FreeApplicative for our ASTs

  def liftA[F[_]](implicit I: Ast :<: F) = new Machines[FreeApplicative[F, ?]] {
    def getTime = FreeApplicative.lift(I.inj(GetTime()))
  } Batching Network Calls

We opened this chapter with grand claims about performance. Time to deliver.

Philip Stark’s Humanised version of Peter Norvig’s Latency Numbers serve as motivation for why we should focus on reducing network calls to optimise an application:

Computer Human Timescale Human Analogy
L1 cache reference 0.5 secs One heart beat
Branch mispredict 5 secs Yawn
L2 cache reference 7 secs Long yawn
Mutex lock/unlock 25 secs Making a cup of tea
Main memory reference 100 secs Brushing your teeth
Compress 1K bytes with Zippy 50 min Scala compiler CI pipeline
Send 2K bytes over 1Gbps network 5.5 hr Train London to Edinburgh
SSD random read 1.7 days Weekend
Read 1MB sequentially from memory 2.9 days Long weekend
Round trip within same datacenter 5.8 days Long US Vacation
Read 1MB sequentially from SSD 11.6 days Short EU Holiday
Disk seek 16.5 weeks Term of university
Read 1MB sequentially from disk 7.8 months Fully paid maternity in Norway
Send packet CA->Netherlands->CA 4.8 years Government’s term

Although Free and FreeApplicative incur a memory allocation overhead, the equivalent of 100 seconds in the humanised chart, every time we can turn two sequential network calls into one batch call, we save nearly 5 years.

When we are in a Applicative context, we can safely optimise our application without breaking any of the expectations of the original program, and without cluttering the business logic.

Luckily, our main business logic only requires an Applicative, recall

  final class DynAgentsModule[F[_]: Applicative](D: Drone[F], M: Machines[F])
      extends DynAgents[F] {
    def act(world: WorldView): F[WorldView] = ...

To begin, we create the .lift boilerplate for a new Batch algebra

  trait Batch[F[_]] {
    def start(nodes: NonEmptyList[MachineNode]): F[Unit]
  object Batch {
    sealed abstract class Ast[A]
    final case class Start(nodes: NonEmptyList[MachineNode]) extends Ast[Unit]
    def liftA[F[_]](implicit I: Ast :<: F) = new Batch[FreeApplicative[F, ?]] {
      def start(nodes: NonEmptyList[MachineNode]) = FreeApplicative.lift(I.inj(Start(nodes)))

and then we will create an instance of DynAgentsModule with FreeApplicative as the context

  type Orig[a] = EitherK[Machines.Ast, Drone.Ast, a]
  val world: WorldView = ...
  val program = new DynAgentsModule(Drone.liftA[Orig], Machines.liftA[Orig])
  val freeap  = program.act(world)

In Chapter 6, we studied the Const data type, which allows us to analyse a program. It should not be surprising that .analyze is implemented in terms of Const:

  sealed abstract class FreeApplicative[S[_], A] {
    def analyze[M: Monoid](f: S ~> λ[α => M]): M =
      foldMap(λ[S ~> Const[M, ?]](x => Const(f(x)))).getConst

We provide a natural transformation to record all node starts and .analyze our program to get all the nodes that need to be started:

  val gather = λ[Orig ~> λ[α => List[MachineNode]]] {
    case EitherK(Left(Machines.Start(node))) => List(node)
    case _                                   => Nil
  val gathered: List[MachineNode] = freeap.analyze(gather)

The next step is to extend the instruction set from Orig to Extended, which includes the Batch.Ast and write a FreeApplicative program that starts all our gathered nodes in a single network call

  type Extended[a] = EitherK[Batch.Ast, Orig, a]
  def batch(nodes: List[MachineNode]): FreeApplicative[Extended, Unit] =
    nodes.toNel match {
      case None        => FreeApplicative.pure(())
      case Some(nodes) => FreeApplicative.lift(EitherK.leftc(Batch.Start(nodes)))

We also need to remove all the calls to Machines.Start, which we can do with a natural transformation

  val nostart = λ[Orig ~> FreeApplicative[Extended, ?]] {
    case EitherK(Left(Machines.Start(_))) => FreeApplicative.pure(())
    case other                            => FreeApplicative.lift(EitherK.rightc(other))

Now we have two programs, and need to combine them. Recall the productR operator (*>) from Apply

  val patched = batch(gathered) *> freeap.foldMap(nostart)

Putting it all together under a single method:

  def optimise[A](orig: FreeApplicative[Orig, A]): FreeApplicative[Extended, A] =
    (batch(orig.analyze(gather)) *> orig.foldMap(nostart))

That Is it! We .optimise every time we call act in our main loop, which is just a matter of plumbing.

7.5.3 Coyoneda (Functor)

Named after mathematician Nobuo Yoneda, we can freely generate a Functor data structure for any algebra S[_]

  sealed abstract class Coyoneda[F[_], A] {
    def run(implicit F: Functor[F]): F[A] = ...
    def mapK[G[_]](f: F ~> G): Coyoneda[G, A] = ...
  object Coyoneda {
    implicit def functor[F[_], A]: Functor[Coyoneda[F, A]] = ...
    type Aux[F[_], A, B] = Coyoneda[F, A] { type Pivot = B }
    def apply[F[_], A, B](fa: F[A])(f: A => B): Aux[F, B, A] =
    def lift[F[_], A](fa: F[A]): Coyoneda[F, A] = ...

and there is also a contravariant version

  sealed abstract class ContravariantCoyoneda[F[_], A] {
    def run(implicit F: Contravariant[F]): F[A] = ...
    def mapK[G[_]](f: F ~> G): ContravariantCoyoneda[G, A] = ...
  object ContravariantCoyoneda {
    implicit def contravariant[F[_], A]: Contravariant[ContravariantCoyoneda[F, A]] = ...
    type Aux[F[_], A, B] = ContravariantCoyoneda[F, A] { type Pivot = B }
    def apply[F[_], A, B](fa: F[A])(f: B => A): Aux[F, B, A] = ...
    def lift[F[_], A](fa: F[A]): ContravariantCoyoneda[F, A] = ...

The API is somewhat simpler than Free and FreeApplicative, allowing a natural transformation with .mapK and a .run (taking an actual Functor or Contravariant, respectively) to escape the free structure.

Coyo and cocoyo can be a useful utility if we want to .map or .contramap over a type, and we know that we can convert into a data type that has a Functor but we don’t want to commit to the final data structure too early. For example, we create a Coyoneda[Set, ?] (note that Set does not have a Functor) to use methods that require a Functor, then convert into List later on.

If we want to optimise a program with coyo or cocoyo we have to provide the expected boilerplate for each algebra:

  def liftCoyo[F[_]](implicit I: Ast :<: F) = new Machines[Coyoneda[F, ?]] {
    def getTime = Coyoneda.lift(I.inj(GetTime()))
  def liftCocoyo[F[_]](implicit I: Ast :<: F) = new Machines[ContravariantCoyoneda[F, ?]] {
    def getTime = ContravariantCoyoneda.lift(I.inj(GetTime()))

An optimisation we get by using Coyoneda is map fusion (and contramap fusion), which allows us to rewrite

into => c(b(a(x))))

avoiding intermediate representations. For example, if xs is a List of a thousand elements, we save two thousand object allocations because we only map over the data structure once.

7.6 Parallel

There are two effectful operations that we almost always want to run in parallel:

  1. .map over a collection of effects, returning a single effect. This is achieved by .traverse.
  2. running a fixed number of effects with .mapN and combining their output, delegating to .map2.

However, in practice, neither of these operations execute in parallel by default. The reason is that if our F[_] is implemented by a Monad, then the derived combinator laws for .map2 must be satisfied, which say

  @typeclass trait FlatMap[F[_]] extends Apply[F] {
    override def map2[A, B, Z](fa: F[A], fb: F[B])(f: (A, B) => Z): F[Z] =
      flatMap(fa)(a => map(fb)(b => f(a, b)))

In other words, Monad is explicitly forbidden from running effects in parallel.

However, if we have an F[_] that is not monadic, then it may implement .map2 in parallel. However, this is very impractical for most applications, so Cats provides the Parallel typeclass which gives us a way of moving from the current (sequential) context into a parallel one where .traverse and .mapN run effects in parallel:

  trait NonEmptyParallel[M[_]] {
    type F[_]
    def sequential: F ~> M
    def parallel: M ~> F
  trait Parallel[M[_]] extends NonEmptyParallel[M]

Monadic programs can then request an implicit Parallel in addition to their Monad

  def foo[F[_]: Monad: Parallel]: F[Unit] = ...

There are also convenience functions .parTraverse, .parMapN (and more) that can be used as direct replacements for .traverse and .mapN.

If the implicit Parallel[IO] is in scope, we can choose between sequential and parallel traversal:

  val input: List[String] = ...
  def network(in: String): IO[Int] = ...
  input.traverse(network): IO[List[Int]] // one at a time
  input.parTraverse(network): IO[List[Int]] // all in parallel

Similarly, we can call .parMapN

  val fa: IO[String] = ...
  val fb: IO[String] = ...
  val fc: IO[String] = ...
  (fa, fb, fc).parMapN { case (a, b, c) => a + b + c }: IO[String]

It is worth noting that when we have Applicative programs, such as

  def foo[F[_]: Applicative]: F[Unit] = ...

we can use the F[_] that we obtain from Parallel.parallel as our program’s context and get parallelism as the default on .traverse and .mapN. Converting between the raw and Parallel context must be handled manually in the glue code.

7.6.1 Breaking the Law

We can take a more daring approach to parallelism: opt-out of the law that .map2 must be sequential for Monad. This is highly controversial, but works well for the majority of real world applications. We must first audit our codebase (including third party dependencies) to ensure that nothing is making use of the .map2 implied law.

We wrap IO

  final class MyIO[A](val io: IO[A]) extends AnyVal

and provide our own implementation of Monad which runs .map2 to .map22 in parallel by delegating to the Parallel instance

  object MyIO {
    implicit val monad: Monad[MyIO] = new Monad[MyIO] {
      override def map2[A, B, C](fa: MyIO[A], fb: MyIO[B])(f: (A, B) => C): MyIO[C] =

We can now use MyIO as our application’s context instead of IO, and get parallelism by default.

For completeness: a naive and inefficient implementation of the implementation of .parMap2 for our toy IO could use Future:

  def parMap2[A, B, C](fa: IO[A], fb: IO[B])(f: (A, B) => C): IO[C] = IO {
    val forked = Future { fa.interpret() }
    val b      = fb.interpret()
    val a      = Await.result(forked, Duration.Inf)
    f(a, b)

In the final section of this chapter we will see how Cats’ IO is actually implemented.

7.7 IO

IO is a free data structure specialised for use as a general effect monad.

  sealed abstract class IO[A] { ... }
  object IO {
    private final class Pure         ... extends IO[A]
    private final class Delay        ... extends IO[A]
    private final class RaiseError   ... extends IO[A]
    private final class Suspend      ... extends IO[A]
    private final class Bind         ... extends IO[A]
    private final class Map          ... extends IO[A]

7.7.1 Creating

There are multiple ways to create an IO that cover a variety of eager, lazy, safe and unsafe code blocks:

  object IO {
    // delayed evaluation of side-effecting / non-total code block
    def apply[A](a: =>A): IO[A] = ...
    // eager evaluation of an existing value
    def pure[E, A](a: A): IO[A] = ...
    // create a failed IO
    def raiseError[A](error: Throwable): IO[A] = ...
    // convert a delayed Future into an IO
    def fromFuture[A](iof: IO[Future[A]])(implicit C: ContextShift[IO]): IO[A] = ...
    // asynchronously sleeps for a specific period of time
    def sleep(d: FiniteDuration)(implicit T: Timer[IO]): IO[Unit] = ...

We would typically create one ContextShift and Timer to be shared by the entire application with

  implicit val shift: ContextShift[IO] = IO.shift(global)
  implicit val timer: Timer[IO] = IO.timer(global)

but specific implementations can be provided during testing to override the behaviour or if a custom thread pool is required in production.

The most common constructors, by far, when dealing with legacy code are IO.apply and IO.fromFuture:

  val fa: IO[Future[String]] = IO { ... impure code here ... }
  IO.fromFuture(fa): IO[String]

We cannot pass around raw Future, because it eagerly evaluates, so must always be constructed inside a safe block.

7.7.2 Running

IO is just a data structure, and is interpreted at the end of the world by extending IOApp and implementing .run

  trait IOApp {
    def run(args: List[String]): IO[ExitCode]
    final def main(args: Array[String]): Unit = ... calls run ...
  sealed abstract class ExitCode
  object ExitCode {
    object Success extends ExitCode
    object Error extends ExitCode

If we are integrating with a legacy system and are not in control of the entry point of our application, we can also call a variety of .unsafe* methods depending on our usecase, the most commonly used being:

  sealed abstract class IO[A] {
    def unsafeRunSync(): A = ...
    def unsafeToFuture(): Future[A] = ...

7.7.3 Features

IO provides a typeclass instance for MonadError[Throwable, ?] along with new typeclasses that are introduced by cats-effect Bracket

Bracket is for safe resource acquisition and release.

  @typeclass trait Bracket[F[_], E] extends MonadError[F, E] {
    def bracket[A, B](acquire: F[A])(use: A => F[B])(release: A => F[Unit]): F[B]
    def guarantee[A](fa: F[A])(finalizer: F[Unit]): F[A] = ...

.bracket is the most powerful part of the interface, allowing us to define how we obtain a resource, what we do with it, and anything we need to do to release it. The release is guaranteed to be called even if the use fails, the convenience .guarantee can be used if we only need a cleanup step without the acquire.

In addition to success and failure, a calculation can also be canceled and we may cleanup differently depending on these three scenarios with .bracketCase:

  sealed abstract class ExitCase[+E]
  object ExitCase {
    case object Completed extends ExitCase[Nothing]
    final case class Error[+E](e: E) extends ExitCase[E]
    case object Canceled extends ExitCase[Nothing]
  @typeclass trait Bracket[F[_], E] extends MonadError[F, E] {
    def bracketCase[A, B](acquire: F[A])(use: A => F[B])
          (release: (A, ExitCase[E]) => F[Unit]): F[B]
    def uncancelable[A](fa: F[A]): F[A]

The ability to .cancel a calculation is left up to the implementation and is not part of the Bracket interface. Defer

Defer is the higher kinded equivalent of Eval.always

  @typeclass trait Defer[F[_]] {
    def defer[A](fa: => F[A]): F[A]

and is useful when we want to avoid an expensive calculation until it is necessary. Sync

Sync refines the Bracket (and MonadError) error type to Throwable and introduces .suspend, which is effectively the same as Defer.defer but explicitly for effects, and .delay as the mechanism for side-effecting blocks of code. Sync.delay is the generalised version of IO { ... }

  @typeclass trait Sync[F[_]] extends Bracket[F, Throwable] with Defer[F] {
    def suspend[A](thunk: => F[A]): F[A]
    def delay[A](thunk: => A): F[A] = ...
  } LiftIO

We have already been introduced to LiftIO in the context of lifting IO interpreters into an arbitrary context, here we see it in its correct place within the typeclass hierarchy:

  @typeclass trait LiftIO[F[_]] {
    def liftIO[A](ioa: IO[A]): F[A]
  } Async

Async is primarily for legacy integration and describes callbacks that perform a side-effect.

  @typeclass trait Async[F[_]] extends Sync[F] with LiftIO[F] {
    def async[A](k: (Either[Throwable, A] => Unit) => Unit): F[A]

The k in .async is a function that should be called with a callback for signaling the result once it is ready.

For example, we might have a GUI that triggers an event A when the user moves the mouse or presses a key and puts it onto an impure queue. We need to be able to turn that event into an F[A] that we can treat like any other source of data.

  val eventQueue = ... // impure queue
  F.async { callback =>
    eventQueue.nextEvent(e => callback(e))

Be careful of thread usage when dealing with legacy APIs that use blocking I/O, if the eventQueue.nextEvent blocks on a thread then this will too. Effect

Effect is the opposite of LiftIO and means that the effect can be converted into the concrete IO implementation.

  @typeclass trait Effect[F[_]] extends Async[F] {
    def toIO[A](fa: F[A]): IO[A]
  } Concurrent

Contexts that implement Concurrent may start fibers, a lightweight abstraction over a JVM Thread.

  @typeclass trait Concurrent[F[_]] extends Async[F] {
    def start[A](fa: F[A]): F[Fiber[F, A]]

When we have a Fiber we can .join back into the IO, or .cancel the underlying work.

  trait Fiber[F[_], A] {
    def join: F[A]
    def cancel: CancelToken[F]

A CancelToken is just a type alias to aid with readibility.

  type CancelToken[F[_]] = F[Unit]

We can use fibers to achieve a form of optimistic concurrency control. Consider the case where we have data that we need to analyse, but we also need to validate it. We can optimistically begin the analysis and cancel the work if the validation fails, which is performed in parallel.

  final class BadData(data: Data) extends Throwable with NoStackTrace
  for {
    fiber1   <- analysis(data).start
    fiber2   <- validate(data).start
    valid    <- fiber2.join
    _        <- if (!valid) fiber1.cancel
                else IO.unit
    result   <- fiber1.join
  } yield result

For the common case where we have two pieces of work and we only care which one completes first, we can use .race, which will always cancel the one that comes second

  @typeclass trait Concurrent[F[_]] extends Async[F] {
    def race[A, B](fa: F[A], fb: F[B]): F[Either[A, B]] = ...

Finally, Concurrent provides more refined control over parallelism than the Parallel typeclass offering variants of .parTraverse (and more) with a number that caps the maximum level of parallelism to use:

  def parTraverseN[T[_]: Traverse, M[_]: Concurrent, A, B]
        (n: Long)(ta: T[A])(f: A => M[B]): M[T[B]] ConcurrentEffect

ConcurrentEffect is a convenient combination of both Concurrent and Effect that provides most everything that we can want out of IO.

  @typeclass trait ConcurrentEffect[F[_]] extends Concurrent[F] with Effect[F]

It is considered good practice to prefer typeclasses instead of directly using IO because it allows for implementations to be replaced. Effect implementation is a very active area of research for the community, we would not want to miss out on future improvements by limiting ourselves to today’s implementation!

There is one caveat to using the typeclasses: Sync sets the error type to Throwable. If a custom error type is required, it is recommended to use the IO type directly instead of the typeclasses, and capture the business domain error with an EitherT, the underlying Throwable errors are still accessible on the IO.

7.7.4 Concurrency

Cats effect provides several components that are useful for concurrent programming that do not fit into the typeclass hierarchy. Deferred

Deferred is a primitive which represents a value that may not yet be available, it is the FP equivalent of a Promise.

  abstract class Deferred[F[_], A] {
    def get: F[A]
    def complete(a: A): F[Unit]

calling .complete more than once will give an action that throws an IllegalStateException.

Deferred is not something that we typically use in application code. It is a building block for high level concurrency frameworks or for integrating with legacy systems.

7.7.5 MVar

MVar is the FP equivalent of an atomic mutable variable.

We can read the variable and we have a variety of ways to write or update it.

  abstract class MVar[F[_], A] {
    def put(a: A): F[Unit]
    def take: F[A]
    def read: F[A]
    def tryPut(a: A): F[Boolean]
    def tryTake: F[Option[A]]

MVar is another building block and is very useful to provide collections-based mocks for database-like algebras.

7.8 Summary

  1. The Future is broke, don’t go there.
  2. Manage stack safety with a Trampoline.
  3. The Monad Transformer Library (MTL) abstracts over common effects with typeclasses.
  4. Monad Transformers provide default implementations of the MTL.
  5. Free data structures let us analyse, optimise and easily test our programs.
  6. IO gives us the ability to implement algebras as effects on the world.
  7. IO can perform effects in parallel and is a high performance backbone for any application.
  8. Prefer Effect, Parallel, and related typeclasses, to using IO directly.

8. Typeclass Derivation

Typeclasses provide polymorphic functionality to our applications. But to use a typeclass we need instances for our business domain objects.

The creation of a typeclass instance from existing instances is known as typeclass derivation and is the topic of this chapter.

There are four approaches to typeclass derivation:

  1. Manual instances for every domain object. This is infeasible for real world applications as it results in hundreds of lines of boilerplate for every line of a case class. It is useful only for educational purposes and adhoc performance optimisations.
  2. Abstract over the typeclass by an existing Cats typeclass.
  3. Macros. However, writing a macro for each typeclass requires an advanced and experienced developer. Fortunately, Jon Pretty’s Magnolia library abstracts over hand-rolled macros with a simple API, centralising the complex interaction with the compiler.
  4. Write a generic program using the Shapeless library. The implicit mechanism is a language within the Scala language and can be used to write programs at the type level.

In this chapter we will study increasingly complex typeclasses and their derivations. We will begin with typeclasses of typeclasses as the most principled mechanism, repeating some lessons from Chapter 5 “Cats Typeclasses”, then Magnolia (the easiest to use), finishing with Shapeless (the most powerful) for typeclasses with complex derivation logic.

8.1 Running Examples

This chapter will show how to define derivations for five specific typeclasses. Each example exhibits a feature that can be generalised:

  @typeclass trait Eq[A]  {
    // type parameter is in contravariant (parameter) position
    @op("===") def eqv(a1: A, a2: A): Boolean
  // for requesting default values of a type when testing
  @typeclass trait Default[A] {
    // type parameter is in covariant (return) position
    def default: Either[String, A]
  @typeclass trait Semigroup[A] {
    // type parameter is in both covariant and contravariant position (invariant)
    @op("|+|") def combine(x: A, y: A): A
  @typeclass trait JsEncoder[T] {
    // type parameter is in contravariant position and needs access to field names
    def toJson(t: T): JsValue
  @typeclass trait JsDecoder[T] {
    // type parameter is in covariant position and needs access to field names
    def fromJson(j: JsValue): Either[String, T]

8.2 Typeclasses of Typeclasses

Before we proceed, here is a quick recap of the core Cats typeclasses, focussed on just the typeclasses that are relevant for this chapter:

  @typeclass trait Invariant[F[_]] {
    def imap[A, B](fa: F[A], f: A => B, g: B => A): F[B]
  @typeclass trait Contravariant[F[_]] extends Invariant[F] {
    def contramap[A, B](fa: F[A])(f: B => A): F[B]
  @typeclass trait ContravariantMonoidal[F[_]] extends Contravariant[F] {
    def trivial[A]: F[A] = contramap(unit)(_ => ())
    def contramap2[A, B, Z](f0: F[A], f1: F[B])(f: Z => (A, B)): F[Z]
    def contramap3[A, B, C, Z](f0: F[A], f1: F[B], f2: F[C])(f: Z => (A, B, C)): F[Z]
    def contramap22[...] = ...
  @typeclass trait Functor[F[_]] extends Invariant[F] {
    def map[A, B](fa: F[A])(f: A => B): F[B]
  @typeclass trait Apply[F[_]] extends Functor[F] {
    def map2[A,B,Z](fa: F[A], fb: F[B])(f: (A, B) => Z): F[Z] = ...
    def map3[A,B,C,Z](fa: F[A], fb: F[B], fc: F[C])(f: (A,B,C) => Z): F[Z] = ...
    def map22[...]
  @typeclass trait Monad[F[_]] extends Apply[F] {
    def flatMap[A, B](fa: F[A])(f: A => F[B]): F[B]
  @typeclass trait MonadError[F[_], E] extends Monad[F] {
    def raiseError[A](e: E): F[A]
    def fromEither[A](x: Either[E, A]): F[A] = ...

8.2.1 Don’t Repeat Yourself

The simplest way to derive a typeclass is to reuse one that already exists.

The Eq typeclass has an instance of Contravariant[Eq], providing .contramap:

  object Eq {
    implicit val contravariant = new Contravariant[Eq] {
      def contramap[A, B](fa: Eq[A])(f: B => A): Eq[B] =
        (b1, b2) => fa.eqv(f(b1), f(b2))

As users of Eq, we can use .contramap for our single parameter data types. Recall that typeclass instances go on the data type companions to be in their implicit scope:

  final case class Foo(s: String)
  object Foo {
    implicit val equal: Eq[Foo] = Eq[String].contramap(_.s)
  scala> Foo("hello") === Foo("world")

However, not all typeclasses can have an instance of Contravariant. In particular, typeclasses with type parameters in covariant position may have a Functor instead:

  object Default {
    def instance[A](d: => Either[String, A]) = new Default[A] { def default = d }
    implicit val string: Default[String] = instance(Right(""))
    implicit val functor: Functor[Default] = new Functor[Default] {
      def map[A, B](fa: Default[A])(f: A => B): Default[B] = instance(

We can now derive a Default[Foo]

  object Foo {
    implicit val default: Default[Foo] = Default[String].map(Foo(_))

If a typeclass has parameters in both covariant and contravariant position, as is the case with Semigroup, it may provide an Invariant

  object Semigroup {
    implicit val invariant = new Invariant[Semigroup] {
      def imap[A, B](ma: Semigroup[A], f: A => B, g: B => A) = new Semigroup[B] {
        def combine(x: B, y: B): B = f(ma.combine(g(x), g(y)))

and we can call .imap

  object Foo {
    implicit val semigroup: Semigroup[Foo] = Semigroup[String].imap(Foo(_), _.s)

Generally, it is simpler to just use .imap instead of .map or .contramap:

  final case class Foo(s: String)
  object Foo {
    implicit val equal: Eq[Foo]            = Eq[String].imap(Foo(_), _.s)
    implicit val default: Default[Foo]     = Default[String].imap(Foo(_), _.s)
    implicit val semigroup: Semigroup[Foo] = Semigroup[String].imap(Foo(_), _.s)

8.2.2 MonadError

Typically things that write from a polymorphic value have a Contravariant, and things that read into a polymorphic value have a Functor. However, it is very much expected that reading can fail. For example, if we have a default String it does not mean that we can simply derive a default String Refined NonEmpty from it

We start by introducing a convenience function that we will use a lot

  import eu.timepit.refined.refineV
  import eu.timepit.refined.api._
  import eu.timepit.refined.collection._
  implicit val nes: Default[String Refined NonEmpty] =

fails to compile with

  [error] default.scala:41:32: polymorphic expression cannot be instantiated to expected type;
  [error]  found   : Either[String, String Refined NonEmpty]
  [error]  required: String Refined NonEmpty
  [error]     Default[String].map(refineV[NonEmpty](_))
  [error]                                          ^

Recall from Chapter 4.1 that refineV returns an Either, as the compiler has reminded us.

As the typeclass author of Default, we can do better than Functor and provide a MonadError[Default, String]:

  implicit val monad = new MonadError[Default, String] {
    def pure[A](a: A): Default[A] = instance(Right(a))
    def flatMap[A, B](fa: Default[A])(f: A => Default[B]): Default[B] =
    def handleErrorWith[A](fa: Default[A])(f: String => Default[A]): Default[A] =
      instance(fa.default.handleErrorWith(e => f(e).default))
    def raiseError[A](e: String): Default[A] =

If we introduce the general purpose helper function .emap

  implicit class MonadErrorOps[F[_]: MonadError, E](fa: F[A]) {
    def emap[B](f: A => Either[E, B]): F[B] =
      fa.flatMap(a => fromEither(f(a)))

we have access to .emap syntax and can derive our refined type

  implicit val nes: Default[String Refined NonEmpty] =

In fact, we can provide a derivation rule for all refined types

  implicit def refined[A: Default, P](
    implicit V: Validate[A, P]
  ): Default[A Refined P] = Default[A].emap(refineV[P](_))

where Validate is from the refined library and is required by refineV.

Similarly we can use .emap to derive an Int decoder from a Long, with protection around the non-total .toInt stdlib method.

  implicit val long: Default[Long] = instance(Right(0L))
  implicit val int: Default[Int] = Default[Long].emap {
    case n if (Int.MinValue <= n && n <= Int.MaxValue) => Right(n.toInt)
    case big => Left(s"$big does not fit into 32 bits")

As authors of the Default typeclass, we might want to reconsider our API design so that it can never fail, e.g. with the following type signature

  @typeclass trait Default[A] {
    def default: A

We would not be able to define a MonadError, forcing us to provide instances that always succeed. This will result in more boilerplate but gains compiletime safety. However, we will continue with Either[String, A] as the return type as it is a more general example.

8.2.3 ContravariantMonoidal and Applicative

To derive the Eq for our case class with two parameters, we reused the instance that Cats provides for tuples. But where did the tuple instance come from?

A more specific typeclass than Contravariant is ContravariantMonoidal. Eq has an instance:

  implicit val contramonoidal = new ContravariantMonoidal[Eq] {
    def contramap2[A1, A2, Z](a1: Eq[A1], a2: Eq[A2])(
      f: Z => (A1, A2)
    ): Eq[Z] = { (z1, z2) =>
      val (s1, s2) = f(z1)
      val (t1, t2) = f(z2)
      a1.eqv(s1, t1) && a2.eqv(s2, t2)
    def trivial[A]: Eq[A] = (_, _) => true

And from contramap2, ContravariantMonoidal is able to build up derivations all the way to contramap22 (and the .contramapN helper for tuples). We can call these methods directly for our data types:

  final case class Bar(s: String, i: Int)
  object Bar {
    implicit val equal: Eq[Bar] =
      (Eq[String], Eq[Int]).contramapN(b => (b.s, b.i))

The equivalent for type parameters in covariant position is Applicative:

  object Bar {
    implicit val default: Default[Bar] =
      (Default[String], Default[Int]).mapN(Bar(_, _))

But we must be careful that we do not break the typeclass laws when we implement ContravariantMonoidal or Applicative. In particular, it is easy to break the law of composition which says that the following two codepaths must yield exactly the same output

  • contramap2(contramap2(a1, a2)(dupe), a3)(dupe)
  • contramap2(a1, contramap2(a2, a3)(dupe))(dupe)
  • for any dupe: A => (A, A)

with similar laws for Applicative.

Consider JsEncoder and a proposed instance of ContravariantMonoidal

  new ContravariantMonoidal[JsEncoder] {
    def contramap2[A, B, C](fa: JsEncoder[A], fb: JsEncoder[B])(
      f: C => (A, B)
    ): JsEncoder[C] = { c =>
      val (a, b) = f(c)
      JsArray(List(fa.toJson(a), fb.toJson(b)))
    def trivial[A]: JsEncoder[A] = _ => JsNull

On one side of the composition laws, for a String input, we get


and on the other


which are different. We could experiment with variations of the .contramap2 implementation, but it will never satisfy the laws for all inputs.

We therefore cannot provide a ContravariantMonoidal[JsEncoder] because it would break the mathematical laws and invalidates all the assumptions that users of ContravariantMonoidal rely upon.

On the other hand, a similar JsDecoder test meets the Applicative composition laws so we can be reasonably confident that our MonadError is lawful.

One way of generating a wide variety of test data is to use the scalacheck library, which provides an Arbitrary typeclass that integrates with most testing frameworks to repeat a test with randomly generated data.

The jsonformat ADT can provide an Arbitrary[JsValue] allowing us to make use of Scalatest’s .forAll feature:

  forAll(SizeRange(10))((j: JsValue) => composeTest(j))

This test gives us even more confidence that our typeclass meets the Applicative composition laws. By checking all the laws on ContravariantMonoidal and MonadError we also get a lot of smoke tests for free.

8.3 Magnolia

The Magnolia macro library provides a clean API for writing typeclass derivations. It is installed with the following build.sbt entry

  libraryDependencies += "com.propensive" %% "magnolia" % "0.14.4"

A typeclass author implements the following members:

  import magnolia._
  object MyDerivation {
    type Typeclass[A]
    def combine[A](ctx: CaseClass[Typeclass, A]): Typeclass[A]
    def dispatch[A](ctx: SealedTrait[Typeclass, A]): Typeclass[A]
    def gen[A]: Typeclass[A] = macro Magnolia.gen[A]

The Magnolia API is:

  class CaseClass[TC[_], A] {
    def typeName: TypeName
    def construct[B](f: Param[TC, A] => B): A
    def constructMonadic[F[_]: Monadic, B](f: Param[TC, A] => F[B]): F[A]
    def parameters: Seq[Param[TC, A]]
    def annotations: Seq[Any]
  class SealedTrait[TC[_], A] {
    def typeName: TypeName
    def subtypes: Seq[Subtype[TC, A]]
    def dispatch[B](value: A)(handle: Subtype[TC, A] => B): B
    def annotations: Seq[Any]

with helpers

  final case class TypeName(short: String, full: String)
  class Param[TC[_], A] {
    type PType
    def label: String
    def index: Int
    def typeclass: TC[PType]
    def dereference(param: A): PType
    def default: Option[PType]
    def annotations: Seq[Any]
  class Subtype[TC[_], A] {
    type SType <: A
    def typeName: TypeName
    def index: Int
    def typeclass: TC[SType]
    def cast(a: A): SType
    def annotations: Seq[Any]

The Monadic typeclass, used in constructMonadic, is automatically generated if our data type has a .map and .flatMap method when we import mercator._

It does not make sense to use Magnolia for typeclasses that can be abstracted by ContravariantMonoidal, Decidable, Applicative or Alt, since those abstractions provide a lot of extra structure and tests for free. However, Magnolia offers features that Cats cannot provide: access to field names, type names, annotations and default values.

8.3.1 Example: JSON

We have some design choices to make with regards to JSON serialisation:

  1. Should we include fields with null values?
  2. Should decoding treat missing vs null differently?
  3. How do we encode the name of a coproduct?
  4. How do we deal with coproducts that are not JsObject?

We choose sensible defaults

  • do not include fields if the value is a JsNull.
  • handle missing fields the same as null values.
  • use a special field "type" to disambiguate coproducts using the type name.
  • put primitive values into a special field "xvalue".

and let the users attach an annotation to coproducts and product fields to customise their formats:

  sealed class json extends Annotation
  object json {
    final case class nulls()          extends json
    final case class field(f: String) extends json
    final case class hint(f: String)  extends json

For example

  sealed abstract class Cost
  final case class Time(s: String) extends Cost
  final case class Money(@json.field("integer") i: Int) extends Cost

Start with a JsEncoder that handles only our sensible defaults:

  object JsMagnoliaEncoder {
    type Typeclass[A] = JsEncoder[A]
    def combine[A](ctx: CaseClass[JsEncoder, A]): JsEncoder[A] = { a =>
      val empty: List[(String, JsValue)] = Nil
      val fields = ctx.parameters.foldRight(empty) { (p, acc) =>
        p.typeclass.toJson(p.dereference(a)) match {
          case JsNull => acc
          case value  => (p.label -> value) :: acc
    def dispatch[A](ctx: SealedTrait[JsEncoder, A]): JsEncoder[A] = a =>
      ctx.dispatch(a) { sub =>
        val hint = "type" -> JsString(sub.typeName.short)
        sub.typeclass.toJson(sub.cast(a)) match {
          case JsObject(fields) => JsObject(hint :: fields)
          case other            => JsObject(List(hint, "xvalue" -> other))
    def gen[A]: JsEncoder[A] = macro Magnolia.gen[A]

We can see how the Magnolia API makes it easy to access field names and typeclasses for each parameter.

Now add support for annotations to handle user preferences. To avoid looking up the annotations on every encoding, we will cache them in an array. Although field access to an array is non-total, we are guaranteed that the indices will always align. Performance is usually the victim in the trade-off between specialisation and generalisation.

  object JsMagnoliaEncoder {
    type Typeclass[A] = JsEncoder[A]
    def combine[A](ctx: CaseClass[JsEncoder, A]): JsEncoder[A] =
      new JsEncoder[A] {
        private val anns = { p =>
          val nulls = p.annotations.collectFirst {
            case json.nulls() => true
          val field = p.annotations.collectFirst {
            case json.field(name) => name
          (nulls, field)
        def toJson(a: A): JsValue = {
          val empty: List[(String, JsValue)] = Nil
          val fields = ctx.parameters.foldRight(empty) { (p, acc) =>
            val (nulls, field) = anns(p.index)
            p.typeclass.toJson(p.dereference(a)) match {
              case JsNull if !nulls => acc
              case value            => (field -> value) :: acc
    def dispatch[A](ctx: SealedTrait[JsEncoder, A]): JsEncoder[A] =
      new JsEncoder[A] {
        private val field = ctx.annotations.collectFirst {
          case json.field(name) => name
        private val anns = { s =>
          val hint = s.annotations.collectFirst {
            case json.hint(name) => field -> JsString(name)
          }.getOrElse(field -> JsString(s.typeName.short))
          val xvalue = s.annotations.collectFirst {
            case json.field(name) => name
          (hint, xvalue)
        def toJson(a: A): JsValue = ctx.dispatch(a) { sub =>
          val (hint, xvalue) = anns(sub.index)
          sub.typeclass.toJson(sub.cast(a)) match {
            case JsObject(fields) => JsObject(hint :: fields)
            case other            => JsObject(hint :: (xvalue -> other) :: Nil)
    def gen[A]: JsEncoder[A] = macro Magnolia.gen[A]

For the decoder we use .constructMonadic which has a type signature similar to .traverse

  object JsMagnoliaDecoder {
    type Typeclass[A] = JsDecoder[A]
    def combine[A](ctx: CaseClass[JsDecoder, A]): JsDecoder[A] = {
      case obj @ JsObject(_) =>
          p => p.typeclass.fromJson(obj.get(p.label).getOrElse(JsNull))
      case other => fail("JsObject", other)
    def dispatch[A](ctx: SealedTrait[JsDecoder, A]): JsDecoder[A] = {
      case obj @ JsObject(_) =>
        obj.get("type") match {
          case Right(JsString(hint)) =>
            ctx.subtypes.find(_.typeName.short == hint) match {
              case None => fail(s"a valid '$hint'", obj)
              case Some(sub) =>
                val value = obj.get("xvalue").getOrElse(obj)
          case _ => fail("JsObject with type", obj)
      case other => fail("JsObject", other)
    def gen[A]: JsDecoder[A] = macro Magnolia.gen[A]

Again, adding support for user preferences and default field values, along with some optimisations:

  object JsMagnoliaDecoder {
    type Typeclass[A] = JsDecoder[A]
    def combine[A](ctx: CaseClass[JsDecoder, A]): JsDecoder[A] =
      new JsDecoder[A] {
        private val nulls = { p =>
          p.annotations.collectFirst {
            case json.nulls() => true
        private val fieldnames = { p =>
          p.annotations.collectFirst {
            case json.field(name) => name
        def fromJson(j: JsValue): Either[String, A] = j match {
          case obj @ JsObject(_) =>
            import mercator._
            val lookup = obj.fields.toMap
            ctx.constructMonadic { p =>
              val field = fieldnames(p.index)
                .into {
                  case Maybe.Just(value) => p.typeclass.fromJson(value)
                  case _ =>
                    p.default match {
                      case Some(default) => Right(default)
                      case None if nulls(p.index) =>
                        Left(s"missing field '$field'")
                      case None => p.typeclass.fromJson(JsNull)
          case other => fail("JsObject", other)
    def dispatch[A](ctx: SealedTrait[JsDecoder, A]): JsDecoder[A] =
      new JsDecoder[A] {
        private val subtype = { s =>
          s.annotations.collectFirst {
            case json.hint(name) => name
          }.getOrElse(s.typeName.short) -> s
        private val typehint = ctx.annotations.collectFirst {
          case json.field(name) => name
        private val xvalues = { sub =>
          sub.annotations.collectFirst {
            case json.field(name) => name
        def fromJson(j: JsValue): Either[String, A] = j match {
          case obj @ JsObject(_) =>
            obj.get(typehint) match {
              case Right(JsString(h)) =>
                subtype.get(h) match {
                  case None => fail(s"a valid '$h'", obj)
                  case Some(sub) =>
                    val xvalue = xvalues(sub.index)
                    val value  = obj.get(xvalue).getOrElse(obj)
              case _ => fail(s"JsObject with '$typehint' field", obj)
          case other => fail("JsObject", other)
    def gen[A]: JsDecoder[A] = macro Magnolia.gen[A]

We call the JsMagnoliaEncoder.gen or JsMagnoliaDecoder.gen method from the companion of our data types. For example, the Google Maps API

  final case class Value(text: String, value: Int)
  final case class Elements(distance: Value, duration: Value, status: String)
  final case class Rows(elements: List[Elements])
  final case class DistanceMatrix(
    destination_addresses: List[String],
    origin_addresses: List[String],
    rows: List[Rows],
    status: String
  object Value {
    implicit val encoder: JsEncoder[Value] = JsMagnoliaEncoder.gen
    implicit val decoder: JsDecoder[Value] = JsMagnoliaDecoder.gen
  object Elements {
    implicit val encoder: JsEncoder[Elements] = JsMagnoliaEncoder.gen
    implicit val decoder: JsDecoder[Elements] = JsMagnoliaDecoder.gen
  object Rows {
    implicit val encoder: JsEncoder[Rows] = JsMagnoliaEncoder.gen
    implicit val decoder: JsDecoder[Rows] = JsMagnoliaDecoder.gen
  object DistanceMatrix {
    implicit val encoder: JsEncoder[DistanceMatrix] = JsMagnoliaEncoder.gen
    implicit val decoder: JsDecoder[DistanceMatrix] = JsMagnoliaDecoder.gen

8.3.2 Fully Automatic Derivation

Generating implicit instances on the companion of the data type is historically known as semi-auto derivation, in contrast to full-auto which is when the .gen is made implicit

  object JsMagnoliaEncoder {
    implicit def gen[A]: JsEncoder[A] = macro Magnolia.gen[A]
  object JsMagnoliaDecoder {
    implicit def gen[A]: JsDecoder[A] = macro Magnolia.gen[A]

Users can import these methods into their scope and get magical derivation at the point of use

  scala> final case class Value(text: String, value: Int)
  scala> import JsMagnoliaEncoder.gen
  scala> Value("hello", 1).toJson
  res = JsObject([("text","hello"),("value",1)])

This may sound tempting, as it involves the least amount of typing, but there are two caveats:

  1. the macro is invoked at every use site, i.e. every time we call .toJson. This slows down compilation and also produces more objects at runtime, which will impact runtime performance.
  2. unexpected things may be derived.

The first caveat is self evident, but unexpected derivations manifests as subtle bugs. Consider what would happen for

  final case class Foo(s: Option[String])
  object Foo {
    implicit val jsencoder: JsEncoder[Foo] = gen

if we forgot to provide an implicit derivation for Option. We might expect a Foo(Some("hello")) to look like


But it would instead be

    "s": {

because Magnolia derived an Option encoder for us.

This is confusing, we would rather have the compiler tell us if we forgot something. Full auto is therefore not recommended.

8.4 Shapeless

The Shapeless library is notoriously the most complicated library in Scala. The reason why it has such a reputation is because it takes the implicit language feature to the extreme: creating a kind of generic programming language at the level of the types.

To install Shapeless, add the following to build.sbt

  libraryDependencies += "com.chuusai" %% "shapeless" % "2.3.3"

At the core of Shapeless are the HList and Coproduct data types

  package shapeless
  sealed trait HList
  final case class ::[+H, +T <: HList](head: H, tail: T) extends HList
  sealed trait NNil extends HList
  case object HNil extends HNil {
    def ::[H](h: H): H :: HNil = ::(h, this)
  sealed trait Coproduct
  sealed trait :+:[+H, +T <: Coproduct] extends Coproduct
  final case class Inl[+H, +T <: Coproduct](head: H) extends :+:[H, T]
  final case class Inr[+H, +T <: Coproduct](tail: T) extends :+:[H, T]
  sealed trait CNil extends Coproduct // no implementations

which are generic representations of products and coproducts, respectively. The sealed trait HNil is for convenience so we never need to type HNil.type.

Shapeless has a Generic typeclass, which allows us to move between an ADT and its generic representation:

  trait Generic[T] {
    type Repr
    def to(t: T): Repr
    def from(r: Repr): T
  object Generic {
    type Aux[T, R] = Generic[T] { type Repr = R }
    def apply[T](implicit G: Generic[T]): Aux[T, G.Repr] = G
    implicit def materialize[T, R]: Aux[T, R] = macro ...

Many of the types in Shapeless have a type member (Repr) and an .Aux type alias on their companion that makes the second type visible. This allows us to request the Generic[Foo] for a type Foo without having to provide the generic representation, which is generated by a macro.

  scala> import shapeless._
  scala> final case class Foo(a: String, b: Long)
         Generic[Foo].to(Foo("hello", 13L))
  res: String :: Long :: HNil = hello :: 13 :: HNil
  scala> Generic[Foo].from("hello" :: 13L :: HNil)
  res: Foo = Foo(hello,13)
  scala> sealed abstract class Bar
         case object Irish extends Bar
         case object English extends Bar
  scala> Generic[Bar].to(Irish)
  res: English.type :+: Irish.type :+: CNil.type = Inl(Irish)
  scala> Generic[Bar].from(Inl(Irish))
  res: Bar = Irish

There is a complementary LabelledGeneric that includes the field names

  scala> import shapeless._, labelled._
  scala> final case class Foo(a: String, b: Long)
  scala> LabelledGeneric[Foo].to(Foo("hello", 13L))
  res: String with KeyTag[Symbol with Tagged[String("a")], String] ::
       Long   with KeyTag[Symbol with Tagged[String("b")],   Long] ::
       HNil =
       hello :: 13 :: HNil
  scala> sealed abstract class Bar
         case object Irish extends Bar
         case object English extends Bar
  scala> LabelledGeneric[Bar].to(Irish)
  res: Irish.type   with KeyTag[Symbol with Tagged[String("Irish")],     Irish.type] :+:
       English.type with KeyTag[Symbol with Tagged[String("English")], English.type] :+:
       CNil.type =

Note that the value of a LabelledGeneric representation is the same as the Generic representation: field names only exist in the type and are erased at runtime.

We never need to type KeyTag manually, we use the type alias:

  type FieldType[K, +V] = V with KeyTag[K, V]

If we want to access the field name from a FieldType[K, A], we ask for implicit evidence Witness.Aux[K], which allows us to access the value of K at runtime.

Superficially, this is all we need to know about Shapeless to be able to derive a typeclass. However, things get increasingly complex, so we will proceed with increasingly complex examples.

8.4.1 Example: Eq

A typical pattern to follow is to extend the typeclass that we wish to derive, and put the Shapeless code on its companion. This gives us an implicit scope that the compiler can search without requiring complex imports

  trait DerivedEq[A] extends Eq[A]
  object DerivedEq {

The entry point to a Shapeless derivation is a method, gen, requiring two type parameters: the A that we are deriving and the R for its generic representation. We then ask for the Generic.Aux[A, R], relating A to R, and an instance of the Derived typeclass for the R. We begin with this signature and simple implementation:

  import shapeless._
  object DerivedEq {
    def gen[A, R: DerivedEq](implicit G: Generic.Aux[A, R]): Eq[A] =
      (a1, a2) => Eq[R].eqv(,

We’ve reduced the problem to providing an implicit Eq[R] for an R that is the Generic representation of A. First consider products, where R <: HList. This is the signature we want to implement:

  implicit def hcons[H: Eq, T <: HList: DerivedEq]: DerivedEq[H :: T]

because if we can implement it for a head and a tail, the compiler will be able to recurse on this method until it reaches the end of the list. Where we will need to provide an instance for the empty HNil

  implicit def hnil: DerivedEq[HNil]

We implement these methods

  implicit def hcons[H: Eq, T <: HList: DerivedEq]: DerivedEq[H :: T] =
    (h1, h2) => Eq[H].eqv(h1.head, h2.head) && Eq[T].eqv(h1.tail, h2.tail)
  implicit val hnil: DerivedEq[HNil] = (_, _) => true

and for coproducts we want to implement these signatures

  implicit def ccons[H: Eq, T <: Coproduct: DerivedEq]: DerivedEq[H :+: T]
  implicit def cnil: DerivedEq[CNil]

.cnil will never be called for a typeclass like Eq with type parameters only in contravariant position, but the compiler doesn’t know that so we have to provide a stub:

  implicit val cnil: DerivedEq[CNil] = (_, _) => sys.error("impossible")

For the coproduct case we can only compare two things if they align, which is when they are both Inl or Inr

  implicit def ccons[H: Eq, T <: Coproduct: DerivedEq]: DerivedEq[H :+: T] = {
    case (Inl(c1), Inl(c2)) => Eq[H].eqv(c1, c2)
    case (Inr(c1), Inr(c2)) => Eq[T].eqv(c1, c2)
    case _                  => false

It is noteworthy that our methods align with the concept of .trivial (hnil) and .contramap2 (hlist)! However, we don’t get any of the advantages of implementing ContravariantMonoidal, as now we must start from scratch when writing tests for this code.

So let’s test this thing with a simple ADT

  sealed abstract class Foo
  final case class Bar(s: String)          extends Foo
  final case class Faz(b: Boolean, i: Int) extends Foo
  final case object Baz                    extends Foo

We need to provide instances on the companions:

  object Foo {
    implicit val equal: Eq[Foo] = DerivedEq.gen
  object Bar {
    implicit val equal: Eq[Bar] = DerivedEq.gen
  object Faz {
    implicit val equal: Eq[Faz] = DerivedEq.gen
  final case object Baz extends Foo {
    implicit val equal: Eq[Baz.type] = DerivedEq.gen

But it doesn’t compile

  [error] shapeless.scala:41:38: ambiguous implicit values:
  [error]  both value hnil in object DerivedEq of type => DerivedEq[HNil]
  [error]  and value cnil in object DerivedEq of type => DerivedEq[CNil]
  [error]  match expected type DerivedEq[R]
  [error]     : Eq[Baz.type] = DerivedEq.gen

The problem, which is not at all evident from the error, is that the compiler is unable to work out what R is. We need to provide the explicit type parameters when calling gen, e.g.

  implicit val equal: Eq[Baz.type] = DerivedEq.gen[Baz.type, HNil]

or we can use the Generic macro to help us and let the compiler infer the generic representation

  final case object Baz extends Foo {
    implicit val generic             = Generic[Baz.type]
    implicit val equal: Eq[Baz.type] = DerivedEq.gen[Baz.type, generic.Repr]

The reason why this fixes the problem is because the type signature

  def gen[A, R: DerivedEq](implicit G: Generic.Aux[A, R]): Eq[A]

desugars into

  def gen[A, R](implicit R: DerivedEq[R], G: Generic.Aux[A, R]): Eq[A]

The Scala compiler solves type constraints left to right, so it finds many different solutions to DerivedEq[R] before constraining it with the Generic.Aux[A, R]. Another way to solve this is to not use context bounds.

However, this implementation still has a bug: it fails for recursive types at runtime, e.g.

  sealed trait ATree
  object ATree {
    implicit val equal: Eq[ATree] = gen
  final case class Leaf(value: String)               extends ATree
  object Leaf {
    implicit val equal: Eq[Leaf] = gen
  final case class Branch(left: ATree, right: ATree) extends ATree
  object Branch {
    implicit val equal: Eq[Branch] = gen
  scala> val leaf1: Leaf    = Leaf("hello")
         val leaf2: Leaf    = Leaf("goodbye")
         val branch: Branch = Branch(leaf1, leaf2)
         val tree1: ATree   = Branch(leaf1, branch)
         val tree2: ATree   = Branch(leaf2, branch)
  scala> assert(tree1 =!= tree2)
  [error] java.lang.NullPointerException
  [error] at DerivedEq$.shapes$DerivedEq$$$anonfun$hcons$1(shapeless.scala:16)

The reason why this happens is because Eq[Tree] depends on the Eq[Branch], which depends on the Eq[Tree]. Recursion and BANG! It must be loaded lazily, not eagerly.

The macro types Cached, Strict and Lazy modify the compiler’s type inference behaviour allowing us to achieve the laziness we require. The pattern to follow is to use Cached[Strict[_]] on the entry point and Lazy[_] around the H instances.

  sealed trait DerivedEq[A] extends Eq[A]
  object DerivedEq {
    def gen[A, R](
      implicit G: Generic.Aux[A, R],
      R: Cached[Strict[DerivedEq[R]]]
    ): Eq[A] = new Eq[A] {
      def eqv(a1: A, a2: A) =
        quick(a1, a2) || R.value.value.eqv(,
    implicit def hcons[H, T <: HList](
      implicit H: Lazy[Eq[H]],
      T: DerivedEq[T]
    ): DerivedEq[H :: T] = new DerivedEq[H :: T] {
      def eqv(ht1: H :: T, ht2: H :: T) =
        (quick(ht1.head, ht2.head) || H.value.eqv(ht1.head, ht2.head)) &&
          T.eqv(ht1.tail, ht2.tail)
    implicit val hnil: DerivedEq[HNil] = new DerivedEq[HNil] {
      def eqv(h1: HNil, h2: HNil) = true
    implicit def ccons[H, T <: Coproduct](
      implicit H: Lazy[Eq[H]],
      T: DerivedEq[T]
    ): DerivedEq[H :+: T] = new DerivedEq[H :+: T] {
      def eqv(ht1: H :+: T, ht2: H :+: T) = (ht1, ht2) match {
        case (Inl(c1), Inl(c2)) => quick(c1, c2) || H.value.eqv(c1, c2)
        case (Inr(c1), Inr(c2)) => T.eqv(c1, c2)
        case _                  => false
    implicit val cnil: DerivedEq[CNil] = new DerivedEq[CNil] {
      def eqv(c1: CNil, c2: CNil) = sys.error("impossible")
    @inline private final def quick(a: Any, b: Any): Boolean =

We can now call

  assert(tree1 =!= tree2)

without a runtime exception.

8.4.2 Example: Default

Here we create HList and Coproduct values, and must provide a value for the CNil case as it corresponds to the case where no coproduct is able to provide a value.

  sealed trait DerivedDefault[A] extends Default[A]
  object DerivedDefault {
    def gen[A, R](
      implicit G: Generic.Aux[A, R],
      R: Cached[Strict[DerivedDefault[R]]]
    ): Default[A] = new Default[A] {
      def default =
    implicit def hcons[H, T <: HList](
      implicit H: Lazy[Default[H]],
      T: DerivedDefault[T]
    ): DerivedDefault[H :: T] = new DerivedDefault[H :: T] {
      def default =
        for {
          head <- H.value.default
          tail <- T.default
        } yield head :: tail
    implicit val hnil: DerivedDefault[HNil] = new DerivedDefault[HNil] {
      def default = Right(HNil)
    implicit def ccons[H, T <: Coproduct](
      implicit H: Lazy[Default[H]],
      T: DerivedDefault[T]
    ): DerivedDefault[H :+: T] = new DerivedDefault[H :+: T] {
      def default =
    implicit val cnil: DerivedDefault[CNil] = new DerivedDefault[CNil] {
      def default = Left("not a valid coproduct")

Much as we could draw an analogy between Eq and ContravariantMonoidal, we can see the relationship to Applicative in .point (hnil) and .map2 (.hcons).

There is little to be learned from an example like Semigroup, so we will skip to encoders and decoders.

8.4.3 Example: JsEncoder

To be able to reproduce our Magnolia JSON encoder, we must be able to access:

  1. field names and class names
  2. annotations for user preferences
  3. default values on a case class

We will begin by creating an encoder that handles only the sensible defaults.

To get field names, we use LabelledGeneric instead of Generic, and when defining the type of the head element, use FieldType[K, H] instead of just H. A Witness.Aux[K] provides the value of the field name at runtime.

All of our methods are going to return JsObject, so rather than returning a JsValue we can specialise and create DerivedJsEncoder that has a different type signature to JsEncoder.

  import shapeless._, labelled._
  sealed trait DerivedJsEncoder[R] {
    def toJsFields(r: R): List[(String, JsValue)]
  object DerivedJsEncoder {
    def gen[A, R](
      implicit G: LabelledGeneric.Aux[A, R],
      R: Cached[Strict[DerivedJsEncoder[R]]]
    ): JsEncoder[A] = new JsEncoder[A] {
      def toJson(a: A) = JsObject(R.value.value.toJsFields(
    implicit def hcons[K <: Symbol, H, T <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[T]
    ): DerivedJsEncoder[FieldType[K, H] :: T] =
      new DerivedJsEncoder[A, FieldType[K, H] :: T] {
        private val field =
        def toJsFields(ht: FieldType[K, H] :: T) =
          ht match {
            case head :: tail =>
              val rest = T.toJsFields(tail)
              H.value.toJson(head) match {
                case JsNull => rest
                case value  => (field -> value) :: rest
    implicit val hnil: DerivedJsEncoder[HNil] =
      new DerivedJsEncoder[HNil] {
        def toJsFields(h: HNil) = Nil
    implicit def ccons[K <: Symbol, H, T <: Coproduct](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[T]
    ): DerivedJsEncoder[FieldType[K, H] :+: T] =
      new DerivedJsEncoder[FieldType[K, H] :+: T] {
        private val hint = ("type" -> JsString(
        def toJsFields(ht: FieldType[K, H] :+: T) = ht match {
          case Inl(head) =>
            H.value.toJson(head) match {
              case JsObject(fields) => hint :: fields
              case v                => List("xvalue" -> v)
          case Inr(tail) => T.toJsFields(tail)
    implicit val cnil: DerivedJsEncoder[CNil] =
      new DerivedJsEncoder[CNil] {
        def toJsFields(c: CNil) = sys.error("impossible")

Shapeless selects codepaths at compiletime based on the presence of annotations, which can lead to more optimised code, at the expense of code repetition. This means that the number of annotations we are dealing with, and their subtypes, must be manageable or we can find ourselves writing 10x the amount of code. We change our three annotations into one containing all the customisation parameters:

  case class json(
    nulls: Boolean,
    field: Option[String],
    hint: Option[String]
  ) extends Annotation

All users of the annotation must provide all three values since default values and convenience methods are not available to annotation constructors. We can write custom extractors so we don’t have to change our Magnolia code

  object json {
    object nulls {
      def unapply(j: json): Boolean = j.nulls
    object field {
      def unapply(j: json): Option[String] = j.field
    object hint {
      def unapply(j: json): Option[String] = j.hint

We can request Annotation[json, A] for a case class or sealed trait to get access to the annotation, but we must write an hcons and a ccons dealing with both cases because the evidence will not be generated if the annotation is not present. We therefore have to introduce a lower priority implicit scope and put the “no annotation” evidence there.

We can also request Annotations.Aux[json, A, J] evidence to obtain an HList of the json annotation for type A. Again, we must provide hcons and ccons dealing with the case where there is and is not an annotation.

To support this one annotation, we must write four times as much code as before!

Lets start by rewriting the JsEncoder, only handling user code that doesn’t have any annotations. Now any code that uses the @json will fail to compile, which is a good safety net.

We must add an A and J type to the DerivedJsEncoder and thread through the annotations on its .toJsObject method. Our .hcons and .ccons evidence now provides instances for DerivedJsEncoder with a None.type annotation and we move them to a lower priority so that we can deal with Annotation[json, A] in the higher priority.

Note that the evidence for J is listed before R. This is important, since the compiler must first fix the type of J before it can solve for R.

  sealed trait DerivedJsEncoder[A, R, J <: HList] {
    def toJsFields(r: R, anns: J): List[(String, JsValue)]
  object DerivedJsEncoder extends DerivedJsEncoder1 {
    def gen[A, R, J <: HList](
      G: LabelledGeneric.Aux[A, R],
      J: Annotations.Aux[json, A, J],
      R: Cached[Strict[DerivedJsEncoder[A, R, J]]]
    ): JsEncoder[A] = new JsEncoder[A] {
      def toJson(a: A) = JsObject(R.value.value.toJsFields(, J()))
    implicit def hnil[A]: DerivedJsEncoder[A, HNil, HNil] =
      new DerivedJsEncoder[A, HNil, HNil] {
        def toJsFields(h: HNil, a: HNil) = Nil
    implicit def cnil[A]: DerivedJsEncoder[A, CNil, HNil] =
      new DerivedJsEncoder[A, CNil, HNil] {
        def toJsFields(c: CNil, a: HNil) = sys.error("impossible")
  private[jsonformat] trait DerivedJsEncoder1 {
    implicit def hcons[A, K <: Symbol, H, T <: HList, J <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :: T, None.type :: J] =
      new DerivedJsEncoder[A, FieldType[K, H] :: T, None.type :: J] {
        private val field =
        def toJsFields(ht: FieldType[K, H] :: T, anns: None.type :: J) =
          ht match {
            case head :: tail =>
              val rest = T.toJsFields(tail, anns.tail)
              H.value.toJson(head) match {
                case JsNull => rest
                case value  => (field -> value) :: rest
    implicit def ccons[A, K <: Symbol, H, T <: Coproduct, J <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :+: T, None.type :: J] =
      new DerivedJsEncoder[A, FieldType[K, H] :+: T, None.type :: J] {
        private val hint = ("type" -> JsString(
        def toJsFields(ht: FieldType[K, H] :+: T, anns: None.type :: J) =
          ht match {
            case Inl(head) =>
              H.value.toJson(head) match {
                case JsObject(fields) => hint :: fields
                case v                => List("xvalue" -> v)
            case Inr(tail) => T.toJsFields(tail, anns.tail)

Now we can add the type signatures for the six new methods, covering all the possibilities of where the annotation can be. Note that we only support one annotation in each position. If the user provides multiple annotations, anything after the first will be silently ignored.

We’re now running out of names for things, so we will arbitrarily call it Annotated when there is an annotation on the A, and Custom when there is an annotation on a field:

  object DerivedJsEncoder extends DerivedJsEncoder1 {
    implicit def hconsAnnotated[A, K <: Symbol, H, T <: HList, J <: HList](
      A: Annotation[json, A],
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :: T, None.type :: J]
    implicit def cconsAnnotated[A, K <: Symbol, H, T <: Coproduct, J <: HList](
      A: Annotation[json, A],
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :+: T, None.type :: J]
    implicit def hconsAnnotatedCustom[A, K <: Symbol, H, T <: HList, J <: HList](
      A: Annotation[json, A],
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :: T, Some[json] :: J]
    implicit def cconsAnnotatedCustom[A, K <: Symbol, H, T <: Coproduct, J <: HList](
      A: Annotation[json, A],
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :+: T, Some[json] :: J]
  private[jsonformat] trait DerivedJsEncoder1 {
    implicit def hconsCustom[A, K <: Symbol, H, T <: HList, J <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :: T, Some[json] :: J] = ???
    implicit def cconsCustom[A, K <: Symbol, H, T <: Coproduct, J <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsEncoder[H]],
      T: DerivedJsEncoder[A, T, J]
    ): DerivedJsEncoder[A, FieldType[K, H] :+: T, Some[json] :: J]

We don’t actually need .hconsAnnotated or .hconsAnnotatedCustom for anything, since an annotation on a case class does not mean anything to the encoding of that product, it is only used in .cconsAnnotated*. We can therefore delete two methods.

.cconsAnnotated and .cconsAnnotatedCustom can be defined as

  new DerivedJsEncoder[A, FieldType[K, H] :+: T, None.type :: J] {
    private val hint = A().field.getOrElse("type") -> JsString(
    def toJsFields(ht: FieldType[K, H] :+: T, anns: None.type :: J) = ht match {
      case Inl(head) =>
        H.value.toJson(head) match {
          case JsObject(fields) => hint :: fields
          case v                => List("xvalue" -> v)
      case Inr(tail) => T.toJsFields(tail, anns.tail)


  new DerivedJsEncoder[A, FieldType[K, H] :+: T, Some[json] :: J] {
    private val hintfield = A().field.getOrElse("type")
    def toJsFields(ht: FieldType[K, H] :+: T, anns: Some[json] :: J) = ht match {
      case Inl(head) =>
        val ann = anns.head.get
        H.value.toJson(head) match {
          case JsObject(fields) =>
            val hint = (hintfield -> JsString(ann.hint.getOrElse(
            hint :: fields
          case v =>
            val xvalue = ann.field.getOrElse("xvalue")
            List(xvalue -> v)
      case Inr(tail) => T.toJsFields(tail, anns.tail)

The use of .head and .get may be concerned but recall that the types here are :: and Some meaning that these methods are total and safe to use.

.hconsCustom and .cconsCustom are written

  new DerivedJsEncoder[A, FieldType[K, H] :: T, Some[json] :: J] {
    def toJsFields(ht: FieldType[K, H] :: T, anns: Some[json] :: J) = ht match {
      case head :: tail =>
        val ann  = anns.head.get
        val next = T.toJsFields(tail, anns.tail)
        H.value.toJson(head) match {
          case JsNull if !ann.nulls => next
          case value =>
            val field = ann.field.getOrElse(
            (field -> value) :: next


  new DerivedJsEncoder[A, FieldType[K, H] :+: T, Some[json] :: J] {
    def toJsFields(ht: FieldType[K, H] :+: T, anns: Some[json] :: J) = ht match {
      case Inl(head) =>
        val ann = anns.head.get
        H.value.toJson(head) match {
          case JsObject(fields) =>
            val hint = ("type" -> JsString(ann.hint.getOrElse(
            hint :: fields
          case v =>
            val xvalue = ann.field.getOrElse("xvalue")
            List(xvalue -> v)
      case Inr(tail) => T.toJsFields(tail, anns.tail)

Obviously, there is a lot of boilerplate, but looking closely one can see that each method is implemented as efficiently as possible with the information it has available: codepaths are selected at compiletime rather than runtime.

The performance obsessed may be able to refactor this code so all annotation information is available in advance, rather than injected via the .toJsFields method, with another layer of indirection. For absolute performance, we could also treat each customisation as a separate annotation, but that would multiply the amount of code we’ve written yet again, with additional cost to compilation time on downstream users. Such optimisations are beyond the scope of this book, but they are possible and people do them: the ability to shift work from runtime to compiletime is one of the most appealing things about generic programming.

8.4.4 JsDecoder

The decoding side is much as we can expect based on previous examples. We can construct an instance of a FieldType[K, H] with the helper field[K](h: H). Supporting only the sensible defaults means we write:

  sealed trait DerivedJsDecoder[A] {
    def fromJsObject(j: JsObject): Either[String, A]
  object DerivedJsDecoder {
    def gen[A, R](
      implicit G: LabelledGeneric.Aux[A, R],
      R: Cached[Strict[DerivedJsDecoder[R]]]
    ): JsDecoder[A] = new JsDecoder[A] {
      def fromJson(j: JsValue) = j match {
        case o @ JsObject(_) => R.value.value.fromJsObject(o).map(G.from)
        case other           => fail("JsObject", other)
    implicit def hcons[K <: Symbol, H, T <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsDecoder[H]],
      T: DerivedJsDecoder[T]
    ): DerivedJsDecoder[FieldType[K, H] :: T] =
      new DerivedJsDecoder[FieldType[K, H] :: T] {
        private val fieldname =
        def fromJsObject(j: JsObject) = {
          val value = j.get(fieldname).getOrElse(JsNull)
          for {
            head  <- H.value.fromJson(value)
            tail  <- T.fromJsObject(j)
          } yield field[K](head) :: tail
    implicit val hnil: DerivedJsDecoder[HNil] = new DerivedJsDecoder[HNil] {
      private val nil               = Right(HNil)
      def fromJsObject(j: JsObject) = nil
    implicit def ccons[K <: Symbol, H, T <: Coproduct](
      K: Witness.Aux[K],
      H: Lazy[JsDecoder[H]],
      T: DerivedJsDecoder[T]
    ): DerivedJsDecoder[FieldType[K, H] :+: T] =
      new DerivedJsDecoder[FieldType[K, H] :+: T] {
        private val hint = ("type" -> JsString(
        def fromJsObject(j: JsObject) =
          if (j.fields.element(hint)) {
              .into {
                case Right(xvalue) => H.value.fromJson(xvalue)
                case Left(_)      => H.value.fromJson(j)
              .map(h => Inl(field[K](h)))
          } else
    implicit val cnil: DerivedJsDecoder[CNil] = new DerivedJsDecoder[CNil] {
      def fromJsObject(j: JsObject) = fail(s"JsObject with 'type' field", j)

Adding user preferences via annotations follows the same route as DerivedJsEncoder and is mechanical, so left as an exercise to the reader.

One final thing is missing: case class default values. We can request evidence but a big problem is that we can no longer use the same derivation mechanism for products and coproducts: the evidence is never created for coproducts.

The solution is quite drastic. We must split our DerivedJsDecoder into DerivedCoproductJsDecoder and DerivedProductJsDecoder. We will focus our attention on the DerivedProductJsDecoder, and while we are at it we will use a Map for faster field lookup:

  sealed trait DerivedProductJsDecoder[A, R, J <: HList, D <: HList] {
    private[jsonformat] def fromJsObject(
      j: Map[String, JsValue],
      anns: J,
      defaults: D
    ): Either[String, R]

We can request evidence of default values with Default.Aux[A, D] and duplicate all the methods to deal with the case where we do and do not have a default value. However, Shapeless is merciful and provides Default.AsOptions.Aux[A, D] letting us handle defaults at runtime.

  object DerivedProductJsDecoder {
    def gen[A, R, J <: HList, D <: HList](
      implicit G: LabelledGeneric.Aux[A, R],
      J: Annotations.Aux[json, A, J],
      D: Default.AsOptions.Aux[A, D],
      R: Cached[Strict[DerivedProductJsDecoder[A, R, J, D]]]
    ): JsDecoder[A] = new JsDecoder[A] {
      def fromJson(j: JsValue) = j match {
        case o @ JsObject(_) =>
          R.value.value.fromJsObject(o.fields.toMap, J(), D()).map(G.from)
        case other => fail("JsObject", other)

We must move the .hcons and .hnil methods onto the companion of the new sealed typeclass, which can handle default values

  object DerivedProductJsDecoder {
      implicit def hnil[A]: DerivedProductJsDecoder[A, HNil, HNil, HNil] =
      new DerivedProductJsDecoder[A, HNil, HNil, HNil] {
        private val nil = Right(HNil)
        def fromJsObject(j: StringyMap[JsValue], a: HNil, defaults: HNil) = nil
    implicit def hcons[A, K <: Symbol, H, T <: HList, J <: HList, D <: HList](
      K: Witness.Aux[K],
      H: Lazy[JsDecoder[H]],
      T: DerivedProductJsDecoder[A, T, J, D]
    ): DerivedProductJsDecoder[A, FieldType[K, H] :: T, None.type :: J, Option[H] :: D] =
      new DerivedProductJsDecoder[A, FieldType[K, H] :: T, None.type :: J, Option[H] :: D] {
        private val fieldname =
        def fromJsObject(
          j: StringyMap[JsValue],
          anns: None.type :: J,
          defaults: Option[H] :: D
        ) =
          for {
            head <- j.get(fieldname) match {
                     case Maybe.Just(v) => H.value.fromJson(v)
                     case _ =>
                       defaults.head match {
                         case Some(default) => Right(default)
                         case None          => H.value.fromJson(JsNull)
            tail <- T.fromJsObject(j, anns.tail, defaults.tail)
          } yield field[K](head) :: tail

8.4.5 Example: UrlQueryWriter

Our drone-dynamic-agents application could benefit from a typeclass derivation of the UrlQueryWriter typeclass, which is built out of UrlEncodedWriter instances for each field entry. It does not support coproducts:

  @typeclass trait UrlQueryWriter[A] {
    def toUrlQuery(a: A): UrlQuery
  trait DerivedUrlQueryWriter[T] extends UrlQueryWriter[T]
  object DerivedUrlQueryWriter {
    def gen[T, Repr](
      G: LabelledGeneric.Aux[T, Repr],
      CR: Cached[Strict[DerivedUrlQueryWriter[Repr]]]
    ): UrlQueryWriter[T] = { t =>
    implicit val hnil: DerivedUrlQueryWriter[HNil] = { _ =>
    implicit def hcons[Key <: Symbol, A, Remaining <: HList](
      implicit Key: Witness.Aux[Key],
      LV: Lazy[UrlEncodedWriter[A]],
      DR: DerivedUrlQueryWriter[Remaining]
    ): DerivedUrlQueryWriter[FieldType[Key, A] :: Remaining] = {
      case head :: tail =>
        val first =
 -> URLDecoder.decode(LV.value.toUrlEncoded(head).value, "UTF-8")
        val rest = DR.toUrlQuery(tail)
        UrlQuery(first :: rest.params)

It is reasonable to ask if these 30 lines are actually an improvement over the 8 lines for the 2 manual instances our application needs: a decision to be taken on a case by case basis.

For completeness, the UrlEncodedWriter derivation can be written with Magnolia

  object UrlEncodedWriterMagnolia {
    type Typeclass[a] = UrlEncodedWriter[a]
    def combine[A](ctx: CaseClass[UrlEncodedWriter, A]) = a =>
      Refined.unsafeApply( { p =>
        p.label + "=" + p.typeclass.toUrlEncoded(p.dereference(a))
    def gen[A]: UrlEncodedWriter[A] = macro Magnolia.gen[A]

8.4.6 Drawbacks

Not only is fully automatic Shapeless derivation the most common cause of slow compiles, it is also a painful source of typeclass coherence bugs.

Fully automatic derivation is when the def gen are implicit such that a call will recurse for all entries in the ADT. Because of the way that implicit scopes work, an imported implicit def will have a higher priority than custom instances on companions, creating a source of typeclass decoherence. For example, consider this code if our .gen were implicit

  import DerivedJsEncoder._
  final case class Foo(s: String)
  object Foo {
    implicit val jsencoder: JsEncoder[Foo] = JsEncoder[String].contramap(_.s)
  final case class Bar(foo: Foo)

We might expect the full-auto encoded form of Bar("hello") to look like


because we have used .contramap for Foo. But it can instead be

    "foo": {

Worse yet is when implicit methods are added to the companion of the typeclass, meaning that the typeclass is always derived at the point of use and users are unable opt out.

Fundamentally, when writing generic programs, implicits can be ignored by the compiler depending on scope, meaning that we lose the compiletime safety that was our motivation for programming at the type level in the first place!

Everything is much simpler when implicit is only used for coherent, globally unique, typeclasses.

8.5 Performance

There is no silver bullet when it comes to typeclass derivation. An axis to consider is performance: both at compiletime and runtime. Compile Times

When it comes to compilation times, Shapeless is the outlier. It is not uncommon to see a small project expand from a one second compile to a one minute compile. To investigate compilation issues, we can profile our applications with the scalac-profiling plugin

  addCompilerPlugin("ch.epfl.scala" %% "scalac-profiling" % "1.0.0")
  scalacOptions ++= Seq("-Ystatistics:typer", "-P:scalac-profiling:no-profiledb")

It produces output that can generate a flame graph.

For a typical Shapeless derivation, we get a lively chart

almost the entire compile time is spent in implicit resolution. Note that this also includes compiling the Magnolia and manual instances, but the Shapeless computations dominate.

And this is when it works. If there is a problem with a shapeless derivation, the compiler can get stuck in an infinite loop and must be killed. Runtime Performance

If we move to runtime performance, the answer is always it depends.

Assuming that the derivation logic has been written in an efficient way, it is only possible to know which is faster through experimentation.

The jsonformat library uses the Java Microbenchmark Harness (JMH) on models that map to GeoJSON, Google Maps, and Twitter, contributed by Andriy Plokhotnyuk. There are three tests per model:

  • encoding the ADT to a JsValue
  • a successful decoding of the same JsValue back into an ADT
  • a failure decoding of a JsValue with a data error

applied to the following implementations:

  • Magnolia
  • Shapeless
  • manually written

with the equivalent optimisations in each. The results are in operations per second (higher is better), on a powerful desktop computer, using a single thread:

  > jsonformat/jmh:run -i 5 -wi 5 -f1 -t1 -w1 -r1 .*encode*
  Benchmark                                 Mode  Cnt       Score      Error  Units
  GeoJSONBenchmarks.encodeMagnolia         thrpt    5   70527.223 ±  546.991  ops/s
  GeoJSONBenchmarks.encodeShapeless        thrpt    5   65925.215 ±  309.623  ops/s
  GeoJSONBenchmarks.encodeManual           thrpt    5   96435.691 ±  334.652  ops/s
  GoogleMapsAPIBenchmarks.encodeMagnolia   thrpt    5   73107.747 ±  439.803  ops/s
  GoogleMapsAPIBenchmarks.encodeShapeless  thrpt    5   53867.845 ±  510.888  ops/s
  GoogleMapsAPIBenchmarks.encodeManual     thrpt    5  127608.402 ± 1584.038  ops/s
  TwitterAPIBenchmarks.encodeMagnolia      thrpt    5  133425.164 ± 1281.331  ops/s
  TwitterAPIBenchmarks.encodeShapeless     thrpt    5   84233.065 ±  352.611  ops/s
  TwitterAPIBenchmarks.encodeManual        thrpt    5  281606.574 ± 1975.873  ops/s

We see that the manual implementations are in the lead, followed by Magnolia, with Shapeless from 30% to 70% the performance of the manual instances. Now for decoding

  > jsonformat/jmh:run -i 5 -wi 5 -f1 -t1 -w1 -r1 .*decode.*Success
  Benchmark                                        Mode  Cnt       Score      Error  Units
  GeoJSONBenchmarks.decodeMagnoliaSuccess         thrpt    5   40850.270 ±  201.457  ops/s
  GeoJSONBenchmarks.decodeShapelessSuccess        thrpt    5   41173.199 ±  373.048  ops/s
  GeoJSONBenchmarks.decodeManualSuccess           thrpt    5  110961.246 ±  468.384  ops/s
  GoogleMapsAPIBenchmarks.decodeMagnoliaSuccess   thrpt    5   44577.796 ±  457.861  ops/s
  GoogleMapsAPIBenchmarks.decodeShapelessSuccess  thrpt    5   31649.792 ±  861.169  ops/s
  GoogleMapsAPIBenchmarks.decodeManualSuccess     thrpt    5   56250.913 ±  394.105  ops/s
  TwitterAPIBenchmarks.decodeMagnoliaSuccess      thrpt    5   55868.832 ± 1106.543  ops/s
  TwitterAPIBenchmarks.decodeShapelessSuccess     thrpt    5   47711.161 ±  356.911  ops/s
  TwitterAPIBenchmarks.decodeManualSuccess        thrpt    5   71962.394 ±  465.752  ops/s

This is a tighter race for second place, with Shapeless and Magnolia keeping pace. Finally, decoding from a JsValue that contains invalid data (in an intentionally awkward position)

  > jsonformat/jmh:run -i 5 -wi 5 -f1 -t1 -w1 -r1 .*decode.*Error
  Benchmark                                      Mode  Cnt        Score       Error  Units
  GeoJSONBenchmarks.decodeMagnoliaError         thrpt    5   981094.831 ± 11051.370  ops/s
  GeoJSONBenchmarks.decodeShapelessError        thrpt    5   816704.635 ±  9781.467  ops/s
  GeoJSONBenchmarks.decodeManualError           thrpt    5   586733.762 ±  6389.296  ops/s
  GoogleMapsAPIBenchmarks.decodeMagnoliaError   thrpt    5  1288888.446 ± 11091.080  ops/s
  GoogleMapsAPIBenchmarks.decodeShapelessError  thrpt    5  1010145.363 ±  9448.110  ops/s
  GoogleMapsAPIBenchmarks.decodeManualError     thrpt    5  1417662.720 ±  1197.283  ops/s
  TwitterAPIBenchmarks.decodeMagnoliaError      thrpt    5   128704.299 ±   832.122  ops/s
  TwitterAPIBenchmarks.decodeShapelessError     thrpt    5   109715.865 ±   826.488  ops/s
  TwitterAPIBenchmarks.decodeManualError        thrpt    5   148814.730 ±  1105.316  ops/s

Just when we thought we were seeing a pattern, both Magnolia and Shapeless win the race when decoding invalid GeoJSON data, but manual instances win the Google Maps and Twitter challenges.

The runtime performance of Magnolia and Shapeless is usually good enough. We should be realistic: we are not writing applications that need to be able to encode more than 130,000 values to JSON, per second, on a single core, on the JVM. If that is a problem, look into C++.

It is unlikely that derived instances will be an application’s bottleneck. Even if it is, there is the manually written escape hatch, which is more powerful and therefore more dangerous: it is easy to introduce typos, bugs, and even performance regressions by accident when writing a manual instance.

8.6 Summary

When deciding on a technology to use for typeclass derivation, this feature chart may help:

Feature Cats Magnolia Shapeless Manual
Laws yes
Fast compiles yes yes   yes
Field names   yes yes
Annotations   yes partially
Default values   yes with caveats
Complicated     yes
Performance       yes

Prefer Cats typeclasses of typeclasses if possible, using Magnolia for encoders / decoders or if performance is a larger concern, escalating to Shapeless for complicated derivations only if compilation times are not a concern.

There is no need to write derivation rules for Cats core typeclasses: the Typelevel Kittens project provides Shapeless-based derivation rules and Magnolify has Magnolia based rules.

Manual instances are always an escape hatch for special cases and to achieve the ultimate performance. Avoid introducing typo bugs with manual instances by using a code generation tool.

9. Wiring up the Application

To finish, we will apply what we have learnt to wire up the example application, and implement an HTTP client and server using the http4s pure FP library.

The source code to the drone-dynamic-agents application is available along with the book’s source code at under the examples folder. It is not necessary to be at a computer to read this chapter, but many readers may prefer to explore the codebase in addition to this text.

Some parts of the application have been left unimplemented, as an exercise to the reader.

9.1 Overview

Our main application only requires an implementation of the DynAgents algebra.

  trait DynAgents[F[_]] {
    def initial: F[WorldView]
    def update(old: WorldView): F[WorldView]
    def act(world: WorldView): F[WorldView]

We have an implementation already, DynAgentsModule, which requires implementations of the Drone and Machines algebras, which require a JsonClient, LocalClock and OAuth2 algebras, etc, etc, etc.

It is helpful to get a complete picture of all the algebras, modules and interpreters of the application. This is the layout of the source code:

  ├── dda
  │   ├── algebra.scala
  │   ├── DynAgents.scala
  │   ├── main.scala
  │   └── interpreters
  │       ├── DroneModule.scala
  │       └── GoogleMachinesModule.scala
  ├── http
  │   ├── JsonClient.scala
  │   ├── OAuth2JsonClient.scala
  │   ├── encoding
  │   │   ├── UrlEncoded.scala
  │   │   ├── UrlEncodedWriter.scala
  │   │   ├── UrlQuery.scala
  │   │   └── UrlQueryWriter.scala
  │   ├── oauth2
  │   │   ├── Access.scala
  │   │   ├── Auth.scala
  │   │   ├── Refresh.scala
  │   │   └── interpreters
  │   │       └── BlazeUserInteraction.scala
  │   └── interpreters
  │       └── BlazeJsonClient.scala
  ├── os
  │   └── Browser.scala
  └── time
      ├── Epoch.scala
      ├── LocalClock.scala
      └── Sleep.scala

The signatures of all the algebras can be summarised as

  trait Sleep[F[_]] {
    def sleep(time: FiniteDuration): F[Unit]
  trait LocalClock[F[_]] {
    def now: F[Epoch]
  trait JsonClient[F[_]] {
    def get[A: JsDecoder](
      uri: String Refined Url,
      headers: List[(String, String)]
    ): F[A]
    def post[P: UrlEncodedWriter, A: JsDecoder](
      uri: String Refined Url,
      payload: P,
      headers: List[(String, String)]
    ): F[A]
  trait Auth[F[_]] {
    def authenticate: F[CodeToken]
  trait Access[F[_]] {
    def access(code: CodeToken): F[(RefreshToken, BearerToken)]
  trait Refresh[F[_]] {
    def bearer(refresh: RefreshToken): F[BearerToken]
  trait OAuth2JsonClient[F[_]] {
    // same methods as JsonClient, but doing OAuth2 transparently
  trait UserInteraction[F[_]] {
    def start: F[String Refined Url]
    def open(uri: String Refined Url): F[Unit]
    def stop: F[CodeToken]
  trait Drone[F[_]] {
    def getBacklog: F[Int]
    def getAgents: F[Int]
  trait Machines[F[_]] {
    def getTime: F[Epoch]
    def getManaged: F[NonEmptyList[MachineNode]]
    def getAlive: F[Map[MachineNode, Epoch]]
    def start(node: MachineNode): F[Unit]
    def stop(node: MachineNode): F[Unit]

The data types are:

  final case class Epoch(millis: Long) extends AnyVal
  final case class MachineNode(id: String)
  final case class CodeToken(token: String, redirect_uri: String Refined Url)
  final case class RefreshToken(token: String) extends AnyVal
  final case class BearerToken(token: String, expires: Epoch)
  final case class OAuth2Config(token: RefreshToken, server: ServerConfig)
  final case class AppConfig(drone: BearerToken, machines: OAuth2Config)
  final case class UrlQuery(params: List[(String, String)]) extends AnyVal

and the typeclasses are

  @typeclass trait UrlEncodedWriter[A] {
    def toUrlEncoded(a: A): String Refined UrlEncoded
  @typeclass trait UrlQueryWriter[A] {
    def toUrlQuery(a: A): UrlQuery

And without going into the detail of how to implement the algebras, we need to know the dependency graph of our DynAgentsModule.

  final class DynAgentsModule[F[_]: Applicative](
    D: Drone[F],
    M: Machines[F]
  ) extends DynAgents[F] { ... }
  final class DroneModule[F[_]](
    H: OAuth2JsonClient[F]
  ) extends Drone[F] { ... }
  final class GoogleMachinesModule[F[_]](
    H: OAuth2JsonClient[F]
  ) extends Machines[F] { ... }

There are two modules implementing OAuth2JsonClient, one that will use the OAuth2 Refresh algebra (for Google) and another that reuses a non-expiring BearerToken (for Drone).

  final class OAuth2JsonClientModule[F[_]](
    token: RefreshToken
    H: JsonClient[F],
    T: LocalClock[F],
    A: Refresh[F]
    implicit F: MonadState[F, BearerToken]
  ) extends OAuth2JsonClient[F] { ... }
  final class BearerJsonClientModule[F[_]: Monad](
    bearer: BearerToken
    H: JsonClient[F]
  ) extends OAuth2JsonClient[F] { ... }

So far we have seen requirements for F to have an Applicative[F], Monad[F] and MonadState[F, BearerToken]. All of these requirements can be satisfied by using StateT[IO, BearerToken, ?] as our application’s context.

However, some of our algebras only have one interpreter, using IO

  final class LocalClockIO extends LocalClock[IO] { ... }
  final class SleepIO extends Sleep[IO] { ... }

But recall that our algebras shoud provide a .mapK, see Chapter 7.4 on the Monad Transformer Library, allowing us to lift a LocalClock[IO] into our desired StateT[IO, BearerToken, ?] context, and everything is consistent. Alternatively, we could have written these interpreters to use Effect.

Our BlazeJsonClient is abstracted over Effect, using Throwable as the error type. When we defined JsonClient.Error we extended Throwable for this reason. Since the underlying library fs2 is coupled to Effect it is not possible to use a custom error type, because we cannot add another MonadError on top of an Effect.

  final class BlazeJsonClient[F[_]: Effect] ... extends JsonClient[F] {
  object BlazeJsonClient {
    def apply[F[_]: Effect]: F[JsonClient[F]] = ...

OAuth2JsonClientModule requires a MonadState and BlazeJsonClient requires Effect. Our application’s context will now likely be a StateT[IO, BearerToken, ?].

We must not forget that we need to provide a RefreshToken for GoogleMachinesModule. We could ask the user to do all the legwork, but we are nice and provide a separate one-shot application that uses the Auth and Access algebras. The AuthModule and AccessModule implementations bring in additional dependencies, but thankfully no change to the application’s F[_] context.

  final class AuthModule[F[_]: Monad](
    config: ServerConfig
    I: UserInteraction[F]
  ) extends Auth[F] { ... }
  final class AccessModule[F[_]: Monad](
    config: ServerConfig
    H: JsonClient[F],
    T: LocalClock[F]
  ) extends Access[F] { ... }
  final class BlazeUserInteraction[F[_]: Effect] private (
    S: Sleep[F],
    pserver: Deferred[F, Server[F]],
    ptoken: Deferred[F, String]
  ) extends UserInteraction[IO] { ... }
  object BlazeUserInteraction {
    def apply[F[_]: ConcurrentEffect](S: Sleep[F]): F[BlazeUserInteraction[F]] = ...

The interpreter for UserInteraction is the most complex part of our codebase: it starts an HTTP server, sends the user to visit a webpage in their browser, captures a callback in the server, and then returns the result while safely shutting down the web server.

Rather than using a StateT to manage this state, we use a Deferred primitive. We should always use Deferred (or MVar) instead of a StateT when we are writing an IO interpreter since it allows us to restrict the mutability to inside the implementation. If we were to use a StateT, not only would it have a performance impact on the entire application, but it would also leak internal state management to the main application, which would become responsible for providing the initial value. We also couldn’t use StateT in this scenario because we need “wait for” semantics that are only provided by Deferred.

9.2 Main

Making sure that monads are all aligned tends to happen in the Main entrypoint.

Our main loop is

  state = initial()
  while True:
    state = update(state)
    state = act(state)

and the good news is that the actual code will look like

  for {
    old     <- F.get
    updated <- A.update(old)
    changed <- A.act(updated)
    _       <- F.put(changed)
    _       <- S.sleep(10.seconds)
  } yield ()

where F holds the state of the world in a MonadState[F, WorldView]. We can put this into a method called .step and repeat it forever by calling .step[F].forever[Unit].

Thankfully, the code we want to write for the one-shot authentication mode is all compatible with the same monadic context, IO

  def auth(name: String): IO[Unit] = {
    for {
      config    <- readConfig[ServerConfig](name + ".server")
      sleeper   = new SleepIO
      ui        <- BlazeUserInteraction(sleeper)
      auth      = new AuthModule(config)(ui)
      codetoken <- auth.authenticate
      clock     = new LocalClockIO
      client    <- BlazeJsonClient[IO]
      access    = new AccessModule(config)(client, clock)
      token     <- access.access(codetoken)
      _         <- putStrLn(s"got token: ${token._1}")
    } yield ()

where .readConfig and .putStrLn are library calls. We can think of them as IO interpreters of algebras that read the application’s runtime configuration and print a string to the screen.

However, the monads for the .agents loop do not align. If we perform an analysis we find that the following are needed:

  • MonadError[F, Throwable] for uses of the JsonClient
  • MonadState[F, BearerToken] for uses of the OAuth2JsonClient
  • MonadState[F, WorldView] for our main loop

Unfortunately, the two MonadState requirements are in conflict. We could construct a data type that captures all the state of the program, but that is a leaky abstraction. Instead, we nest our for comprehensions and provide state where it is needed.

We now need to think about our three layers, which we can refer to as the “outer”, “middle” and “inner” layers:

  type Outer[a] = IO[a]
  type Middle[a] = StateT[IO, BearerToken, a]
  type Inner[a] = StateT[Middle, WorldView, a]

The main application can be written as

  def agents(bearer: BearerToken): IO[Unit] = for {
    config  <- readConfig[AppConfig]("application.conf")
    blazeIO <- BlazeJsonClient[IO]
    blaze = blazeIO.mapK[Middle](liftIoK)
    _ <- {
      val bearerClient = new BearerJsonClientModule[Middle](bearer)(blaze)
      val drone        = new DroneModule[Middle](bearerClient)
      val clock        = (new LocalClockIO).mapK[Middle](liftIoK)
      val refresh      = new RefreshModule[Middle](config.machines.server)(blaze, clock)
      val oauthClient =
        new OAuth2JsonClientModule[Middle](config.machines.token)(blaze, clock, refresh)
      val machines = new GoogleMachinesModule[Middle](oauthClient)
      val agents   = new DynAgentsModule[Middle](drone, machines)
      for {
        start <- agents.initial
        sleeper = (new SleepIO).mapK[Inner](liftIoK)
        fagents = agents.mapK[Inner](StateT.liftK)
        _ <- step(fagents, sleeper).foreverM[Unit].runA(start)
      } yield ()
  } yield ()

The two calls to .runA are where we provide the initial state for the StateT parts of our application.

We can call these two application entry points from our IOApp

  def run(args: List[String]): IO[ExitCode] = {
    if (args.contains("--machines")) auth("machines")
    else agents(BearerToken("<invalid>", Epoch(0)))
  } {
    case Right(_)  => ExitCode.Success
    case Left(err) => ExitCode.Error

and then run it!

  > runMain fpmortals.dda.Main --machines
  [info] Running (fork) fpmortals.dda.Main --machines
  [info] Service bound to address /
  [info] Created new window in existing browser session.
  [info] Headers(Host: localhost:46687, Connection: keep-alive, User-Agent: Mozilla/5.0 ...)
  [info] POST
  [info] got token: "<elided>"


9.3 Blaze

We implement the HTTP client and server with the third party library http4s. The interpreters for their client and server algebras are called Blaze.

We need the following dependencies

  val http4sVersion = "0.18.16"
  libraryDependencies ++= Seq(
    "org.http4s"            %% "http4s-dsl"          % http4sVersion,
    "org.http4s"            %% "http4s-blaze-server" % http4sVersion,
    "org.http4s"            %% "http4s-blaze-client" % http4sVersion

9.3.1 BlazeJsonClient

We will need some imports

  import org.http4s
  import org.http4s.{ EntityEncoder, MediaType }
  import org.http4s.headers.`Content-Type`
  import org.http4s.client.Client
  import org.http4s.client.blaze.{ BlazeClientConfig, Http1Client }

The Client module can be summarised as

  final class Client[F[_]: Effect](val shutdown: F[Unit]) {
    def fetch[A](req: Request[F])(f: Response[F] => F[A]): F[A] = ...
    def fetch[A](req: F[Request[F]])(f: Response[F] => F[A]): F[A] = ...

where Request and Response are data types:

  final case class Request[F[_]](
    method: Method
    uri: Uri,
    headers: Headers,
    body: EntityBody[F]
  ) {
    def withBody[A](a: A)
                   (implicit F: Monad[F], A: EntityEncoder[F, A]): F[Request[F]] = ...
  final case class Response[F[_]](
    status: Status,
    headers: Headers,
    body: EntityBody[F]

made of

  final case class Headers(headers: List[Header])
  final case class Header(name: String, value: String)
  final case class Uri( ... )
  object Uri {
    // not total, only use if `s` is guaranteed to be a URL
    def unsafeFromString(s: String): Uri = ...
  final case class Status(code: Int) {
    def isSuccess: Boolean = ...
  type EntityBody[F[_]] = fs2.Stream[F, Byte]

The EntityBody type is an alias to Stream from the fs2 library. The Stream data type can be thought of as an effectful, lazy, pull-based stream of data. It is implemented as a Free monad with exception catching and interruption. Stream takes two type parameters: an effect type and a content type, and has an efficient internal representation for batching the data. For example, although we are using Stream[F, Byte], it is actually wrapping the raw Array[Byte] that arrives over the network.

We need to convert our header and URL representations into the versions required by http4s:

  def convert(headers: List[(String, String)]): http4s.Headers =
      headers.foldRight(List[http4s.Header]()) {
        case ((key, value), acc) => http4s.Header(key, value) :: acc
  def convert(uri: String Refined Url): http4s.Uri =
    http4s.Uri.unsafeFromString(uri.value) // we already validated our String

Both our .get and .post methods require a conversion from the http4s Response type into an A. We can factor this out into a single function, .handler

  final class BlazeJsonClient[F[_]] private (H: Client[F])(
    implicit F: Effect[F]
  ) extends JsonClient[F] {
    private[this] def handler[A: JsDecoder](
      resp: http4s.Response[F]
    ): F[Either[JsonClient.Error, A]] =
      if (!resp.status.isSuccess)
        for {
          text <- resp.body.through(fs2.text.utf8Decode).compile.foldMonoid
          res = JsParser(text)
        } yield res

The .through(fs2.text.utf8Decode) is to convert a Stream[F, Byte] into a Stream[F, String], with .compile.foldMonoid interpreting it with Effect and combining all the parts using the Monoid[String], giving us a F[String].

We then parse the string as JSON and use the JsDecoder[A] to create the required output.

This is our implementation of .get

  def get[A: JsDecoder](
    uri: String Refined Url,
    headers: List[(String, String)]
  ): F[A] =
      H.fetch(http4s.Request[F](uri = convert(uri),
                                headers = convert(headers)))

.get is all plumbing: we convert our input types into the http4s.Request, then call .fetch on the Client with our handler. This gives us back a F[Either[Error, A]], but we need to return a F[A]. Therefore we use the MonadError.fromEither to push the error into the F.

The implementation of .post is similar but we must also provide an instance of

  EntityEncoder[F, String Refined UrlEncoded]

Thankfully, the EntityEncoder typeclass provides conveniences to let us derive one from the existing String encoder

  private implicit val encoder: EntityEncoder[F, String Refined UrlEncoded] =
    EntityEncoder[F, String]
      .contramap[String Refined UrlEncoded](_.value)

The only difference between .get and .post is the way we construct our http4s.Request

    method = http4s.Method.POST,
    uri = convert(uri),
    headers = convert(headers)

and the final piece is the constructor, which is a case of calling Http1Client with a configuration object

  object BlazeJsonClient {
    def apply[F[_]: Effect]: F[JsonClient[F]] =
      Http1Client(BlazeClientConfig.defaultConfig).map(new BlazeJsonClient(_))

9.3.2 BlazeUserInteraction

We need to spin up an HTTP server, which is a lot easier than it sounds. First, the imports

  import org.http4s._
  import org.http4s.dsl._
  import org.http4s.server.Server
  import org.http4s.server.blaze._

We need to create a dsl for our effect type, which we then import

  private val dsl = new Http4sDsl[IO] {}
  import dsl._

Now we can use the http4s dsl to create HTTP endpoints. Rather than describe everything that can be done, we will simply implement the endpoint which is similar to any of other HTTP DSLs

  private object Code extends QueryParamDecoderMatcher[String]("code")
  private val service: HttpService[F] = HttpService[F] {
    case GET -> Root :? Code(code) => ...

The return type of each pattern match is a F[Response[IO]]. In our implementation we want to take the code and put it into the ptoken promise:

  final class BlazeUserInteraction[F[_]: Effect] private (
    S: Sleep[F],
    pserver: Deferred[F, Server[F]],
    ptoken: Deferred[F, String]
  ) extends UserInteraction[F] {
    private val service: HttpService[F] = HttpService[F] {
      case GET -> Root :? Code(code) =>
        ptoken.complete(code) >>
          Ok("That seems to have worked, go back to the console.")

but the definition of our services routes is not enough, we need to launch a server, which we do with BlazeBuilder

  private val launch: F[Server[F]] =
    BlazeBuilder[F].bindHttp(0, "localhost").mountService(service, "/").start

Binding to port 0 makes the operating system assign an ephemeral port. We can discover which port it is actually running on by querying the server.address field.

Our implementation of the .start, .stop and .open methods is now straightforward

  def start: F[String Refined Url] =
    for {
      server  <- launch
      _ <- pserver.complete(server)
    } yield mkUrl(server)
  def stop: F[CodeToken] =
    for {
      server <- pserver.get
      token  <- ptoken.get
      _      <- S.sleep(1.second) *> server.shutdown
    } yield CodeToken(token, mkUrl(server))
  def open(url: String Refined Url): F[Unit] = Effect[F].liftIO(
  private def mkUrl(s: Server[F]): String Refined Url = {
    val port = s.address.getPort

The 1.second sleep is necessary to avoid shutting down the server before the response is sent back to the browser. IO doesn’t mess around when it comes to concurrency performance!

Finally, to create a BlazeUserInteraction, we just need to ask for an implementation of Sleep[F] and create two uninitialised Deferred promises

  object BlazeUserInteraction {
    def apply[F[_]: ConcurrentEffect](S: Sleep[F]): F[BlazeUserInteraction[F]] = {
      for {
        p1 <- Deferred[F, Server[F]]
        p2 <- Deferred[F, String]
      } yield new BlazeUserInteraction(S, p1, p2)

9.4 Thank You

And that is it! Congratulations on reaching the end.

If you learnt something from this book, then please tell your friends. This book does not have a marketing department, so word of mouth is the only way that readers find out about it.

Get involved with Cats by joining the gitter chat room. From there you can ask for advice, help newcomers (you’re an expert now), and contribute to the next release.

10. Typeclass Cheatsheet

Typeclass Method From Given To
Invariant imap F[A] A => B, B => A F[B]
Contravariant contramap F[A] B => A F[B]
ContravariantMonoidal contramap2 F[A], F[B] C => (A, B) F[C]
  trivial     F[A]
Functor map F[A] A => B F[B]
Apply map2 F[A], F[B] (A, B) => C F[C]
Semigroupal product F[A], F[B]   F[(A, B)]
Applicative pure A   F[A]
FlatMap flatMap / >>= F[A] A => F[B] F[B]
  flatten F[F[A]]   F[A]
CoflatMap coflatMap F[A] F[A] => B F[B]
  coflatten F[A]   F[F[A]]
Comonad extract F[A]   A
Semigroup combine A, A   A
SemigroupK combineK / <+> F[A], F[A]   F[A]
Alternative unite F[G[A]]   F[A]
  separate F[G[A, B]]   F[G[A, B]]
Align align F[A], F[B]   F[Ior[A, B]]
Foldable foldMap F[A] A => B B
  foldMapM F[A] A => G[B] G[B]
Traverse traverse F[A] A => G[B] G[F[B]]
  sequence F[G[A]]   G[F[A]]
Eq eqv / === A, A   Boolean
Show show A   String
Bifunctor bimap F[A, B] A => C, B => D F[C, D]
  leftMap F[A, B] A => C F[C, B]
Bifoldable bifoldMap F[A, B] A => C, B => C C
Bitraverse bitraverse F[A, B] A => G[C], B => G[D] G[F[C, D]]
  bisequence F[G[A], G[B]]   G[F[A, B]]

11. Haskell

Cats documentation often cites libraries or papers written in the Haskell programming language. In this short chapter, we will learn enough Haskell to be able to understand the source material, and to attend Haskell talks at functional programming conferences.

11.1 Data

Haskell has a very clean syntax for ADTs. This is a linked list structure:

  data List a = Nil | Cons a (List a)

List is a type constructor, a is the type parameter, | separates the data constructors, which are: Nil the empty list and a Cons cell. Cons takes two parameters, which are separated by whitespace: no commas and no parameter brackets.

There is no subtyping in Haskell, so there is no such thing as the Nil type or the Cons type: both construct a List.

Roughly translated to Scala:

  sealed abstract class List[A]
  object Nil {
    def apply[A]: List[A] = ...
    def unapply[A](as: List[A]): Option[Unit] = ...
  object Cons {
    def apply[A](head: A, tail: List[A]): List[A] = ...
    def unapply[A](as: List[A]): Option[(A, List[A])] = ...

i.e. the type constructor is like sealed abstract class, and each data constructor is .apply / .unapply. Note that Scala does not perform exhaustive pattern matches on this encoding, which is why Cats does not use this encoding.

We can use infix, a nicer definition might use the symbol :. instead of Cons

  data List t = Nil | t :. List t
  infixr 5 :.

where we specify a fixity, which can be infix, infixl or infixr for no, left, and right associativity, respectively. A number from 0 (loose) to 9 (tight) specifies precedence. We can now create a list of integers by typing

  1 :. 2 :. Nil

Haskell already comes with a linked list, which is so fundamental to functional programming that it gets language-level square bracket syntax [a]

  data [] a = [] | a : [a]
  infixr 5 :

and a convenient multi-argument value constructor: [1, 2, 3] instead of 1 : 2 : 3 : [].

Ultimately our ADTs need to hold primitive values. The most common primitive data types are:

  • Char a unicode character
  • Text for blocks of unicode text
  • Int a machine dependent, fixed precision signed integer
  • Word an unsigned Int, and fixed size Word8 / Word16 / Word32 / Word64
  • Float / Double IEEE single and double precision numbers
  • Integer / Natural arbitrary precision signed / non-negative integers
  • (,) tuples, from 0 (also known as unit) to 62 fields
  • IO the inspiration for Cats’ IO, implemented in the runtime.

with honorary mentions for

  data Bool       = True | False
  data Maybe a    = Nothing | Just a
  data Either a b = Left a  | Right b
  data Ordering   = LT | EQ | GT

Like Scala, Haskell has type aliases: an alias or its expanded form can be used interchangeably. For legacy reasons, String is defined as a linked list of Char

  type String = [Char]

which is very inefficient and we always want to use Text instead.

Finally we can define field names on ADTs using record syntax, which means we contain the data constructors in curly brackets and use double colon type annotations to indicate the types

  -- raw ADT
  data Resource = Human Int String
  data Company  = Company String [Resource]
  -- with record syntax
  data Resource = Human
                  { serial    :: Int
                  , humanName :: String
  data Company  = Company
                  { companyName :: String
                  , employees   :: [Resource]

Note that the Human data constructor and Resource type do not have the same name. Record syntax generates the equivalent of a field accessor and a copy method.

  -- construct
  adam = Human 0 Adam
  -- field access
  serial adam
  -- copy
  eve = adam { humanName = "Eve" }

A more efficient alternative to single field data definitions is to use a newtype, which has no runtime overhead:

  newtype Alpha = Alpha { underlying :: Double }

equivalent to extends AnyVal but without the caveats.

11.2 Functions

Although not necessary, it is good practice to explicitly write the type signature of a function: its name followed by its type. For example foldl specialised for a linked list

  foldl :: (b -> a -> b) -> b -> [a] -> b

All functions are curried in Haskell, each parameter is separated by a -> and the final type is the return type. This is equivalent to the following Scala signature:

  def foldLeft[A, B](f: (B, A) => B)(b: B)(as: List[A]): B

Some observations:

  • there is no keyword
  • there is no need to declare the types that are introduced
  • there is no need to name the parameters

which makes for terse code.

Infix functions are defined in parentheses and need a fixity definition:

  (++) :: [a] -> [a] -> [a]
  infixr 5 ++

Regular functions can be called in infix position by surrounding their name with backticks. The following are equivalent:

  a `foo` b
  foo a b

An infix function can be called like a regular function if we keep it surrounded by brackets, and can be curried on either the left or the right, often giving different semantics:

  invert = (1.0 /)
  half   = (/ 2.0)

Functions are typically written with the most general parameter first, to enable maximum reuse of the curried forms.

The definition of a function may use pattern matching, with one line per case. This is where we may name the parameters, using the data constructors to extract parameters much like a Scala case clause:

  fmap :: (a -> b) -> Maybe a -> Maybe b
  fmap f (Just a) = Just (f a)
  fmap _ Nothing  = Nothing

Underscores are a placeholder for ignored parameters and function names can be in infix position:

  (<+>) :: Maybe a -> Maybe a -> Maybe a
  Just a <+> _      = Just a
  Empty  <+> Just a = Just a
  Empty  <+> Empty  = Empty

We can define anonymous lambda functions with a backslash, which looks like the Greek letter λ. The following are equivalent:

  (\a1 -> \a2 -> a1 * a2)
  (\a1 a2     -> a1 * a2)

Pattern matched Haskell functions are just syntax sugar for nested lambda functions. Consider a simple function that creates a tuple when given three inputs:

  tuple :: a -> b -> c -> (a, b, c)

The implementation

  tuple a b c = (a, b, c)

desugars into

  tuple = \a -> \b -> \c -> (a, b, c)

In the body of a function we can create local value bindings with let or where clauses. The following are equivalent definitions of map for a linked list (an apostrophe is a valid identifier name):

  map :: (a -> b) -> [a] -> [b]
  -- explicit
  map f as = foldr map' [] as
             where map' a bs = f a : bs
  -- terser, making use of currying
  map f    = foldr map' []
             where map' a = (f a :)
  -- let binding
  map f    = let map' a = (f a :)
             in foldr map' []
  -- actual implementation
  map _ []       = []
  map f (x : xs) = f x : map f xs

if / then / else are keywords for conditional statements:

  filter :: (a -> Bool) -> [a] -> [a]
  filter _ [] = []
  filter f (head : tail) = if f head
                           then head : filter f tail
                           else filter f tail

An alternative style is to use case guards

  filter f (head : tail) | f head    = head : filter f tail
                         | otherwise = filter f tail

Pattern matching on any term is with case ... of

  unfoldr :: (a -> Maybe (b, a)) -> a -> [b]
  unfoldr f b = case f b of
                  Just (b', a') -> b' : unfoldr f a'
                  Nothing       -> []

Guards can be used within matches. For example, say we want to special case zeros:

  unfoldrInt :: (a -> Maybe (Int, a)) -> a -> [Int]
  unfoldrInt f b = case f b of
                     Just (i, a') | i == 0    -> unfoldrInt f a'
                                  | otherwise -> i : unfoldrInt f a'
                     Nothing                  -> []

Finally, two functions that are worth noting are ($) and (.)

  -- application operator
  ($) :: (a -> b) -> a -> b
  infixr 0
  -- function composition
  (.) :: (b -> c) -> (a -> b) -> a -> c
  infixr 9

Both of these functions are stylistic alternatives to nested parentheses.

The following are equivalent:

  Just (f a)
  Just $ f a

as are

  putStrLn (show (1 + 1))
  putStrLn $ show $ 1 + 1

There is a tendency to prefer function composition with . instead of multiple $

  (putStrLn . show) $ 1 + 1

11.3 Typeclasses

To define a typeclass we use the class keyword, followed by the name of the typeclass, its type parameter, then the required members in a where clause.

If there are dependencies between typeclasses, i.e. Applicative requires a Functor to exist, we call this a constraint and use => notation:

  class Functor f where
    (<$>) :: (a -> b) -> f a -> f b
    infixl 4 <$>
  class Functor f => Applicative f where
    pure  :: a -> f a
    (<*>) :: f (a -> b) -> f a -> f b
    infixl 4 <*>
  class Applicative f => Monad f where
    (=<<) :: (a -> f b) -> f a -> f b
    infixr 1 =<<

We provide an implementation of a typeclass with the instance keyword. If we wish to repeat the type signature on instance functions, useful for clarity, we must enable the InstanceSigs language extension.

  {-# LANGUAGE InstanceSigs #-}
  data List a = Nil | a :. List a
  -- defined elsewhere
  (++) :: List a -> List a -> List a
  map :: (a -> b) -> List a -> List b
  flatMap :: (a -> List b) -> List a -> List b
  foldLeft :: (b -> a -> b) -> b -> List a -> b
  instance Functor List where
    (<$>) :: (a -> b) -> List a -> List b
    f <$> as = map f as
  instance Applicative List where
    pure a = a :. Nil
    Nil <*> _  = Nil
    fs  <*> as = foldLeft (++) Nil $ (<$> as) <$> fs
  instance Monad List where
    f =<< list = flatMap f list

If we have a typeclass constraint in a function, we use the same => notation. For example we can define something similar to Cats’ Apply.map2

  apply2 :: Applicative f => (a -> b -> c) -> f a -> f b -> f c
  apply2 f fa fb = f <$> fa <*> fb

Since we have introduced Monad, it is a good time to introduce do notation, which was the inspiration for Scala’s for comprehensions:

    a <- f
    b <- g
    c <- h
    pure (a, b, c)

desugars to

  f >>= \a ->
    g >>= \b ->
      h >>= \c ->
        pure (a, b, c)

where >>= is =<< with parameters flipped

  (>>=) :: Monad f => f a -> (a -> f b) -> f b
  (>>=) = flip (=<<)
  infixl 1 >>=
  -- from the stdlib
  flip :: (a -> b -> c) -> b -> a -> c

Unlike Scala, we do not need to bind unit values, or provide a yield if we are returning (). For example

  for {
    _ <- putStr("hello")
    _ <- putStr(" world")
  } yield ()

translates to

  do putStr "hello"
     putStr " world"

Non-monadic values can be bound with the let keyword:

  nameReturn :: IO String
  nameReturn = do putStr "What is your first name? "
                  first <- getLine
                  putStr "And your last name? "
                  last  <- getLine
                  let full = first ++ " " ++ last
                  putStrLn ("Pleased to meet you, " ++ full ++ "!")
                  pure full

Finally, Haskell has typeclass derivation with the deriving keyword. Defining the derivation rules is an advanced topic, but it is easy to derive a typeclass for an ADT:

  data List a = Nil | a :. List a
                deriving (Eq, Ord)

11.4 Records of Functions

In Scala, typeclasses and algebras are both defined as a trait interface. Typeclasses are injected by the implicit feature and algebras are passed as explicit parameters. There is no language-level support in Haskell for algebras: they are just data!

Consider Console from the introduction. We can rewrite it into Haskell:

  data Console m = Console
                    { println :: Text -> m ()
                    , readln  :: m Text

with business logic using a Monad constraint

  echo :: (Monad m) => Console m -> m ()
  echo c = do line <- readln c
              println c line

A production implementation of Console would likely have type Console IO. The Cats .liftIO function is inspired by a Haskell function of the same name and can lift Console IO into any Monad stack.

Two additional language extensions make the business logic even cleaner. For example, RecordWildCards allows us to import all the fields of a data type by using {..}:

  echo :: (Monad m) => Console m -> m ()
  echo Console{..} = do line <- readln
                        println line

NamedFieldPuns requires each imported field to be listed explicitly, which is more boilerplate but makes the code easier to read:

  echo :: (Monad m) => Console m -> m ()
  echo Console{readln, println} = do line <- readln
                                     println line

Whereas in Scala this encoding may be called Finally Tagless, in Haskell it is known as MTL style with records of functions.

An alternative to MTL style are Extensible Effects, also known as Free Monad style.

11.5 Modules

Haskell source code is arranged into hierarchical modules with the restriction that all contents of a module must live in a single file. The top of a file declares the module name

  module Silly.Tree where

A convention is to use directories on disk to organise the code, so this file would go into Silly/Tree.hs.

By default all symbols in the file are exported but we can choose to export specific members, for example the Tree type and data constructors, and a fringe function, omitting sapling:

  module Silly.Tree (Tree(..), fringe) where
  data Tree a = Leaf a | Branch (Tree a) (Tree a)
  fringe :: Tree a -> [a]
  fringe (Leaf x)            = [x]
  fringe (Branch left right) = fringe left ++ fringe right
  sapling :: Tree String
  sapling = Leaf ""

Interestingly, we can export symbols that are imported into the module, allowing library authors to package up their entire API into a single module, regardless of how it is implemented.

In a different file we can import all the exported members from Silly.Tree

  import Silly.Tree

which is roughly equivalent to Scala’s import silly.tree._ syntax. If we want to restrict the symbols that we import we can provide an explicit list in parentheses after the import

  import Silly.Tree (Tree, fringe)

Here we only import the Tree type constructor (not the data constructors) and the fringe function. If we want to import all the data constructors (and pattern matchers) we can use Tree(..). If we only want to import the Branch constructor we can list it explicitly:

  import Silly.Tree (Tree(Branch), fringe)

If we have a name collision on a symbol we can use a qualified import, with an optional list of symbols to import

  import qualified Silly.Tree (fringe)

and now to call the fringe function we have to type Silly.Tree.fringe instead of just fringe. We can change the name of the module when importing it

  import qualified Silly.Tree as T

The fringe function is now accessed by T.fringe.

Alternatively, rather than select what we want to import, we can choose what not to import

  import Silly.Tree hiding (fringe)

By default the Prelude module is implicitly imported but if we add an explicit import from the Prelude module, only our version is used. We can use this technique to hide unsafe legacy functions

  import Prelude hiding ((!!), head)

or use a custom prelude and disable the default prelude with the NoImplicitPrelude language extension.

11.6 Evaluation

Haskell compiles to native code, there is no virtual machine, but there is a garbage collector. A fundamental aspect of the runtime is that all parameters are lazily evaluated by default. Haskell treats all terms as a promise to provide a value when needed, called a thunk. Thunks get reduced only as much as necessary to proceed, no more.

A huge advantage of lazy evaluation is that it is much harder to trigger a stack overflow! A disadvantage is that there is an overhead compared to strict evaluation, which is why Haskell allows us to opt in to strict evaluation on a per parameter basis.

Haskell is also nuanced about what strict evaluation means: a term is said to be in weak head normal-form (WHNF) if the outermost code blocks cannot be reduced further, and normal form if the term is fully evaluated. Scala’s default evaluation strategy roughly corresponds to normal form.

For example, these terms are normal form:

  (2, "foo")
  \x -> x + 1

whereas these are not in normal form (they can be reduced further):

  1 + 2            -- reduces to 3
  (\x -> x + 1) 2  -- reduces to 3
  "foo" ++ "bar"   -- reduces to "foobar"
  (1 + 1, "foo")   -- reduces to (2, "foo")

The following terms are in WHNF because the outer code cannot be reduced further (even though the inner parts can be):

  (1 + 1, "foo")
  \x -> 2 + 2
  'f' : ("oo" ++ "bar")

and the following are not in WHNF

  1 + 1              -- reduces to 2
  (\x y -> x + y) 2  -- reduces to \y -> 2 + y
  "foo" ++ "bar"     -- reduces to "foobar"

The default evaluation strategy is to perform no reductions when passing a term as a parameter. Language level support allows us to request WHNF for any term with ($!)

  -- evaluates `a` to WHNF, then calls the function with that value
  ($!) :: (a -> b) -> a -> b
  infixr 0

We can use an exclamation mark ! on data parameters

  data StrictList t = StrictNil | !t :. !(StrictList t)
  data Employee = Employee
                    { name :: !Text
                    , age :: !Int

The StrictData language extension enables strict parameters for all data in the module.

Another extension, BangPatterns, allows ! to be used on the arguments of functions. The Strict language extension makes all functions and data parameters in the module strict by default.

Going to the extreme we can use ($!!) and the NFData typeclass for normal form evaluation:

  class NFData a where
    rnf :: a -> ()
  ($!!) :: (NFData a) => (a -> b) -> a -> b

which is subject to the availability of an NFData instance.

The cost of strictness is that Haskell behaves like any other strict language and may perform unnecessary work. Opting in to strictness must therefore be done with great care, and only for measured performance improvements. If in doubt, be lazy and stick with the defaults.

11.7 Next Steps

Haskell is a faster, safer and simpler language than Scala and has proven itself in industry. Consider taking the data61 course on functional programming, and ask questions in the #qfpl chat room on

Some additional learning materials are:

If you enjoy using Haskell and understand the value that it would bring to your business, then tell your managers! That way, the small percentage of managers who commission Haskell projects will be able to attract functional programming talent from the many teams who do not, and everybody will be happy.

12. Third Party Licenses

Some of the source code in this book has been copied from free / libre software projects. The license of those projects require that the following texts are distributed with the source that is presented in this book.

12.1 Scala License

  Copyright (c) 2002-2017 EPFL
  Copyright (c) 2011-2017 Lightbend, Inc.
  All rights reserved.
  Redistribution and use in source and binary forms, with or without modification,
  are permitted provided that the following conditions are met:
    * Redistributions of source code must retain the above copyright notice,
      this list of conditions and the following disclaimer.
    * Redistributions in binary form must reproduce the above copyright notice,
      this list of conditions and the following disclaimer in the documentation
      and/or other materials provided with the distribution.
    * Neither the name of the EPFL nor the names of its contributors
      may be used to endorse or promote products derived from this software
      without specific prior written permission.

12.2 Cats License

  Cats Copyright (c) 2015 Cats Contributors.
  Permission is hereby granted, free of charge, to any person obtaining a copy of
  this software and associated documentation files (the "Software"), to deal in
  the Software without restriction, including without limitation the rights to
  use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies
  of the Software, and to permit persons to whom the Software is furnished to do
  so, subject to the following conditions:
  The above copyright notice and this permission notice shall be included in all
  copies or substantial portions of the Software.
  Copyright (c) 2009-2014 Tony Morris, Runar Bjarnason, Tom Adams,
  Kristian Domagala, Brad Clow, Ricky Clarkson, Paul Chiusano, Trygve
  Laugstøl, Nick Partridge, Jason Zaugg. All rights reserved.
  Redistribution and use in source and binary forms, with or without
  modification, are permitted provided that the following conditions
  are met:
  1. Redistributions of source code must retain the above copyright
     notice, this list of conditions and the following disclaimer.
  2. Redistributions in binary form must reproduce the above copyright
     notice, this list of conditions and the following disclaimer in the
     documentation and/or other materials provided with the distribution.
  3. The name of the author may not be used to endorse or promote products
     derived from this software without specific prior written permission.
